P0442 on 2007-2010 Saturn Outlook: EVAP Small Leak Causes and Fixes

What's Unique About the 2007-2010 Saturn OUTLOOK

The Saturn Outlook shares its GM Lambda platform with the Buick Enclave, GMC Acadia, and Chevrolet Traverse. These vehicles are known for issues with the EVAP purge and vent solenoids. While a gas cap is always the first suspect, the purge valve (solenoid) is a particularly common failure point on this specific platform, often triggering a P0496 code 🎬 Watch: How to fix rough starts after refueling by replacing the purge valve. alongside the P0442. A manufacturer Technical Service Bulletin (TSB #PIT4943D) was issued, directing technicians to use a specific EVAP system tester and providing a detailed diagnostic flow that includes checking for a leaking purge solenoid with a smoke machine. [⭐ MANUFACTURER TSB — highest authority] This suggests that finding the source of the leak can be tricky without the right tools, but also points to the purge valve as a primary area of concern. [⭐ MANUFACTURER TSB — highest authority]

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• A faint smell of fuel, particularly around the gas cap area or when parked in a garage.
• Difficulty starting the engine right after filling up with gas (a strong indicator of a faulty purge valve).
• Slightly reduced fuel efficiency in some cases.
• Difficulty filling the fuel tank if the vent valve or its hose is blocked.

Most Likely Causes

1. Loose, Worn, or Incorrect Gas Cap 🔴 High Probability → Shop Fuel Tank Cap This is the most common cause for a P0442 code on any vehicle. The rubber seal on the cap can degrade over time, or the cap may not have been tightened properly after refueling, causing a leak the system detects.
   How to confirm: Remove the gas cap, inspect the seal for cracks or brittleness, and clean the cap and filler neck. Reinstall the cap, ensuring it clicks several times. Clear the code and drive for a few days to see if it returns. Using a high-quality OEM cap is recommended as some aftermarket caps do not seal correctly.
   Typical fix: Replace the gas cap with a new OEM or high-quality aftermarket part.
   Est. part cost: $15-$30
2. Faulty EVAP Purge Valve/Solenoid 🟡 Medium Probability → Shop Vapor Canister This is a very common failure on the GM Lambda platform. The valve, which is normally closed, can get stuck partially open, causing a condition the system interprets as a small leak. It frequently causes a P0496 code to appear along with P0442.

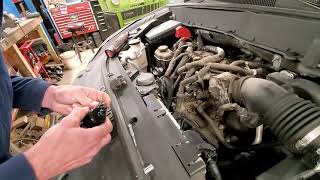

   How to confirm: The purge valve is located on top of the engine. A key symptom is difficulty starting after refueling. To test it, with the engine off, remove the valve (typically one bolt) and try to blow through it. If air passes through, the valve is stuck open and faulty. Alternatively, with the engine running, disconnect the vacuum hose from the valve and feel for suction with your finger; there should be no suction at idle.
   Typical fix: Replace the purge valve solenoid. This is a straightforward DIY repair that usually requires only basic tools.
   Est. part cost: $25-$50
3. Faulty EVAP Vent Valve/Solenoid 🟡 Medium Probability → Shop Vapor Canister This valve is located near the charcoal canister under the vehicle, typically above the rear axle near the spare tire. Its exposure to road debris and moisture makes it prone to failure, where it can get stuck open or fail to seal properly during the EVAP system self-test.
   How to confirm: A smoke test is the most effective way to confirm a leak at the vent valve. A scan tool can also be used to command the valve closed to check its operation. A symptom of a faulty vent valve can sometimes be a clicking noise from the rear of the vehicle or difficulty filling the fuel tank.
   Typical fix: Replace the vent valve solenoid. Access may require lowering the spare tire.
   Est. part cost: $30-$60
4. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Over time, the rubber and plastic hoses in the EVAP system can become brittle and crack, especially at connection points and elbows in harsh climates.
   How to confirm: Visually inspect all accessible EVAP lines between the engine bay, charcoal canister, and fuel tank. Pay close attention to rubber fittings. A smoke test is the most reliable method to find small, hard-to-see cracks.
   Typical fix: Replace the damaged section of the hose or the entire hose assembly.
   Est. part cost: $10-$40

Rare But Worth Checking

• Cracked Charcoal Canister: → Shop Vapor Canister The plastic housing of the charcoal canister can develop small cracks over time, leading to a leak. This is usually found with a smoke test after other, more common causes have been ruled out.
• Rusted Fuel Filler Neck: → Shop Fuel Filler Neck In areas with heavy road salt use, the metal fuel filler neck can rust, creating an uneven surface that prevents the gas cap from sealing correctly. The rust can often be cleaned off with a wire brush to restore a good sealing surface.

Diagnosis Steps

1. Check the gas cap. Ensure it is tight and the seal is not cracked or worn. An OEM cap is recommended for replacement. Clear the code and drive for a few days.
2. If the code returns, check for the 'hard start after refueling' symptom. If present, the purge valve is the primary suspect. Test it by removing it and attempting to blow through it; if air passes, it's faulty.
3. Perform a visual inspection of the EVAP system hoses in the engine bay and under the vehicle near the fuel tank. Look for any obvious cracks, breaks, or loose connections, especially at rubber elbows.
4. If the problem is not obvious, the most effective next step is to have a smoke test performed. A mechanic will inject smoke into the EVAP system to quickly and accurately find the source of the leak.
5. Using a scan tool, command the EVAP vent and purge solenoids to open and close to verify their electrical function and ability to seal the system.

Parts You'll Likely Need

• Gas Cap (OEM #20882859) — This is the most frequent cause of a P0442 code due to wear on the seal or improper tightening. It's the first and cheapest part to check.
  Trusted brands: ACDelco, Stant
  OEM price range: $20-$30
  Aftermarket price range: $15-$25
• Vapor Canister Purge Valve / Solenoid (OEM #12610560) — A very common failure item on this platform. It gets stuck open, causing a leak and often a P0496 code as well. Symptoms include difficulty starting after getting gas.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $40-$60
  Aftermarket price range: $25-$50
• Vapor Canister Vent Valve / Solenoid (OEM #214-2149) — Located under the car, this valve is exposed to the elements and often fails by not sealing correctly during system tests. It's a common cause after the gas cap and purge valve have been ruled out.
  Trusted brands: ACDelco, Dorman
  OEM price range: $50-$75
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• P0455 — Indicates a large EVAP leak. Sometimes, after fixing a large leak (like a disconnected hose), the system may then detect a pre-existing smaller leak, triggering P0442.
• P0496 — Indicates 'EVAP Flow During a Non-Purge Condition'. This code almost always points to a faulty purge valve that is stuck open. This is a very common companion code to P0442 on the Saturn Outlook and its platform mates.
• P0449 — This code points specifically to a fault in the EVAP vent valve control circuit. A problem with the vent valve can also cause a P0442 leak code.

Technical Service Bulletins (TSBs) & Recalls

• PIT4943D: Advises technicians on diagnosing a P0442 code. It details a procedure using a smoke machine to test the system, specifically checking if smoke passes through the purge solenoid when it should be closed, indicating a faulty solenoid. It also mentions checking for leaks that only appear under vacuum. [⭐ MANUFACTURER TSB — highest authority]

Platform-Specific Known Issues

• High Failure Rate of Purge Valve: → Shop Vapor Canister The EVAP purge valve solenoid (P/N 12610560) is a notoriously common failure point on the 2007-2010 Saturn Outlook and its Lambda platform siblings. It often gets stuck open, causing both P0442 and P0496 codes, along with a distinct symptom of a long crank or rough start after refueling.
• Vent Valve Location and Failure: The EVAP vent valve solenoid on the Outlook is located under the vehicle, attached to or near the charcoal canister, which is positioned near the fuel tank. Its exposed location makes it susceptible to dirt and moisture, leading to corrosion and failure to seal.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Solenoid Resistance — expected: 20-24 Ohms. Failure: A reading outside this range, or an open/infinite resistance, indicates a failed solenoid coil.
• Fuel Tank Pressure (FTP) Sensor Voltage (Key On, Engine Off) — expected: Approximately 1.3 - 1.7 Volts. Failure: A reading significantly outside this range with the gas cap off (system at atmospheric pressure) points to a faulty sensor or circuit issue.
• EVAP Purge Solenoid Resistance (General GM) — expected: 15-50 Ohms. Failure: An open circuit (infinite resistance) or a reading far outside this range suggests a failed coil.

Hidden / Shadow Codes Worth Checking

• P0442 Test Pre-Conditions: This is not a code, but a set of hidden requirements the ECM must see before it will run the P0442 diagnostic test. The test will not run if other specific EVAP codes (like P0443, P0455, P0496) are already present. It also requires specific ambient temperature (35-90°F), fuel level (11-88%), and other parameters to be met. (see via This logic is detailed in the factory service manual and explains why the code may take several drive cycles to appear or clear.)

Scan Tool Commands That Help

• Tech2 / GDS2 (or equivalent professional scanner): EVAP Purge/Seal — This bidirectional function allows a technician to manually command the purge and vent valves to seal the entire EVAP system. This is used to trap pressure or vacuum for leak testing, bypassing the automatic test conditions.
• Tech2 / GDS2 (or equivalent professional scanner): EVAP Vent Solenoid Valve ON/OFF — This command toggles the vent solenoid, which is normally open. A technician can command it closed to seal the system for a smoke test and listen for an audible click to confirm the solenoid is activating.

Wiring & Ground Locations

• EVAP Canister Vent Solenoid — At the top rear of the fuel tank, connected to the charcoal canister.. This is a primary component for sealing the system. Its location makes its wiring susceptible to damage from road debris.
• G301 — Behind the left kick panel, inside the passenger cabin.. This is a major interior ground point. A poor connection here can cause erratic behavior in various modules that communicate with the Engine Control Module (ECM), potentially affecting sensor readings and system tests.
• G102 — On the right inner fender panel in the engine compartment.. This is a key ground point in the engine bay. A corroded or loose G102 ground could affect the operation of engine-mounted components, including the purge solenoid.
• Underhood Fuse Block — Above the right front wheel well.. This block contains fuses and relays essential for the EVAP system, such as the 'PCM IGN' and 'EMISSION 2' fuses. A fault here would typically cause a circuit code, but is a necessary check.

Real Owner Repair Stories

• GM Forum User (Buick Enclave) (Buick Enclave (Lambda Platform sibling)) — Persistent P0442 code and a smell of gasoline.
  ❌ Tried (didn't work) Replaced EVAP purge valve, Replaced EVAP vent valve
  ✅ What actually fixed it The gasket for the Fuel Tank Pressure (FTP) sensor was found to be leaking and was replaced. The sensor is part of the fuel pump module, and the leak was confirmed after noticing the fuel smell was strongest near the fuel pump access panel.
• Chevy/GMC Forum User (Chevy/GMC Truck (similar GM EVAP design)) — P0442 code after replacing fuel filler neck.
  ❌ Tried (didn't work) Assuming the new part was good.
  ✅ What actually fixed it The aftermarket fuel filler neck was found to be leaking at the crimp where the plastic end meets the metal pipe. The owner sealed this seam with black RTV sealant, which resolved the leak and the code.

"I Checked Everything" — The Actual Cause

• A weak purge valve that does not leak under the low positive pressure of a smoke machine but is pulled open by engine vacuum when driving. The TSB for this vehicle specifically advises checking for leaks that only appear under vacuum. [⭐ MANUFACTURER TSB — highest authority]
• A leaking gasket on the Fuel Tank Pressure (FTP) sensor. The leak may be too small or located in a way that it is not easily found with a smoke test, but it is enough to cause the system to fail its pressure decay test.
• An intermittently failing vent valve solenoid that seals properly during a test but fails to close completely under certain driving conditions.

OEM Part Supersession History

• 12610560 (Purge Valve) → 12737252 — Standard part evolution and potential design improvement by the manufacturer.
  Heads up: The new part number is a direct replacement. This part is also cross-referenced to aftermarket numbers like Dorman 911-082 and Standard Motor Products CP612.
• 25932571 (Vent Valve - GM P/N) → ACDelco 214-2149 (Service P/N) — This is the corresponding service part number from ACDelco.
  Heads up: These numbers refer to the same part. Ensure visual match of connectors and ports before installation.

Model Year Variations Within This Range

• 2007-2008 vs 2009-2010: The engine was changed for the 2009 model year from the port-injected 3.6L LY7 V6 to the direct-injected 3.6L LLT V6. While the overall function and location of major EVAP components remained the same (purge valve on engine, vent valve at tank), some specific part numbers, wiring harness connectors, or hose routing may have minor differences between these two engine versions. Always verify parts by VIN.
