P0442 on 2003-2014 Volvo XC90: EVAP Small Leak Causes and Fixes

What's Unique About the 2003-2014 Volvo XC90

For the first-generation Volvo XC90 and its P2 platform mates, the EVAP system is fairly conventional, but owners frequently report this specific code. The most common culprits are simple and inexpensive parts that degrade over time. The gas cap seal is notoriously prone to drying out. Additionally, a specific pre-formed rubber 'J-hose' (PN 30757307) connecting the charcoal canister to the Leak Detection Pump (LDP) in the rear driver's side wheel well often becomes brittle and cracks, making it the second-most-likely cause. While more complex components can fail, experience from owners suggests starting with these two basic parts is almost always the right approach for this platform.

Symptoms You May Notice

• Check Engine Light is on.
• A faint smell of fuel, particularly around the rear of the vehicle or near the gas cap.
• A "Loose Fuel Cap" or "Emission System Service Required" message may appear on the driver information display.

Most Likely Causes

1. Loose or Faulty Gas Cap 🔴 High Probability → Shop Fuel Tank Cap The rubber seal on the gas cap is a very common failure point. Over time, it becomes hard, brittle, and cracked, preventing a proper seal. Using non-OEM (aftermarket) caps is a known cause of sealing issues, as they may not meet the precise pressure specifications.
   How to confirm: Inspect the gas cap's rubber O-ring for any visible cracks, tearing, or hardening. Ensure the cap clicks several times when tightened. If the seal looks worn or is torn, it is the prime suspect.
   Typical fix: Replace the gas cap with a new, genuine Volvo part (Part Number 31392044). This is an inexpensive and simple first step that resolves the issue in a majority of cases.
   Est. part cost: $30-$50
2. Cracked EVAP 'J-Hose' by Charcoal Canister 🟡 Medium Probability → Shop Vapor Canister The EVAP system uses a combination of hard plastic lines and short rubber connector hoses. A specific pre-formed, U-shaped or J-shaped rubber hose connecting the charcoal canister to the Leak Detection Pump (LDP) is a known weak point. Located in the driver's side rear wheel well, it's exposed to the elements and road debris, causing it to dry out and crack.
   How to confirm: Visually inspect the hoses in the rear driver's side wheel well, near the canister. You may need to remove the wheel for better access. The J-hose is small and its cracks can be hard to see without flexing it. A smoke test is the most effective 🎬 See how to find a small leak in the J-hose. method to definitively pinpoint a leak in this hose if it's not visually obvious.
   Typical fix: Replace the cracked J-hose. It is often sold as part of a larger hose assembly (Part Number 30757307), but some owners splice in a generic piece of correctly-sized fuel-vapor-rated hose as a more affordable alternative.
   Est. part cost: $20-$60 for the hose, potentially more if sold as an assembly.
3. Faulty EVAP Purge Valve ⚪ Low Probability → Shop Vapor Canister The purge valve (or purge solenoid), typically located in the engine bay near the radiator fan shroud on 5-cylinder models, can become stuck partially open, creating a constant small leak.
   How to confirm: With the engine off, the valve should be closed. You can test this by removing the valve and trying to blow through it; no air should pass. A scan tool can also be used to command the valve to open and close while monitoring system pressure.
   Typical fix: Replace the EVAP purge valve. Bosch is the OEM supplier (Part Number example: 0280142422). This is generally an easy part to access and replace in the engine compartment.
   Est. part cost: $50-$100
4. Faulty Leak Detection Pump (LDP) or Cracked Charcoal Canister ⚪ Low Probability → Shop Evaporative Emissions System Leak Detection Pump The charcoal canister housing can develop cracks from road debris. The associated Leak Detection Pump (LDP), also called a DMTL pump, can also fail, though it often sets its own specific codes like P2402. Overfilling the fuel tank can saturate the canister with liquid fuel, causing damage and triggering leak codes.
   How to confirm: Visually inspect the canister (located near the rear axle, behind the spare tire) for any cracks. Diagnosing a faulty LDP often requires a Volvo-specific scan tool (VIDA) to run a system self-test or a smoke test to confirm the leak isn't elsewhere.
   Typical fix: Replace the charcoal canister assembly or the Leak Detection Pump. This is more involved, requiring the vehicle to be raised and the spare tire removed for access.
   Est. part cost: $150-$300

Rare But Worth Checking

• Cracked Fuel Tank Filler Neck: → Shop Fuel Tank While less common, the metal or plastic pipe leading to the fuel tank can develop small rust holes or cracks, causing an EVAP leak that can be very difficult to find without a smoke test.
• Corroded wiring harness: In some cases, water intrusion under the driver's seat can corrode a wiring harness, causing a short in the LDP circuit and triggering EVAP codes.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0442 is present.
2. Inspect the gas cap. Ensure it is tight and clicks. Remove it and check the rubber seal for cracks, stiffness, or damage. If in doubt, replace it with a Genuine Volvo cap (PN 31392044) as the first and most likely fix.
3. Clear the code and drive the vehicle for a few days to complete a drive cycle. If the light returns, proceed to the next step.
4. If the light returns, perform a targeted visual inspection of the 'J-hose' in the driver's side rear wheel well. Remove the wheel for better access and check this small rubber hose for cracks.
5. If no visual damage is found, the most effective next step is to have a smoke test performed. This involves injecting pressurized, UV-dyed smoke into the EVAP system and looking for where it escapes. This will definitively 🎬 Watch: How to perform a professional EVAP smoke test. identify the location of any leak.
6. Based on the smoke test results, replace the leaking component, which could be a hose, the purge valve, the canister, or the fuel tank filler neck.
7. If a smoke machine is not available, you can proceed to inspect individual components. The next most likely culprit after the J-hose is the purge valve in the engine bay. Test to see if it holds vacuum when closed.
8. Finally, inspect the charcoal canister and Leak Detection Pump (LDP) for physical damage or cracks. The LDP is located behind the spare tire.

Parts You'll Likely Need

• Fuel Tank Cap (OEM #31392044) — This is the most frequent cause of a P0442 code on the XC90. The seal wears out, causing a small leak that the system detects. Using a genuine OEM part is highly recommended.
  Trusted brands: Genuine Volvo
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• EVAP System 'J-Hose' (OEM #30757307 (as part of an assembly)) — This specific small rubber hose in the rear wheel well is prone to cracking from age and exposure, creating a small leak. It is the second most common failure point after the gas cap.
  Trusted brands: Genuine Volvo
  OEM price range: $40-$70 (for hose/assembly)
  Aftermarket price range: $10-$25 (for generic hose)
• Vapor Canister Purge Valve (OEM #0280142422 (Bosch)) — Can get stuck open, causing a persistent small leak. It's a common failure point after the gas cap and hoses have been ruled out.
  Trusted brands: Bosch, Genuine Volvo
  OEM price range: $70-$120
  Aftermarket price range: $40-$80

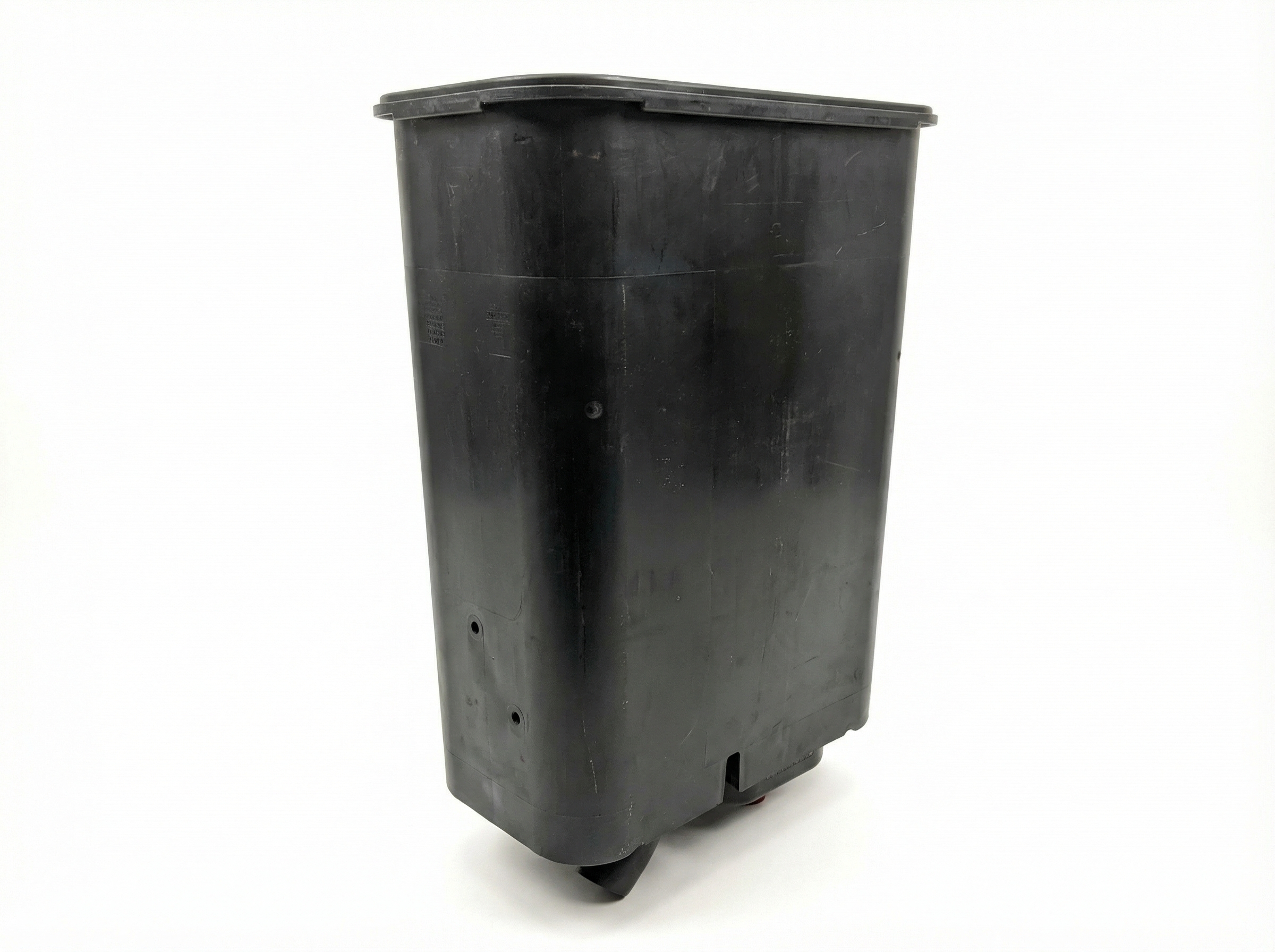

• Charcoal Canister (OEM #30650221, 30684417) — Less common, but the canister can crack or be damaged by overfilling the fuel tank. It's typically replaced only after a smoke test confirms it is the source of the leak.
  Trusted brands: Genuine Volvo
  OEM price range: $250-$350
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0455 — This code indicates a large EVAP leak. If a component fails significantly (like a completely broken hose or a very bad gas cap seal), it may trigger a P0455 instead of or alongside a P0442.
• P0456 — This code indicates a very small EVAP leak. It shares all the same potential causes as P0442, and which code gets triggered depends on the precise size of the leak detected by the ECM.

Technical Service Bulletins (TSBs) & Recalls

• Volvo Technical Journal TJ 25215: This document provides information and guidelines for tracing EVAP leaks, which can be useful for technicians diagnosing a persistent P0442 code.

Platform-Specific Known Issues

• Recall R24069 was issued for some 2005 XC90 models for a software upgrade related to 'Poor Purge Performance'. While not a direct fix for a

Hidden / Shadow Codes Worth Checking

• ECM-430D: This is the Volvo-specific Diagnostic Trouble Code (DTC) corresponding to the generic P0442 code, indicating a small leak in the fuel system. The ECM triggers this code if the system pressure falls too quickly during a self-test. (see via A Volvo-specific scan tool like VIDA/DICE is required to read this manufacturer-specific code.)

Scan Tool Commands That Help

• VIDA (Volvo Information & Diagnostic Application): EVAP System Leak Test — This function allows a technician to command the EVAP system components, such as the canister purge valve and vent valve, to open or close. This is essential for performing a smoke test, as the vent valve must be commanded shut to seal the system for pressurization.
• High-end generic OBD-II Scanner: Activation Test / Bidirectional Control — Some advanced scanners offer bidirectional control to activate the purge and vent valves. This allows for testing the functionality of the solenoids and sealing the system for a smoke test without needing Volvo-specific software.

Wiring & Ground Locations

• EVAP Purge Valve Connector — Varies by engine. On the 4.4L V8, it's at the back of the engine. On the 3.2L I6, it's in the engine bay to the left of the air intake ductwork. On 5-cylinder turbo models, it's often near the radiator fan shroud.. A damaged connector or wiring at this location can prevent the purge valve from operating correctly, mimicking a faulty valve. The connector is a 2-pin, weatherproof male connector.
• Leak Detection Pump (LDP) Connector — The LDP is located behind the spare tire, underneath the vehicle. The electrical connector plugs directly into the pump assembly.. Corrosion or damage to this connector or its wiring can cause LDP malfunction, leading to incorrect leak detection and triggering EVAP codes.
• Central Electronic Module (CEM) / Rear Electronic Module (REM) — The CEM is located in the passenger compartment, while the REM is in the cargo area. They control the EVAP system components.. These modules provide power and control signals to the EVAP valves and pump. While rare, a fault within these modules or their wiring could cause EVAP system codes.

Real Owner Repair Stories

• Reddit user in r/Volvo (Unknown year Volvo) — P0442 code
  ❌ Tried (didn't work) Replacing the gas cap
  ✅ What actually fixed it The issue was resolved by replacing the EVAP Vapor Canister Purge Valve.
• YouTube video by John Sadler's Auto Repair (2007 Volvo XC90) — P0442 and P0455 codes, check engine light would stay off for a month or two at a time.
  ❌ Tried (didn't work) Customer was quoted for a software update and leak detection pump by the dealer.
  ✅ What actually fixed it A visual inspection revealed a tear in the rubber seal of the OEM gas cap. Replacing the gas cap with a new factory part was the correct fix.
• YouTube video by Nance Auto Repair (Volvo XC90 with 3.2L engine) — Check engine light with a code for 'incorrect purge flow'.
  ✅ What actually fixed it Diagnosed and replaced a faulty EVAP purge solenoid (purge valve). The check engine light went out on its own after replacement without needing to be cleared. The video notes the genuine Volvo part (PN 8653908) is a re-boxed Delphi part.

OEM Part Supersession History

• 30636587, 30769237, 31321925, 8613986 → 31392044 — Design updates and consolidation of part numbers for the fuel tank cap across multiple Volvo models.
  Heads up: While multiple numbers exist, 31392044 is the current recommended genuine replacement for the 2003-2014 XC90.
• N/A → 30757307 — This part number refers to the entire hose assembly which includes the failure-prone 'J-hose'. It is typically not sold separately by Volvo.
  Heads up: The assembly fits a wide range of P2 platform cars (S60, V70, XC90) but may have slight variations based on model year and emission codes. It is crucial to verify fitment with a VIN.

Model Year Variations Within This Range

• 2005-2011 (V8), 2007-2014 (3.2L I6): The location of the EVAP Purge Valve varies significantly by engine. On the 4.4L V8, it is located at the rear of the engine, requiring removal of a cross-bar and engine cover for access. On the 3.2L I6, it is located in the front of the engine bay near the air intake ducting and is more accessible. On the 5-cylinder turbo models, it is typically found near the radiator fan shroud.
• 2015+ (Second Generation): Later model XC90s (2015+) feature a capless fuel filler system. For these vehicles, a P0442 code cannot be a loose gas cap. The cause is often dirt or debris on the seal of the capless filler neck flap, which can be fixed by cleaning the seal and applying a silicone-based lubricant.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0455 — EVAP Emission Control System Leak Detected (Gross Leak). Often appears alongside P0442 when a leak worsens, such as a completely torn gas cap seal, as noted in owner reports.
• P2402 — EVAP Leak Detection Pump Control Circuit High. The Leak Detection Pump (LDP) can fail and trigger this specific code instead of or alongside a P0442 leak code.
• ECM-430D — This is the Volvo-specific diagnostic trouble code (DTC) equivalent to the generic OBD-II P0442 code, indicating an EVAP system small leak.
• P0456 — EVAP Emission Control System Leak Detected (Very Small Leak). Shares the exact same root causes as P0442 (gas cap, J-hose, purge valve) but triggers at a smaller leak threshold.

Frequently Asked Questions
