P0443 on 2011-2016 Chevrolet Cruze: EVAP Purge Valve Circuit Causes and Fixes

What's Unique About the 2011-2016 Chevrolet Cruze

The first-generation Chevrolet Cruze, with either the 1.4L Turbo or 1.8L engine, is well-known for frequent EVAP purge valve failures. While the part is slightly different between the two engines, the failure mode and resulting P0443 code are identical and extremely common. The issue became so prevalent that GM issued a special coverage warranty extension (N192210240) for this part on some model years. Unlike many cars where this code could point to complex wiring issues, on the Cruze, the valve itself is the culprit in the vast majority of cases, a fact heavily documented by owners on forums like CruzeTalk.com.

Symptoms You May Notice

• Check Engine Light is on
• Rough idle, engine hesitation, or RPMs dropping at a stop

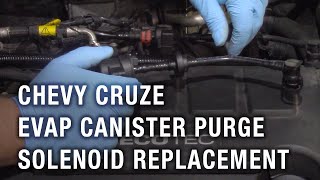

• Engine sputtering, stalling, or having a long crank time immediately after refueling. 🎬 Watch: See common symptoms and how to replace the valve. The car may run rough for a few seconds and then normalize.
• Slightly reduced fuel economy
• A high-pitched whistling or chirping sound from the engine bay if the purge valve failure is related to a larger PCV system issue on the 1.4L engine.
• A "Reduced Propulsion" message on the dashboard may accompany the check engine light in some GM hybrid variants (NHTSA ODI #11632222).

Most Likely Causes

1. Failed EVAP Purge Solenoid Valve 🔴 High Probability → Shop Vapor Canister The original equipment purge valves on this platform have an extremely high failure rate. The internal solenoid coil can fail electrically (causing P0443), or the valve can physically stick open (often causing P0496 and hard starts after fueling). The issue is common to both the 1.4L and 1.8L engines.
   How to confirm: With the engine off, disconnect the electrical connector and the EVAP line from the valve that goes to the charcoal canister (not the intake manifold side). Try to blow through the valve; it should be closed and allow no air to pass. If you can blow through it, it's stuck open and has failed. You can also apply 12V and ground to the two pins on the valve; you should hear a distinct 'click' as it opens. If it doesn't click, it has failed electrically.
   Typical fix: Replace the EVAP purge solenoid valve. The part is located on top of the engine, is easily accessible, and can be replaced in under 15 minutes 🎬 Watch: 1.4L engine purge valve diagnostic and replacement walkthrough. with no tools. The hoses and electrical connector are push-to-release.
   Est. part cost: $25-$75
2. Damaged Wiring or Connector ⚪ Low Probability While less common than valve failure, the wiring harness connector can become brittle from engine heat cycles, or wires can break right at the connector base. This causes an open circuit and triggers P0443. Manufacturer Bulletin #PIT5336 notes that technicians may find the Emission 1 fuse is open and should inspect for damaged wires on the engine harness.
   How to confirm: Visually inspect the electrical connector and the two wires leading to it for any signs of cracking, corrosion, or breaks. With the key on (engine off), use a multimeter to check for 12V power on the power supply pin in the connector. Gently wiggle the wires to see if the connection is intermittent.
   Typical fix: Repair the broken wire or replace the connector pigtail. The pigtail can be spliced into the existing harness. The ACDelco pigtail part number is often PT168.
   Est. part cost: $15-$35

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM's internal driver for the purge valve circuit would have to fail. All other possibilities, especially the purge valve itself and its wiring, should be exhausted before considering the ECM as the cause. A mechanic on a forum noted that if you have power at the connector but no ground signal when commanded by a scan tool, and the wire has continuity to the ECM, the ECM driver is the likely (but rare) culprit.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0443 is present.
2. Locate the EVAP purge valve on top of the engine. It's a small black cylinder with two hoses and a two-wire electrical connector.
3. Visually inspect the electrical connector and wiring. Look for obvious damage, corrosion, or broken wires right at the back of the connector.
4. Test the valve's default state (Mechanical Test). Disconnect the hoses. The valve should be normally closed. Try to blow through it from the canister side to the intake side; if any air passes, the valve is stuck open and must be replaced.
5. Test the valve's electrical function (Solenoid Test). Using a 12V power source (like a Power Probe or a 12V battery with jumper leads), apply power and ground to the two pins on the valve itself. It should make an audible 'click'. If it does not click, its internal solenoid has failed and the valve is bad.
6. If the valve tests good, check for power at the harness connector. With the ignition on (engine off), one of the two wires (typically Pink/Black) should have 12V battery voltage. The other wire is the control wire that the ECM pulses to ground to activate the solenoid.
7. If power is present at the connector and the valve clicks on the bench test, the issue is likely intermittent. Given the extremely high failure rate of this part, replacing the purge valve is still the most logical and cost-effective next step.

Parts You'll Likely Need

• EVAP Vapor Canister Purge Valve (for 1.4L Turbo Engine) (OEM #55573017) — This is the most common failure point for code P0443 on the 1.4L Cruze. The original part is prone to sticking or electrical failure. The ACDelco professional part number is 214-2317, which is often the same part as the GM Genuine one.
  Trusted brands: GM Genuine, ACDelco, Dorman (911-409), Bosch
  OEM price range: $50-$90
  Aftermarket price range: $25-$60

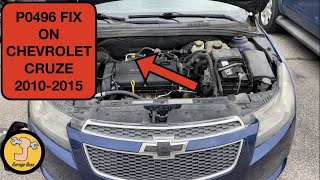

• EVAP Vapor Canister Purge Valve (for 1.8L Engine) (OEM #55567453) — This is the corresponding part for the 1.8L engine, 🎬 Watch: How to fix P0443 and P0496 on 1.8L engines. which also has a very high failure rate leading to code P0443.
  Trusted brands: GM Genuine, ACDelco, Dorman, Bosch
  OEM price range: $40-$80
  Aftermarket price range: $25-$50
• Purge Valve Connector Pigtail (OEM #PT168 (ACDelco)) — In the rare case that the connector itself or the wires immediately attached to it are broken, this pigtail is needed to repair the harness.
  Trusted brands: ACDelco, Dorman, Carquest
  OEM price range: $30-$40
  Aftermarket price range: $15-$25

Related Codes That Often Appear With This One

• P0171 — If the purge valve fails by sticking open, it creates a constant vacuum leak, allowing unmetered fuel vapor and air into the intake manifold. This makes the engine run lean and can trigger a 'System Too Lean (Bank 1)' code.
• P0496 — This code indicates 'EVAP Flow During a Non-Purge Condition,' which is the direct result of a purge valve that is stuck open. It frequently appears alongside or instead of P0443 when the valve fails mechanically in the open position rather than electrically.

Technical Service Bulletins (TSBs) & Recalls

• N192210240 - Special Coverage for Evaporative Emissions Purge Valve. Covers 2016 Cruze, among other GM vehicles, for a purge valve that may not close properly.
• Bulletin #PIP5552 - A manufacturer preliminary information bulletin noting that engineering is investigating a condition where P0443 or P0459 may set.
• Bulletin #PIT5336 - Notes that P0443 may be accompanied by an open Emission 1 fuse, requiring an inspection of the engine harness for damaged wires.

Platform-Specific Known Issues

• GM Special Coverage N192210240: This program extended the warranty on the EVAP purge valve for the 2016 Chevrolet Cruze. It addresses a condition where the valve may not fully close, causing rough idle, hesitation, and setting a trouble code. The coverage is for 10 years or 120,000 miles from the vehicle's original in-service date, whichever occurs first. Owners should contact a GM dealer with their VIN to verify eligibility.

Mechanic-Grade Diagnostic Values

• EVAP Purge Solenoid Coil Resistance — expected: 20 - 40 Ohms. Failure: An open circuit (infinite resistance) or a short (near zero resistance) indicates a failed solenoid.
• Voltage at Purge Valve Connector (Power Pin) — expected: Battery Voltage (approx. 12.6V with key on, engine off). Failure: No voltage indicates a problem with the power supply circuit, such as a blown fuse or broken wire.
• Voltage at Purge Valve Connector (Control Pin) — expected: This is a ground-side switched circuit. Voltage will be near battery voltage when inactive and will be pulsed to ground by the ECM when commanded ON.. Failure: No voltage when inactive, or voltage that does not drop when commanded ON by a scan tool, points to a wiring or ECM driver issue.

Scan Tool Commands That Help

• GDS2 / Tech2 / High-End Bidirectional Scanner: EVAP Purge/Seal — This function allows a technician to command the purge solenoid ON and OFF to verify its operation. While commanding it ON, you should hear an audible click from the valve and see a change in EVAP system pressure or fuel trims if the engine is running. This is the definitive test to see if the valve is responding to the ECM's command.
• GDS2 / Tech2 / High-End Bidirectional Scanner: EVAP Purge Solenoid Control (%) — This allows you to manually vary the duty cycle of the purge solenoid from 0% to 100%. This is useful for checking if the valve is sticking at certain positions or to verify the ECM driver can control the circuit across its full range.

Wiring & Ground Locations

• K20 ECM Connector X1, Pin 15 — The Engine Control Module (ECM) is located on the left side of the engine compartment. Pin 15 of the X1 connector is for the EVAP Canister Purge Solenoid Control.. This is the specific pin on the ECM that sends the ground signal to activate the purge valve. A continuity test from this pin to the control wire at the valve connector can confirm if the wire is intact. The wire is typically Dark Green/Dark Blue.
• Purge Valve Connector Pin 1 (Power) — The two-pin connector on the purge valve itself, located on top of the intake manifold.. This pin receives ignition voltage (12V) to power the solenoid. The wire is often Pink/Black. Lack of power here points to a fuse or wiring issue upstream, not the valve itself.
• Purge Valve Connector Pin 2 (Control) — The two-pin connector on the purge valve itself.. This pin is the control side, which is grounded by the ECM at Pin 15 to activate the valve. The wire is typically Dark Green/Dark Blue.
• G103 / G105 / G114 — G103 is on the left front shock tower. G105 is at the left front of the engine compartment. G114 is on the left rear of the engine.. These are primary engine and chassis ground points. While P0443 is not typically caused by a bad ground, a corroded or loose main engine ground can cause a variety of unpredictable electrical issues, including problems with sensor and actuator circuits. Verifying these grounds are clean and tight is a good practice when diagnosing any electrical fault.

Documented NHTSA Reports

• NHTSA ODI #11448862: An owner reported a message on the console stating the engine was offline, with P0443 found among several other electrical and emission codes.
• NHTSA ODI #11681144: A report describes a failure to circulate coolant properly alongside a list of CEL codes including P0443, noting this is a known issue.
• NHTSA ODI #11632222: An owner reported a "Reduced Propulsion" message on the dash and found fuse F03 blown, which was linked to an EGR valve issue and multiple codes including P0443.

Real Owner Repair Stories

• Reddit r/MechanicAdvice (2011 Chevy Cruze LS) — Check Engine Light with code P0443.
  ❌ Tried (didn't work) The owner had previously replaced the purge valve 6 months prior to fix a P0442 code.
  ✅ What actually fixed it Upon inspection for the new P0443 code, the owner discovered the green (control) wire had broken off right at the base of the connector. The final fix was to repair the wire by de-pinning the connector, soldering the wire back to the pin, and reassembling.
• Reddit r/cruze (Year not specified) — EVAP code P0443
  ✅ What actually fixed it The owner found the top blue wire on the purge valve connector was disconnected/broken. The fix was to repair the broken wire at the connector.

OEM Part Supersession History

• 55573017 (1.4L Engine) → This part number is still largely current, but has been cross-referenced and packaged by various brands. ACDelco 214-2317 is the professional service part. Dorman 911-409 is a common aftermarket replacement. — Standard part lifecycle and aftermarket availability.
• 55567453 (1.8L Engine) → This part number is still current for many applications but is heavily cross-referenced. Common replacements include ACDelco 214-2317 (Note: this number is used for both 1.4 and 1.8L applications by some suppliers, verify fitment), CP780, PV703, and 2M1337. — Standard part lifecycle and aftermarket availability.
  Heads up: Some aftermarket suppliers use the same part number (e.g., 214-2317) for both the 1.4L and 1.8L engines, even though the OEM numbers are different. Always verify the specific application with the seller before purchasing to ensure correct fitment.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: It almost never makes sense to buy a used EVAP purge valve for this vehicle. The OEM part has a notoriously high failure rate, so a used part from a junkyard is likely to have a very short remaining life or could even be faulty from the start.

Donor-vehicle mileage cap: roughly under 10000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Not recommended, but if absolutely necessary, look for a donor vehicle with extremely low mileage.
• Inspect the plastic for any signs of cracking or brittleness from heat.
• Ensure the electrical connector pins are clean and free of corrosion.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (Considered OEM)
• Bosch
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• While Dorman is a popular and often adequate choice, some forum users prefer to stick with ACDelco or Bosch for this specific part due to its high failure frequency, assuming the OEM-equivalent parts may have better long-term reliability.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0496 — This code for 'Evaporative Emission System High Purge Flow' is often caused by the exact same component failure. P0443 indicates an electrical circuit fault with the purge valve, while P0496 indicates a mechanical fault where the same valve is physically stuck open.
• P0171 — A common failure mode for the purge valve is to stick open, creating a vacuum leak. This allows unmetered air into the engine, causing a lean condition that can trigger a P0171 (System Too Lean Bank 1) code.
• P0299 — On the 1.4L turbo engine, the context notes that purge valve issues can be linked to larger PCV system failures. These failures create significant boost leaks, which can trigger a P0299 (Turbocharger Underboost) code.
• P1101 — Also related to the common PCV system failures on the 1.4L engine, a large unmetered air leak from a bad purge valve or PCV diaphragm can cause the Mass Airflow (MAF) sensor's calculated airflow to be out of its expected range, triggering P1101 (Intake Air Flow System Performance).
