P0443 on 2012-2020 Chevrolet Sonic: EVAP Purge Valve Circuit Causes and Fixes

What's Unique About the 2012-2020 Chevrolet Sonic

On the Chevrolet Sonic and its platform-mates, the Cruze, Trax, and Buick Encore, the EVAP purge solenoid valve has a notoriously high failure rate. This issue is extremely common across both the 1.4L Turbo and 1.8L engine options. The failure is so frequent that for most owners experiencing a P0443 code, the purge valve itself is the immediate and primary suspect, often before even considering wiring issues. The part is conveniently located on top of the engine, making it one of the easiest and most common DIY repairs for Sonic owners, often requiring no tools.

Generation note: The 2012-2020 Chevrolet Sonic is a single generation (T300), though it received a facelift for the 2017 model year. The causes and fixes for P0443 are the same for all years and apply to both the 1.4L Turbo and 1.8L engines.

Symptoms You May Notice

• Check Engine Light is on.
• Rough idle, especially if the valve is stuck open.
• Difficulty starting, sputtering, or stalling immediately after refueling.
• Slight decrease in fuel economy.
• Audible rapid clicking or rattling noise from the purge valve on top of the engine.

Most Likely Causes

1. Failed EVAP Purge Solenoid Valve 🔴 High Probability → Shop Vapor Canister The original equipment purge valve has a very high failure rate on this platform due to internal electrical faults or the valve mechanism sticking. This is a widely documented issue across forums and repair videos for the Sonic and its platform mates. Manufacturer Bulletin #PIP5552 notes that engineering has investigated conditions where P0443 sets alongside other EVAP codes.

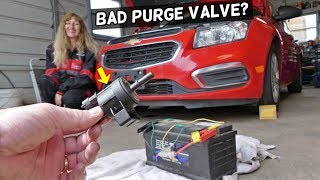

   How to confirm: With the engine off, disconnect the electrical connector and apply 12 volts and a ground to the two pins on the valve. A healthy valve will make an audible 'click'. If it does not click, it has failed electrically. Alternatively, with the valve removed, try to blow through it; it should be closed and pass no air. If air passes, it is stuck open. A simple 'suck test' can also be performed: with the valve removed, create suction on one port with your mouth; if it doesn't hold a vacuum, it's bad.
   Typical fix: Replace the EVAP Purge Solenoid Valve. The part is located on the engine and is held in place by a mounting bracket and two quick-disconnect hoses. No tools are typically required for replacement, as the hoses have press-release tabs and the valve slides off its bracket.
   Est. part cost: $25-$75
2. Damaged Wiring or Connector ⚪ Low Probability Rodents have been known to chew through the wiring harness in the engine bay, causing an open or short circuit. Manufacturer Bulletin #PIT5336 indicates that technicians may find an open Emission 1 fuse and should inspect for damaged wires on the engine harness when P0443 is present.
   How to confirm: Visually inspect the wiring harness and connector going to the purge valve for any signs of breaks, corrosion, or brittleness from heat. Use a multimeter to check for 12V power at the connector with the key on. A small blue safety tab on the connector may need to be slid or pried out before the main release tab can be pressed.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail.
   Est. part cost: $5-$25

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM should only be considered after the purge valve and its entire circuit have been thoroughly tested and confirmed to be in good working order.

Diagnosis Steps

1. Confirm the P0443 code is present using an OBD-II scanner.
2. Visually inspect the EVAP purge solenoid valve, which is located on top of the engine, for any obvious damage.
3. Inspect the electrical connector and wiring harness attached to the valve for breaks, corrosion, or loose connections.

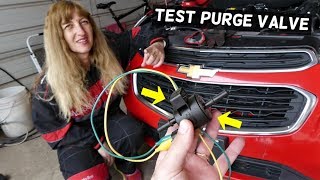

4. If the wiring appears intact, test the valve itself. Disconnect the electrical connector and use a multimeter or a 12V power source to apply power and ground to the two pins on the valve. Listen for a distinct 'click'. No click indicates a failed solenoid.
5. If the valve clicks, the issue may be in the wiring. With the key on and engine off, check for battery voltage (approx. 12V) at the power pin on the connector.
6. A quick functional test can be done: with the engine running, disconnect the EVAP hose from the purge valve. Place your finger over the hose nipple. If you feel suction, the valve is stuck open and has failed.
7. If the valve and wiring are confirmed to be good, the issue could be a rare fault in the Engine Control Module (ECM), but this is highly unlikely.

Parts You'll Likely Need

• EVAP Vapor Canister Purge Valve (1.8L Engine) (OEM #55567453) — This is the most common failure point for the P0443 code on Sonics with the 1.8L engine. 🎬 Watch: Step-by-step purge valve replacement for the 1.8L engine.
  Trusted brands: ACDelco (214-2317), Dorman, Bosch (0280142495)
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• EVAP Vapor Canister Purge Valve (1.4L Turbo Engine) (OEM #55573017) — This is the most common failure point for the P0443 code on Sonics with the 1.4L Turbo engine.
  Trusted brands: ACDelco (214-2324), Dorman (911-409), GM Genuine
  OEM price range: $50-$75
  Aftermarket price range: $30-$50

Related Codes That Often Appear With This One

• P0496 — This code for 'High Purge Flow' is often caused by the same purge valve failing by sticking in the open position. P0443 points to the electrical failure, while P0496 points to the mechanical failure of the same part.

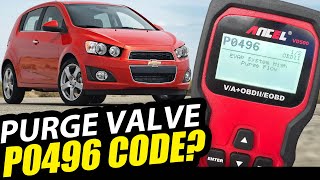

🎬 Watch: How to fix a P0496 code on your Sonic.
• P0171 — If the purge valve sticks open, it creates a vacuum leak, allowing unmetered air into the intake manifold. This can cause the engine to run lean and trigger a P0171 'System Too Lean' code.
• P0444 — This code for 'EVAP Purge Control Valve Circuit Open' is a more specific version of P0443 and is often caused by the exact same failed purge valve.

Platform-Specific Known Issues

• Extremely Common Failure: The purge valve is considered a wear item on this platform, with failures being extremely common. Many owners on forums like Sonic Owners Forum and in YouTube repair videos report replacing this part to solve P0443 and related codes like P0496.

Mechanic-Grade Diagnostic Values

• EVAP Purge Solenoid Coil Resistance — expected: 20 - 40 Ohms. Failure: An open circuit (infinite resistance) or a shorted circuit (near zero resistance) indicates a failed solenoid.
• Voltage at Purge Valve Connector (Power Pin) — expected: Battery Voltage (~12.6V) with Key On, Engine Off.. Failure: Zero voltage points to a break in the power supply circuit, such as a blown fuse or a broken wire.
• Voltage at Purge Valve Connector (Control Pin) — expected: This is a ground-side switched circuit. Voltage should be near battery voltage when the valve is commanded OFF and pulse towards 0V when commanded ON by the ECM.. Failure: No voltage change when the valve is commanded on via a scan tool suggests a wiring issue or a faulty ECM driver.

Scan Tool Commands That Help

• GDS2 / Tech2 or equivalent professional scanner: EVAP Purge/Seal or EVAP Purge Solenoid On/Off active test. — This bidirectional command allows a technician to manually open and close the purge valve to verify its mechanical operation (listening for a click) and to test the integrity of the control circuit wiring by observing voltage changes at the connector.

Wiring & Ground Locations

• G105 — Located under the battery tray on the frame rail, to the left of the underhood fuse block (UBEC).. This is a primary engine compartment ground point. A preliminary service bulletin (PIC5574A) for the 2012 Sonic noted that loose connections or poor grounding surfaces at G105 could cause various electrical issues. While not directly linked to P0443, a poor ground here can cause unpredictable electrical faults in the engine bay.
• Purge Valve Connector Pinout — The two-pin connector on the EVAP purge solenoid valve.. One pin is the ignition voltage supply (should have battery voltage with key on), and the other is the control circuit that the ECM pulses to ground to activate the solenoid. Knowing which pin is which is crucial for accurate voltage testing.

Real Owner Repair Stories

• YouTube video by LYNX RIDER XP (Toyota Wigo (similar simple EVAP system)) — Check Engine Light with code P0443.
  ❌ Tried (didn't work) The owner considered replacing the purge solenoid first.
  ✅ What actually fixed it The problem was a cut wire in the harness leading to the purge solenoid, located behind the ECU. The wire had rubbed through against the harness conduit, causing a loss of the ground signal. Repairing the broken wire resolved the P0443 code without replacing any parts.
• Sonic Owners Forum (Chevrolet Sonic (engine not specified)) — P0443 code.
  ✅ What actually fixed it A user noted the small blue slide lock on the electrical connector is very fragile and often breaks during removal. They confirmed the connector stays on securely without this lock, as the main press-tab is what holds it in place. This is valuable for DIYers who might worry they've broken the connector.

Documented NHTSA Reports

• An owner reported in NHTSA ODI #11448862 that a console message stated "engine offline" with P0443 appearing among a large string of other codes including P0031 and P0403.
• In NHTSA ODI #11632222, an owner described a "Reduced Propulsion" message on the dash with P0443 stored; the technician found a blown fuse [F03] likely caused by a sticking EGR valve.
• A report in NHTSA ODI #11681144 noted that P0443 was pulled alongside codes like P06DB and P0489, which the owner associated with a failure to circulate coolant properly.

OEM Part Supersession History

• 55567453 (1.8L Engine) → ACDelco 214-2317 — ACDelco is the GM Original Equipment service part number for the component manufactured under the 55567453 number.
  Heads up: These part numbers are generally interchangeable for the specified application.
• 55573017 (1.4L Turbo Engine) → Dorman 911-409, ACDelco 214-2324 — These are common aftermarket and OE service replacement part numbers for the original GM part.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Plastic Thermostat Housing 🔴 High — Very common failure on both 1.4L and 1.8L engines. Often occurs between 60,000 and 120,000 miles, leading to significant coolant leaks.
• PCV System Failure (1.4L Turbo) 🔴 High — A check valve in the intake manifold and a diaphragm in the valve cover are known to fail, causing oil consumption, rough idle, and codes like P0171. Failure can lead to other seal failures if not addressed. (Ref: GM TSB PIP5197)
• Leaking Water Pump (1.4L Turbo) 🟠 Medium — Common on early models (2012-2014), leading to coolant loss. (Ref: GM Special Coverage 14371A / 14371B extended the warranty to 10 years/150,000 miles for this specific issue.)
• Oil Leaks 🟠 Medium — Leaks from the valve cover gasket, oil cooler lines, and oil pressure switch are frequently reported.
• Cracked Intake Boot (1.8L) 🟡 Low — The rubber intake pipe can become brittle and crack over time, causing lean conditions and vacuum leaks.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Buying a used EVAP purge valve for this vehicle is strongly discouraged. The part has a very high failure rate and is considered a maintenance item. The low cost of a new aftermarket or OEM part makes buying used an unnecessary risk.

What to inspect on the donor part:

• Not applicable as buying used is not recommended.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a reputable brand is critical. The ACDelco (GM's OE brand) part is a reliable choice.

Aftermarket brands forum-validated for this vehicle:

• ACDelco
• Bosch
• Dorman

Brands owners have reported issues with on this vehicle:

• No-name, unbranded parts from online marketplaces should be avoided due to the critical function and high failure rate of this component. Sticking to known brands offers better reliability.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0496 — Often appears with P0443 on the Sonic platform; both are related to EVAP purge valve failure and are frequently resolved by replacing the same part.
• P0444 — A companion EVAP code mentioned by repair sources as being fixed by the same purge valve replacement procedure on the Sonic and Cruze.
• P0171 — A lean condition code that can occur on the 1.4L Turbo engine due to PCV system failure, which is another common engine management issue on this platform.
• P0128 — A coolant-related code that has been observed appearing simultaneously with P0443 in owner reports for the 2018 Sonic.
