P0443 on 2013-2022 Chevrolet Spark: EVAP Purge Valve Circuit Causes and Fixes

What's Unique About the 2013-2022 Chevrolet Spark

The Chevrolet Spark from this era is a straightforward, economy-focused vehicle. For code P0443, the issue is typically simple and follows common GM failure patterns. The most likely culprit is the purge valve itself failing. However, due to the compact engine bay and potential for rodent nesting in urban environments where Sparks are common, inspecting the wiring harness for damage is a critical secondary step. A real-world owner on Reddit confirmed this exact issue was caused by rats chewing through the wires, a repair that would have been missed if they had only replaced the valve.

Generation note: The 2013-2022 range covers two generations of the Spark with different engines and, therefore, different part numbers for the purge valve. - Third Generation (M300): 2013-2015 models with the 1.2L (LLO) engine. - Fourth Generation (M400): 2016-2022 models with the 1.4L (LV7) engine.

Symptoms You May Notice

• Check Engine Light is on
• Slightly rough or unstable idle, especially if the valve is stuck open
• Difficulty starting the engine immediately after refueling

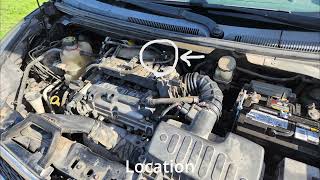

🎬 Watch: What to do if your Spark won't start after refueling
• A faint fuel odor (rare)
• Slightly reduced fuel economy
• "Reduced Propulsion" message on the dashboard (noted in some GM electrical fault cases)

Most Likely Causes

1. Failed EVAP Purge Solenoid Valve 🔴 High Probability → Shop Vapor Canister This is a very common failure item across many GM vehicles using similar Ecotec engines, including the Sonic, Cruze, and Trax. 🎬 Watch: How to fix code P0443 on similar GM engines The internal solenoid coil fails electrically from heat cycles and wear, or the internal diaphragm tears, causing it to get stuck open or closed. Manufacturer Bulletin #PIP5552 notes that engineering has investigated conditions where P0443 sets alongside other EVAP codes.
   How to confirm: With the engine off, try to blow through the valve; if air passes, it's stuck open and faulty. Alternatively, use a multimeter to check for resistance across the two pins on the valve. An open circuit (infinite resistance) or a short (near-zero resistance) indicates a bad coil. A bi-directional scan tool can also command the valve to open and close to test its function; you should hear an audible click. A simple test 🎬 Watch: Step-by-step guide to testing and replacing the purge valve is to start the engine, disconnect the hose from the purge valve, and feel for suction. If there is constant suction at idle, the valve is stuck open and bad.
   Typical fix: Replace the EVAP purge solenoid valve.
   Est. part cost: $30-$70
2. Damaged Wiring or Electrical Connector 🟡 Medium Probability On some GM vehicles, the wiring harness can chafe against other components. Rodent damage is also a known issue, where animals chew through the wires creating an open or short circuit. This is especially common for city-parked cars like the Spark. Manufacturer Bulletin #PIT5336 suggests that technicians may need to inspect and repair damaged wires on the engine harness to resolve P0443.
   How to confirm: Visually inspect the entire length of the wiring harness leading to the purge valve for any signs of breaks, chafing, or chew marks. Check that the electrical connector is securely plugged in and that the terminals inside are not corroded, bent, or backed out.
   Typical fix: Repair the damaged section of the wiring harness. Clean or replace the electrical connector if it is corroded or damaged.
   Est. part cost: $5-$50
3. Blown Fuse ⚪ Low Probability A short circuit in the purge valve or its wiring can cause the related fuse to blow, protecting the circuit. Bulletin #PIT5336 explicitly mentions that a technician may find the "Emission 1 Fuse" is open when P0443 is present.
   How to confirm: Locate the fuse box and check the fuse related to the emissions system (often labeled 'EMIS' or similar). If the fuse is blown, it confirms a short circuit in the system.
   Typical fix: Find and repair the short circuit (most likely a bad purge valve or damaged wire), then replace the blown fuse. Do not just replace the fuse without finding the cause, as it will likely blow again.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM's internal driver for the purge valve circuit can fail, but this should only be considered after all other possibilities (valve, wiring, fuse) have been exhaustively ruled out. Confirming a bad PCM requires advanced diagnostics and should be left to a professional.
• Inter-system Electrical Shorts: As reported in NHTSA ODI #11632222, a sticking EGR valve caused a blown fuse that resulted in a P0443 code alongside many other circuit codes.

Diagnosis Steps

1. Read the Code: Use an OBD-II scanner to confirm P0443 is the active code. Note any other codes present. If you see a long list of circuit codes (such as P0030, P0403, or P0597), check for a shared blown fuse as described in NHTSA ODI #11681144.
2. Inspect the Fuse: Check the fuse box for any blown fuses related to the emissions system. For the M300 Spark (2013-2015), this may be labeled 'EMIS 1'. Replace if necessary, but be aware a blown fuse indicates an underlying short circuit that must be found.
3. Locate the Purge Valve: For 2013-2015 models (1.2L), it's on top of the engine, easily accessible. For 2016-2022 models (1.4L), it's on the back of the engine near the intake manifold.
4. Inspect Wiring and Connector: Carefully check the wiring harness leading to the valve for any signs of damage, chafing, or rodent activity. Ensure the connector is securely attached and free of corrosion.
5. Test the Circuit: With the key on and engine off, use a multimeter or test light to check for 12-volt power at one of the pins on the electrical connector (often Pin A or 1). The other pin is the ground control from the PCM.
6. Test the Valve: Disconnect the valve and measure the resistance between its two electrical pins. A reading of roughly 10-30 ohms is typical for the M400 Spark. Infinite resistance means the coil is open, and very low resistance means it's shorted. Both indicate a bad valve.
7. Check for a Stuck Valve: With the valve removed from the car, try blowing through it. If air passes through, the valve is stuck open and needs to be replaced. Alternatively, with the engine running, disconnect the hose from the valve and feel for suction. If it's sucking air at idle, it's stuck open.
8. Replace the Part: If the valve fails any test, replace it with the correct part for your model year. The replacement often requires no tools.
9. Clear Code and Test Drive: After repair, clear the code with the scanner and perform a test drive to ensure the Check Engine Light does not return. Some vehicles may require a few drive cycles for the light to turn off on its own.

Parts You'll Likely Need

• Vapor Canister Purge Valve (2013-2015 1.2L) (OEM #96985666) — This is the most common cause for P0443 on the 3rd generation Spark. The original part is often superseded by GM part number 12737253.
  Trusted brands: ACDelco (GM Original Equipment), Bosch, Dorman
  OEM price range: $50-$80
  Aftermarket price range: $25-$45
• Vapor Canister Purge Valve (2016-2022 1.4L) (OEM #12632174) — This is the most common cause for P0443 on the 4th generation Spark. This part is shared with many other GM vehicles.
  Trusted brands: ACDelco (GM Original Equipment), Dorman, Standard Motor Products
  OEM price range: $45-$70
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0496 — This code indicates 'EVAP Flow During a Non-Purge Condition' and often appears when the purge valve is mechanically stuck open, a common failure mode that can also trigger the P0443 electrical fault.
• P0444 — This is a more specific version of P0443, indicating the purge valve circuit is 'Open.' It points directly to a broken wire, unplugged connector, or a failed-open coil inside the solenoid.
• P0445 — This is another specific version of P0443, indicating the purge valve circuit is 'Shorted.' This can be caused by a short in the wiring or the valve itself.

Mechanic-Grade Diagnostic Values

• EVAP Purge Solenoid Coil Resistance (M400, 1.4L) — expected: 10–30 Ω. Failure: Infinite resistance (OL) indicates an open coil; near-zero resistance indicates a shorted coil.
• Voltage at Purge Solenoid Connector (Power Pin) — expected: Battery Voltage (~12V) with Key On, Engine Off.. Failure: 0V indicates a blown fuse (e.g., 'EMIS 1' fuse on M300 models) or an open in the power supply circuit.
• Voltage at Purge Solenoid Connector (Control Pin) — expected: Near battery voltage when OFF; near 0V when commanded ON by the PCM (for a low-side driver circuit).. Failure: Voltage that doesn't change when commanded indicates a wiring problem or a faulty PCM driver. Voltage at 0V when OFF could indicate a short to ground.

Scan Tool Commands That Help

• GDS2 / Bidirectional Scan Tool: EVAP Purge Solenoid Valve Control — To functionally test the solenoid. Command the valve ON and OFF (or to a specific percentage like 50%) while listening for an audible click from the valve. This confirms the PCM driver and wiring are capable of activating the solenoid. No click suggests a wiring or valve failure.
• Bidirectional Scan Tool: EVAP System Test (Purge/Seal) — To test for a mechanically stuck-open purge valve. With the engine running, command the purge valve OFF (0%) and the vent valve ON (closed). Then, monitor the Fuel Tank Pressure (FTP) sensor PID. If the pressure value drops (vacuum increases), it proves the purge valve is leaking vacuum into the EVAP system when it should be sealed.

Wiring & Ground Locations

• Q12 — The component designator for the EVAP Purge Solenoid Valve on the 2016-2022 M400 Spark with the 1.4L LV7 engine.. This is the official name in the service manual, helping to locate it on a wiring diagram.
• Purge Valve Connector (M400) — The electrical connector on the purge valve.. On the 1.4L engine, power (ignition voltage) is on terminal A or 1, and the PCM control signal is on terminal B or 2. Knowing the pinout is essential for accurate electrical testing.
• EMIS 1 Fuse — In the engine compartment fuse block on the 2013-2015 M300 Spark.. A wiring diagram for the 2013 Spark shows a 15A 'EMIS 1' fuse providing power to emissions components. A short in the purge valve circuit can blow this fuse, causing P0443.
• G101 — Near the left headlamp assembly on the 2013 M300 Spark.. This is a primary ground point for the Engine Control Module (ECM). A poor connection at this ground could cause various engine control issues, including erratic behavior of output circuits like the one for the purge valve.

OEM Part Supersession History

• 96985666 → 12737253, 25190568 — GM often updates parts to improve reliability or consolidate inventory.
  Heads up: Part 96985666 is also cross-referenced to Bosch part number 0280142502. When ordering, verify fitment for the 2013-2015 1.2L engine, as these numbers are also used on other non-Spark GM vehicles.

Model Year Variations Within This Range

• 2013-2015 (M300): Uses the 1.2L engine. The relevant power fuse may be labeled 'EMIS 1' (15A) in the fuse box. The ECM ground is at G101 near the left headlamp.
• 2016-2022 (M400): Uses the 1.4L LV7 engine. The purge valve is designated Q12 in service literature. The electrical connector pins are typically labeled A/1 (Ignition Voltage) and B/2 (Control). The resistance specification is 10-30 Ω.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• CVT Transmission Failure/Hesitation 🔴 High — Common on 2014-2015 models, but can occur on later years. Issues include shuddering, hesitation from a stop, and complete failure, sometimes before 100,000 miles. (Ref: A software update (PI1309) was issued for early models to correct harsh downshifting logic that contributed to wear.)
• Excessive Oil Consumption (1.2L Engine) 🟠 Medium — Primarily affects the 2013 model year. Caused by premature PCV valve wear, leading to low oil levels, stalling, and potential engine damage if not monitored closely.
• Engine Stalling 🟠 Medium — Reported across multiple years, can be caused by faulty ignition coils, a failing ECM, or the oil consumption issue on 2013 models.
• Premature A/C System Failure 🟡 Low — Complaints of the A/C not cooling are noted, sometimes at very low mileage (under 10,000 miles). Often caused by refrigerant leaks or faulty compressors.
• Corroding Hood Latch 🟠 Medium — Affects 2013-2015 models. The secondary hood latch can corrode and fail to engage, creating a risk of the hood opening while driving. (Ref: Recall #22V640000)
• Airbag System Software Glitch 🔴 High — A software issue in some 2016-2017 models could prevent frontal airbags and seatbelt pretensioners from deploying in a crash. (Ref: Recalls #16V651000, #17V437000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Given the low cost of a new aftermarket part (as low as $20-$40), a used part is generally not recommended. It should only be considered if sourced from a very low-mileage donor vehicle (under 50,000 miles) and at a significant discount, as it is a known failure item.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the plastic housing for any cracks or signs of heat stress.
• Check the electrical connector pins for any corrosion, discoloration, or damage.
• Ensure the hose connection ports are not brittle, cracked, or broken.
• If possible, perform a resistance test on the spot; it should fall within the 10-30 ohm range.

OEM-only on this vehicle (don't cheap out):

• For this specific P0443 repair, OEM-only is not necessary. Reputable aftermarket brands offer reliable alternatives.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (Original Equipment)
• Bosch (Often the OEM manufacturer)
• Dorman
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• No specific brands are consistently reported as problematic for this part on the Spark, but be cautious of unbranded, ultra-low-cost parts from online marketplaces as their internal coil and seal quality can be inconsistent.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0496 — This code indicates high EVAP flow during a non-purge condition; it frequently appears alongside P0443 when the purge valve is physically stuck open.
