P0443 on 2011-2020 Dodge Grand Caravan 3.6L: EVAP Purge Valve Circuit Causes and Fixes

What's Unique About the 2011-2020 Dodge Grand Caravan

The 3.6L Pentastar engine used across the Dodge/Chrysler/Jeep lineup, including the Grand Caravan, is well-known for this specific issue. Failure of the purge valve solenoid is a very common repair for these vans. Unlike some EVAP problems that are difficult to diagnose, the P0443 code on this platform points with high probability to the purge valve itself. The valve is conveniently located right behind the air filter box in the engine bay, making it an unusually straightforward fix that most owners can complete in under 30 minutes.

Symptoms You May Notice

• Check Engine Light is on.
• Difficulty starting the engine, especially right after filling the gas tank.
• Rough or unstable idle.
• Slight decrease in fuel economy.
• Possible strong fuel odor near the vehicle.

Most Likely Causes

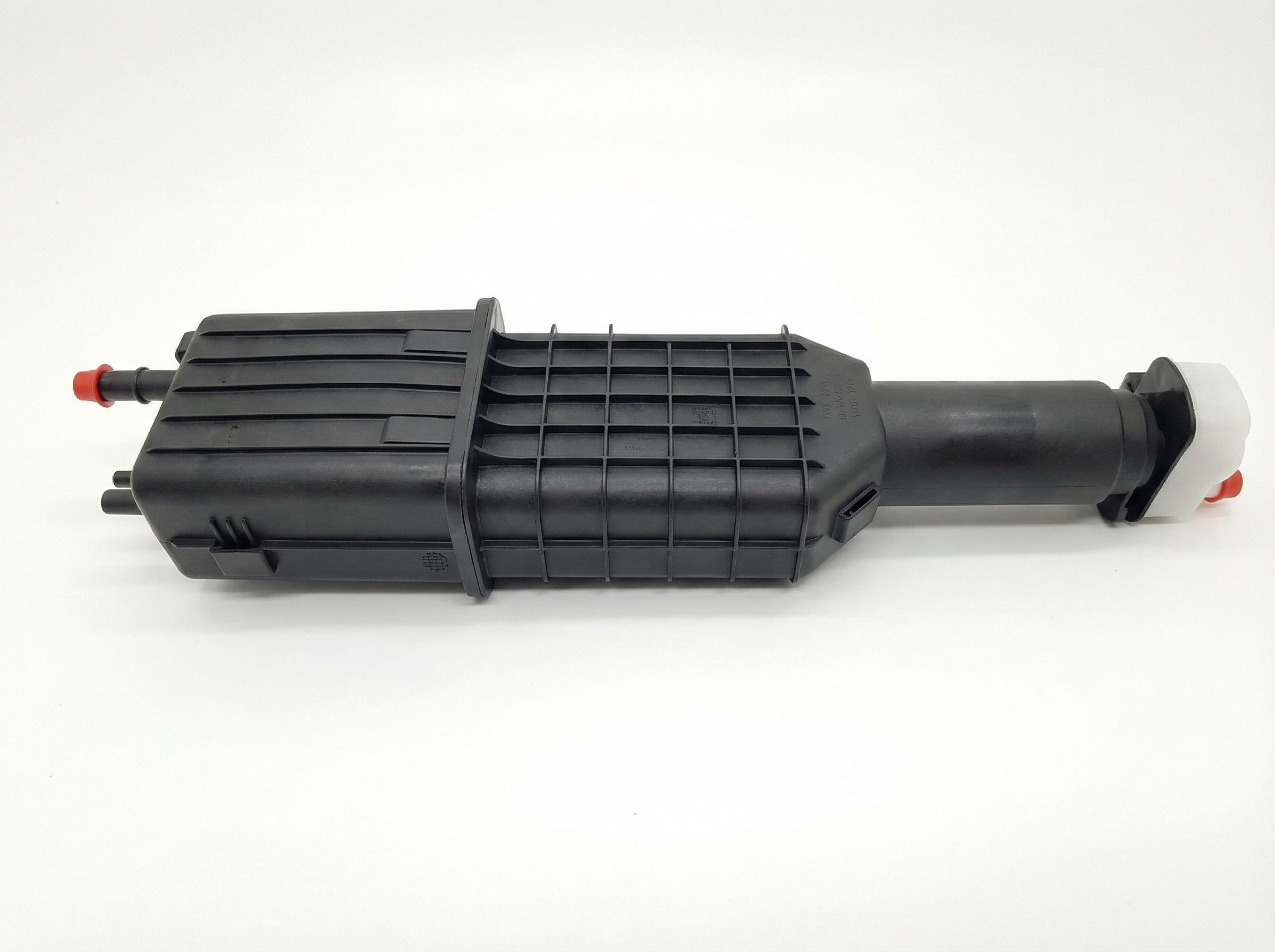

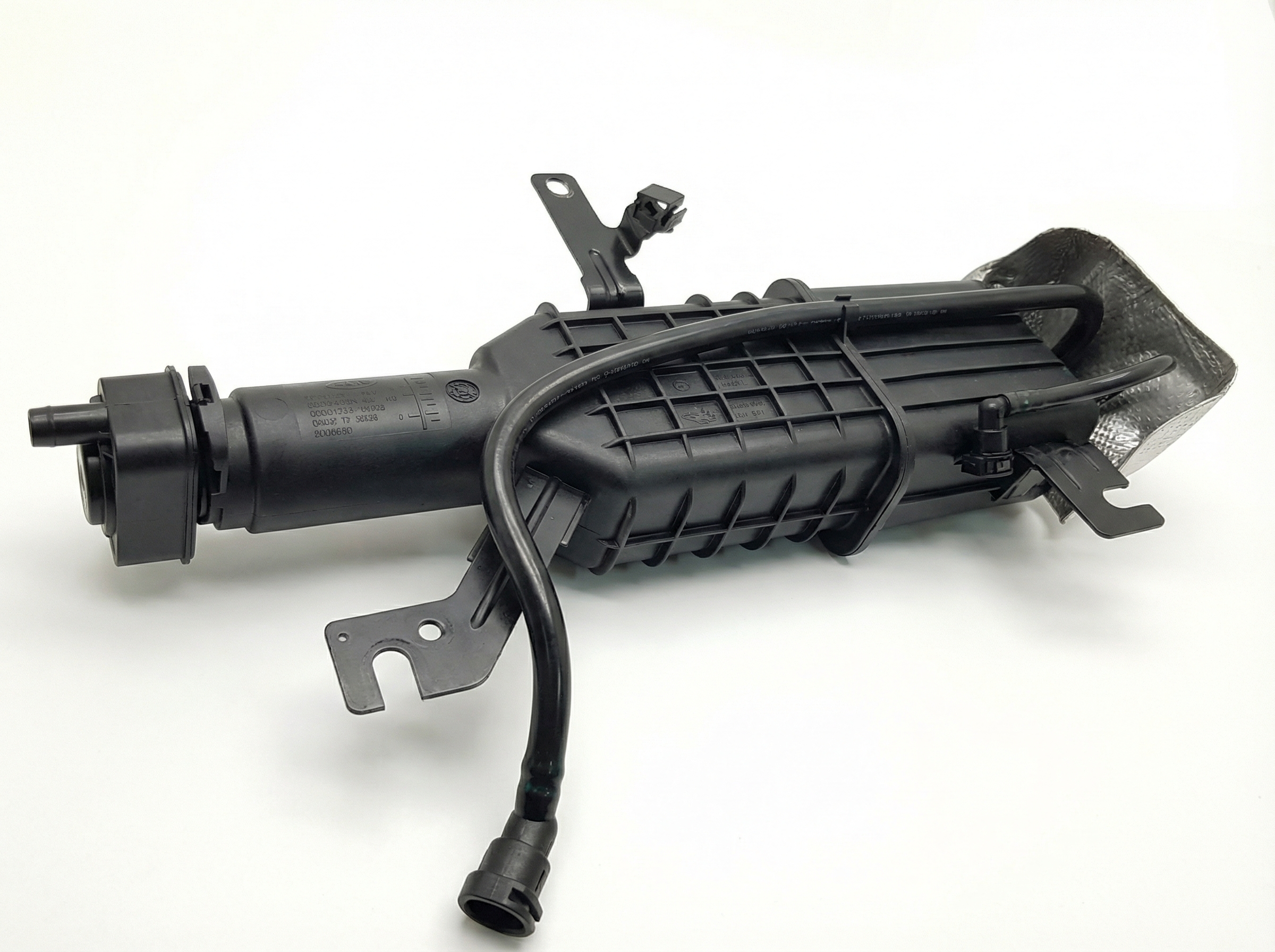

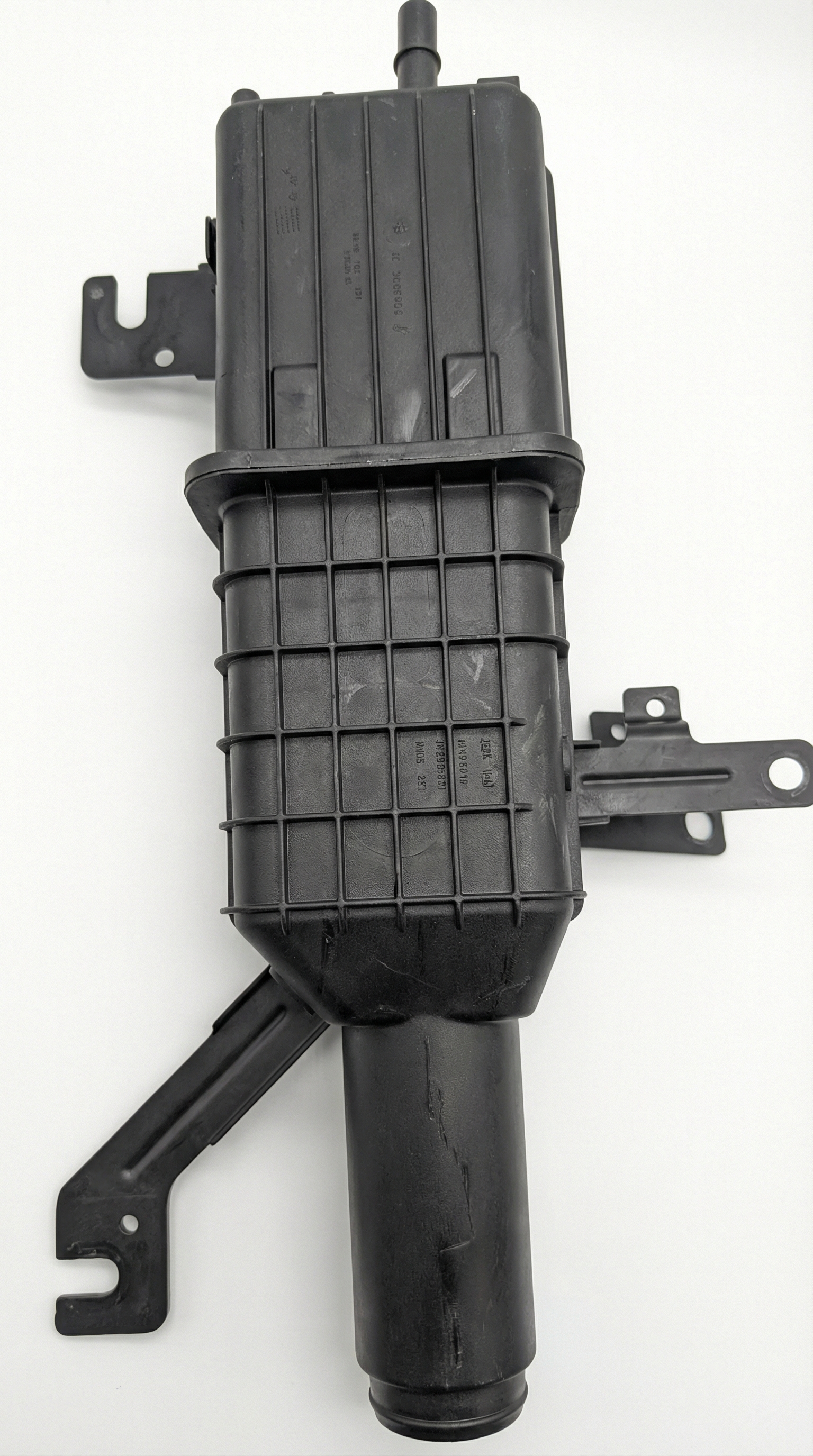

1. Failed EVAP Purge Valve Solenoid 🔴 High Probability → Shop Vapor Canister This is a widely documented common failure item on the 3.6L Pentastar engine used in these vans and other Chrysler/Dodge/Jeep vehicles.

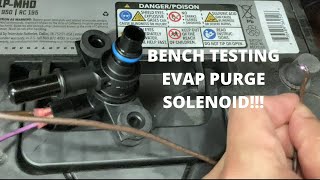

   How to confirm: With the engine running, disconnect the electrical connector and the hose leading to the intake manifold. There should be no vacuum felt from the valve's port; if there is, the valve is stuck open. 🎬 See this quick test to confirm a stuck open valve. You can also test the solenoid's resistance with a multimeter; a typical resistance is between 14 and 30 Ohms. An open circuit (infinite resistance) or a short circuit (near-zero resistance) indicates a failed solenoid. A scan tool can also be used to command the valve open and closed while listening for an audible click.
   Typical fix: Replace the purge valve solenoid. It is located behind the air filter housing and is held in place by a small bracket and connected by two hoses and one electrical connector.
   Est. part cost: $25-$60
2. Damaged Wiring or Electrical Connector ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness leading to the purge valve for any signs of cracking, melting, or chafing. Unplug the connector and check for corrosion, moisture, or spread/damaged pins. Use a multimeter to verify battery voltage is present at one pin (with ignition on) and that the other (control) wire has continuity back to the PCM (resistance below 5.0 ohms).
   Typical fix: Repair the damaged section of wire or clean/replace the electrical connector pigtail. In one documented case, an owner found a broken signal wire between the solenoid connector and the PCM and ran a new wire to resolve the code. 🎬 Watch: Troubleshooting a P0443 circuit code when the valve is new.
   Est. part cost: $5-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM's internal driver for the purge valve circuit can fail. This should only be considered after the purge valve and its entire circuit have been thoroughly tested and confirmed to be in good working order.
• PCM Software Update Needed: For some related models like the Dodge Journey, a Technical Service Bulletin (TSB 18-033-16) was issued to fix a false P0443 code with a PCM software update. While not specifically for the Grand Caravan, it's a possibility if the valve and wiring check out.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0443 is the primary code.
2. Visually inspect the purge valve, its electrical connector, and the nearby wiring for any obvious damage, corrosion, or loose connections.
3. Locate the purge valve on the passenger side of the engine bay, behind the air filter box.
4. With the engine off and key on, disconnect the electrical connector. Use a multimeter to check for battery voltage on the power supply pin in the harness-side connector.
5. Check the resistance of the two pins on the purge valve solenoid itself using a multimeter. A reading between 14-30 Ohms is typical. An open circuit (infinite resistance) or a short circuit (zero resistance) indicates a failed solenoid.
6. If the solenoid resistance is within spec, check the control wire for continuity back to the PCM. Resistance should be less than 5.0 ohms.
7. If wiring and the solenoid test good, use a capable scan tool to command the purge valve to open and close. You should hear an audible clicking sound from the valve as it operates.
8. If the valve does not click but the wiring and solenoid resistance are good, the problem may be the control signal from the PCM. If the valve clicks but symptoms persist, it may be mechanically stuck.
9. Given the extremely high failure rate on this platform, if basic electrical checks pass, the most probable cause is still an intermittently failing or mechanically stuck purge valve.

Parts You'll Likely Need

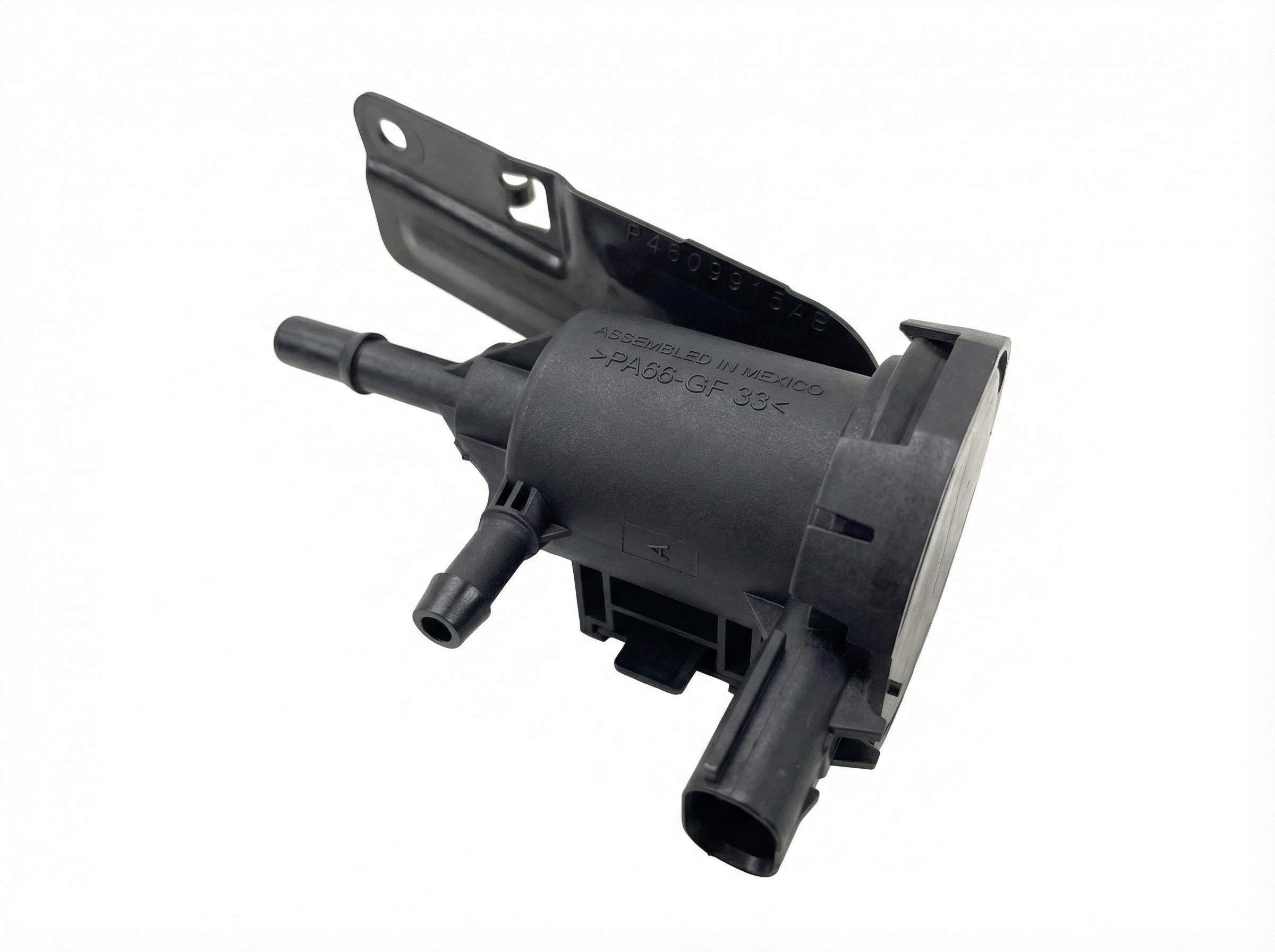

• Vapor Canister Purge Valve / Solenoid (OEM #04861963AD (supersedes 4861963AA, 4861963AB, 4861963AC)) — This is the most common failure point for code P0443 on this specific vehicle and engine combination.
  Trusted brands: Mopar, Dorman (P/N: 911-481), Standard Motor Products
  OEM price range: $50-$75
  Aftermarket price range: $25-$60

Related Codes That Often Appear With This One

• P0441 — P0441 (EVAP System Incorrect Purge Flow) is often seen with P0443 because if the purge valve is stuck open or closed due to an electrical fault, the PCM will also detect that the flow of vapors is incorrect.

Technical Service Bulletins (TSBs) & Recalls

• TSB 18-033-16: While for the 2015 Dodge Journey, this TSB addresses a false P0443 code that can be fixed with a PCM software update, indicating a potential for software-related issues on similar platforms.
• TSB 18-081-17: This bulletin for related Dodge models notes that the Powertrain Control Module (PCM) may set P0443 for the EVAP Purge Solenoid Circuit alongside other codes like P0456 and P0441.
• TSB 18-014-15 REV-A: A manufacturer service bulletin for similar platforms indicates that technicians may find P0443 (EVAP Purge Solenoid Circuit) stored in the PCM memory, often occurring with P219A air-fuel ratio imbalances.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve Solenoid Coil Resistance — expected: 14 to 30 Ohms. Failure: An infinite reading (open circuit) or near-zero reading (short circuit) indicates a failed solenoid.
• Purge Valve Connector Power Supply Voltage (Key On, Engine Off) — expected: Battery Voltage (~12V). Failure: Voltage significantly below 10V points to a problem in the power supply circuit (fuse, relay, or wiring).
• Purge Valve Control Wire Voltage (Back-probed, during scan tool active test) — expected: Near 0V when commanded ON (closed circuit to ground), and near battery voltage when commanded OFF (open circuit).. Failure: Voltage does not change when commanded, or is always at 0V (short to ground) or always at battery voltage (open in control wire or bad PCM driver).

Scan Tool Commands That Help

• wiTECH, Autel, Snap-on, or other professional scanner: EVAP Purge Solenoid Active Test / Bidirectional Control — Use this after confirming power and ground are present at the connector. Commanding the valve ON and OFF allows you to listen for an audible 'click'. If it clicks, the PCM driver and solenoid coil are likely working, pointing to a mechanical issue (stuck valve). If it doesn't click, it confirms a failure in the solenoid coil or PCM driver.

Wiring & Ground Locations

• Purge Solenoid Connector Pinout — The 2-pin electrical connector on the EVAP purge valve, behind the air filter housing.. Knowing the wire functions is critical for accurate testing. On some models, the Dark Blue/White wire is the power supply (should have battery voltage with key on), and the Dark Blue/Brown wire is the ground-side control from the PCM. Always verify with a vehicle-specific diagram if possible.
• Engine Ground Strap (Mopar P/N 4685816AA) — Typically runs from a post on the upper engine mount (near the power steering pump/accessories) to the vehicle's frame/unibody.. While not a direct cause, a broken or corroded main engine ground strap can create intermittent and strange electrical issues across multiple systems. If other electrical gremlins are present with P0443, inspecting this strap is a wise, often-overlooked step.

Real Owner Repair Stories

• ScannerDanner YouTube Channel (2013 Dodge Grand Caravan) — Check Engine Light with code P0443 and engine sputtering.
  ❌ Tried (didn't work) A dealership had already replaced the purge valve with a known-good part., The dealership condemned the Powertrain Control Module (PCM) as the next step.
  ✅ What actually fixed it The root cause was a poor connection at the purge valve's electrical connector. The female pins inside the connector had been spread open from a previous technician improperly front-probing them for testing. The fix was to carefully repair the damaged connector terminals to ensure a tight fit, which restored the circuit's integrity.

OEM Part Supersession History

• 4861963AA, 4861963AB, 4861963AC → 04861963AD — Standard part revision and improvement over time.
  Heads up: Some online parts catalogs incorrectly label this part number as an 'Evaporative System Integrity Module (ESIM)'. This is incorrect. 04861963AD is the purge valve/solenoid located on the engine. The ESIM is a different component located on the charcoal canister.

Model Year Variations Within This Range

• 2011-2020: No significant variations in the EVAP purge valve or its circuit are documented for the 3.6L Pentastar engine within this year range. The diagnostic and repair procedure is consistent.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used OEM purge valve from a junkyard is a reasonable and cost-effective option for this repair. The part is not a complex wear item, is easily accessible on a donor vehicle, and failure is typically electrical (coil burnout) rather than mechanical wear.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the plastic housing for cracks or heat damage.
• Ensure the electrical connector pins are clean, straight, and free of corrosion.
• Check that the hose ports are not cracked or broken.
• Avoid parts from vehicles that show signs of engine fire, flood, or major front-end collision damage.

OEM-only on this vehicle (don't cheap out):

• For this specific P0443 repair, there are no parts that must be OEM-only. Reputable aftermarket brands are a viable alternative.

Aftermarket brands forum-validated for this vehicle:

• Dorman (P/N: 911-481)
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• No specific brands were consistently reported as problematic in research, but ultra-low-cost, unbranded parts from online marketplaces may have lower quality control and are best avoided.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — System Too Lean (Bank 1). A purge valve solenoid that is stuck open creates a vacuum leak, allowing unmetered fuel vapors into the intake manifold. This can cause a lean condition and trigger fuel trim codes.
• P0174 — System Too Lean (Bank 2). Similar to P0171, this code can be set if the stuck-open purge valve causes the engine's second bank to run too lean as the PCM tries to compensate for the vacuum leak.
• P0300 — Random/Multiple Cylinder Misfire. Excessive fuel vapor being drawn into the intake from a stuck-open purge valve, especially after refueling, can cause a rich condition leading to rough idle, stalling, and misfires.
• P0456 — EVAP System Leak Detected (Very Small Leak). While P0443 is a circuit code, a faulty purge valve that cannot close properly can cause the EVAP system to fail its pressure/vacuum self-test, leading the PCM to flag a system leak.
• P0446 — EVAP Vent Control Circuit. This code points to an issue in the circuit for the EVAP vent solenoid, which works with the purge solenoid. A wiring issue (chafing, corrosion) affecting the EVAP harness could potentially cause codes for both components.
