P0443 on 2012-2023 Kia Rio: EVAP Purge Valve Circuit Malfunction Causes and Fixes

What's Unique About the 2012-2023 Kia Rio

On this generation of Kia Rio and its platform-mate, the Hyundai Accent, the canister purge valve is a known common failure item. The part is located in an easily accessible spot on top of the engine, making it a very common and straightforward DIY repair for owners. Unlike system leak codes (e.g., P0456), P0443 is almost exclusively an electrical or component fault, so replacing the gas cap will not fix this issue.

Generation note: This guide covers the third generation (2012-2017) and the fourth generation (2018-2023) of the Kia Rio. The primary cause of the fault is the same, but the specific OEM part number for the purge valve differs between generations. Both generations use a 1.6L GDI engine, but with different engine codes and slight variations.

Symptoms You May Notice

• Check Engine Light is on
• Slightly rough or unstable idle
• Difficulty starting the engine, especially after refueling
• Reduced fuel economy
• A faint fuel odor near the vehicle
• Engine may stall in severe cases
🎬 Watch: A breakdown of common bad purge valve symptoms

Most Likely Causes

1. Failed Canister Purge Valve (Solenoid) 🔴 High Probability → Shop Vapor Canister The purge valve is a common failure point on many Hyundai and Kia models of this era, including the Rio, Accent, and Soul. The internal coil winding can fail, creating an open or shorted circuit.
   How to confirm: Test the resistance of the two pins on the valve with a multimeter; it should be within a specific range (typically 15-30 ohms, with some sources noting a specific 26 ohms for similar Kia models). A reading of infinity (open) or zero (short) confirms failure. You can also apply 12V power and ground to the pins to listen for an audible click, indicating the solenoid is activating.
   Typical fix: Replace the canister purge valve. This is a simple repair involving disconnecting the electrical connector and two hoses.
   Est. part cost: $25-$75
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness in the engine bay is exposed to heat and vibration, which can lead to chafing or broken wires over time. Rodents have also been known to chew on the soy-based wire insulation used in this era of Kia vehicles.
   How to confirm: Visually inspect the wiring harness and connector leading to the purge valve for any signs of cracking, melting, corrosion, or loose pins. Use a multimeter to check for 12V power on one wire and a ground signal from the PCM on the other wire when the engine is running and the valve is commanded on by a scan tool.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail.
   Est. part cost: $5-$25
3. Blown Fuse ⚪ Low Probability
   How to confirm: Locate the fuse for the EVAP system or 'sensors' in the engine bay fuse box. On some Kia models, this may be labeled as 'SENSORS 2'. Visually inspect the fuse to see if it is blown. Test for continuity across the fuse with a multimeter.
   Typical fix: Replace the blown fuse. If the fuse blows again, it indicates a short circuit in the system that must be diagnosed.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. The PCM driver for the purge valve circuit can fail, but this should only be considered after all other possibilities, including the valve, wiring, and fuses, have been thoroughly tested and ruled out.

Diagnosis Steps

1. Scan for Codes: Use an OBD-II scanner to confirm P0443 is the active code and check for any other related codes.
2. Inspect the Fuse: Locate and inspect the fuse for the EVAP system in the engine compartment fuse box (may be labeled 'SENSORS 2'). Replace if blown.

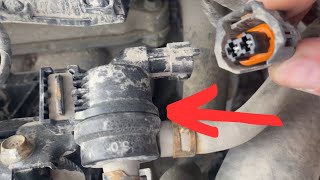

3. Visual Inspection: Locate the purge valve on top of the engine. Carefully inspect its electrical connector and nearby wiring for any signs of damage, corrosion, rodent chew marks, or loose connections.
4. Test the Valve: Disconnect the electrical connector. Use a multimeter to measure the resistance between the two pins on the purge valve itself. A reading far outside the 15-30 ohm range (or open/infinite resistance) indicates a failed valve.
5. Test the Circuit: Turn the ignition to the 'ON' position. Use a multimeter to check for battery voltage (around 12V) at one of the pins on the wiring harness connector. The other pin is the ground, which is controlled (pulsed) by the PCM.
6. Command Valve Operation (Advanced): If you have a capable bidirectional scan tool, command the purge valve to open and close. You should hear an audible click from the valve and see a change in state on the scan tool data.
7. Replace the Purge Valve: If the valve fails the resistance test or does not operate when commanded, it is the most likely cause. Replace the part.

Parts You'll Likely Need

• Canister Purge Valve (2012-2017) (OEM #28910-26900) — This is the most common failure point for the P0443 code on the third-generation Kia Rio. It is also used on other Kia/Hyundai models from the same era.
  Trusted brands: Kia (Genuine OEM), Bosch, Dorman, Standard Motor Products
  OEM price range: $60-$90
  Aftermarket price range: $25-$50
• Canister Purge Valve (2018-2023) (OEM #28910-2M322) — This is the most common failure point for the P0443 code on the fourth-generation Kia Rio.
  Trusted brands: Kia (Genuine OEM), Bosch, Dorman, Standard Motor Products
  OEM price range: $40-$60
  Aftermarket price range: $25-$45

Related Codes That Often Appear With This One

• P0444 — Indicates an 'Open Circuit' for the purge valve, which can be triggered by the same faults, such as a broken wire or a failed internal coil in the valve.
• P0445 — Indicates a 'Shorted Circuit' for the purge valve, often caused by melted wires or an internally shorted valve solenoid.
• P0171 — If the purge valve fails by getting stuck open, it creates a vacuum leak that allows unmetered air into the intake manifold, which can cause a 'System Too Lean' code.

Platform-Specific Known Issues

• Owner Experience: Quick DIY Fix: Multiple owners on forums like Reddit's r/MechanicAdvice report that after getting a P0443 code, replacing the purge valve was a simple, sub-30-minute fix that resolved the check engine light.

Mechanic-Grade Diagnostic Values

• Canister Purge Valve (Solenoid) Coil Resistance — expected: Approximately 26 ohms. A general acceptable range is often cited as 15-35 Ohms.. Failure: A reading of infinity (OL) indicates an open coil, while a reading near zero ohms indicates a shorted coil.
• Purge Valve Connector Power Supply Pin Voltage — expected: Battery Voltage (~11-14 V) with Key On, Engine Off.. Failure: Zero or very low voltage suggests a blown fuse (e.g., 'SENSORS 2') or an open circuit in the power supply wire.
• Purge Valve Connector Control Pin Voltage (Back-probed) — expected: Near battery voltage when the valve is commanded OFF. Near 0V when commanded ON by a scan tool (as the PCM provides the ground).. Failure: Voltage does not change when the valve is commanded ON/OFF, indicating a wiring fault between the valve and the PCM, or a faulty PCM driver.

Scan Tool Commands That Help

• Kia GDS (Global Diagnostic System) or equivalent bidirectional scanner: Actuation Test for EVAP Purge Solenoid — This command allows a technician to manually cycle the purge valve open and closed. It is used to verify if the solenoid clicks audibly and to confirm the integrity of the control circuit (wiring and PCM driver) by observing voltage changes at the control pin.

Wiring & Ground Locations

• Purge Valve Control Pin at ECM — On some 1.6L GDI models, the control signal for the Purge Control Solenoid Valve (PCSV) is sent from Pin 72 of the main Engine Control Module (ECM) connector.. This is the specific pin to test for a control signal if you suspect a wiring break between the PCM and the valve, or a faulty PCM driver.
• Fuse 'SENSORS 2' — Located in the under-hood fuse and relay box.. This fuse often provides the 12V power supply to the purge valve solenoid. A blown fuse will cause a P0443 and must be checked before replacing parts.
• Engine Ground Strap — Typically runs from the engine block or cylinder head to the chassis, often near the intake manifold or a strut tower.. While not a direct cause of a P0443 circuit code, a poor or corroded main engine ground can cause a variety of unpredictable electrical issues in sensors and solenoids, and should be checked if multiple electrical faults are present.

Real Owner Repair Stories

• r/MechanicAdvice on Reddit (2015 Kia Soul (shares platform components)) — Check engine light on.
  ❌ Tried (didn't work) Initially tested the valve by applying 12V; it clicked, suggesting it was functional.
  ✅ What actually fixed it The owner tested the valve's resistance with a multimeter and found it was 10.5 ohms, which was outside the correct specification of ~26 ohms. Replacing the purge valve based on the incorrect resistance reading resolved the issue.

OEM Part Supersession History

• 28910-22040 → 28910-26900 — Part evolution and consolidation for use across multiple Hyundai/Kia platforms.
  Heads up: The Dorman aftermarket part 911-800 is often confused for this application but is incorrect; the correct Dorman equivalent for 28910-26900 is 911-808.

Model Year Variations Within This Range

• 2012-2017 vs 2018-2023: The OEM part number for the canister purge valve is different. The 3rd generation (2012-2017) uses P/N 28910-26900, while the 4th generation (2018-2023) uses P/N 28910-2M322.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Theft Vulnerability (Keyed Ignition Models) 🔴 High — Extremely high for models from 2012-2021 without push-button start and engine immobilizers. A social media trend led to widespread thefts. (Ref: Software update campaign and free steering wheel locks offered by Kia to mitigate the issue.)
• Engine Failure / Excessive Oil Consumption (1.6L GDI) 🔴 High — A significant number of owners have reported issues ranging from excessive oil consumption to catastrophic engine failure. This is often linked to issues with the catalytic converter or internal component wear. (Ref: Multiple recalls and warranty extensions have been issued, including recall SC176 for some 1.6L GDI engines concerning catalytic converter overheating.)
• Carbon Buildup on Intake Valves 🟠 Medium — Common to most Gasoline Direct Injection (GDI) engines, including the Rio's 1.6L. Can cause rough idle, misfires, and loss of performance, typically noticeable after 50,000-60,000 miles.
• HECU Fire Risk 🔴 High — Affects a wide range of Kia models, including the 2012-2017 Rio. The Hydraulic Electronic Control Unit (HECU) for the ABS can short circuit and cause an engine compartment fire, even when the vehicle is parked. (Ref: Recall 23V-652 (Kia recall number SC284) advises owners to park outside and away from structures until the recall repair (fuse replacement) is performed.)
• Transmission Shifting Issues (Automatic) 🟠 Medium — Owners of the 3rd generation (2012-2017) have reported rough shifting, hesitation, or the transmission feeling 'confused', particularly between 40,000 and 80,000 miles.
• Faulty MDPS Flexible Coupling 🟡 Low — A clicking or clunking noise from the steering column when turning is often caused by the failure of a small, rubber flexible coupling in the Motor Driven Power Steering (MDPS) assembly. This was more prominent on other Kia models but can affect the Rio. (Ref: Kia issued a TSB (CHA-072) and extended the warranty for this part on many models.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the canister purge valve, a used part from a junkyard can be a cost-effective option, especially since it's an external engine component that is easy to access and replace. However, given that new aftermarket parts are inexpensive (often under $30), the savings may be minimal.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check the plastic housing for cracks or signs of heat damage.
• Ensure the electrical connector pins are straight and free of corrosion.
• If possible, bring a multimeter to the junkyard and test the resistance. It should be around 26 ohms.
• Inspect the hose ports to ensure they are not cracked or broken.

OEM-only on this vehicle (don't cheap out):

• For this specific P0443 repair, no parts are strictly 'OEM-only', as reputable aftermarket brands are widely available and functional.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the original manufacturer)
• Standard Motor Products (SMP)
• Dorman (ensure correct part number, e.g., 911-349 for 2012-2017 models)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded parts from online marketplaces can have poor quality control and may fail prematurely.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• SC176 — A Kia recall code related to catalytic converter overheating on the 1.6L GDI engine, which can share symptoms like reduced performance.
• SC284 — A Kia recall code (23V-652) for the HECU fire risk, which is a critical safety issue for the 2012-2017 Rio models often diagnosed alongside engine bay inspections.
• CHA-072 — A Kia Technical Service Bulletin code for the MDPS flexible coupling, another common mechanical failure on this platform.
