P0446 on 2012-2018 Audi A7: EVAP Vent Circuit Malfunction Causes and Fixes

What's Unique About the 2012-2018 Audi A7

On the Audi A7 (C7 platform), the EVAP vent valve, often integrated into the Leak Detection Pump (LDP) assembly, and charcoal canister are located underneath the rear of the vehicle, typically behind the driver-side rear wheel arch liner. This location exposes the components, wiring, and connectors to road salt, moisture, and debris, making corrosion and physical damage a notable possibility. A frequent cause of failure for the entire canister assembly on many vehicles, including Audis, is the practice of 'topping off' the fuel tank, which can flood the charcoal with liquid fuel and ruin it. It's also critical for owners to distinguish the LDP/vent valve (near the tank) from the N80 purge valve (in the engine bay), as replacing the wrong part will not fix this code.

Symptoms You May Notice

• Check Engine Light is on.
• Difficulty filling the fuel tank (the gas pump nozzle clicks off repeatedly before the tank is full).
• A faint fuel smell may be noticeable near the rear of the vehicle.
• A slight decrease in fuel economy may be observed.

Most Likely Causes

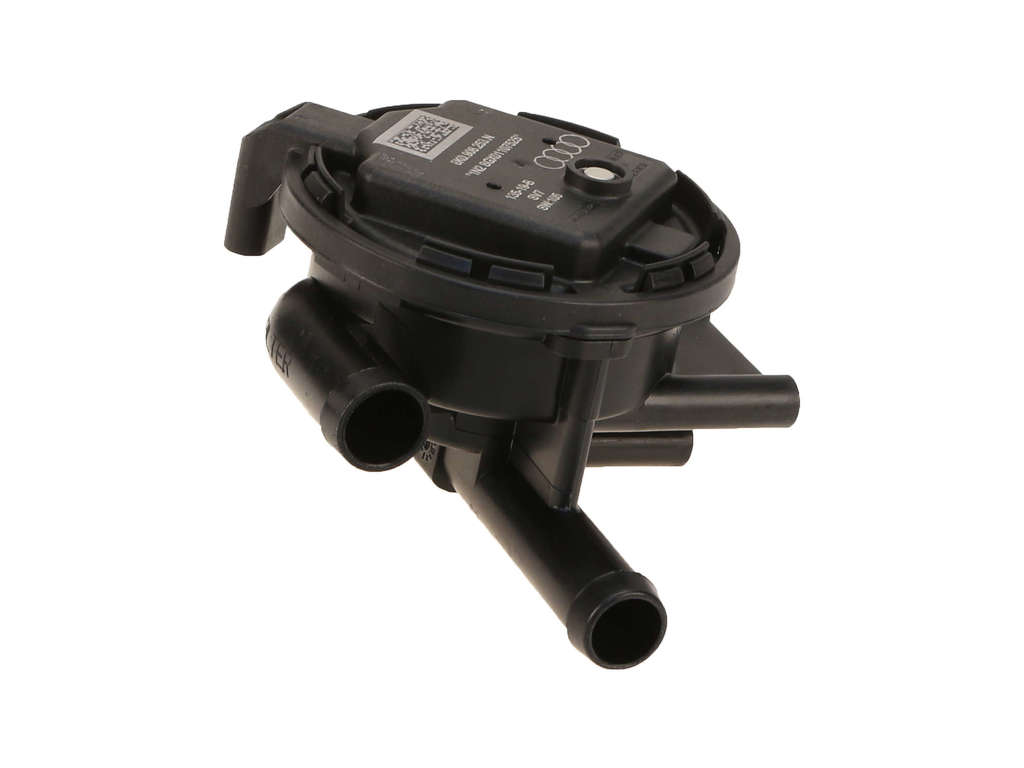

1. Faulty EVAP Vent Valve / Leak Detection Pump (LDP) 🔴 High Probability → Shop Evaporative Emissions System Leak Detection Pump The valve/pump is an electromechanical part that can fail over time. Its location under the car exposes it to harsh conditions, which can accelerate wear or cause the valve to get stuck with debris or internal corrosion.
   How to confirm: Using a capable scan tool (like VCDS for Audi), command the vent valve/LDP to open and close. Listen for an audible click or pump sound. You can also apply 12V power and ground directly to the component's pins to see if it actuates. If it doesn't respond, it has likely failed.
   Typical fix: Replace the Leak Detection Pump assembly. On many Audi models, this part is available separately from the charcoal canister.
   Est. part cost: $150-$300
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring for the LDP runs underneath the car to the rear wheel well area, making it highly susceptible to damage from road debris, moisture, and salt corrosion, especially at the connector pins.
   How to confirm: Visually inspect the wiring harness and connector leading to the LDP for any breaks, chafing, or green/white corrosion on the pins. Use a multimeter to check for 12V power at the connector with the key on and check for continuity on the ground/control wire back to the ECM.
   Typical fix: Repair the broken or shorted wire. Clean the connector pins carefully with a terminal cleaning tool or replace the connector pigtail if corrosion is severe.
   Est. part cost: $20-$75
3. Clogged or Saturated Charcoal Canister ⚪ Low Probability → Shop Vapor Canister Repeatedly overfilling the fuel tank can force liquid gasoline into the charcoal canister, saturating the carbon pellets and causing a blockage that prevents the vent system from operating correctly. Additionally, on some A6/A7 models, water intrusion into the canister is a known issue.
   How to confirm: If the LDP and its wiring test good, the canister itself is the likely culprit. A smoke test of the EVAP system may show smoke exiting improperly or not at all from the vent path, indicating a blockage. Audi TSB #2050276/7 for 2016-2018 models suggests weighing the canister; if it's over 2650 grams, it's saturated with water and must be replaced.
   Typical fix: Replace the entire charcoal canister assembly.
   Est. part cost: $550-$700

Rare But Worth Checking

• Faulty Engine Control Module (ECM): This is extremely rare. The ECM should only be considered after all other possibilities, including the pump, wiring, and canister, have been exhaustively tested and ruled out.

Diagnosis Steps

1. Scan for Codes: Confirm P0446 is the primary code. Address any other codes first. A VCDS/VAG-COM scanner is highly recommended for detailed diagnostics on Audi vehicles.
2. Inspect Gas Cap: Ensure the gas cap is tight and the seal is not cracked or worn. While unlikely to be the cause, it's a simple first step.
3. Locate Components: Safely raise the vehicle and remove the driver's side rear wheel and wheel arch liner. Locate the charcoal canister and the attached Leak Detection Pump (LDP).
4. Inspect Wiring: Visually inspect the electrical connector and wiring going to the LDP. Look for any signs of corrosion, damage, or loose connections. Pay close attention to the pins inside the connector.
5. Test the LDP Circuit: With the ignition on, use a multimeter to confirm that one pin on the connector has 12V power. The other wire is the control (ground) from the ECM.
6. Test the LDP Solenoid: If power is present, test the pump itself. Use a capable scan tool to command the valve to close; you should hear a click or pump noise. Alternatively, remove the pump and apply 12V directly to its terminals to check for actuation.
7. Check for Blockages: If the pump works but the code persists, disconnect the hoses and check the LDP and canister ports for dirt, debris, or spider webs that could cause a blockage. This was a known issue on other platforms requiring a filter relocation kit.
8. Perform a Smoke Test: If no obvious electrical fault or blockage is found, an EVAP smoke test can help determine if the canister is internally blocked or if there's a restriction in the vent path.
9. Replace the Faulty Component: Based on your findings, replace the faulty LDP, repair the wiring, or replace the charcoal canister assembly.

Parts You'll Likely Need

• EVAP Leak Detection Pump (OEM #8K0906253N (or similar variant, always verify with VIN)) — This is the component the code directly refers to. It contains the vent valve solenoid and a small pump. Its location makes it prone to failure from the elements, and it is the most common direct fix for a P0446 circuit code.
  Trusted brands: Audi Genuine Parts, Bosch
  OEM price range: $200-$300
  Aftermarket price range: $150-$220
• EVAP Charcoal Canister (OEM #4G0201803E (or similar variant, always verify with VIN)) — If the canister is saturated with fuel from over-filling or water from intrusion, it can cause a blockage and trigger the P0446 code. On some models, the LDP is integrated and cannot be purchased separately, requiring replacement of the whole unit.
  Trusted brands: Audi Genuine Parts, Bosch
  OEM price range: $590-$700
  Aftermarket price range: $450-$600

Technical Service Bulletins (TSBs) & Recalls

• TSB #2050276/7 - Water/Ice in EVAP Canister
• TSB #2035073/12 - P0456 caused by faulty NVLD switch/filter

Platform-Specific Known Issues

• TSB #2050276/7: For 2016-2018 A6/A7 models with the 3.0L engine, this bulletin addresses difficulty refueling and codes like P0441/P0451 caused by water/ice in the EVAP canister and NVLD switch. It provides a diagnostic step of weighing the canister. A weight over 2650g indicates saturation.
• TSB #2035073/12: For 2012-2016 A6/A7 models, this bulletin notes that a P0456 (Very Small Leak) code can be triggered by a faulty NVLD pressure switch or filter, not necessarily requiring canister replacement. While not a P0446, it highlights the sensitivity and complexity of the NVLD system on this platform.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Tensioner Rattle/Failure 🔴 High — A rattle on cold starts is common and may not be critical, but failure can occur, typically after 80k-150k miles. It is an engine-out service, making it extremely expensive to repair. (Ref: Audi TSB 2039995/2 addresses the rattle with updated tensioners but states the noise itself does not cause damage.)
• Water Pump & Thermostat Failure 🟠 Medium — The plastic housings are prone to cracking and leaking, often between 60k-90k miles, but failures have been reported at both lower and much higher mileages. (Ref: Recalls have been issued for some VAG models for water pump issues, but it's best to check by VIN.)
• PCV Valve / Oil Separator Failure 🟠 Medium — Common failure item, often occurring between 50k-100k miles. Symptoms include a rough idle, whistling noise, oil consumption, and vacuum leaks.
• Engine Mount Failure 🟠 Medium — The hydraulic engine mounts are a known weak point, often failing and leaking fluid around 60k-80k miles, causing significant vibration at idle.
• Carbon Buildup on Intake Valves 🟡 Low — A consequence of direct injection engines. Performance degradation becomes noticeable after 60k-80k miles, requiring a manual (walnut blast) cleaning.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0441 — Often appears alongside P0446 in 2016-2018 A7 models when water or ice enters the EVAP canister and affects the NVLD switch.
• P0451 — A companion code mentioned in TSB #2050276/7 related to NVLD switch issues caused by canister saturation.
• P0456 — A code for a 'Very Small Leak' that, on the A7 platform, is frequently linked to the same NVLD pressure switch and filter system as the P0446.
