P0446 on 2016-2024 Chevrolet Malibu: EVAP Vent Circuit Malfunction Causes and Fixes

What's Unique About the 2016-2024 Chevrolet Malibu

The 9th generation Malibu (2016-2024) commonly experiences this code due to a failing EVAP vent solenoid. A very distinct symptom for this platform is difficulty refueling, where the gas pump nozzle shuts off constantly. This happens because a vent valve stuck in the closed position prevents air from escaping the tank as fuel goes in. The vent solenoid is mounted directly onto the charcoal canister, which is located under the vehicle, just in front of the passenger-side rear wheel.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty filling the fuel tank (gas pump nozzle clicks off repeatedly)
• Fuel odor near the rear of the vehicle
• Slight decrease in fuel economy
• A 'whoosh' sound of pressure releasing when opening the capless fuel door after driving.

Most Likely Causes

1. Faulty EVAP Vent Valve/Solenoid 🔴 High Probability → Shop Vapor Canister The solenoid can fail electrically or the internal plunger can get stuck from age or debris. This is the most common failure point for this code on most GM vehicles, including the 9th Gen Malibu.
   How to confirm: Use a capable scan tool to command the vent valve to open and close; you should hear a click. Alternatively, remove the valve and apply 12V power to its terminals to see if the plunger moves. A stuck plunger is a definitive failure. 🎬 Watch: How to test and replace the vent control valve.
   Typical fix: Replace the EVAP vent solenoid. It is located on the charcoal canister near the fuel tank. The GM part number for the solenoid is 84063661 (which may be sold under ACDelco part number 23434321).
   Est. part cost: $20-$60
2. Blocked EVAP Vent Hose or Filter 🟡 Medium Probability The fresh air intake hose for the EVAP system, often routed near the wheel well, can become clogged with dirt, dust, debris, or insect nests, restricting airflow. GM TSB 23-NA-073 specifically 🎬 Watch: A quick tip for diagnosing Chevy P0446 codes. addresses this issue in dusty environments.
   How to confirm: Disconnect the hose from the vent valve and inspect it and its filter box for blockages. Attempt to blow low-pressure compressed air through it to ensure it is clear.
   Typical fix: Clean or replace the blocked vent hose and filter box. Some owners relocate the filter to a cleaner area.
   Est. part cost: $15-$40
3. Wiring or Connector Issue ⚪ Low Probability The wiring harness leading to the vent solenoid is located under the vehicle and is exposed to the elements, which can lead to corrosion or physical damage over time. The fuse for the circuit can also blow.
   How to confirm: Visually inspect the wiring and connector for damage or corrosion. Use a multimeter to check for 12V power and ground at the connector with the key on. Check the EVAP fuse in the under-hood fuse box.
   Typical fix: Repair the damaged section of the wiring harness, replace the pigtail connector (GM Part No. 22845506), or replace the fuse.
   Est. part cost: $5-$30
4. Failed Charcoal Canister ⚪ Low Probability → Shop Vapor Canister
   How to confirm: If the vent solenoid and wiring are confirmed to be good but the problem persists, the canister itself may be internally blocked or saturated with fuel. This is often diagnosed after replacing other components. TSB PIC6220A notes that fuel saturation can cause EVAP issues.
   Typical fix: Replace the entire charcoal canister assembly. The vent solenoid is often replaced at the same time. The GM part number for the canister assembly is 84947413.
   Est. part cost: $150-$250

Rare But Worth Checking

• Faulty Fuel Tank Pressure (FTP) Sensor: → Shop Fuel Tank A bad FTP sensor can send incorrect data to the computer, making it think there is a vent problem when there isn't. A sensor stuck at a high or low voltage reading can trick the ECM into setting a P0446. This is uncommon and should be considered after other causes are ruled out. NHTSA ODI #11363765 describes a scenario where structural stressing caused leaks at the tank and fuel pump module connector, resulting in codes P0446 and P0451.
• Faulty Engine Control Module (ECM): In very rare cases, the driver circuit within the ECM that controls the vent solenoid can fail. This is a last resort diagnosis.

Diagnosis Steps

1. Read the codes with an OBD-II scanner and note any other codes present.
2. Inspect the capless fuel filler neck for debris or damage to the seal.
3. Raise the vehicle and locate the charcoal canister and EVAP vent solenoid in front of the passenger-side rear wheel.
4. Visually inspect the vent solenoid, canister, and all attached hoses for cracks, damage, or obvious blockages. Pay close attention to the vent hose that leads to a small filter box.
5. Disconnect the electrical connector from the vent solenoid. Check for a red locking tab. Check for 12V power and a good ground at the connector terminals with the key on.
6. If power is present, test the solenoid itself. Use a scan tool to command it on and off, or apply 12V directly to the solenoid pins and listen for a click/watch for plunger movement.
7. If the solenoid tests bad or is stuck, replace it. Be aware that the plastic tabs holding it to the canister can be brittle and difficult to release.
8. If the solenoid tests good, disconnect the vent hose and check it and its filter for blockages from dirt or debris.
9. If no issues are found, the charcoal canister may be faulty, or there could be a rare issue with the Fuel Tank Pressure sensor or ECM.

Parts You'll Likely Need

• EVAP Vapor Canister Vent Valve Solenoid (OEM #84063661) — This is the most frequent point of failure for the P0446 code on this vehicle, causing a circuit fault or a mechanical blockage leading to refueling issues.
  Trusted brands: ACDelco (OEM P/N: 23434321 or 84524035), Dorman (P/N: 911-140), Standard Motor Products (P/N: CVS38)
  OEM price range: $35-$60
  Aftermarket price range: $20-$40
• EVAP Vapor Canister (OEM #84947413) — Replaced if it is internally blocked, saturated with fuel, or if the vent valve is seized to the canister. This part number includes a new vent valve already installed.
  Trusted brands: ACDelco (OEM)
  OEM price range: $150-$250
  Aftermarket price range: $100-$180

Related Codes That Often Appear With This One

• P0442 — Indicates a small EVAP leak. A faulty vent valve that isn't sealing properly can be interpreted by the system as a small leak.
• P0455 — Indicates a large EVAP leak. If the vent valve is stuck open, it can trigger a large leak code.

Technical Service Bulletins (TSBs) & Recalls

• TSB 23-NA-073: Addresses P0446 and other EVAP codes caused by dust intrusion into the EVAP system in dusty environments, which can plug the canister and vent solenoid.
• TSB 17-NA-233: While for the 2016-2019 Chevy Cruze, this TSB notes that P0446 can be caused by water trapped in the EVAP canister filter pipe, which may be relevant given the similar platform and component design.
• PIC6220A: A Preliminary Information bulletin for various 2016-2017 GM vehicles, including the Malibu. While its main topic is often unrelated, some versions mention investigating EVAP codes that occur after a 'spit back' condition during refueling, which can point to a saturated charcoal canister.
• Bulletin #23-NA-073: A manufacturer service bulletin notes that P0446 can be caused by dust intrusion into the evaporative canister, which may also trigger codes P0442, P0455, or P0449.

Platform-Specific Known Issues

• Difficulty Separating Solenoid from Canister: Many owners report that the plastic locking tab that holds the vent solenoid to the charcoal canister becomes very brittle. It often breaks during removal, forcing the replacement of the entire canister assembly. Applying heat carefully or using trim tools can sometimes help, but it's a common point of frustration.

Mechanic-Grade Diagnostic Values

• Fuel Tank Pressure (FTP) Sensor Voltage — expected: 1.3V - 1.7V (typically ~1.5V) with key on, engine off, at atmospheric pressure (gas cap removed).. Failure: A voltage reading that is stuck high (e.g., 2.2V or 4.8V) or low, and does not change when the gas cap is removed, points to a faulty FTP sensor.
• EVAP Vent Valve Solenoid Coil Resistance — expected: 20 - 50 Ohms when measured across the solenoid's two pins.. Failure: A reading of OL (open loop/infinite resistance) indicates a broken coil. A reading of 0 Ohms indicates a short circuit. A reading far outside the expected range suggests an impending failure.
• EVAP Vent Valve Solenoid Connector Voltage — expected: One pin should show 12V (battery voltage) with the ignition ON. The other pin is the control circuit, which the ECM will pull to ground to activate the solenoid.. Failure: No voltage on the power pin indicates a wiring or fuse issue. No ground signal on the control pin when commanded by a scan tool could indicate a wiring issue or a faulty ECM driver.

Scan Tool Commands That Help

• GDS2 / Tech 2 or equivalent professional scan tool: EVAP Vent Solenoid Valve Command — Use this bidirectional control to command the vent solenoid ON and OFF. A healthy solenoid will produce an audible click, confirming electrical and mechanical function.
• GDS2 / Tech 2 or equivalent professional scan tool: EVAP System Service Bay Test (or Purge/Seal) — Found under 'Special Functions,' this automates the entire EVAP monitor self-test. It seals the system and monitors pressure, allowing a technician to verify the entire system's integrity after a repair without having to perform a full drive cycle.
• GDS2 / Tech 2 or equivalent professional scan tool: EVAP Purge Solenoid Duty Cycle — Commanding the purge solenoid to a specific duty cycle (e.g., 30%) with the vent open is used to diagnose restrictions. If a strong vacuum is generated with the vent commanded open, it confirms a blockage in the vent path.

Wiring & Ground Locations

• F32 Underhood Fuse — In the under-hood fuse block, located in the engine compartment on the right side (passenger side).. This specific 5-amp fuse provides ignition power to the EVAP system, including the vent solenoid. If this fuse is blown, the solenoid will have no power, triggering a circuit code.
• Vent Solenoid Connector — At the EVAP vent solenoid on the charcoal canister, in front of the passenger-side rear wheel.. This 2-pin connector is exposed to the elements. One pin receives 12V ignition power, and the other is the control line that is grounded by the ECM. Corrosion here is a common cause of failure. Checking for power and a command signal at this connector is a key diagnostic step.

Real Owner Repair Stories

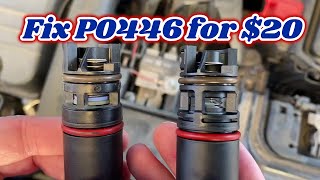

• YouTube channel 'Fix P0446 on GM car' (2020 Chevrolet Malibu, 70,000 miles) — Check Engine Light with code P0446 and the gas pump nozzle would click off repeatedly, making it very hard to refuel.
  ✅ What actually fixed it The vent canister solenoid was stuck in the closed position. Replacing only the solenoid on the canister assembly resolved both the code and the refueling issue. The replacement part cost $20.
• TexAgs forum user (2007 Chevrolet Silverado (similar GM EVAP system logic)) — P0446 code present.
  ❌ Tried (didn't work) Initial diagnosis would typically focus on the vent valve and hoses.
  ✅ What actually fixed it The user discovered via scan tool live data that the Fuel Tank Pressure (FTP) sensor was 'railed at 4.8V' when it should have been reading ~1.5V at atmospheric pressure. Replacing the faulty FTP sensor resolved the P0446 code.
• NHTSA ODI #10494422 — An owner reported a check engine light for code P0446, which the dealership identified as a restricted or blocked EVAP vent path, requiring the replacement of the EVAP vent valve solenoid.
• NHTSA ODI #10457176 — An owner reported that their vehicle failed emissions testing due to code P0446, described as an EVAP vent performance issue.

"I Checked Everything" — The Actual Cause

• A common scenario for a misleading P0446 diagnosis is a failed Fuel Tank Pressure (FTP) sensor. A smoke test will show no leaks because the system is mechanically sealed, but the FTP sensor provides the ECM with an incorrect high or low voltage reading. The ECM interprets this bad data as a failure of the system to vent properly when the vent solenoid is opened, logging a P0446 even though the vent path is clear.

Model Year Variations Within This Range

• 2016: In 2016, Chevrolet sold two versions of the Malibu. The 'Malibu Limited' was a carryover of the 8th generation and uses a traditional gas cap. The all-new 9th generation 'Malibu' has the capless fuel filler system. While both can set a P0446, causes for other EVAP codes can differ significantly between the two distinct models sold in this year.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0449 — EVAP Vent Valve/Solenoid Circuit code. Often appears alongside or instead of P0446 if the root cause is the wiring harness, a blown EVAP fuse, or a damaged pigtail connector (GM Part No. 22845506).
• P0455 — EVAP System Large Leak Detected. Can be triggered by the same capless fuel filler neck debris or seal damage mentioned in the diagnostic steps for P0446.
• P0442 — EVAP System Small Leak Detected. Related to the capless fuel filler seal or cracks in the charcoal canister/vent hoses inspected during P0446 diagnosis.
• P0451 — Fuel Tank Pressure Sensor Performance. The article context notes that a rare issue with the Fuel Tank Pressure sensor can mimic or trigger vent-related EVAP codes.
