P0446 on 2000-2006 Chevrolet Suburban: EVAP Vent Restriction Causes and Fixes

What's Unique About the 2000-2006 Chevrolet Suburban

On the GMT800 platform, which includes this generation of Suburban, the EVAP vent solenoid is mounted under the vehicle near the spare tire. This location makes it highly susceptible to collecting road dirt, dust, and moisture, especially if driven on unpaved roads. This debris is the primary reason for the vent solenoid's filter to clog or for the valve itself to get stuck, making P0446 a very common code. GM acknowledged this design flaw in Technical Service Bulletin #02-06-04-037H, which recommends replacing the original valve with a sealed unit and adding a remote filter box in a cleaner location, such as higher up in the frame rail or above the transmission.

Symptoms You May Notice

• Check Engine Light is on.
• Difficulty filling the fuel tank (gas pump nozzle clicks off repeatedly before the tank is full). This is a classic symptom of a stuck-closed vent valve.
• A 'whoosh' sound of air releasing when opening the gas cap (pressure buildup from a blocked vent).
• Hard starting after filling up with gas (less common, but can occur).

Most Likely Causes

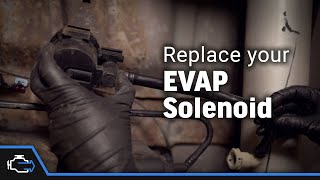

1. Faulty or Clogged EVAP Vent Solenoid 🔴 High Probability → Shop Vapor Canister The vent solenoid is located under the truck near the gas tank, where it ingests road dirt, dust, and moisture that clogs its filter and internal mechanism. This is a well-documented issue, addressed by GM TSB #02-06-04-037H.
   How to confirm: Visually inspect the solenoid and its filter for dirt or blockage. With a capable scan tool, command the vent solenoid to open and close; you should hear an audible click. 🎬 See how to perform a professional diagnosis of the P0446 code. If it doesn't click, test for 12V power and ground at the connector. If power and ground are present but it doesn't operate, the solenoid is bad. You can also remove the valve and try to blow through it; it is normally open when unpowered.
   Typical fix: Replace the EVAP vent solenoid assembly. The official, long-term fix is to install the GM-recommended filter relocation kit, which moves the air intake to a protected area. For 2000-2003 models, use kit P/N 19207762. For 2004-2006 models, replace with solenoid P/N 214-2149, which may require adapter harness P/N 19257603.
   Est. part cost: $30 - $90
2. Blocked EVAP Vent Hose or Filter 🟡 Medium Probability Insects (like spiders) can build nests, or mud and debris can physically block the vent hose or the solenoid's filter box, causing a restriction identical to a failed valve.
   How to confirm: Disconnect the hoses from the vent solenoid and charcoal canister and attempt to blow through them with low-pressure air. Inspect the inlet of the vent solenoid's filter box for any visible blockages.
   Typical fix: Clear the blockage from the hose or filter. If the hose is cracked or brittle, it should be replaced. If installing a new vent solenoid, it is best practice to ensure the lines are clear first.
   Est. part cost: $0 - $20
3. Damaged Wiring to Vent Solenoid ⚪ Low Probability The wiring harness runs under the vehicle and can be damaged by road debris, get snagged during off-road use, or become corroded over time, leading to an open or short in the circuit.
   How to confirm: Visually inspect the wiring leading to the vent solenoid for breaks, chafing, or corrosion at the connector. Use a multimeter to check for continuity and proper voltage at the connector. The new style solenoids may require an adapter harness (P/N 19257603).
   Typical fix: Repair the damaged section of wire or replace the connector pigtail.
   Est. part cost: $5 - $45

Rare But Worth Checking

• Faulty Fuel Tank Pressure (FTP) Sensor: → Shop Fuel Tank The FTP sensor tells the computer the pressure inside the tank. If the sensor fails and incorrectly reports that pressure isn't being released (e.g., it's stuck on a vacuum reading), it can trigger a P0446 even if the vent system is working perfectly. At atmospheric pressure (engine off, gas cap removed), the sensor should read approximately 1.5 volts on a scan tool. This is a common point of misdiagnosis if replacing the vent solenoid doesn't fix the code.
• Internally Clogged Charcoal Canister: → Shop Vapor Canister The activated carbon pellets inside the canister can break down and clog the passages, including the path to the vent solenoid. This usually happens on very high-mileage vehicles or if the fuel tank has been habitually overfilled. If you replace the vent solenoid and find charcoal pellets in the lines, the canister must also be replaced.

Diagnosis Steps

1. Verify the code with an OBD-II scanner.
2. Inspect the EVAP vent solenoid, located near the spare tire and charcoal canister, for obvious signs of damage or clogging with dirt/mud.
3. Inspect the hoses connected to the solenoid and canister for cracks, kinks, or blockages.
4. Pro Tip: Before a cold start, remove the gas cap to ensure the tank is at atmospheric pressure. Start the engine. If the code does not return as quickly over several drive cycles, it strongly suggests a physical blockage in the vent path rather than a sensor issue.
5. If you have a bidirectional scan tool, command the vent solenoid to cycle on and off. Listen for a distinct clicking sound. No click suggests a bad solenoid or a wiring issue.
6. If the solenoid does not click, disconnect its electrical connector. Check for 12V power on one pin and ground on the other (the ECM provides the ground to activate it). If power is missing, trace the wiring. If power is present, the solenoid is likely faulty.
7. If the solenoid clicks but the code persists, the restriction is likely physical. Disconnect the vent hose from the canister and check for obstructions. Check for charcoal pellets in the line, which would indicate a failed canister.
8. If no blockages are found, suspect the Fuel Tank Pressure (FTP) sensor. With the key on and engine off, monitor its voltage on a scan tool. It should read around 1.5V. If it's stuck high or low (e.g., 0.2V or 4.8V), the sensor or its wiring is likely faulty.

Parts You'll Likely Need

• EVAP Vapor Canister Vent Solenoid (OEM #ACDelco 214-2149 (for 2004-2006)) — This is the most common failure point. For 2004-2006 models, this is the typical replacement part. It may require a separate adapter harness (P/N 19257603) if the connector is different from the original.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• EVAP Vent Valve Relocation Kit (OEM #GM 19207762 (for 2000-2003)) — For 2000-2003 models, GM TSB #02-06-04-037H recommends this complete kit as the official fix. It includes a new sealed valve, bracket, hose, and a remote-mount filter box to prevent future contamination.
  Trusted brands: GM Genuine
  OEM price range: $70-$100
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• P0449 — P0449 is a code for the EVAP Vent Solenoid Control Circuit. The two codes are very closely related and often point to the same failure of the vent solenoid or its wiring. Some scan tools may use the codes interchangeably.

Technical Service Bulletins (TSBs) & Recalls

• TSB #02-06-04-037H: DTC P0446 (Restricted/Blocked EVAP Vent Path) Set, Check Engine Light On: This GM bulletin directly addresses the cause of P0446 on vehicles operated in dusty environments. It states that dirt and dust intrusion into the vent hose assembly causes a restriction. The official correction is to replace the original vent valve with an updated kit that includes a sealed valve and a remote-mount filter box to be placed in a cleaner location, like above the transmission.

Platform-Specific Known Issues

• Owner Experience: Replacing Parts Without a Fix: A common story on forums involves an owner who replaces the vent solenoid and even the purge valve, yet the P0446 code returns. In one case on Chevrolet-Forum.com, a user with an '05 Suburban replaced both valves and confirmed the lines were clear, but the code persisted. The next step in their diagnosis was the Fuel Tank Pressure (FTP) sensor, which can fail and give false readings that trigger the P0446 code, even with a perfectly functioning vent system.
• Temporary Fix by Cleaning: On TahoeYukonForum.com, a user noted their mechanic cleaned out the existing vent solenoid, which was full of dust and dirt from driving on dirt roads. This temporarily resolved the P0446 code, but it returned after a week. This experience directly confirms that dirt intrusion is the root cause and highlights why simply cleaning the original, unsealed unit is not a permanent solution compared to installing the updated relocation kit.

Mechanic-Grade Diagnostic Values

• Fuel Tank Pressure (FTP) Sensor Voltage — expected: 1.3V to 1.7V with key on, engine off, and gas cap installed (at atmospheric pressure).. Failure: A voltage that is stuck high (e.g., 2.2V) or low, and does not change when the gas cap is removed, points to a faulty sensor.
• EVAP Vent Solenoid Coil Resistance — expected: 20 to 50 Ohms across the two terminals.. Failure: A reading of infinite resistance (open circuit) or zero resistance (short circuit) indicates a failed solenoid coil.
• EVAP Vent Solenoid Power Supply — expected: 12V (battery voltage) at one pin of the connector with the key in the ON position.. Failure: No voltage indicates a wiring issue or a blown fuse upstream of the solenoid.

Scan Tool Commands That Help

• GM Tech 2: EVAP Purge/Seal — This function is used to command the vent and purge solenoids closed to seal the system. It allows a technician to monitor the FTP sensor to see if the system holds a vacuum, which is essential for diagnosing leaks.
• GM Tech 2: EVAP Canister Vent Solenoid ON/OFF — This bidirectional control allows the technician to manually command the vent solenoid to open and close. Listening for an audible click confirms the solenoid is mechanically responding to the command. This helps differentiate between a failed solenoid and a wiring/control issue.
• GM Tech 2: Service Bay Test — Located under 'Special Functions,' this test forces the EVAP monitor to run to confirm a repair without having to perform a full drive cycle. The fuel level must be between 15% and 85% for the test to initiate.

Wiring & Ground Locations

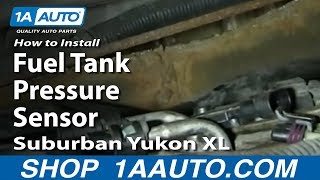

• Fuel Tank Pressure (FTP) Sensor Connector — On top of the fuel pump module, accessible by lowering the fuel tank slightly or reaching over the frame rail.. The three wires for the FTP sensor are critical for diagnosis. On these models, the wire colors are typically Gray (5V reference), Black (ground), and Dark Green (signal). Testing voltage on these specific wires can confirm if the sensor is faulty or if there is a wiring issue back to the PCM.
• EVAP Vent Solenoid Ground — The vent solenoid receives a constant 12V power supply with the key on, and the Powertrain Control Module (PCM) provides the ground to activate (close) the valve.. If the solenoid doesn't activate with a scan tool command, but has 12V power, the issue could be a break in the ground wire running back to the PCM or a faulty driver in the PCM itself.

Real Owner Repair Stories

• GM Forum user (2000 Pontiac Bonneville SSEI (Shares similar GM EVAP system logic)) — Persistent P0446 code.
  ❌ Tried (didn't work) Replaced gas cap, Replaced EVAP vent valve solenoid, Inspected charcoal canister (found no blockages), Checked hoses, Replaced EVAP purge valve
  ✅ What actually fixed it Replacing the Fuel Tank Pressure (FTP) sensor resolved the code. This indicates the sensor was providing incorrect readings, tricking the computer into thinking there was a vent restriction when there wasn't one.
• YouTube channel 'South Main Auto Repair LLC' (2003 Chevrolet Suburban) — Check Engine Light with code P0446.
  ❌ Tried (didn't work) Initial diagnosis pointed towards the common vent solenoid failure, but further testing was performed before replacing parts.
  ✅ What actually fixed it The Fuel Tank Pressure (FTP) sensor was faulty. With the key on and system at atmospheric pressure, the scan tool showed an incorrect voltage. After verifying the 5V reference and ground at the sensor connector were good, the sensor itself was condemned and replaced. The new sensor immediately showed the correct 1.45V reading.

"I Checked Everything" — The Actual Cause

• In a case on a 2005 Suburban, a dealership smoke test was performed after the owner had already replaced the vent and purge valves. The technician reported the leak was 'so small that they cannot see it' and suggested the cause must be the gas cap, FTP sensor, or charcoal canister. This highlights that for a P0446 (restriction) code, a smoke test (which finds leaks) may be inconclusive or misleading, pushing the diagnosis back toward component testing of parts like the FTP sensor.

OEM Part Supersession History

• GM 19207762 → GM 19352776 — Part update and consolidation by the manufacturer.
  Heads up: The original kit P/N 19207762 was specified for 1999-2003 models in TSB #02-06-04-037H. The superseding part, 19352776, also replaces other numbers like 15086429 and 19152345, covering a wide range of GM trucks.

Model Year Variations Within This Range

• 2000-2003: These models are specified to use the full relocation kit P/N 19207762 (or its successor) per TSB #02-06-04-037H. This kit includes a new sealed valve, bracket, and a remote filter box to be installed in a new location away from the original spot.
• 2004-2006: The TSB specifies a different service kit (P/N 19152349) for 2004-2007 models. The procedure involves replacing the valve and cutting the existing canister pipe to fit the new valve. The common service part is solenoid P/N 214-2149, which may require an adapter harness (P/N 19257603) if the electrical connector style changed.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0449 — EVAP Vent Solenoid Valve Control Circuit. This code often accompanies P0446 if the root cause is damaged wiring, an open circuit, or a shorted vent solenoid connector, which is a known issue due to the under-vehicle harness routing.
• P0452 — Fuel Tank Pressure Sensor Circuit Low Voltage. Directly related to the FTP sensor failing and getting stuck at a low voltage (e.g., 0.2V), which can falsely trigger a P0446 code even if the vent path is clear.
• P0453 — Fuel Tank Pressure Sensor Circuit High Voltage. Related to the FTP sensor failing and getting stuck at a high voltage (e.g., 4.8V), leading to false EVAP blockage readings.
• P0443 — EVAP Purge Control Valve Circuit. Often investigated or mistakenly replaced alongside P0446, as owners frequently replace both the vent and purge valves when attempting to resolve EVAP flow issues.
• P0440 — General EVAP System Malfunction. Can be triggered alongside P0446 if a failed charcoal canister (indicated by charcoal pellets in the lines) or a severely blocked vent hose compromises the entire EVAP system's ability to pull a vacuum.
