P0446 on 2001-2005 Lexus IS300: EVAP Vent Malfunction Causes and Fixes

What's Unique About the 2001-2005 Lexus IS300

The first-generation IS300 is highly prone to a specific failure that triggers P0446 and other EVAP codes: a hairline crack in the Fuel Tank Overfill Check Valve located on top of the fuel tank. This is a well-documented issue in owner communities, with numerous DIY guides and forum discussions dedicated to it. While many vehicles with this code have a bad vent solenoid on the canister, the overfill check valve is a very common and unique point of failure on the IS300 that should be investigated early in the diagnostic process.

Symptoms You May Notice

• Check Engine Light is on.
• Difficulty filling the gas tank (fuel pump nozzle clicks off repeatedly).
• A noticeable gasoline smell near the rear of the vehicle, sometimes briefly in the cabin.
• No 'whoosh' sound of pressure releasing when opening the gas cap after a drive.

Most Likely Causes

1. Cracked Fuel Tank Overfill Check Valve 🔴 High Probability → Shop Fuel Tank The plastic on the original valve becomes brittle with age and heat cycles, developing a hairline crack on its top surface. This is a very common failure on high-mileage IS300s, often documented in DIY videos and forums.
   How to confirm: The valve is on top of the fuel tank. Access requires dropping the tank or, more commonly, cutting an access panel under the rear seat. 🎬 Watch: How to access and replace the overfill check valve. Once accessed, the small crack is often visibly apparent, sometimes with fuel residue around it. A smoke test will show smoke emerging from the top of the valve.
   Typical fix: Replace the Fuel Tank Overfill Check Valve and its gasket. The OEM part number is 77390-53010. The gasket is part number 77177-12020.
   Est. part cost: $50-$70
2. Cracked or Disconnected EVAP Vacuum Hoses 🔴 High Probability → Shop Vacuum Hose After 20+ years, the original rubber vacuum lines become hard, brittle, and prone to cracking, especially those exposed to engine heat near the intake manifold or located near the rear subframe by the canister.
   How to confirm: Visually inspect all EVAP hoses in the engine bay (under the plastic cover) and around the charcoal canister assembly for obvious cracks, splits, or loose connections. A smoke test is the most effective way to pinpoint a small, hard-to-see leak.
   Typical fix: Replace the specific cracked hose section. It is often recommended to replace all accessible EVAP vacuum lines at once as a preventative measure.
   Est. part cost: $10-$40
3. Faulty Vacuum Switching Valve (VSV) 🟡 Medium Probability The solenoids that control vapor flow can fail electrically or become stuck open or closed. The VSV located on the charcoal canister (Canister Closed Valve or CCV) and the purge VSV in the engine bay are common failure points.
   How to confirm: A mechanic can test the valve by applying 12V power and listening for a 'click'. A multimeter can be used 🎬 Watch: How to test and replace the canister vent valve. to check for proper resistance across the terminals. A more thorough test involves repeatedly actuating the valve to see if it fails when hot. A smoke test may also reveal a leak through a stuck-open valve.
   Typical fix: Replace the faulty VSV. Part number 90910-12271 is a common VSV for this system.
   Est. part cost: $40-$80
4. Clogged or Failed Charcoal Canister Assembly 🟡 Medium Probability → Shop Vapor Canister The leading cause of failure is repeatedly 'topping off' the fuel tank. This forces liquid gasoline into the canister, saturating the charcoal pellets and causing a permanent blockage or damage to the integrated valves.
   How to confirm: If you experience extreme difficulty filling the gas tank (pump clicks off immediately) and have ruled out other causes, the canister is likely clogged. A smoke test may show no flow through the canister vent. The canister may feel heavy or slosh if it is saturated with fuel.
   Typical fix: Replace the entire charcoal canister assembly. It is located above the rear subframe and can be difficult to access, often requiring the rear subframe to be lowered. 🎬 See this walkthrough on how to remove the fuel tank. OEM is recommended over aftermarket for this part.
   Est. part cost: $350-$550
5. Loose or Faulty Gas Cap ⚪ Low Probability → Shop Fuel Tank Cap
   How to confirm: Ensure the gas cap is tightened until it clicks at least once. Check the cap's rubber seal for cracks or damage. If it looks worn, it's a cheap and easy first part to replace. Using a non-OEM cap can also cause issues.
   Typical fix: Replace the gas cap with a new OEM part. Part number 77300-53010 is for 2001-2002 models, and 77300-53020 or 77300-53030 for later models.
   Est. part cost: $20-$35

Diagnosis Steps

1. Check the gas cap. Ensure it is a genuine OEM cap, is tightened until it clicks, and the seal is not cracked or worn. If in doubt, replace it as a cheap first step.
2. Scan for other codes. Note if P0440, P0441, or P0442 are also present, as this can help pinpoint the location of the fault.
3. Perform a visual inspection. Check all accessible EVAP vacuum lines in the engine bay (under the plastic engine cover) and around the rear subframe for obvious cracks or damage.
4. Conduct a smoke test. This is the most effective way to find the source of the leak. Introduce smoke into the EVAP service port and look for smoke escaping from hoses, valves, or the canister itself.
5. Pay close attention to the Fuel Tank Overfill Check Valve during the smoke test, as this is a very common failure point. Access may require removing the rear seat bottom cushion to see the top of the tank area.
6. If no leaks are found, test the function of the various Vacuum Switching Valves (VSVs). Test the purge valve in the engine bay and the vent valve on the canister. Apply a 12V power source to see if they click open and closed. Check for correct resistance with a multimeter.
7. If you have difficulty fueling the car and no leaks are found, the charcoal canister is the most likely culprit, being internally clogged.

Parts You'll Likely Need

• Fuel Tank Overfill Check Valve (OEM #77390-53010) — This is a known high-failure part on the IS300 that causes P0446 and related EVAP codes due to the plastic cracking over time.
  Trusted brands: Lexus (OEM)
  OEM price range: $55-$70
  Aftermarket price range: N/A

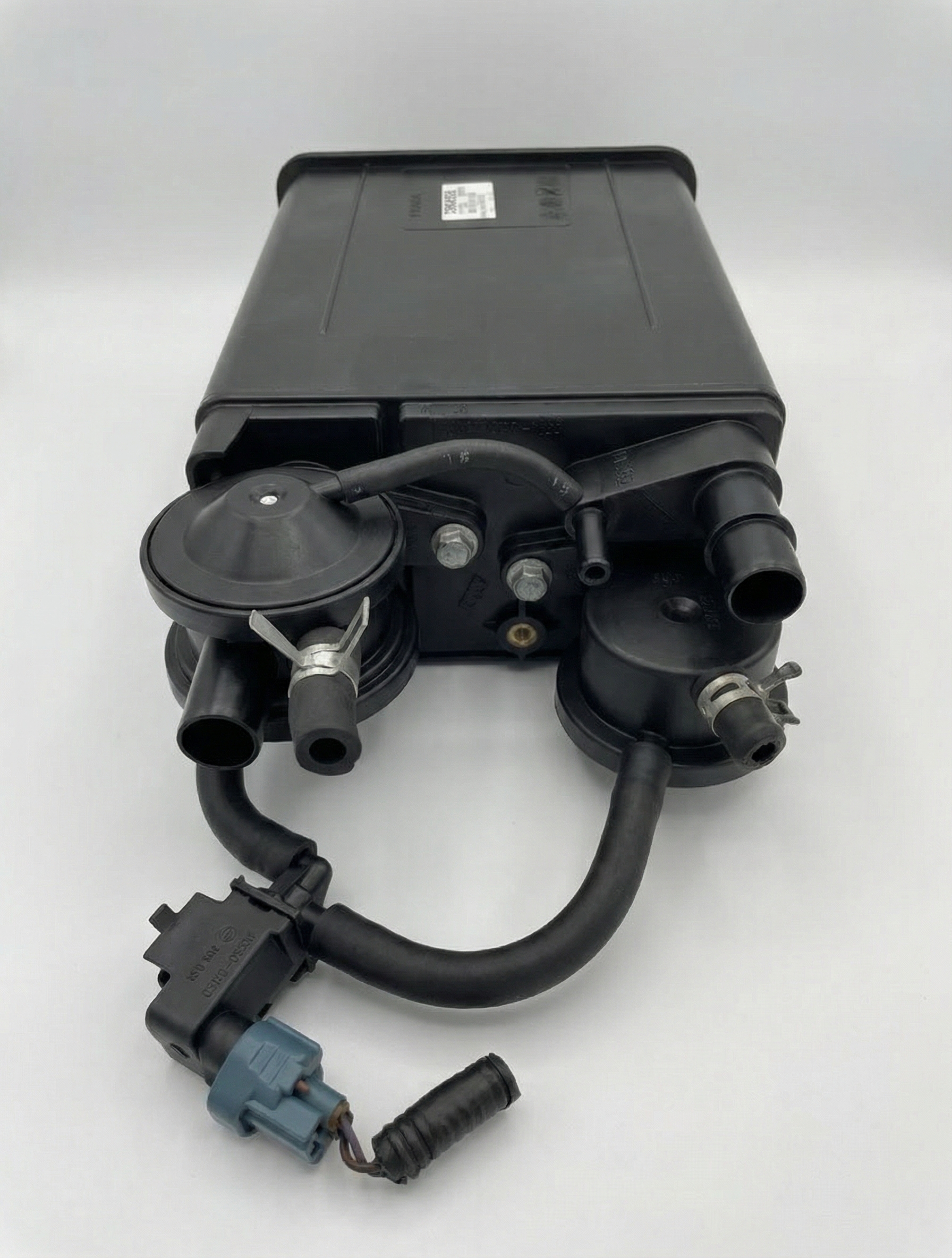

• Vapor Canister Assembly (OEM #77740-53011) — This part becomes clogged, typically from fuel overfilling, which blocks the EVAP system's ability to vent. It contains integrated valves that can also fail.
  Trusted brands: Lexus (OEM), Denso
  OEM price range: $390-$535
  Aftermarket price range: $150-$250
• Vacuum Switching Valve (VSV) (OEM #90910-12271) — These electronic solenoids control the flow of vapor and can get stuck or fail electrically, causing a vent circuit malfunction.
  Trusted brands: Lexus (OEM), Aisin
  OEM price range: $60-$90
  Aftermarket price range: $30-$50
• Gas Cap (OEM #77300-53010) — A worn out or non-OEM gas cap can fail to seal the system properly, leading to various EVAP codes. It's an inexpensive and simple first step in diagnosis.
  Trusted brands: Lexus (OEM)
  OEM price range: $25-$35
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0440 — This is a general EVAP System Malfunction code that often appears with more specific codes like P0446 when a leak is present. The cracked overfill check valve is a common cause for both codes appearing together.
• P0441 — This code indicates Incorrect Purge Flow and is often triggered alongside P0446 by the same root causes, such as a stuck VSV or cracked hose in the engine bay.
• P0442 — This code for a small EVAP leak can be caused by the same cracked hoses or faulty overfill check valve that trigger P0446.

Technical Service Bulletins (TSBs) & Recalls

• While no TSB is specific to the IS300 for this code, Toyota TSB EG004-02 addresses P0440, P0441, and P0446 on other models from the same era (like the Camry and Sienna) for an inoperative Canister Closed Valve VSV, showing the valve was a known issue on Toyota/Lexus products of this period.

Platform-Specific Known Issues

• The Fuel Tank Overfill Check Valve, located on top of the fuel tank, is a notorious failure point that causes EVAP codes. Accessing it is difficult, requiring either dropping the fuel tank or cutting an access hole under the rear seat. Many owners opt to cut the access hole, a procedure well-documented on YouTube and forums.
• A Reddit thread on r/IS300 titled 'Lexus Service Repair - Code P0446 EVAP LEAK' shows a dealer invoice for this exact repair, confirming the canister replacement is a common, albeit expensive, professional fix.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0440 — General EVAP System Malfunction. Often appears alongside P0446, as noted in Toyota TSB EG004-02 and common diagnostic steps, pointing to shared failures like the Canister Closed Valve VSV or overfill check valve.
• P0441 — EVAP Incorrect Purge Flow. Frequently triggered with P0446 when the front purge valve in the engine bay fails, as reported by owners on the ClubLexus forums.
• P0442 — EVAP System Leak Detected (Small Leak). Commonly accompanies P0446 due to the hairline cracks that develop on the aging plastic of the Fuel Tank Overfill Check Valve.
• P0455 — EVAP System Leak Detected (Large Leak). Can be triggered by the same root causes as P0446, specifically when EVAP vacuum hoses become completely disconnected or the gas cap is left loose.
