P0446 on 2003-2009 Mercedes-Benz E-Class: EVAP Vent Valve Causes and Fixes

What's Unique About the 2003-2009 Mercedes-Benz E-Class

For the W211 generation E-Class, the P0446 code points very reliably to the charcoal canister shut-off valve or its immediate wiring. Unlike on some other vehicles where this code can be ambiguous, on this platform, the valve's location behind the rear passenger-side wheel well exposes it to road spray and debris. This leads to a high rate of failure from corrosion on the electrical connector or internal failure of the valve's solenoid coil. While other EVAP system components can fail, they typically trigger different codes; P0446 on this car is a strong indicator of a vent circuit problem.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty filling the fuel tank (gas pump clicks off before the tank is full)
• A faint fuel smell near the rear of the vehicle
• Failing a state emissions inspection
• Code returns immediately on the second engine start after being cleared

Most Likely Causes

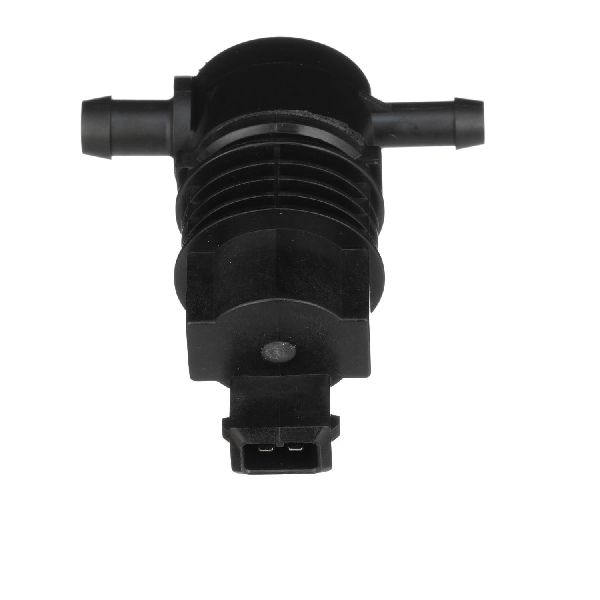

1. Faulty Charcoal Canister Shut-Off Valve (Vent Valve) 🔴 High Probability → Shop Vapor Canister The valve is located behind the rear passenger-side wheel well liner, where it is exposed to road salt, water, and debris, leading to corrosion and premature failure of the internal solenoid coil.
   How to confirm: Access the valve and apply 12V power and ground to its two pins. A good valve will make an audible 'click'. If it does not click, the internal coil has failed. You can also test the coil's resistance with a multimeter; a good valve will typically have a resistance between 20-50 ohms. An open circuit (infinite resistance) confirms failure.
   Typical fix: Replace the shut-off valve. It is attached to the charcoal canister with a quarter-turn lock. Also, replace the small O-ring seal to ensure no leaks.
   Est. part cost: $140-$180
2. Damaged Wiring or Corroded Connector 🟡 Medium Probability The same exposure to elements that damages the valve can also damage its electrical connector and wiring, causing an open or short circuit. Wires can become brittle and break near the connector.
   How to confirm: Visually inspect the connector for green or white corrosion and the wiring for any breaks or chafing. Use a multimeter to check for 12V power at the connector with the key on. One user on the PeachParts forum found a completely severed wire leading to the valve.
   Typical fix: Clean the connector terminals with a contact cleaner and a small brush. If the wiring is broken, it will need to be repaired. Some earlier models may need a wiring harness adapter (p/n 2114400134) when installing an updated valve.
   Est. part cost: $0-$25
3. Cracked or Clogged Charcoal Canister ⚪ Low Probability → Shop Vapor Canister Over time, the plastic of the canister can become brittle and develop cracks. It is also possible for the activated carbon pellets inside to break down and clog the vent pathways, preventing the valve from functioning correctly.
   How to confirm: Visually inspect the canister for any cracks. A smoke test of the EVAP system is the most effective way to reveal leaks from the canister body or internal blockages. One user on MBWorld smoke tested their canister and found no leaks, helping them rule it out.
   Typical fix: Replace the entire charcoal canister assembly.
   Est. part cost: $200-$350

Rare But Worth Checking

• Faulty Engine Control Module (ECM): This is extremely rare. Before condemning the ECM, all other possibilities, including the valve, wiring, and canister, must be exhaustively ruled out by a professional. One owner on MBWorld forums went through multiple part replacements before suspecting the ECU.

Diagnosis Steps

1. Confirm P0446 is the primary code using an OBD-II scanner. Note that the code often reappears on the second engine start after being cleared.
2. Check the gas cap to ensure it is tight and the seal is not cracked. While unlikely to be the cause, it is a simple first step.
3. Safely lift the vehicle and remove the rear passenger-side wheel.
4. Remove the plastic wheel well liner to access the charcoal canister and the attached shut-off valve.
5. Visually inspect the valve's electrical connector and wiring for any obvious signs of corrosion, damage, or loose connections. Look closely for broken wires right at the connector.
6. Disconnect the connector. Use a multimeter to verify that one pin receives ~12V with the ignition on.
7. Test the valve itself. Use jumper wires to apply 12V and ground directly to the two pins on the valve. A healthy valve will produce a distinct 'click'. No click means the valve has failed.
8. Alternatively, test the valve's resistance. Set a multimeter to Ohms (Ω) and measure across the two pins. A reading between 20-50 Ω is typical for a good coil; an open circuit (OL) indicates a failed coil.
9. If the valve tests good but the code persists, the problem is likely in the wiring between the valve and the ECM.
10. If no other cause is found, a smoke test can be performed on the EVAP system to check for cracks in the canister or hoses.

Parts You'll Likely Need

• Charcoal Canister Shut-Off Valve (Vent Valve) (OEM #0004707193) — This is the most common failure item for code P0446 on this vehicle due to its vulnerable location and electrical/mechanical failure over time. This part number supersedes older versions like 0004704993.
  Trusted brands: Genuine Mercedes-Benz, Bosch
  OEM price range: $150-$180
  Aftermarket price range: $120-$160
• Shut-Off Valve Seal (O-Ring) (OEM #0299978448) — This rubber seal should always be replaced when the shut-off valve is replaced to prevent future EVAP system leaks.
  Trusted brands: Genuine Mercedes-Benz
  OEM price range: $5-$10
  Aftermarket price range: $2-$5
• Wiring Harness Adapter (OEM #2114400134) — Required on some earlier W211 models when replacing the original shut-off valve with the updated version (0004707193). It adapts the chassis harness to the new valve's connector.
  Trusted brands: Genuine Mercedes-Benz
  OEM price range: $15-$25

Related Codes That Often Appear With This One

• P0447 — This code indicates an open circuit for the vent control, which can be caused by the same broken wire or failed valve coil that triggers P0446.
• P0448 — This code indicates a shorted circuit for the vent control, pointing to damaged wiring or an internal short in the valve.
• P0455 — This indicates a large EVAP leak. While often a separate issue, a vent valve stuck open can be interpreted by the system as a large leak.

Platform-Specific Known Issues

• Owner Experience: The 'Whack-a-Mole' Repair: A user on MBWorld with a 2004 E500 described their P0446 troubleshooting as 'playing whack-a-mole'. They first replaced the gas cap and purge valve with no success. They then correctly identified the shut-off valve location (rear passenger wheel well) and replaced the valve, O-ring, and wiring adapter, but the code still returned. This highlights that while the valve is the most common cause, wiring issues or, more rarely, canister or ECU problems can persist.
• Owner Experience: The Broken Wire: On the PeachParts forum, a 2005 ML350 owner (a different chassis but with a similar EVAP component) with a P0446 that returned instantly found the cause to be a completely severed wire leading to the vent valve. The wire was broken up inside the chassis, making it difficult to spot initially. This serves as a reminder to thoroughly inspect the entire wiring harness leading to the valve, not just the connector itself.

Mechanic-Grade Diagnostic Values

• EVAP Shut-Off Valve (Y58/4) Solenoid Coil Resistance — expected: 20 - 50 Ohms. Failure: Infinite resistance (OL) indicates an open coil; near-zero resistance indicates a shorted coil.
• Voltage at Shut-Off Valve Connector (Key On, Engine Off) — expected: ~12V (Battery Voltage) on the power pin. Failure: 0V or significantly low voltage points to a wiring issue, fuse, or a problem with the Rear SAM.

Hidden / Shadow Codes Worth Checking

• P2025: Directly names the 'Y58/4 Activated Charcoal canister shut off valve' and indicates a mechanical defect or that the component is permanently open. This is the manufacturer-specific code that corresponds to the generic P0446. (see via Mercedes-Benz specific scanners like STAR/XENTRY, or advanced OBD-II scanners like Autel.)

Scan Tool Commands That Help

• Mercedes STAR/XENTRY/DAS: EVAP System Leakage Test — After replacing a component, this guided function commands the shut-off valve (Y58/4) to close, seals the system, and monitors pressure decay to confirm the repair was successful and no other leaks are present. It can force the system to run its self-test and clear the code without multiple drive cycles.
• Advanced Bidirectional Scanners (e.g., Autel, Autologic): Shut-Off Valve Actuation Test — To directly command the Y58/4 shut-off valve to open and close while listening for an audible click. This confirms if the valve is responding to commands from the scan tool, helping to isolate a bad valve from a wiring problem.

Wiring & Ground Locations

• N10/2 Rear SAM (Signal Acquisition and Actuation Module) — Located in the trunk, behind the left-side (driver's side in LHD cars) trim panel.. The Rear SAM controls and provides power to the charcoal canister shut-off valve (Y58/4). A failure in the SAM's driver circuit for the valve, or corrosion on the SAM itself (often due to water leaks from the trunk seal), can mimic a valve or wiring failure and cause P0446.
• Y58/4 Connector (Shut-Off Valve) — Attached to the shut-off valve, behind the rear passenger-side wheel well liner.. This 2-pin connector is the primary point for electrical testing. One pin receives power from the Rear SAM, and the other is the control signal. Corrosion here is a very common cause of the code.
• ECM Connector C7, Pin 37 — On the main Engine Control Module (ECM/ME) in the engine bay, driver's side.. For deep-level wiring diagnostics, this is the pin on the ECM that sends the activation signal for the shut-off valve. A technician would test for continuity from this pin to the valve connector to rule out a broken wire in the harness.

Real Owner Repair Stories

• DCF Garage on YouTube (2003 E320 (W211)) — Check Engine Light with code Y58/4 (Mercedes-specific for P0446).
  ❌ Tried (didn't work) Testing the purge valve in the engine bay (it was working correctly).
  ✅ What actually fixed it Replacing the charcoal canister shut-off valve (Y58/4) and the required wiring harness adapter (p/n 2114400134) resolved the code. The code did not clear immediately but was gone after running a forced actuation test with a scan tool, simulating a drive cycle.
• MBWorld.org Forums user (W211 E-Class) — Persistent P0446 code that returned instantly after clearing.
  ❌ Tried (didn't work) Replacing the gas cap., Replacing the shut-off valve., Smoke testing the charcoal canister (no leaks found).
  ✅ What actually fixed it The user was down to either the charcoal canister itself being internally clogged/faulty or a bad ECU. Although not explicitly stated as the final fix in the thread, this case highlights a scenario where a smoke test can be clean, yet the canister is still the root cause.

"I Checked Everything" — The Actual Cause

• In a documented case on MBWorld, an owner with a persistent P0446 replaced the shut-off valve and then performed a smoke test on the charcoal canister, which showed no leaks. The code continued to return immediately. This points towards a failure that a smoke test cannot detect, such as an internal blockage within the canister from broken-down carbon pellets or a failure of the fuel tank pressure sensor providing incorrect readings to the ECU.

OEM Part Supersession History

• 0004704993 → 0004707193 — Updated design for improved reliability and durability.
  Heads up: When replacing an older valve with the updated 0004707193, a wiring harness adapter (p/n 2114400134) is often required on earlier models to match the new connector style.
• 0004706393 → 0004707193 — Part number consolidation and design update.

Model Year Variations Within This Range

• 2003-2005 (approx.): Early W211 models are more likely to have the older style shut-off valve (e.g., 0004704993) and will almost certainly require the wiring harness adapter (2114400134) when upgrading to the current part (0004707193). Later models may have the updated connector from the factory.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• SBC (Sensotronic Brake Control) Failure 🔴 High — Affects pre-facelift models (2003-2006). The hydraulic pump has a pre-programmed service life based on brake pedal actuations. Failure is inevitable and results in a red 'STOP' warning and significantly reduced braking power. (Ref: Mercedes-Benz extended the warranty on the SBC pump to 25 years with unlimited mileage, and many have been replaced free of charge by dealers.)
• M272/M273 Engine Balance Shaft/Idler Gear Wear 🔴 High — Affects V6 (M272) and V8 (M273) engines from roughly 2004-2008. Premature wear of a soft metal gear on the balance shaft (V6) or an idler gear (V8) leads to incorrect timing, check engine lights (P0016/P0017), and rattling. Repair is extremely labor-intensive, requiring engine removal. (Ref: A class-action lawsuit addressed this in the US, but it remains a major out-of-warranty repair. Engine serial numbers can identify affected units.)
• Valeo Radiator Glycol Contamination 🔴 High — Affects early models (approx. 2003-2004) equipped with Valeo-brand radiators. A failure in the integrated transmission cooler allows engine coolant (glycol) to mix with automatic transmission fluid, destroying the torque converter and clutch packs. Symptoms include harsh shifting and shuddering. (Ref: No official recall, but it was a well-known issue. Most affected cars have likely either failed or had the radiator replaced with a safer Behr unit by now.)
• Airmatic Suspension Failure 🟠 Medium — Common on vehicles equipped with the optional Airmatic suspension. Air springs (struts/bags) develop leaks, causing the car to sag, especially overnight. The air compressor can also burn out from running constantly to compensate for leaks. Onset is common after 80,000-120,000 km.
• Plastic Intake Manifold Lever Failure 🟡 Low — The plastic actuator levers for the tumble flaps on the M272/M273 intake manifolds become brittle and break, causing poor performance and fuel economy, though it may not always trigger a check engine light immediately.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used charcoal canister assembly can be a cost-effective option if the canister itself is confirmed to be cracked or damaged, as it's a non-wear item. However, it is not recommended to buy a used shut-off valve by itself.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a charcoal canister, inspect the plastic body thoroughly for any cracks, especially around mounting points and hose connections.
• Ensure the donor vehicle is from a dry, salt-free climate to minimize the risk of corrosion on any attached components.
• Shake the canister gently; if you hear rattling, the internal carbon pellets may have broken apart, and the part should be avoided.

OEM-only on this vehicle (don't cheap out):

• Charcoal Canister Shut-Off Valve (Vent Valve): Due to the high failure rate and the critical electrical function, using a new, warrantied part from Bosch (OEM supplier) or Genuine Mercedes-Benz is strongly recommended. The cost savings of a used valve are not worth the risk of it failing shortly after installation.

Aftermarket brands forum-validated for this vehicle:

• Bosch (for the shut-off valve, as they are the original equipment manufacturer)
• Uro Parts (mentioned in forums and videos as a viable, lower-cost alternative, though sometimes with a slightly different connector requiring the adapter).

Brands owners have reported issues with on this vehicle:

• No-name, unbranded parts from online marketplaces should be avoided, as their internal coil quality and sealing capability are unverified and can lead to the code returning quickly.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0016 — Related to engine timing issues on M272/M273 engines (2004-2008) caused by balance shaft or idler gear wear, often appearing alongside other major service codes on this platform.
• P0017 — Companion code to P0016, indicating incorrect timing due to the known balance shaft gear wear issue on V6 and V8 E-Class models.
