P0446 on 2005-2011 Mercedes-Benz ML-Class: EVAP Vent Circuit Causes and Fixes

What's Unique About the 2005-2011 Mercedes-Benz ML-Class

On the W164 generation ML-Class and its platform mates (X164 GL-Class, W251 R-Class), the charcoal canister and its vent valve are located inside the rear passenger-side wheel well. This location exposes the valve and its electrical connector to significant road spray, dirt, and salt, leading to corrosion and premature failure of the valve itself or its wiring.

Generation note: The 2005-2011 range primarily covers the second generation (W164) ML-Class, which launched for the 2006 model year. This guide is specific to the W164 chassis. The information is generally applicable across all engine variants (ML350, ML500, ML550, etc.) as the EVAP system design is consistent. The issue is also shared with the X164 GL-Class and W251 R-Class.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty filling the fuel tank (the gas pump nozzle clicks off repeatedly before the tank is full)
• A faint fuel odor near the rear of the vehicle.
• Code may appear immediately on the second start after being cleared, as this is often when the EVAP self-test runs.

Most Likely Causes

1. Faulty Charcoal Canister Vent Valve (Shut-off Valve) 🔴 High Probability → Shop Vapor Canister The valve is located in the rear passenger-side wheel well, where it is exposed to water, dirt, and road salt, causing it to fail by sticking or electrical failure.
   How to confirm: Access the valve by removing the rear passenger wheel and fender liner. Command the valve to open and close using a bi-directional scan tool. Alternatively, remove the valve and apply 12V power to its pins; a healthy valve will produce an audible click. If it doesn't click, it has failed. The valve is normally open, and should close when 12V is applied.
   Typical fix: Replace the vent valve. It typically twists into the charcoal canister.
   Est. part cost: $50-$100
2. Corroded or Damaged Vent Valve Wiring/Connector 🟡 Medium Probability The same wheel well location that is harsh on the valve is also harsh on its electrical connector and wiring, leading to corrosion and loss of electrical contact.
   How to confirm: With the valve disconnected, visually inspect the connector pins and wiring for green corrosion, swelling, or broken wires. Use a multimeter to check for 12V power at the connector with the key on. One forum user found the wire had been completely severed.
   Typical fix: Clean the connector terminals if corrosion is minor. If the connector or wiring is damaged, it will need to be repaired or replaced with a new pigtail.
   Est. part cost: $15-$30

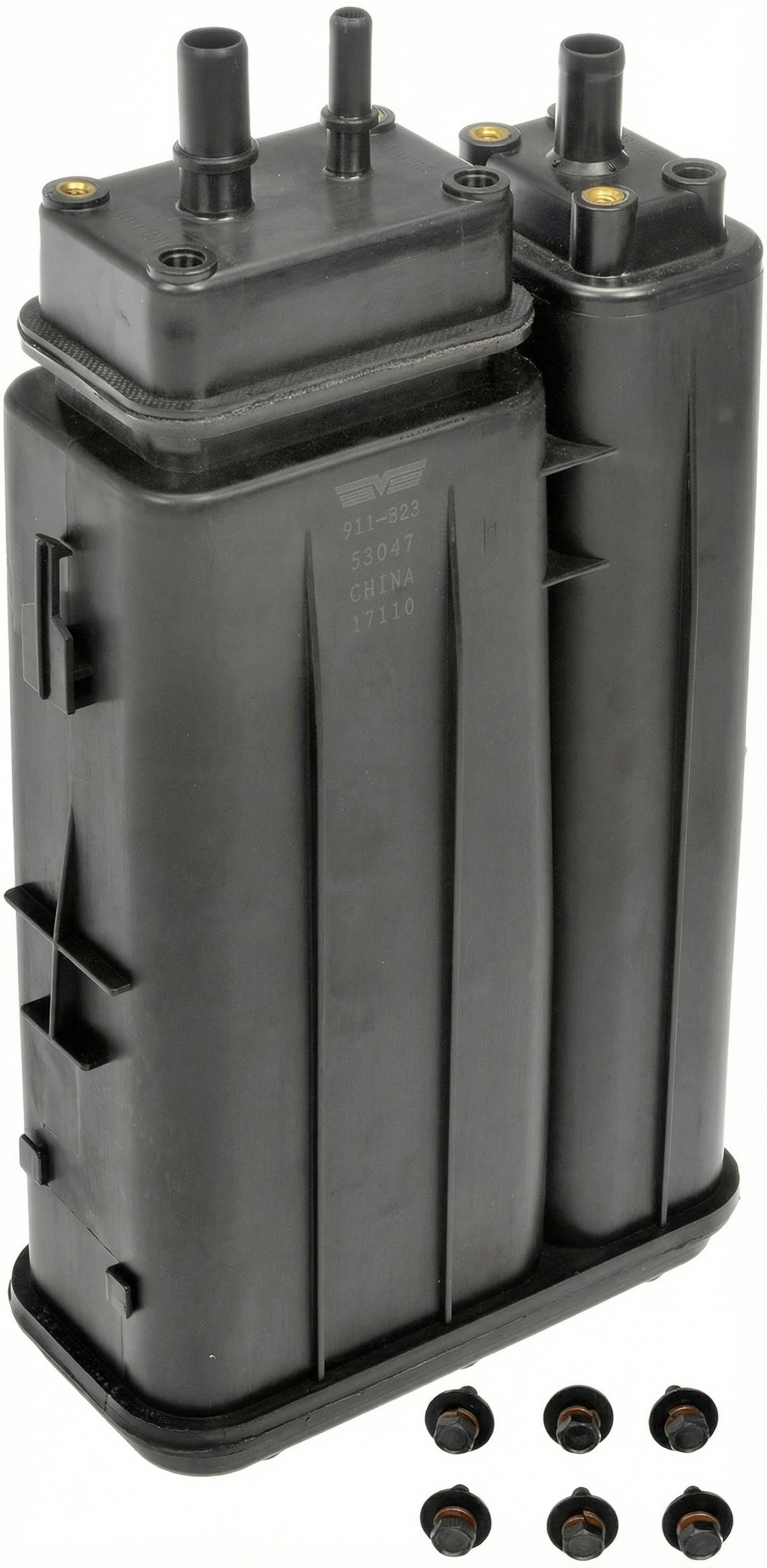

3. Clogged or Saturated Charcoal Canister ⚪ Low Probability → Shop Vapor Canister Consistently overfilling the fuel tank (topping off) can force liquid gasoline into the canister, saturating the charcoal pellets and causing a restriction that can trigger P0446.
   How to confirm: After removing the vent valve, inspect the port on the canister. If charcoal pellets are visible or fall out, the canister has failed internally and needs replacement. This is less common than the valve or wiring failing.
   Typical fix: Replace the entire charcoal canister assembly.
   Est. part cost: $200-$400

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0446 is the primary code present.
2. Inspect the gas cap to ensure it is tight, but do not replace it as a primary fix for this specific code.
3. Safely lift and support the rear of the vehicle. Remove the passenger-side rear wheel.
4. Remove the plastic wheel well liner to gain access to the charcoal canister and vent valve.
5. Visually inspect the vent valve, its connector, and the surrounding hoses for any obvious damage, cracks, or corrosion.
6. Disconnect the electrical connector from the vent valve. Use a multimeter to check for 12V at the connector with the ignition on (engine off).
7. If power is present, test the valve itself. You can command it with a high-end scanner or remove it and apply 12V and ground to its terminals to listen for a click. A healthy valve is normally open and will click shut when power is applied.
8. If the valve does not click, it is faulty and needs to be replaced.
9. If the valve clicks, the issue may be an intermittent connection or a blockage. Re-inspect the wiring and connector carefully. Inspect the canister port for charcoal debris.
10. If no issues are found, a smoke test of the EVAP system may be required to find a restriction, but this is less common for this specific code.

Parts You'll Likely Need

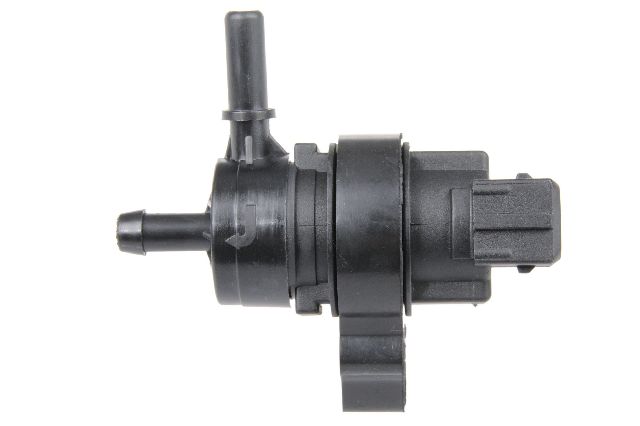

• EVAP Canister Vent Valve (OEM #0004708693, 0004707193) — This is the most common failure point for code P0446 on this vehicle due to its location and function.
  Trusted brands: Bosch (OEM supplier, part number 0 280 142 431 is often cited for similar systems but may be the purge valve, not the vent valve; confirm application), Dorman, Genuine Mercedes-Benz
  OEM price range: $80-$120
  Aftermarket price range: $50-$100

Platform-Specific Known Issues

• Real-World Repair Story: On the PeachParts forum, a user with a 2005 ML350 and a P0446 code that returned immediately after clearing ultimately traced the problem not to the valve itself, but to a severed wire leading to the valve. The break was found behind the driver's rear tire, highlighting the vulnerability of the wiring in that area.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Valve (Shut-off Valve) Solenoid Resistance — expected: 20 - 50 Ohms. Failure: An open circuit (infinite resistance) or a short circuit (near-zero resistance) indicates a failed solenoid coil.
• Fuel Tank Pressure Sensor Voltage Supply — expected: 4.75 - 5.25 V. Failure: Voltage outside this range points to a wiring issue or a fault in the ME-SFI (engine) control module.

Scan Tool Commands That Help

• Mercedes Xentry / DAS: EVAP System Test or Shut-Off Valve Actuation (Y58/4) — Use this to command the vent valve to cycle on and off. This allows a technician to listen for the audible 'click' of a working valve, confirming the entire circuit from the control module to the valve is functional. It's a primary step to differentiate between a failed valve and a wiring/control issue.

Wiring & Ground Locations

• N10/8 — The Rear SAM (Signal Acquisition and Actuation Module) is located in the right rear luggage compartment, on the wheelhouse, behind the trim panels.. The Rear SAM is the control unit that reads inputs and actuates various components in the rear of the vehicle, including the central locking, rear lights, and the EVAP system components like the vent valve. An electrical fault for P0446 could originate from this module or the wiring connected to it.
• Vent Valve Connector — Connected to the EVAP vent valve, located in the rear passenger-side wheel well.. This connector is the primary point for electrical testing. One pin should have ~12V with the key on, and the other is the ground control wire from the Rear SAM. Testing here confirms if power is reaching the valve and if the valve's coil is intact.

Real Owner Repair Stories

• PeachParts Mercedes-Benz Forum (2005 ML350 (W164)) — Check Engine Light with code P0446, which returned immediately on the second start after being cleared.
  ❌ Tried (didn't work) Initial diagnosis and consideration of replacing the vent valve.
  ✅ What actually fixed it The owner found a completely severed wire. The break was located behind the driver's rear tire, not immediately next to the vent valve itself. Soldering the wire back together resolved the P0446 code.

"I Checked Everything" — The Actual Cause

• In some cases for related EVAP codes, a system can pass a smoke test, yet the code returns. One documented instance on a Mercedes, though not this specific model, found the charcoal canister itself had failed internally, causing a restriction that a smoke test for leaks would not identify.

OEM Part Supersession History

• 0004706793 → 0004708693, A0004708693, 000470869364 — Standard part revision and updates by the manufacturer.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• M272/M273 Engine Balance Shaft/Idler Gear Wear 🔴 High — Common on early models (approx. 2004-2008). Failure can occur from 60,000 to 130,000 miles, leading to incorrect timing and eventual catastrophic engine damage if ignored. (Ref: A class-action lawsuit was settled regarding this issue for US vehicles.)
• 722.9 7G-Tronic Transmission Conductor Plate Failure 🔴 High — A well-known failure item. The internal speed sensors on the conductor plate (part of the valve body) fail, causing harsh shifting, getting stuck in gear, or going into limp mode.
• Airmatic Air Suspension Failures 🟠 Medium — Very common. Issues include leaking air springs/struts (causing the vehicle to sag overnight), failing valve blocks, and worn-out compressors.
• Intake Manifold Swirl Flap Linkage Failure 🟠 Medium — The plastic linkages that control the swirl flaps in the intake manifold become brittle and break, causing performance issues. This affects both gasoline (M272) and diesel (OM642) engines.
• Rear SAM (Signal Acquisition Module) Water Damage 🟠 Medium — The gasket for the rear taillight fails, allowing water to leak into the rear quarter panel and damage the rear SAM, causing a variety of strange electrical issues with lights and fuel level readings.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, buying a used EVAP vent valve is NOT recommended. The part fails due to exposure to road salt and moisture in the wheel well, so a used part from a junkyard likely has similar wear and a high risk of premature failure. A used charcoal canister may be considered if from a low-mileage, dry-climate donor vehicle, but it still carries the risk of being saturated from over-fueling by the previous owner.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a charcoal canister, ensure the donor vehicle is from a dry, non-salt-belt region.
• Inspect the canister for any physical cracks or damage.
• Shake the canister; if you hear loose pellets rattling inside, it has failed internally and should be avoided.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the OEM supplier for Mercedes electrical components)
• Genuine Mercedes-Benz

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand parts from online marketplaces can have poor fitment and high failure rates. Dorman is a common aftermarket brand, but owner reviews can be mixed; OEM or Bosch is a safer bet for longevity.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0442 — Related EVAP system code; while P0446 focuses on the vent control circuit/restriction, P0442 indicates a small leak which may require inspecting the same gas cap or hoses mentioned in the diagnosis steps.
• P0455 — Large EVAP leak code; often checked alongside P0446 when inspecting the integrity of the charcoal canister and vent valve connections.
• P2004 — Though not an EVAP code, this relates to the Intake Manifold Swirl Flap failure mentioned as a known issue for the M272/M273 engines found in this ML-Class.
• P0016 — Related to the M272/M273 Balance Shaft/Idler Gear wear mentioned in the known issues, which can lead to incorrect timing.
