P0446 on 2003-2011 Saab 9-3: EVAP Vent System Blockage Causes and Fixes

What's Unique About the 2003-2011 Saab 9-3

The Saab 9-3 from this era is built on the General Motors (GM) Epsilon platform, so its EVAP system is GM-based. A very common point of confusion for owners is mixing up the 'Purge Valve' in the engine bay with the 'Vent Valve' (or Vent Solenoid) at the rear of the car. While the purge valve is a frequent failure item, it causes different codes (like P0455 or P0441). Code P0446 specifically points to a problem with the vent valve or charcoal canister near the fuel tank. On GM platforms, this code is almost always a mechanical blockage issue, not an electrical circuit fault.

Generation note: This guide covers the second generation of the Saab 9-3 (platform code 9440), which includes the Sport Sedan, SportCombi (wagon), and Convertible models from 2003 to 2011. No significant differences in the EVAP system related to this code have been noted across these years, as they share the core GM Epsilon platform components.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty filling the fuel tank (gas pump nozzle clicks off repeatedly and prematurely).
• A faint fuel odor near the rear of the vehicle (less common, more often associated with leak codes like P0442).
• A 'whoosh' sound of pressure releasing when opening the gas cap after driving.

Most Likely Causes

1. Faulty EVAP Vent Valve / Solenoid 🔴 High Probability → Shop Vapor Canister The valve is located underneath the rear of the car, exposing it to road grime, moisture, and corrosion, which can cause the internal plunger to stick closed. It is the most common failure point for this code.
   How to confirm: Locate the valve near the charcoal canister. With a bidirectional scan tool, command the valve to open and close; you should hear a click. Alternatively, remove the valve and apply 12V directly to its terminals to test for operation. If it doesn't click, or if it clicks but remains stuck, it has failed. You can also try blowing through it; in its resting (unpowered) state, it should be open.
   Typical fix: Replace the EVAP vent valve. It is often mounted directly on the charcoal canister.
   Est. part cost: $40-$100
2. Clogged or Saturated Charcoal Canister 🟡 Medium Probability → Shop Vapor Canister Over time, the activated carbon inside can break down or become saturated with fuel, especially if the fuel tank is consistently overfilled. This creates an internal blockage. Dust and dirt from the road can also be ingested into the canister over time, clogging it.
   How to confirm: Disconnect the hoses from the canister. If you see black charcoal pellets in the lines, the canister has failed internally and must be replaced. Try to blow low-pressure air through the canister's vent port; if it's restricted, it needs replacement.
   Typical fix: Replace the charcoal canister. The vent valve is often replaced at the same time as a preventative measure or because it comes as part of the canister assembly.
   Est. part cost: $150-$250
3. Blocked or Pinched EVAP Vent Hose ⚪ Low Probability Hoses under the car can be damaged by road debris or get clogged by insects (like mud daubers or spiders) building nests in the vent outlet. This is a known issue on GM vehicles. A GM TSB also notes that operation in extremely dusty environments can cause dust to clog the system.
   How to confirm: Visually inspect all EVAP hoses running from the charcoal canister to the vent valve and its fresh air inlet for kinks, damage, or blockages. Remove the main vent hose and check for clear passage by blowing through it.
   Typical fix: Clear the blockage or replace the damaged section of hose.
   Est. part cost: $10-$30
4. Damaged Wiring or Connector for Vent Valve ⚪ Low Probability
   How to confirm: Inspect the electrical connector and wiring going to the vent valve for corrosion, breaks, or loose pins. Use a multimeter to check for 12V power at the connector with the key on. Follow the harness and check for chafing or damage.
   Typical fix: Repair the damaged wiring or clean/replace the connector.
   Est. part cost: $5-$25

Rare But Worth Checking

• Faulty Fuel Tank Pressure Sensor: → Shop Fuel Tank While this sensor can cause other EVAP codes, it's an unlikely cause for P0446 on this platform as it would typically set its own specific codes (e.g., P0451-P0453). It should only be considered after all other components in the vent path have been thoroughly checked and confirmed to be working.

Diagnosis Steps

1. Verify the code with an OBD-II scanner.
2. Confirm the primary symptom: Does the fuel pump nozzle click off constantly when you try to fill the tank? 🎬 Watch: Why the gas pump clicks off and how to fix it. If yes, this strongly points to a vent blockage.
3. DO NOT start by replacing the easy-to-reach purge valve in the engine bay. This is incorrect for P0446.
4. Safely raise the rear of the vehicle and locate the charcoal canister and the attached EVAP vent valve/solenoid. It is typically located near the rear driver's side wheel, mounted near the fuel tank.
5. Inspect the vent valve's electrical connector and wiring for any visible damage or corrosion. Check for 12V at the connector with the ignition on.
6. Disconnect the vent hose from the canister/valve outlet and inspect it for blockages. Spiders and mud daubers are known to build nests inside these tubes.
7. If you have a bidirectional scan tool, command the vent valve to cycle. Listen for an audible click. No click suggests a failed valve or wiring issue. If you don't have a scanner, remove the valve and test it on the bench with a 12V power source (or a 9V battery will often work).
8. With the valve removed, check if air passes through it. It is a normally open valve, so air should pass freely when it is not energized.
9. If the valve and hoses are clear, disconnect the lines from the charcoal canister and check for black carbon pellets, which indicates a failed, ruptured canister.
10. Based on your findings, replace the faulty component. The most common repair is replacing the vent valve solenoid. If the canister is clogged or ruptured, replace it (and usually the vent valve at the same time).

Parts You'll Likely Need

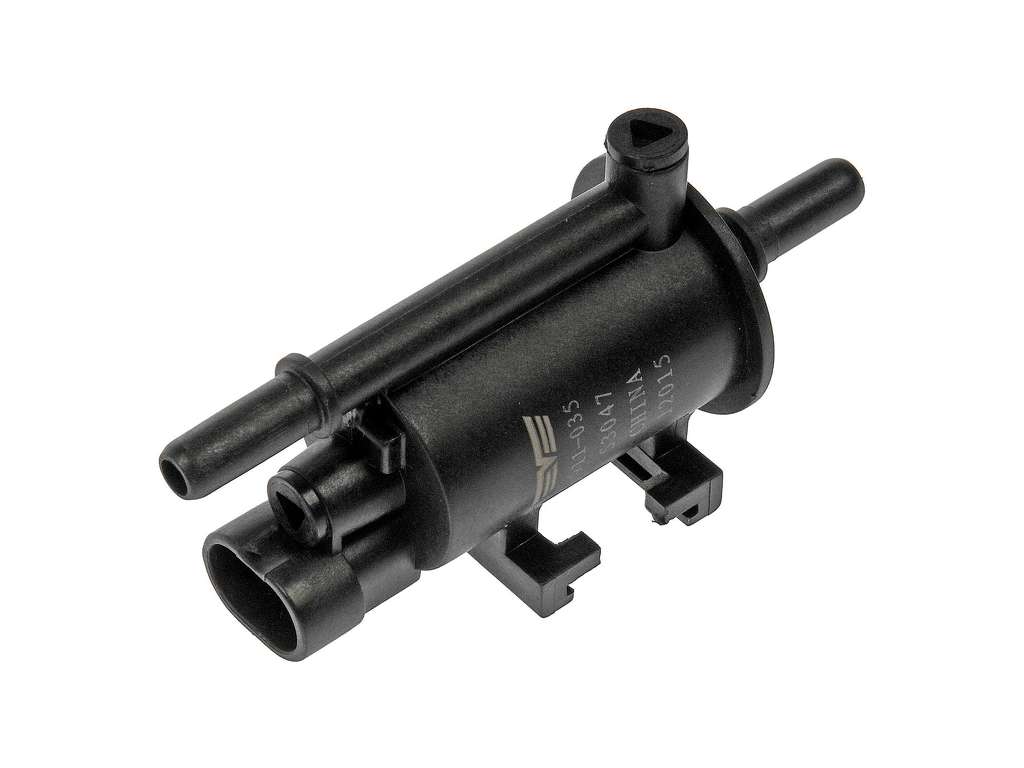

• EVAP Vapor Canister Vent Valve / Solenoid (OEM #12597567 (GM), 4670477 (Saab)) — This valve is the most common failure point for a P0446 code, as it gets stuck closed and prevents the EVAP system from venting.
  Trusted brands: ACDelco (GM OE), Bosch, Standard Motor Products (SMP), Dorman
  OEM price range: $60-$120
  Aftermarket price range: $40-$80
• EVAP Charcoal Canister (OEM #12758815, 22680485, 4968509 (Varies by year/model, verify by VIN)) — The canister can become internally clogged with dust or saturated with fuel, or rupture and spill charcoal pellets, creating a blockage that triggers P0446.
  Trusted brands: GM Genuine Parts, Dorman, Genuine Saab
  OEM price range: $200-$300
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0449 — P0449 is an EVAP Vent Solenoid Control Circuit code. While P0446 is a performance/blockage code, P0449 points to an electrical fault. They can appear together if the solenoid has both an electrical and mechanical failure.
• P0441 — A P0441 (Incorrect Purge Flow) can sometimes appear with P0446 if the system is struggling with multiple issues, such as a blockage and a faulty purge valve.

Technical Service Bulletins (TSBs) & Recalls

• GM Service Bulletin 23-NA-089: Addresses dust intrusion into the EVAP system in dusty environments, which can cause P0446. Recommends installing an auxiliary filter on the vent hose. While this is a customer-pay alteration, it highlights a known cause for the blockage.

Platform-Specific Known Issues

• Location and Access: The charcoal canister and vent valve are located in the rear driver's side wheel well area, exposed to the elements. On some models, removing the fuel tank may be required for canister replacement per the official Saab Information System (WIS), making it a much larger job. However, many owners find ways to access it by just lowering the tank or removing wheel well liners.
• Owner Experience: Vent Valve is the Culprit: A user on SaabCentral forums with a 2007 9-3 Aero reported a P0446 code and difficulty fueling. After incorrectly replacing the purge valve first, they correctly diagnosed the issue as the rear vent valve solenoid. Replacing the vent valve (ACDelco part) fixed both the code and the refueling problem.

Mechanic-Grade Diagnostic Values

• EVAP Canister Shut-Off (Vent) Valve Solenoid Resistance — expected: 24.5 ± 1.5 Ω at 20°C (68°F). Failure: A reading significantly outside this range (open circuit or short) indicates a failed solenoid coil.
• Fuel Tank Pressure (FTP) Sensor Voltage (Key on, gas cap removed) — expected: 1.3 - 1.7 Volts. Failure: A reading outside this range indicates a faulty sensor or a problem in its 5V reference or ground circuit.
• P0446 Fault Criteria (ECU Logic) — expected: Tank pressure must increase by more than 0.4 kPa within 8 seconds after the vent valve is commanded open.. Failure: If the pressure increase is less than 0.4 kPa in 8 seconds, the ECU flags a blockage and sets the code.

Scan Tool Commands That Help

• Saab Tech2 / GM Tech2: Activation: Canister Close Valve — This bidirectional command is used to manually cycle the EVAP vent valve to listen for an audible click, confirming the solenoid is receiving the command and is mechanically attempting to actuate.
• Saab Tech2 / GM Tech2: Command EVAP Purge Solenoid to 100% (with vent valve open) — This is a flow test. With the purge valve pulling a vacuum and the vent valve open to allow fresh air in, the tank vacuum should not exceed -15 mmHg. If it does, it confirms a restriction in the vent path.

Wiring & Ground Locations

• 588 (Component ID) — Solenoid valve, EVAP shut-off (Vent Valve), located on or near the charcoal canister by the fuel tank.. This is the primary component controlled by the circuit that P0446 monitors for performance. Its wiring is exposed to under-car elements.
• H10-3 (Connector) — 10-pin connector located on a bracket by the tank strap on the front edge of the fuel tank.. This is a key harness connector for components near the fuel tank. Corrosion or damage here can interrupt the signal to the vent valve or from the pressure sensor.
• G3 (Ground Point) — In the luggage compartment below the left light cluster.. A poor ground connection for the rear-mounted EVAP components can cause erratic behavior or failure of the vent valve solenoid to operate correctly.

Real Owner Repair Stories

• Synthesized from multiple GM-platform forum discussions (2007 Saab 9-3 2.0T) — Check Engine Light with code P0446 and the gas pump nozzle clicking off every few seconds, making refueling extremely slow and frustrating.
  ❌ Tried (didn't work) Replaced the gas cap (no change)., Replaced the EVAP vent valve solenoid near the tank, as it's the most common cause (code returned, refueling issue persisted).
  ✅ What actually fixed it After the new vent valve didn't fix the issue, the owner disconnected the main vent hose from the charcoal canister and found it was completely blocked with fine dust and debris, likely from years of driving on dirt or gravel roads. Blowing out the hose with compressed air and ensuring the fresh air inlet filter was clear finally resolved the refueling issue and the P0446 code.

OEM Part Supersession History

• 12570469, 12597566, 12606684 → 12597567 (GM) / 214-2149 (ACDelco) — Part consolidation and minor revisions by GM over the years.
  Heads up: While these parts are generally interchangeable across many GM vehicles, always verify fitment for your specific Saab 9-3 model year with the vendor. Some aftermarket fitment guides may not list the 9-3, even if the part is physically identical.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used charcoal canister can be a cost-effective option, as it is a passive component with no moving parts. It is rarely the primary failure point unless the vehicle was consistently over-fueled or driven in extremely dusty conditions.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Visually inspect the canister for any cracks in the plastic housing.
• Ensure none of the hose connection ports are broken or brittle.
• Gently shake the canister; it should not rattle loudly, which could indicate the internal charcoal media has broken apart.
• Ask if the donor vehicle had any EVAP-related trouble codes.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM supplier for GM)
• Bosch
• Standard Motor Products (SMP)

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0442 — Indicates a small leak in the EVAP system. While P0446 is a vent blockage code, a faint fuel odor symptom can sometimes occur, which is more commonly associated with leak codes like P0442.
• P0455 — Indicates a large leak in the EVAP system. A physically damaged component, such as a cracked charcoal canister or a disconnected hose, could potentially trigger a large leak code instead of, or in addition to, the P0446 vent code.
• P0449 — Specifically points to an electrical fault (open/short) in the vent valve solenoid circuit. This is a primary cause of P0446, and you might see P0449 if the wiring is broken, whereas P0446 often appears if the valve is mechanically stuck.
• P0443 — Relates to the EVAP purge valve circuit in the engine bay. It is often confused with the vent valve issue of P0446, but they are separate components. This code is related by being part of the same system and a common point of misdiagnosis for P0446.

Frequently Asked Questions
