P0446 on 2011 Saab 9-4X: EVAP Vent System Blockage Causes and Fixes

What's Unique About the 2011-2011 Saab 9-4X

The 2011 Saab 9-4X is a unique, single-year vehicle that is mechanically identical to the second-generation (2010-2016) Cadillac SRX, sharing the GM Theta Premium platform. This is a significant advantage for diagnosis, as the extensive knowledge base for the popular SRX applies directly to the 9-4X. For this specific code, GM platforms of this era are prone to issues with the vent valve solenoid getting stuck or the vent hose becoming clogged with road debris, dust, or even spider webs, which is the primary focus for diagnosis.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty filling the fuel tank (gas pump nozzle clicks off repeatedly before the tank is full)
• A faint fuel odor may be present, though this is more common with EVAP leak codes
• A whooshing sound from the gas cap area when opening it, indicating pressure or vacuum is not being properly vented

Most Likely Causes

1. Faulty EVAP Vent Valve Solenoid 🔴 High Probability → Shop Vapor Canister The vent solenoid is located under the vehicle near the rear driver's side wheel, exposing it to road grime, moisture, and debris which can cause it to fail or stick in the closed position. This is an extremely common failure point on GM vehicles of this era, including the identical Cadillac SRX.
   How to confirm: Use a bidirectional scan tool to command the vent solenoid to open and close; you should hear an audible click from the valve near the charcoal canister. Alternatively, apply 12V power directly to the solenoid's pins to see if it actuates. If it clicks but the system remains blocked, the valve may be mechanically stuck internally despite being electrically functional.
   Typical fix: Replace the EVAP vent valve solenoid. It is mounted on or next to the charcoal canister.
   Est. part cost: $30-$60
2. Blocked EVAP Vent Hose or Filter 🟡 Medium Probability The vent hose inlet, which is often a small box with a filter element, can get clogged with dirt, debris, or famously, spider webs and egg sacs, creating a blockage that triggers the code. GM has issued service bulletins for other vehicles to relocate this vent inlet to a cleaner location due to this known weakness.
   How to confirm: Visually inspect the entire length of the vent hose from the canister to its endpoint. Disconnect the hose from the vent solenoid and try to blow low-pressure compressed air through it to check for restrictions. Check the filter box for nests or debris.
   Typical fix: Clear the blockage from the hose or replace the hose if it is kinked or damaged. Clean or replace the vent filter element.
   Est. part cost: $10-$30
3. Clogged Charcoal Canister ⚪ Low Probability → Shop Vapor Canister Over-filling the fuel tank (continuing to pump after the nozzle clicks off) can force liquid gasoline into the charcoal canister, saturating the charcoal pellets and causing them to break down. This turns them into a restrictive sludge that blocks the vent path.
   How to confirm: After confirming the vent valve and hose are clear, the canister is the next likely point of restriction. A smoke test is the most effective way to confirm a blockage within the canister. If smoke enters but does not exit freely through the vent port, the canister is clogged.
   Typical fix: Replace the charcoal canister assembly.
   Est. part cost: $150-$250

Rare But Worth Checking

• Faulty Fuel Tank Pressure (FTP) Sensor: → Shop Fuel Tank A failing FTP sensor can send incorrect vacuum readings to the computer, making it think there's a blockage when there isn't one. If all other components check out, this sensor should be tested by observing its voltage/pressure readings on a scan tool while removing the gas cap. The pressure reading should change immediately; if it doesn't, the sensor is likely faulty.

Diagnosis Steps

1. Confirm the primary symptom: Ask if the vehicle is difficult to refuel (gas pump clicks off). This strongly suggests a genuine vent blockage.
2. Visually inspect the EVAP system under the vehicle, near the rear driver's side. Look for the charcoal canister, the attached vent solenoid, and all connected hoses. Check for any obvious cracks, kinks, or damage.
3. Using a bidirectional scan tool, command the EVAP Vent Solenoid 'ON' (closed) and 'OFF' (open). Listen for a distinct clicking sound from the solenoid. No click suggests a faulty solenoid or a wiring issue.
4. If the solenoid doesn't click, disconnect its electrical connector and check for 12V power with the key on. If power is present, the solenoid is likely bad. If no power is present, inspect the wiring and fuses for breaks.
5. If the solenoid clicks, the blockage is likely in the vent hose or the charcoal canister. Disconnect the vent hose from the solenoid and try to blow low-pressure air through it. If air doesn't pass freely, the hose is clogged. Inspect the vent filter box for insect nests or debris.
6. If the solenoid and hose are both good, the charcoal canister is the most likely source of the restriction. A smoke machine can be used to confirm this; with the vent valve commanded open, smoke should flow freely through the system and out the vent. If it doesn't, the canister is likely blocked internally.
7. If all physical paths are clear, investigate the Fuel Tank Pressure (FTP) sensor for erroneous readings by monitoring its output on a scan tool while opening the gas cap.

Parts You'll Likely Need

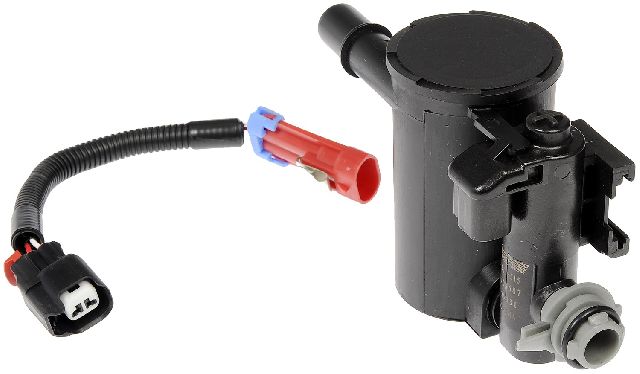

• EVAP Vapor Canister Vent Valve Solenoid (OEM #25932571) — This is the most common failure point for P0446 on this platform. It gets stuck closed, preventing the EVAP system from venting. This part number is superseded by several others but is the most commonly referenced.
  Trusted brands: ACDelco (GM Original), Dorman, Standard Motor Products
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• EVAP Charcoal Canister (OEM #25949888) — If the vent valve and hose are confirmed to be working, the canister itself may be clogged with debris or saturated with fuel from overfilling the tank, requiring replacement.
  Trusted brands: ACDelco, GM Genuine Parts, Dorman
  OEM price range: $140-$200
  Aftermarket price range: $100-$180

Technical Service Bulletins (TSBs) & Recalls

• 23-NA-073: Addresses dust intrusion into the EVAP system on some GM vehicles in dusty environments, causing codes like P0446, and suggests retrofitting a filter kit. While not specific to the 9-4X/SRX by name, it highlights a known GM weakness and a potential preventative measure.
• 17-NA-233: Discusses P0446 on some Chevy models caused by water trapped in the canister filter pipe, another example of the vent path being susceptible to environmental factors.
• 02-06-04-037H: A TSB for older GM trucks with P0446 that instructs technicians to replace the original vent valve with an updated assembly that includes a remote filter box to be mounted in a cleaner location, away from road spray and debris. This demonstrates a long-standing design issue with the vent location on many GM vehicles.

Platform-Specific Known Issues

• Owner Experience: P0446 and Slow Refueling: Multiple owners of the identical Cadillac SRX platform report the simultaneous onset of the P0446 code and the inability to refuel the vehicle without the pump constantly clicking off. In many documented cases, replacing the EVAP vent valve solenoid (Part No. 25932571 or equivalent) and clearing the code completely resolved both the check engine light and the refueling issue.

Mechanic-Grade Diagnostic Values

• Fuel Tank Pressure (FTP) Sensor Voltage — expected: 1.3V to 1.7V with the gas cap off and engine not running (at atmospheric pressure).. Failure: A voltage that is stuck high (e.g., 4.8V) or low (e.g., 0.22V) and does not change when the gas cap is removed points to a faulty sensor or wiring issue.
• EVAP Vent Valve Solenoid Power Supply — expected: 12V on one wire of the connector with the ignition ON.. Failure: No voltage indicates a problem with the fuse or the power supply wire from the fuse block.
• EVAP Vent Valve Solenoid Control Circuit — expected: Should show 12V when the valve is commanded OFF (open) and near 0V when commanded ON (closed/grounded by the ECM).. Failure: Reading 12V at all times (even when commanded ON) suggests an open in the control wire or a faulty ECM driver. Reading 0V at all times suggests a short to ground in the control wire.

Scan Tool Commands That Help

• Tech 2 / GDS2: EVAP System Service Bay Test — This is a guided diagnostic routine found under 'Special Functions' used to force the EVAP monitor to run and test the entire system's integrity after a repair. It helps confirm the fix without having to perform a full drive cycle. The fuel level must be between 15% and 85% for the test to initiate.
• Bidirectional Scan Tool (General): EVAP Vent Solenoid ON/OFF Command — This is the primary active test for the vent solenoid. Commanding the solenoid on and off should produce an audible click. If it clicks, the electrical circuit and solenoid coil are likely good, and the problem is a mechanical stick or a physical blockage in the vent path.

Wiring & Ground Locations

• EVAP Vent Solenoid Control Wire — Pin 55 (White wire) on the C2 connector of the Engine Control Module (ECM).. This is the specific wire the ECM uses to ground and activate (close) the vent solenoid. An open or short on this wire between the ECM and the solenoid will cause a P0446 or related circuit code.
• EVAP Vent Solenoid Connector — At the EVAP vent solenoid, located near the charcoal canister in front of the rear driver's side wheel.. The wires at the connector itself are a common failure point. Due to exposure to the elements, the wires can break internally inside the insulation, leading to an open circuit that is not visually apparent. A 'tug test' on the wires can sometimes reveal this break.
• G401 — In the rear of the vehicle, likely in the left rear quarter panel area.. This is a major chassis ground point for several rear-body components. While not directly tied to the vent solenoid's control, a poor ground here can cause erratic behavior in various nearby systems and is worth checking for corrosion or looseness when diagnosing electrical faults in the rear of the vehicle.

Real Owner Repair Stories

• GM Forum user '2kg4u' (2000 Pontiac Bonneville SSEI (similar GM EVAP system logic)) — P0446 Check Engine Light
  ❌ Tried (didn't work) Replaced gas cap, Replaced EVAP vent valve, Inspected charcoal canister and hoses, Replaced EVAP purge valve
  ✅ What actually fixed it Replacing the Fuel Tank Pressure (FTP) sensor resolved the code. The faulty sensor was providing incorrect data, causing the ECM to misinterpret it as a vent path restriction.
• Colorado Fans forum user 'POE' (Chevy Colorado (unknown year)) — P0446 Check Engine Light
  ❌ Tried (didn't work) Initial diagnosis pointed towards vent solenoid.
  ✅ What actually fixed it The breather line filter box, located behind the gas filler head, was completely packed solid with dirt and dust. Cleaning out the filter box and its two internal sponge filters, in addition to replacing the vent solenoid, cleared the code.

"I Checked Everything" — The Actual Cause

• A smoke test is designed to find system leaks (which set codes like P0442 or P0455). Code P0446 is for a vent restriction. A 'clean' smoke test with a P0446 code is an expected result and correctly points the diagnosis away from leaks and towards a physical blockage (clogged vent hose/filter, stuck-closed vent valve) or a faulty sensor providing bad data (like the FTP sensor).

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0449 — EVAP Vent Valve Solenoid Circuit code. Often checked alongside P0446 during diagnosis to rule out electrical failures (like broken wiring or blown fuses) versus physical blockages.
• P0452 — Fuel Tank Pressure (FTP) Sensor Low Voltage. Related because erroneous readings from the FTP sensor can mimic or complicate the diagnosis of a physical vent blockage.
• P0453 — Fuel Tank Pressure (FTP) Sensor High Voltage. Similar to P0452, a faulty FTP sensor is a key diagnostic step when troubleshooting P0446 to ensure the PCM is reading tank pressure correctly.
• P0442 — EVAP System Small Leak Detected. Related because faint fuel odors are more commonly associated with EVAP leak codes like P0442, which can sometimes be confused with or accompany vent blockage codes.
• P0455 — EVAP System Large Leak Detected. Another EVAP leak code that shares the same diagnostic system and components (like the charcoal canister and vent hoses) as P0446.
