P0455 on 2016 Fiat 500X: EVAP Large Leak Causes and Fixes

What's Unique About the 2016-2016 Fiat 500X

The 2016 Fiat 500X shares its 'Small Wide 4x4' platform and many components, including the 2.4L Tigershark engine and EVAP parts, with other Fiat-Chrysler (FCA) vehicles like the Jeep Renegade. This means they often share similar failure points. While a loose gas cap is a universal cause, these FCA platforms are known for issues with the purge valve and charcoal canister. A particularly common failure point on the 500X and Renegade is the EVAP Leak Detection Pump (also called an ESIM - Evaporative System Integrity Module) or its sealing O-ring, located on the charcoal canister near the rear passenger wheel. 🎬 See how to replace the ESIM leak detection valve. Additionally, several TSBs were issued for the 2016 model year that included software updates to address a range of EVAP codes, including P0455, suggesting that some triggers could be software-related rather than a physical leak.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• A noticeable smell of gasoline, especially around the rear of the vehicle or when parked in a garage.
• Potentially poor fuel economy.
• Difficulty refueling (the gas pump nozzle clicks off before the tank is full), which can point to a clogged charcoal canister or vent valve issue.

Most Likely Causes

1. Loose, Damaged, or Incorrect Gas Cap 🔴 High Probability → Shop Fuel Tank Cap This is the most common cause for any vehicle with a P0455 code. The seal on the cap can wear out, or the cap may not have been tightened properly after refueling. A Reddit user noted that if their 500X cap isn't tight enough, it throws an EVAP code.
   How to confirm: Inspect the gas cap for cracks or damage to the rubber seal. Ensure it is tightened until it clicks multiple times. If the cap looks worn, it's a cheap and easy first replacement. A YouTube video focusing on P0455 fixes this issue by simply replacing the gas cap.
   Typical fix: Tighten or replace the gas cap. The Mopar OEM part number is 52030377AB, which supersedes several previous part numbers. Clear the code and drive for a few days to see if it returns.
   Est. part cost: $15-$40
2. Faulty EVAP Purge Valve / Solenoid 🟡 Medium Probability → Shop Vapor Canister This is a common failure item on Fiat-Chrysler platforms equipped with the 2.4L engine, including the Dodge Dart and Jeep Compass. The valve can get stuck open, creating a constant leak path from the EVAP system to the engine intake.
   How to confirm: The purge valve is located in the engine bay. Disconnect the valve and attempt to blow through it. If air passes, it is stuck open and needs to be replaced. A scan tool can also be used to command the valve open and closed to check for a response.
   Typical fix: Replace the purge valve solenoid. This is generally an accessible part in the engine compartment. The OEM Mopar part number is 04627182AA.
   Est. part cost: $40-$90
3. Cracked or Damaged Charcoal Canister 🟡 Medium Probability → Shop Vapor Canister The plastic housing of the canister can become brittle and crack over time, creating a large leak. Overfilling the gas tank can also saturate the canister with liquid fuel, causing it to fail.
   How to confirm: Visually inspect the charcoal canister (located near the fuel tank) for any visible cracks or damage. A smoke test is the definitive way to confirm a leak from the canister body.
   Typical fix: Replace the charcoal canister assembly.
   Est. part cost: $300-$350

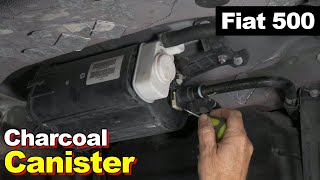

4. Faulty EVAP Leak Detection Pump (ESIM) or O-Ring 🟡 Medium Probability → Shop Vapor Canister This component, located on the charcoal canister, is a well-documented failure point on the Fiat 500X and its platform-mate, the Jeep Renegade. Often, it's not the pump itself but the small O-ring that seals it to the canister which becomes flat and brittle, creating a leak.
   How to confirm: A smoke test will often show smoke exiting from the ESIM. In a detailed YouTube video for a Jeep Renegade, the owner diagnoses and fixes P0455/P0456 by replacing this pump, noting the flattened O-ring was the likely culprit. The pump is located behind the rear passenger-side wheel well liner.
   Typical fix: Replace the ESIM and its O-ring. The repair is accessible after removing the rear passenger wheel and part of the wheel well liner.
   Est. part cost: $40-$80
5. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Rubber and plastic hoses can become brittle and crack with age and exposure to the elements, leading to leaks.
   How to confirm: Visually inspect all accessible EVAP lines between the fuel tank, charcoal canister, and purge valve. A smoke test is the most effective method for finding hard-to-see cracks.
   Typical fix: Replace the damaged section of hose.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Fuel Tank Pressure Sensor: → Shop Fuel Tank This sensor reports pressure data to the ECM. If it provides incorrect readings, it can trick the computer into thinking there's a leak when there isn't one. This often sets other codes alongside P0455, like P0452.
• Cracked Fuel Filler Neck: → Shop Fuel Filler Neck The pipe leading from the gas cap to the tank can rust or crack, preventing the gas cap from creating a proper seal. This is a known issue on the platform-mate Jeep Renegade and has been cited as a cause for P0455. A Reddit user with a 500X reported being quoted over $350 for parts to replace a broken filler neck that was causing EVAP codes.
• PCM Software Glitch: Manufacturer TSBs #08-010-16 REV. D, #0801016, and #08-010-16 REV. B indicate that a software update for the Powertrain Control Module (PCM) can resolve several EVAP codes, including P0455. If no physical leak is found, checking for available software updates with a dealer is a valid step.

Diagnosis Steps

1. Check the Gas Cap: Remove, inspect the seal for cracks, and reinstall it, making sure it clicks several times. Clear the code and see if it returns after a few days of driving.
2. Visual Inspection: Carefully inspect all visible EVAP hoses and components, including the charcoal canister near the fuel tank and the purge valve in the engine bay. Look for obvious cracks, damage, or loose connections.
3. Test the Purge Valve: Locate the purge valve on the engine. Disconnect it and try to blow through it. If air passes through, the valve is stuck open and must be replaced.
4. Perform a Smoke Test: This is the most effective way to find a leak. A mechanic will inject pressurized smoke into the EVAP system. The smoke will escape from any cracks or holes, making the source of the leak easy to spot. This is the best way to find leaks from the charcoal canister, ESIM pump, or cracked hoses.
5. Inspect the Leak Detection Pump (ESIM): If a smoke test is not available, consider inspecting the ESIM and its O-ring on the charcoal canister, as this is a very common failure point for the 500X/Renegade platform.
6. Check for TSBs: Ask a dealership if there are any open recalls or available software updates for the Powertrain Control Module related to EVAP codes for your vehicle's VIN.

Parts You'll Likely Need

• Gas Cap (OEM #52030377AB) — This is the most frequent and cheapest fix. The seal wears out over time, causing a large leak.
  Trusted brands: Mopar, Stant
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• Vapor Canister Purge Valve (OEM #04627182AA) — A very common failure point on this platform. It gets stuck open, creating a leak that the system detects.
  Trusted brands: Mopar, Dorman, Standard Motor Products
  OEM price range: $70-$90
  Aftermarket price range: $35-$65
• Charcoal Canister — The plastic body can crack, or it can become saturated with fuel from overfilling the tank, leading to failure.
  Trusted brands: Mopar
  OEM price range: $300-$400
  Aftermarket price range: $250-$350
• EVAP Leak Detection Pump (ESIM) — A high-failure item on the 500X/Renegade platform, often the O-ring seal fails, causing a leak detected as P0455 or P0456.

Related Codes That Often Appear With This One

• P0456 — This code is for a small EVAP leak. A component that is beginning to fail might first cause a small leak (P0456) before it worsens into a large leak (P0455). A YouTube repair on a Jeep Renegade showed both codes present, ultimately fixed by replacing the leak detection pump.
• P0441 — This indicates an incorrect purge flow. It often appears with P0455 if the purge valve is stuck open or closed.
• P0440 — This is a general EVAP system failure code, which can be triggered alongside more specific leak codes like P0455.

Technical Service Bulletins (TSBs) & Recalls

• 08-010-16 REV. D - Addresses PCM software improvements for multiple DTCs, including P0455.
• 0801016 - An earlier version of the TSB also listing P0455 as a code addressed by a software update.
• 08-010-16 REV. B - Another revision of the same TSB for PCM updates related to EVAP and other codes.

Platform-Specific Known Issues

• The 2016 Fiat 500X was subject to several Technical Service Bulletins (TSBs) that involved a software update for the Powertrain Control Module (PCM) to correct false triggers for multiple EVAP codes, including P0455.
• A very common point of failure specific to the 500X and its platform-mate, the Jeep Renegade, is the EVAP Leak Detection Pump (ESIM) or its O-ring seal located on the charcoal canister.

Mechanic-Grade Diagnostic Values

• EVAP Canister Purge Valve Resistance — expected: 15 - 30 Ohms. Failure: A reading significantly outside this range, or an open circuit (infinite resistance), indicates a faulty solenoid coil.
• Fuel Tank Pressure (FTP) Sensor Signal Voltage (Key On, Engine Off) — expected: Approx. 1.5V with a normal range of 0.5V to 4.5V. The ideal value can be affected by atmospheric pressure.. Failure: A reading stuck high (near 5V) or low (near 0V) suggests a sensor or wiring fault.
• Fuel Tank Pressure (FTP) Sensor Reference Voltage — expected: 5V. Failure: Absence of the 5V reference signal at the sensor connector (with key on) points to a wiring issue or a problem with the PCM.

Scan Tool Commands That Help

• wiTECH (FCA/Stellantis Dealer Tool): Small Leak Verification Test (SLVT) — This is a dealer-level function used to confirm a small leak is present before starting repairs and to verify the fix is successful after replacing components. While P0455 is a large leak, this test is part of the overall EVAP diagnostic suite.

Wiring & Ground Locations

• Main Earth/Ground Strap — Runs from the chassis leg underneath the battery tray to a connection point on the transmission/engine block.. A corroded or broken main ground strap is a known issue on Fiat 500 models and can cause a wide range of seemingly unrelated electrical faults and codes as various sensors and modules lose their proper ground reference. While not a direct cause of a physical leak, it can cause sensor data to be misread by the PCM.

Real Owner Repair Stories

• Scotty Kilmer YouTube Channel (General vehicle, not specific to Fiat 500X but highly relevant.) — P0455 code returned after replacing the gas cap.
  ❌ Tried (didn't work) Replacing the gas cap.
  ✅ What actually fixed it The fuel filler neck was rusted and had developed a leak, preventing even a new gas cap from sealing properly. Replacing the fuel filler neck resolved the code.

OEM Part Supersession History

• Unknown → 04861963AD — This is a common Mopar part number for the Evaporative System Integrity Module (ESIM) used across many FCA vehicles.
  Heads up: While this is a common part, always verify fitment with the vehicle's VIN before purchasing, as multiple ESIM versions exist for different EVAP system types.
