P0456 on 2001-2006 BMW E46 M3: EVAP Small Leak Causes and Fixes

What's Unique About the 2001-2006 BMW M3

On the E46 M3, the P0456 code is frequently traced back to specific component failures rather than just a loose gas cap. The DMTL (Diagnostic Module for Tank Leakage) pump is a particularly common culprit, with owners and technicians often finding leaks originating from the pump's electrical connector socket itself—a unique and well-documented failure mode. Additionally, due to the S54 engine's layout, specific EVAP hoses in the engine bay—one near the oil dipstick and the purge valve under the airbox—are known weak points that can become disconnected or cracked over time.

Symptoms You May Notice

• Check Engine Light is on.
• You will likely notice no other symptoms or changes in how the car drives.
• A faint fuel smell may be present in rare cases, particularly near the rear wheel well if the charcoal canister or DMTL pump is the source.
• Occasionally, a 'Close Gas Cap' warning may appear on the dashboard, even if the cap is tight.

Most Likely Causes

1. Faulty DMTL Pump 🔴 High Probability → Shop Evaporative Emissions System Leak Detection Pump The DMTL pump, located near the rear passenger-side wheel well in front of the muffler, is a known failure point. Leaks can develop internally and vent through the electrical connector, which is a unique and documented failure mode on this platform. This happens even on new replacement units, though the leak is often minuscule.
   How to confirm: Perform a smoke test on the EVAP system. Introduce smoke through the system's service port and look for smoke exiting from the DMTL pump body or its electrical connector. The pump is located under a plastic cover in front of the rear muffler. A video from ThePeoplesGarage on YouTube specifically documents this failure on an E46 M3.

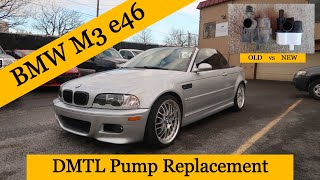

   Typical fix: Replace the DMTL pump and the associated rubber grommet. 🎬 Watch this step-by-step DMTL pump replacement guide. Bosch is the original equipment manufacturer (OEM) and the part is identical to the more expensive BMW-branded part.
   Est. part cost: $50-$100
2. Disconnected or Cracked EVAP Hose in Engine Bay 🟡 Medium Probability Engine heat and vibration can cause plastic and rubber EVAP lines to become brittle or disconnected. There are two common locations: a connector near the oil dipstick/air filter housing and the hoses connected to the purge valve under the intake airbox.
   How to confirm: Visually inspect the EVAP hoses in the engine bay. A video specifically shows a connector near the oil dipstick that was simply disconnected. A forum member on NAM3Forum.com found the bottom hose to the purge valve (under the airbox) was unplugged and reconnecting it solved the code. A smoke test will also quickly reveal this leak.
   Typical fix: Reconnect the hose if it has simply popped off. If the hose or connector is cracked, it will need to be replaced.
   Est. part cost: $15-$50
3. Loose or Faulty Gas Cap ⚪ Low Probability → Shop Fuel Tank Cap While this is the most common cause on many vehicles, E46 M3 owners often find the problem lies with other components. The gas cap seal can degrade over time, but it's less likely to be the root cause than the DMTL pump or a cracked hose. Still, it is the cheapest and easiest first step.
   How to confirm: Ensure the gas cap is tightened until it clicks at least once. Inspect the rubber seal on the cap for cracks, dirt, or stiffness. If it looks worn, it's a candidate for replacement.
   Typical fix: Replace the gas cap with a new OEM or high-quality aftermarket equivalent. Aftermarket caps can sometimes cause issues, so an OEM part is recommended.
   Est. part cost: $20-$40
4. Faulty EVAP Purge Valve (Fuel Tank Breather Valve) ⚪ Low Probability → Shop Vapor Canister The purge valve, located under the airbox, controls the flow of fuel vapors to the engine. It can get stuck open or closed, causing a leak or other EVAP codes. A user on NAM3Forum.com pointed to this part as a likely culprit right away.
   How to confirm: With the car off, the valve should be closed. You can remove it and try to blow through it; if air passes, it's stuck open and faulty. You can also test it for a clicking sound by applying 12V power to its terminals.
   Typical fix: Replace the purge valve. This is a 10-minute job once the airbox is removed. 🎬 Watch: How to access and replace the fuel breather valve.
   Est. part cost: $50-$150

Rare But Worth Checking

• Cracked Charcoal Canister: → Shop Vapor Canister The charcoal canister stores fuel vapors. Physical damage from road debris or saturation from consistently over-filling the fuel tank can cause it to crack and leak. This is less common than valve or pump failures but should be inspected if a smoke test reveals a leak from the canister body.
• Cracked fuel tank breather hose connection: → Shop Fuel Tank The plastic nipples for the breather hoses on top of the fuel tank can become brittle and snap. This is a difficult repair that may require dropping the fuel tank.
• Leaking Fuel Filler Neck Hose: → Shop Fuel Filler Neck The large rubber hose connecting the fuel filler opening to the gas tank can degrade over time due to ethanol in fuel, causing cracks and leaks that trigger P0456. A thread on NAM3Forum.com discusses this specific failure.

Diagnosis Steps

1. Check the gas cap. Ensure it is tight and the seal is not cracked or worn. If in doubt, it's an inexpensive first part to replace.
2. Visually inspect the engine bay. Look for any obviously disconnected or cracked black plastic/rubber hoses, especially around the airbox (for the purge valve) and near the oil dipstick.
3. If the visual inspection reveals nothing, the most effective next step is a smoke test. This involves feeding low-pressure smoke into the EVAP system's service port and watching where it escapes.

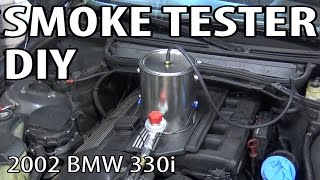

🎬 See how to build and use a DIY smoke machine.
4. During the smoke test, pay close attention to the DMTL pump, located in front of the rear passenger-side wheel. Check for smoke coming from the pump body or its electrical connector.
5. Also check for smoke from the purge valve and its connections in the engine bay, along all EVAP lines running the length of the car, and around the fuel filler neck hose.
6. Based on the location of the smoke, replace the leaking component.

Parts You'll Likely Need

• Diagnostic Module Tank Leakage (DMTL) Pump (OEM #16137193479) — This is the most frequently cited failure point specific to the E46 M3 for code P0456. It can leak through its own electrical socket. This part number supersedes 16136764191 and 16136752551.
  Trusted brands: Bosch (OEM), BMW (Genuine)
  OEM price range: $120-$160
  Aftermarket price range: $50-$100
• Fuel Tank Breather Valve (Purge Valve) (OEM #13902229650) — A common failure point for EVAP systems, it can get stuck open or have its connecting hoses come loose.
  Trusted brands: Bosch (OEM), BMW (Genuine)
  OEM price range: $100-$140
  Aftermarket price range: $40-$80
• Fuel Filler Cap (OEM #16117222391) — The simplest and cheapest potential fix. The seal can wear out over time, causing a leak.
  Trusted brands: BMW (Genuine), Blau
  OEM price range: $25-$40
  Aftermarket price range: $15-$25

Related Codes That Often Appear With This One

• P0442 — P0442 is for a 'small leak', while P0456 is for a 'very small leak'. They point to the same type of failure in the EVAP system, just a different leak size. A leak may start as a P0456 and worsen to a P0442 over time.

Platform-Specific Known Issues

• source — On NAM3Forum.com, a user with code P0456 was advised to check the fuel tank breather valve under the airbox. The user inspected the area and reported back, 'I open my hood to see the bottom hose unplugged. Not sure how that happened… I think that will solve it! You freaking wizard.' This highlights a simple, no-cost fix that can be easily overlooked.
• source — A YouTube video by 'ThePeoplesGarage' specifically on an E46 M3 with P0456 used a smoke machine to find two separate leaks. The first was a major leak from a completely disconnected EVAP hose connector near the oil dipstick. The second, smaller leak was smoke seeping directly out of the electrical pin socket on the DMTL pump itself.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve (Tank Breather Valve) Coil Resistance — expected: 27-29 Ohms. Failure: A significantly higher reading (e.g., 190 Ohms) or an open circuit indicates a bad valve.
• DMTL Pump Motor/Valve/Heater Resistance — expected: Pump Motor: ~14 Ohms, Switching Valve: ~30 Ohms, Heater: ~38 Ohms. Failure: Readings significantly outside these ranges, or an open/short circuit, indicate a faulty DMTL pump assembly. Note: Most DMTL failures are physical leaks, not electrical, but this can rule out wiring issues.
• Fuel Pressure at Fuel Rail (Engine Running) — expected: 3.5 bar (approx. 50 psi). Failure: While not a direct cause of P0456, verifying correct fuel pressure is a baseline check. Low pressure could indicate other fuel system issues.

Hidden / Shadow Codes Worth Checking

• 127 (MSS43/MSS52), 142 (MS43/MS45), or 189 (ME7.2): These are BMW-specific internal fault codes for the DMTL module itself. They point more directly to a problem with the pump assembly or its circuit, rather than just a generic leak. (see via These codes are typically read using BMW-specific diagnostic software like ISTA/D or advanced scanners, and may be stored alongside the generic P0456 code.)

Scan Tool Commands That Help

• ISTA/D (BMW Dealer Software): Service functions > Drive > Digital Motor Electronics > Activation > DMTL pump > Test plan — This function is used to command the DMTL pump to run a self-test. It isolates the fuel system and builds pressure to check the pump's function and the system's integrity, which is a critical step before replacing parts.
• Advanced OBD2 Scanner (e.g., Autel): Active Test > Component Activation > Solenoid valve tank ventilation — This bidirectional command allows a technician to manually activate the EVAP purge valve (tank ventilation valve) under the hood. You should hear an audible clicking sound from the valve when activated, confirming the solenoid is functioning electrically.

Wiring & Ground Locations

• DMTL Pump Connector (X60004) — At the DMTL pump, located in front of the rear passenger-side muffler.. This is the electrical connection for the pump. A forum user documented the specific DME pinouts for an engine swap project: Pin 30 (DMTL switch), Pin 20 (DMTL pump), and Pin 18 (DMTL heater). This is critical for diagnosing a wiring fault between the DME and the pump.
• Engine-to-Chassis Ground Strap — Connects the engine to the chassis via the passenger-side engine mount.. A poor engine ground (Part No. 12421737755) can cause a wide range of bizarre electrical issues. While not a direct cause of P0456, ensuring this ground is clean and tight is a fundamental step in any electrical diagnosis on an E46.
• Main Chassis Ground Points — Key ground distribution points are located under the carpet on both the driver (X1108) and passenger (X173) side door sills, and in the trunk near the battery (X498, X13016).. The EVAP system components are grounded through the chassis. Corrosion at these main grounding points, often caused by water ingress, can lead to intermittent and hard-to-diagnose electrical faults for any system, including the DMTL pump and purge valve.

Real Owner Repair Stories

• NAM3Forum.com user 'SteelGreyM' (E46 M3 (year not specified)) — P0456 code.
  ❌ Tried (didn't work) Replacing the gas cap.
  ✅ What actually fixed it After being advised to check the fuel tank breather valve (purge valve) under the airbox, the owner found the bottom hose was completely unplugged. Reconnecting the hose resolved the issue.
• YouTube channel 'ThePeoplesGarage' (2003 E46 M3) — P0456 code.
  ❌ Tried (didn't work) Initial visual inspection.
  ✅ What actually fixed it A smoke test revealed two leaks: a major leak from a disconnected EVAP hose connector in the engine bay near the oil dipstick, and a second, very small leak of smoke seeping directly from the electrical pin socket of the DMTL pump itself. Both needed to be addressed.

OEM Part Supersession History

• 16136752551, 16136764191 → 16137193479 — Standard part redesign and consolidation by BMW over the years.
  Heads up: The latest part number, 16137193479, is the correct replacement for the entire 2001-2006 E46 M3 range, superseding the older numbers.

Model Year Variations Within This Range

• 2001 vs 2002+: The DMTL pump part number was superseded starting with 2002 models, indicating a potential design change early in the production run. However, the newest part number (16137193479) is backward-compatible and is the correct service replacement for all years.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Rod Bearing Wear 🔴 High — Considered a mandatory preventative maintenance item. Recommended replacement every 60,000-80,000 miles. Affects all S54 engines, though a recall was issued for 2001-mid-2003 models. Failure can lead to catastrophic engine damage. (Ref: Recall for 2001-2003.5 models. However, replacement bearings from the recall were not a permanent fix, and the issue persists as a wear item.)
• VANOS System Failure 🔴 High — Very common. Failures can include worn solenoid seals, broken exhaust hub tabs, and loose cam gear bolts. Symptoms include rattling, loss of power, and fault codes. Rebuilds are often needed after 50,000 miles. (Ref: A recall was issued for improper VANOS solenoid seals, but it was not as widespread as the rod bearing recall.)
• Rear Subframe Cracking 🔴 High — A well-known E46 chassis design flaw where the subframe mounting points on the chassis itself can crack and tear. Affects coupes more than convertibles. Repair is expensive, requiring reinforcement plates to be welded in. (Ref: No official recall, but BMW did offer goodwill repairs or settlements in some cases. Inspection is critical before purchasing.)
• SMG Hydraulic Pump Failure 🟠 Medium — Applies only to cars with the Sequential Manual Gearbox (SMG). The hydraulic pump is a known failure point, leading to expensive repairs. Symptoms include slow or failed shifts.
• Cooling System Component Failure 🟠 Medium — Like many BMWs of the era, plastic components in the cooling system (expansion tank, water pump, fan clutch) become brittle with age and heat cycles, typically requiring an overhaul around 100,000 miles.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific P0456 code, using used parts is generally not recommended for the key electronic components. The primary culprits (DMTL pump, purge valve) fail from age, internal wear, and heat cycles. A used part from a donor vehicle of similar age is likely to have the same wear and could fail shortly after installation.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a purge valve, ensure the plastic housing has no visible cracks.
• For a DMTL pump, check for cracks on the body and ensure the electrical connector pins are clean and not corroded.
• Avoid parts from vehicles that show signs of significant rust or underbody damage, as this increases the chance of component damage.

OEM-only on this vehicle (don't cheap out):

• Gas Cap: Aftermarket gas caps are a frequent source of new EVAP leaks. It is highly recommended to use a genuine BMW or OEM (Blau) cap to ensure a perfect seal.
• DMTL Pump: While the Bosch (OEM) part is identical to the BMW-branded one and cheaper, avoid no-name aftermarket pumps as their reliability and calibration are questionable.

Aftermarket brands forum-validated for this vehicle:

• Bosch (for DMTL Pump and Purge Valve)

Brands owners have reported issues with on this vehicle:

• Generic, unbranded 'white box' gas caps and electronic EVAP components from online marketplaces.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0440 — General EVAP system fault that can occur alongside P0456 if there is a malfunction in the purge valve or DMTL pump system.
• P0441 — Incorrect purge flow code often related to a faulty or stuck fuel tank breather valve (purge valve) located under the airbox.
• P0442 — Evaporative Emission System Leak Detected (Medium Leak), which shares the same diagnostic path and common failure points like the DMTL pump and engine bay hoses.
• P0455 — Evaporative Emission System Leak Detected (Large Leak), often triggered by a completely disconnected hose near the oil dipstick or a failed gas cap seal.
