P0456 on 2012-2016 Nissan NV: EVAP Small Leak Causes and Fixes

What's Unique About the 2012-2016 Nissan NV

On the Nissan NV and many other Nissan trucks and vans from this era (like the Titan and Frontier), the P0456 code is very frequently caused by a dried-out or cracked O-ring on the EVAP canister vent control valve. Nissan has issued multiple Technical Service Bulletins (TSBs), including the most recent version NTB17-082E, specifically identifying this as the source of the small leak. 🎬 Watch: A breakdown of the two most common Nissan EVAP fixes. The TSB was updated in February 2022 to state that the O-ring is no longer a separate service part and the entire vent control valve must be replaced as an assembly. This makes diagnosis more straightforward than on other vehicles where the cause could be one of many different components with equal probability.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• A faint fuel smell may be noticeable near the rear of the vehicle after it's parked.
• The 'Loose Fuel Cap' warning may appear on the instrument cluster, even if the cap is tight.
• The Check Engine Light may be intermittent, turning on for a few days or weeks and then turning off for a period before returning.

Most Likely Causes

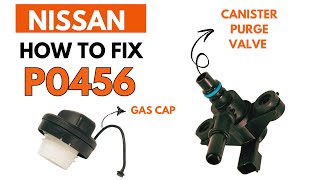

1. Loose or Faulty Gas Cap 🔴 High Probability → Shop Fuel Tank Cap This is the most common cause for a P0456 on any vehicle. The seal can wear out, get dirty, or the cap may simply not have been tightened properly after refueling. Nissan TSB NTB13-097j explicitly states this should be the first check. Many owners report that aftermarket caps fail to seal properly and that using a genuine OEM cap is crucial.
   How to confirm: Ensure the gas cap is tightened until it clicks at least once. Inspect the rubber seal on the cap for cracks, dirt, or signs of wear. Clean the cap and filler neck sealing surfaces. If the code returns after clearing, the cap may be faulty.
   Typical fix: Tighten the cap. If the seal is damaged or the cap is old, replace it with a new one. It is often recommended to use an OEM (Original Equipment Manufacturer) cap for best results.
   Est. part cost: $15-$40
2. Leaking EVAP Vent Control Valve or O-Ring 🔴 High Probability → Shop Vapor Canister Vent Valve Nissan has issued multiple Technical Service Bulletins (e.g., NTB17-082a, NTB17-082b, NTB17-082E) specifically for this issue on most models from 2008 onward, including the NV series. The O-ring dries out and cracks over time, creating a very small leak where the valve mounts to the EVAP canister, which is located in front of the driver's side rear tire.
   How to confirm: A smoke test is the most definitive way to confirm. A technician will inject smoke into the EVAP system and look for it escaping from the vent valve/canister area. Visually inspecting the O-ring after removing the valve may also reveal cracks.
   Typical fix: Replace the entire vent control valve assembly. Per the latest TSB NTB17-082E (issued Feb 2022), the valve O-ring is no longer sold as a separate service part, and the official procedure is now to replace the complete valve assembly. Earlier bulletins advised replacing only the O-ring.
   Est. part cost: $5-$20 for the O-ring (if found aftermarket), $50-$120 for the valve assembly.

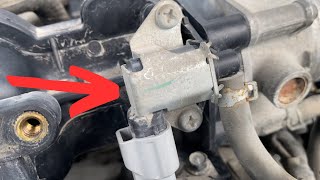

3. Faulty EVAP Canister Purge Valve 🟡 Medium Probability → Shop Vapor Canister This valve, also called a purge solenoid, can get stuck partially open due to carbon buildup or age, creating a small, constant leak in the system.
   How to confirm: With the engine running, disconnect the vacuum hose from the valve. There should be no vacuum present at idle. If you feel suction, the valve is stuck open and needs to be replaced. The valve is typically located on the left side of the engine.
   Typical fix: Replace the canister purge valve. It's typically located on or near the engine's intake manifold.
   Est. part cost: $40-$100
4. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Rubber hoses can become brittle and crack with age and exposure to the elements, especially small vacuum lines in the engine bay due to heat. This is less common than the gas cap or vent valve O-ring but still a possibility.
   How to confirm: Visually inspect all accessible EVAP lines running from the fuel tank to the engine bay. A smoke test is the most reliable method to find a small crack in a hose.
   Typical fix: Replace the cracked section of the hose.
   Est. part cost: $10-$50

Rare But Worth Checking

• Cracked EVAP Charcoal Canister: → Shop Vapor Canister The plastic housing of the canister itself can develop hairline cracks, especially if the vehicle has been subjected to impacts from road debris. This is usually found only with a smoke test. The canister on the NV is located on the driver's side, mounted to a crossmember in front of the rear tire, making it somewhat exposed.
• Leaking Fuel Tank or Filler Neck: → Shop Fuel Tank Rust or corrosion on the fuel filler neck (where the gas cap screws on) can prevent a good seal. A small crack in the fuel tank itself is also possible, though rare.
• Faulty Electrical Connector at Vent Valve: A user on a forum for the Nissan Frontier (a platform-mate) reported that the rubber seal inside the electrical connector for the vent valve had expanded, preventing it from fully seating. This caused an intermittent connection and a persistent P0456 code that was only resolved by removing the seal from the connector to allow it to lock in place.

Diagnosis Steps

1. Check the gas cap. Remove it, inspect the seal for damage or debris, and reinstall it, making sure it clicks several times. If you have an aftermarket cap, consider replacing it with an OEM part as a first step.
2. Clear the code with an OBD-II scanner and drive the vehicle for a few days to see if the light returns. The EVAP monitor may take several drive cycles to run its test.
3. If the light returns, perform a visual inspection of all accessible EVAP hoses between the engine and the fuel tank, looking for obvious cracks or disconnections.
4. Locate the EVAP vent control valve. On the Nissan NV, it is typically located near the fuel tank, in front of the rear driver's side tire, mounted to the charcoal canister.
5. The most reliable next step is to perform a smoke test. This involves feeding pressurized smoke into the EVAP system's service port and watching for where it leaks out. Pay close attention to the vent control valve's mounting point on the canister, as this is the most likely leak source per Nissan TSBs.
6. If smoke leaks from the vent valve, replace the entire vent control valve assembly as per the latest TSB NTB17-082E.
7. If no leak is found at the vent valve, check the purge valve near the engine for proper operation (it should be closed with no vacuum at idle).
8. If the cause is still not found, the smoke test should be used to check the entire system, including the charcoal canister, fuel filler neck, and all hoses for cracks or leaks.

Parts You'll Likely Need

• Fuel Filler Cap (OEM #17251-ZZ62D) — This is the most frequent and simplest cause of a P0456 code due to a worn or loose seal. TSB NTB13-097j identifies this as the first item to check.
  Trusted brands: Nissan OE, Stant
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• EVAP Canister Vent Control Valve Seal (O-Ring) (OEM #14935-JF02B) — This specific O-ring is a known failure point documented in Nissan TSBs NTB17-082 and NTB13-097g, causing a small leak at the vent valve. However, Nissan no longer sells this as a separate service part per TSB NTB17-082E.
  Trusted brands: Nissan OE
  OEM price range: $5-$20
  Aftermarket price range: $5-$15
• EVAP Canister Vent Control Valve (OEM #14935-JF02C) — This is the official replacement part per TSB NTB17-082E. If the O-ring is the cause of the leak, the entire assembly must be replaced. This part number supersedes several previous versions including 14935-JF00A, 14935-JF00B, 14935-JF00C, and 14935-JF00E.
  Trusted brands: Nissan OE, Bosch, Dorman
  OEM price range: $60-$120
  Aftermarket price range: $40-$80

Related Codes That Often Appear With This One

• P0442 — This code indicates a 'medium' EVAP leak. If the small leak from P0456 worsens over time (e.g., the crack in the O-ring grows), it can eventually trigger a P0442.

Technical Service Bulletins (TSBs) & Recalls

• NTB17-082E: DTC P0456 CAUSED BY EVAP LEAK AT VENT CONTROL VALVE O-RING
• NTB13-097g: EVAP LEAK DTC P0442, P0455, P0456 INFORMATION
• NTB17-082b: NISSAN; DTC P0456 CAUSED BY EVAP LEAK AT VENT CONTROL VALVE O-RING

Platform-Specific Known Issues

• Nissan Technical Service Bulletin NTB17-082E specifically identifies a leak at the EVAP vent control valve O-ring as a primary cause for DTC P0456. An earlier version, NTB17-082b, advised replacing only the O-ring. A 2022 update to the TSB states the O-ring may no longer be a separate service part, and the official procedure is now to replace the entire vent control valve assembly.
• The EVAP canister and vent valve on the NV are located on the driver's side, mounted to a crossmember in front of the rear tire, making them somewhat exposed to road debris and moisture.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Control Valve Solenoid Resistance — expected: 48 - 65 Ohms. Failure: A reading of 0 Ohms (short circuit) or infinite/OL (open circuit) indicates a bad solenoid coil.
• EVAP Canister Purge Valve Solenoid Resistance — expected: 30 - 38 Ohms. Failure: A reading significantly outside this range, or 0/OL, indicates a faulty solenoid coil.
• EVAP (Fuel Tank) Pressure Sensor Voltage — expected: 0.5 - 4.5 V during self-test. Failure: Voltage outside of this range, or a static voltage that doesn't change, can indicate a faulty sensor or wiring issue.

Hidden / Shadow Codes Worth Checking

• Mode $06, TID:$82: This is the Test Identifier for the EVAP system monitor's small leak test (0.020"). A failing value in this test can confirm an intermittent leak or a borderline failure before a permanent P0456 DTC is set. (see via An advanced OBD-II scan tool with Mode $06 diagnostic capabilities.)

Scan Tool Commands That Help

• Nissan CONSULT-III plus (or equivalent advanced scanner): EVAP System Leak Test (Active Test) — Used to manually seal the EVAP system by commanding the vent control valve closed. This allows a technician to pressurize the system with a smoke machine or external gauge to confirm a leak without the engine running.
• Advanced OBD-II Scanner: Purge Valve Actuation Test — Used to command the purge valve open and closed to listen for an audible click and verify its mechanical operation without having to remove it from the vehicle.

Wiring & Ground Locations

• ECM (Engine Control Module) — Located in the right rear corner of the engine compartment on the 2012 NV 3500.. The ECM is what runs the EVAP leak test and sets the P0456 code. All EVAP sensor data and valve commands originate here.
• EVAP Control System Pressure Sensor — Located at the front of the fuel tank.. This sensor provides the pressure readings the ECM uses to detect the leak. A faulty sensor or bad wiring/ground connection can mimic a leak and cause a false P0456.
• Data Link Connector (OBD-II Port) — Located under the left side of the dashboard.. This is the port where a scan tool connects to communicate with the ECM to read codes, view live data, and perform bidirectional tests.

Real Owner Repair Stories

• YouTube channel 'WHITEHOUSE FARM' (2005 Nissan Sentra (demonstrates a common Nissan P0456 repair path applicable to the NV)) — Intermittent Check Engine Light that would turn on and off over a period of months.
  ❌ Tried (didn't work) Replacing the fuel cap with a new one from the dealership.
  ✅ What actually fixed it The owner replaced the EVAP canister vent valve (solenoid), which resolved the intermittent code. The new part included a new O-ring, which is the specific failure point identified in Nissan TSBs.
• Reddit user in r/autorepair (Unspecified vehicle with P0456) — Persistent P0456 code after trying common fixes.
  ❌ Tried (didn't work) Replacing the gas cap.
  ✅ What actually fixed it A shop suggested the leak could be from the main seal/gasket for the fuel pump assembly on top of the fuel tank. While less common, a leak at this location is part of the EVAP system and would trigger the code.

"I Checked Everything" — The Actual Cause

• If a smoke test passes and no leaks are found, the P0456 code can still persist. This may be caused by a faulty Fuel Tank Pressure (FTP) sensor that is sending incorrect data to the ECM, making the computer 'think' there is a leak when the system is actually sealed. The issue could also be an intermittent failure of a component like the vent valve, which seals properly when tested cold but leaks under specific driving or temperature conditions.

OEM Part Supersession History

• 14935-JF00A, 14935-JF00B, 14935-JF00C, 14935-JF00D, 14935-JF00E → 14935-JF02C (or later revision) — Revisions to the EVAP Canister Vent Control Valve to improve durability and prevent leaks.
