P0457 on 2011-2016 Kia Optima: Causes and Fixes for EVAP Leak (Fuel Cap Loose/Off)

What's Unique About the 2011-2016 Kia OPTIMA

The 2011-2016 Kia Optima spans two generations, the third (2011-2015) and the fourth (2016). While the EVAP system components are broadly similar, their specific locations and part numbers can vary slightly. 🎬 Watch: Locate all EVAP components on your 2011-2015 Optima. For this code, the diagnostic process is identical across both generations. The most common failure point, by far, is the gas cap seal, which is a simple and inexpensive fix that should always be the first step. The canister purge valve is located under the air intake box, 🎬 See this step-by-step guide to replacing the purge valve. requiring some disassembly to access, while the charcoal canister and vent valve are located under the rear of the vehicle, near the fuel tank.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the end of the 3rd generation (TF, 2011-2015) and the first year of the 4th generation (JF, 2016). The EVAP system principles and common P0457 causes are the same for both, though specific part numbers for components like the purge valve or charcoal canister may differ. For example, the purge valve for the 2.0L/2.4L engines is often cited as 28910-25100, while the canister close valve is 31453-3K600.

Symptoms You May Notice

• Check Engine Light is on
• A faint smell of fuel, especially around the rear of the car or after parking in a garage
• Slight decrease in fuel economy over time
• Difficulty starting the engine after refueling

Most Likely Causes

1. Loose, Damaged, or Incorrect Gas Cap 🔴 High Probability → Shop Fuel Tank Cap This is the most common cause for this specific code on virtually all modern vehicles, including the Optima. The rubber O-ring seal on the cap can dry out, crack, or become compressed over time, failing to create a proper seal. Using a non-OEM cap is a frequent cause of the code returning after a replacement.
   How to confirm: First, ensure the cap is tightened until it clicks at least once. If the light returns, remove the cap and visually inspect the rubber seal for any cracks, deformities, or dirt. A worn seal is often the problem even if it looks okay. Some owners suggest cleaning the seal and the filler neck rim with a cloth before buying a new cap.
   Typical fix: Tighten the cap. If that doesn't work, replace the gas cap with a new one. It is highly recommended to use a genuine OEM Kia part (Part No. 31010-3L600U or the superseding 31010-3L600) to ensure a perfect seal.
   Est. part cost: $25-$40
2. Faulty Canister Purge Valve (CPV) 🟡 Medium Probability → Shop Vapor Canister The purge valve (or purge control solenoid valve - PCSV) controls the flow of stored fuel vapors from the charcoal canister to the engine. It can get stuck open or closed, causing a leak or flow issue in the EVAP system. This is a common failure point on many vehicles as they age.
   How to confirm: The valve is located in the engine bay, under the air intake assembly. With the engine off, you can remove the valve and try to blow through it; it should be closed and not allow air to pass. A more definitive test involves applying 12V power to its terminals to see if it clicks open, or using a scan tool to command it open and closed while observing vacuum flow. The coil resistance should be between 14 and 36 ohms.
   Typical fix: Replacement of the canister purge valve. On the Optima, this requires removing the engine cover and air intake box for access. It is a manageable DIY job with basic hand tools.
   Est. part cost: $50-$100
3. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Rubber hoses become brittle with age and exposure to heat and elements, leading to cracks. This is more common on older vehicles within this year range, particularly at connection points to other EVAP components.
   How to confirm: A visual inspection of all accessible EVAP hoses between the engine, purge valve, charcoal canister, and fuel tank may reveal obvious cracks or loose connections. For hard-to-find leaks, a smoke test is the most effective method. A mechanic introduces pressurized smoke into the EVAP system and looks for where it escapes.
   Typical fix: Replace the cracked section of hose or the entire hose assembly. Secure any disconnected hoses with clamps.
   Est. part cost: $10-$50

Rare But Worth Checking

• Cracked Charcoal Canister: → Shop Vapor Canister The plastic housing of the charcoal canister, located under the rear of the car, can develop cracks from road debris impact or age, creating a large leak. This is usually found during a smoke test if other components check out.
• Faulty Canister Close Valve (CCV) / Vent Valve: → Shop Vapor Canister This valve, located on or near the charcoal canister, is normally open to allow air into the system but closes to seal the system for pressure testing. If it fails to close properly or gets stuck, it will cause a large leak code. It can be tested for proper function with a scan tool or by applying direct voltage. The OEM part number is often 31453-3K600.
• Leaking Fuel Filler Neck: → Shop Fuel Filler Neck Rust or damage to the metal pipe leading from the gas cap to the fuel tank can cause a leak that will trigger a P0457 code. This is more common in regions that use road salt in winter. A technician on YouTube noted a 2019 Optima with a P0456 (small leak) caused by a pinhole rusted through the filler neck right under a mounting clamp, a spot that can trap moisture. A recall for rusted fuel tank straps on some Kia models highlights the brand's susceptibility to corrosion in salt-belt states.

Diagnosis Steps

1. Check the gas cap. Remove it and retighten it, ensuring you hear it click several times. Clear the code with a scanner and complete a drive cycle to see if the light returns.
2. If the light comes back, perform a close visual inspection of the gas cap's rubber O-ring seal for any cracks, stiffness, or damage. If it's suspect, replace it with an OEM cap (Kia Part No. 31010-3L600U).
3. Visually inspect the engine bay for the canister purge valve and the hoses connected to it. Look for any obvious cracks or loose connections. The valve is under the air intake.
4. Visually inspect the underside of the vehicle near the fuel tank for the charcoal canister, vent valve (CCV), and associated hoses. Look for any damage or loose connections.
5. If no obvious issues are found, the next step is a smoke test. This involves injecting smoke into the EVAP service port and looking for where the smoke escapes. This is the most reliable way to find leaks in hoses, the canister, or the fuel filler neck.
6. Test the function of the purge valve and vent valve using a bidirectional scan tool or by applying voltage and checking for airflow/sealing. The purge valve should be normally closed, and the vent valve normally open.
7. If all components seem to work and no leaks are found, follow the procedure in TSB PS469 for a manual EVAP test, which involves monitoring the Fuel Tank Pressure Sensor (FTPS) voltage while manually activating the purge and vent valves to isolate a leak.
8. If the manual test per TSB PS469 points to no pressure change when the system is sealed, the fuel tank pressure sensor itself could be faulty, though this is uncommon.

Parts You'll Likely Need

• Fuel Tank Cap (OEM #31010-3L600U (supersedes 31010-3L600)) — This is the most common fix for P0457. The seal wears out, causing a leak that the car's computer specifically identifies.
  Trusted brands: Kia (Genuine OEM)
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• Canister Purge Valve (OEM #28910-25100 (for 2.0L/2.4L engines, verify by VIN)) — If the gas cap doesn't fix the issue, a purge valve stuck open is the next most likely culprit. This part number is cited for many Hyundai/Kia models of this era.
  Trusted brands: Kia (Genuine OEM), Bosch, Standard Motor Products, Dorman
  OEM price range: $70-$100
  Aftermarket price range: $30-$60
• Canister Close Valve (Vent Valve) (OEM #31453-3K600) — Less common than the purge valve, but if the valve fails to close during the EVAP self-test, it will register as a large leak. It is located near the charcoal canister.
  Trusted brands: Kia (Genuine OEM)
  OEM price range: $60-$90
  Aftermarket price range: $40-$70

Related Codes That Often Appear With This One

• P0455 — P0455 indicates a "Gross EVAP Leak." P0457 is a more specific version of P0455 that points directly to the fuel cap. The computer logic often identifies a large leak immediately after refueling as a P0457. Sometimes the system will log the more generic P0455 code alongside or instead of P0457.
• P0456 — P0456 indicates a "Small EVAP Leak." If a car has multiple small leaks (e.g., a failing gas cap seal and a small hose crack), it might initially present as a P0456 before worsening to a P0457.
• P0442 — P0442 indicates a "Medium EVAP Leak." Similar to P0456, this can be a precursor to a larger leak or appear if the system's leak detection threshold is met for this code instead of P0457.

Technical Service Bulletins (TSBs) & Recalls

• PS469: Recommends a manual EVAP test for hard-to-find leaks when codes P0442, P0455, P0456, or P0457 are present and the self-test results in 'No Trouble Found'. The procedure involves using a voltmeter on the Fuel Tank Pressure Sensor (FTPS) while manually grounding the Purge Valve and Canister Close Valve to check for pressure changes, helping to isolate a leak or identify a faulty component without a smoke machine.

Platform-Specific Known Issues

• Component Locations: A helpful YouTube video for 2011-2015 2.4L models shows the specific locations: The Purge Valve is in the engine bay, but buried under the air filter box and battery tray. The Fuel Tank Pressure Sensor is on top of the fuel pump assembly, under the rear seat. The Charcoal Canister and Canister Vent Valve are located together, under the rear of the car just forward of the rear subframe.
• Owner Repair Experience: A user on 'Kia Forums' with a 2013 Optima reported a P0457 code. After replacing the gas cap did not solve the issue, they replaced the canister purge valve. The user confirmed the old valve was stuck open by blowing through it. After replacing the valve and clearing the code, the check engine light did not return, confirming the purge valve as the culprit.

Mechanic-Grade Diagnostic Values

• Canister Purge Valve (PCSV) Coil Resistance — expected: 14 - 36 Ohms. Failure: A reading of infinite (open circuit) or zero (short circuit) resistance.
• Fuel Tank Pressure Sensor (FTPS) Voltage (KOEO, gas cap off) — expected: Approx. 2.5V. Failure: No voltage, or voltage significantly different from 2.5V. Note: Some 2016+ models may only show voltage with the engine running.
• Fuel Tank Pressure Sensor (FTPS) Voltage during manual purge test — expected: Should remain greater than 1.5V. Failure: Voltage drops below 1.5V, indicating a restriction in an EVAP line or canister, not a leak.

Scan Tool Commands That Help

• Kia GDS (or equivalent): EVAP System Active Test / Actuation Test — To manually command the Canister Purge Valve and Canister Close Valve to open or close, verifying their mechanical function and ability to seal the system on demand.

Wiring & Ground Locations

• EVAP System Fuse — In the main engine compartment fuse box.. This 10A fuse, often labeled 'SENSOR 2', provides power to multiple EVAP components including the purge valve. A blown fuse will prevent the system from operating correctly.
• Canister Purge Valve (PCSV) Location — In the engine bay, under the air intake assembly, near the intake manifold.. This is the physical location for inspection, testing resistance, and checking for stuck-open conditions.
• Canister Close Valve (CCV) Location — Under the rear of the vehicle, attached directly to the charcoal canister near the fuel tank.. This is the physical location for inspection and testing to see if the valve is stuck open, which would cause a large leak.

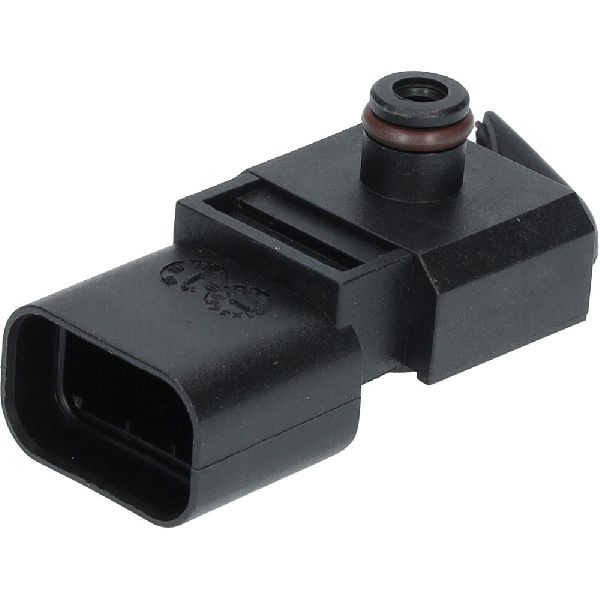

• Fuel Tank Pressure Sensor (FTPS) Location — On top of the fuel pump assembly, accessed by removing an inspection plate under the rear passenger seat.. Required for advanced diagnostics per TSB PS469, involving direct voltage measurement at the sensor.

"I Checked Everything" — The Actual Cause

• If a smoke test reveals no leaks, the issue could be a faulty Fuel Tank Pressure Sensor (FTPS) providing incorrect readings, or a Canister Purge/Close valve that is leaking internally or failing intermittently under specific conditions not replicated during the test. Following the manual electrical tests outlined in Kia's TSB PS469 is the next step to diagnose these components.

When the Usual Fixes Don't Work

• While the gas cap is the most frequent cause, a significant number of cases, particularly those where the code returns after cap replacement, are due to a stuck-open Canister Purge Valve (PCSV). A definitive way to check is to measure its coil resistance (spec: 14-36 ohms) and confirm it is physically closed (doesn't allow air to pass) when unpowered. Furthermore, if a smoke test passes, the issue may not be a leak at all but an electrical problem with the Fuel Tank Pressure Sensor (FTPS) or a restriction in the system, which requires following the specific electrical tests in TSB PS469.

OEM Part Supersession History

• 31010-3L600, 31010-2F500, 31010-2D600, 31010-2C800 → 31010-3L600U — Part has been updated by the manufacturer for improved design or material.
  Heads up: Using older or non-OEM aftermarket caps is a common reason for P0457 to persist after replacement. Always use the latest OEM revision.

Model Year Variations Within This Range

• 2016 (JF generation): The Fuel Tank Pressure Sensor (FTPS) may not receive its 5V reference power with the Key On, Engine Off (KOEO). A user noted power was only supplied once the engine was running. This differs from the standard KOEO testing procedure and must be accounted for when diagnosing a 2016 model.
