P0460 on 2016-2022 Nissan Armada: Fuel Level Sensor Circuit Fixes

What's Unique About the 2016-2022 Nissan ARMADA

The 2016-2022 Armada spans two distinct generations: the 2016 model (TA60) 🎬 Watch: Fuel pump replacement for the TA60 generation. and the redesigned 2017-2022 models (Y62). For the Y62 generation, which is a platform mate to the Infiniti QX80, Nissan issued Technical Service Bulletin NTB22-026. This TSB acknowledges this issue and importantly clarifies that the fuel level sensor can be replaced on its own, without needing to buy the entire fuel pump assembly. This is a significant cost-saving detail for owners, as Nissan explicitly states that warranty claims for replacing the entire pump assembly for this issue will be charged back.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The specified year range covers two Armada generations. The 2016 model is the last year of the first generation (TA60), based on the Nissan Titan. The 2017-2022 models are the second generation (Y62), based on the Nissan Patrol and sharing a platform with the Infiniti QX80. While the P0460 code's cause is similar for both (a faulty fuel level sensor), the specific part numbers and repair procedures differ. The TSB NTB22-026 specifically applies to the Y62 generation.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge behaves erratically, fluctuating wildly between full and empty
• Fuel gauge is stuck on empty, full, or an incorrect level
• Distance-to-empty display is inaccurate or unpredictable
• Low fuel warning light illuminates intermittently even with a full tank.

Most Likely Causes

1. Faulty Fuel Level Sensor 🔴 High Probability → Shop Fuel Tank Sending Unit The fuel level sensor is a moving part with a variable resistor that wears out over time, causing dead spots or erratic resistance readings. Nissan TSB NTB22-026 directly identifies this as the primary failure point for this code on Y62 Armada and related models.

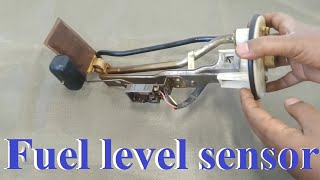

   How to confirm: Use a scan tool to monitor the fuel level sensor's voltage or resistance. If the reading is erratic, stuck, or doesn't change when fuel is added, the sensor is likely bad. An alternative is to test the sensor's resistance directly with a multimeter while moving the float arm; the resistance should change smoothly without any sudden jumps or dropouts. A YouTube video demonstrates this test on a similar Nissan fuel pump, showing how a bad sensor's resistance jumps erratically.
   Typical fix: Replace the fuel level sensor (sending unit) located inside the fuel tank. Access is typically gained by removing an access panel under the rear seat, avoiding the need to drop the entire fuel tank.
   Est. part cost: $80-$285
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness to the fuel tank is located underneath the vehicle and can be exposed to moisture, salt, and road debris, leading to corrosion or physical damage over time. The main connector on top of the fuel pump assembly is a common point for corrosion.
   How to confirm: Visually inspect the wiring harness and the main connector on top of the fuel pump assembly for any signs of corrosion, frayed wires, or loose pins. Perform a continuity and voltage drop test on the circuit if a scan tool shows erratic readings but the sensor itself tests good.
   Typical fix: Repair the damaged section of wiring or clean/replace the corroded connector.
   Est. part cost: $10-$100

Rare But Worth Checking

• Stuck or Damaged Float Arm: The float itself can become saturated with fuel and sink, or the arm can get physically stuck due to debris or rust inside the tank, especially if the vehicle has been sitting for a long time. This prevents the resistor from moving, causing a fixed reading.
• Faulty Instrument Cluster (Combination Meter): → Shop Instrument Cluster It is very rare for the instrument cluster to be the cause. This should only be considered after the sensor and wiring have been thoroughly tested and confirmed to be in good working order.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) A PCM failure is extremely rare. Internal component degradation can prevent the module from correctly reading the sensor's voltage, but all other causes should be exhausted before considering PCM replacement.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner and confirm P0460 is present. Note any other codes, especially P0461, P0462, or P0463, and troubleshoot them first if present.
2. Observe the fuel gauge on the instrument panel. Does it read empty, full, or fluctuate erratically?
3. Use a scan tool with live data capability to monitor the fuel level sensor's output voltage or resistance. The reading should be stable and correspond to the approximate fuel level.
4. If possible, add a known quantity of fuel to the tank and see if the sensor's reading changes appropriately on the scan tool. Alternatively, gently rock the vehicle side-to-side to slosh the fuel and watch for a corresponding change in the sensor reading.
5. Gain access to the top of the fuel tank, which is often under the rear seats. Inspect the electrical connector for the fuel pump assembly for corrosion, damage, or loose connections.
6. If the wiring looks good, test the sensor itself. Disconnect the sensor and measure its resistance with a multimeter. The resistance should change smoothly without any dropouts or open spots.
7. If the sensor tests good but the signal is still faulty at the PCM, inspect the wiring harness between the fuel tank and the PCM for shorts or open circuits using a multimeter to check for continuity.

Parts You'll Likely Need

• Fuel Level Sensor (OEM #25060-1LA0D) — This is the most common failure point for the P0460 code on the Y62 generation. The internal resistor wears out, causing erratic readings. The TSB confirms this is a known issue. This part number supersedes 25060-1LA0C.
  Trusted brands: Nissan Genuine, Dorman
  OEM price range: $260-$285
  Aftermarket price range: $85-$150
• Fuel Pump Module Gasket / O-Ring (OEM #17342-6RR0A) — This seal should always be replaced whenever the fuel pump module is removed from the tank to prevent fuel leaks and vapor smells.
  Trusted brands: Nissan Genuine, Mahle, Fel-Pro
  OEM price range: $15-$30
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0461 — Indicates the fuel level sensor signal is out of the expected performance range, often set alongside P0460.
• P0462 — Indicates the fuel level sensor circuit input is low, pointing to a short in the circuit.
• P0463 — Indicates the fuel level sensor circuit input is high, pointing to an open in the circuit.

Technical Service Bulletins (TSBs) & Recalls

• NTB22-026: Addresses P0460 (FUEL LEV SEN SLOSH) and clarifies that the fuel level sensor can be replaced separately from the entire fuel pump assembly. It warns dealers that replacing the entire pump for this issue on warranty claims will result in a chargeback.

Platform-Specific Known Issues

• Nissan Technical Service Bulletin NTB22-026 was issued for 2019 models (and is relevant to the 2017-2022 generation) for codes P0460, P0461, P0462, and P0463. It confirms the fuel level sensor can be replaced separately from the entire fuel pump assembly, which is a key piece of information for an affordable repair.
• The Y62 Armada shares its platform and many components, including the fuel level sensor (25060-1LA0D), with the 2017-2024 Infiniti QX80, which experiences the same issue.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: A Nissan dealer field report indicates a reading of approximately 81 Ohms corresponds to an empty tank. A full tank should show a much lower resistance. The key is a smooth, consistent change in resistance as the float arm is moved, with no sudden jumps or open circuits (infinite resistance).. Failure: A reading of infinite resistance (open circuit), a jumpy or erratic reading as the float arm is moved, or a value that is stuck and does not change.
• Fuel Level Sensor Voltage at the Meter — expected: A Nissan dealer field report documented a voltage of 0.48V when the tank is full. The voltage should change in direct relation to the fuel level.. Failure: Voltage that is stuck, erratic, or does not correspond to the known fuel level.

Scan Tool Commands That Help

• Advanced OBD-II Scanner (e.g., Nissan CONSULT, iCarsoft, Autel): Instrument Cluster Gauge Test / Actuator Test — Use this function to command the fuel gauge to sweep through its full range of motion. If the gauge moves correctly during the test, it confirms the instrument cluster and gauge motor are likely working, pointing the diagnosis back towards the sensor, wiring, or PCM.

Wiring & Ground Locations

• IPDM E/R Ground Circuit — The Intelligent Power Distribution Module (IPDM) is located in the engine room (E/R). Check harness connectors E122 and E124 for ground continuity.. A poor ground connection at the IPDM, which helps manage power and signals for various systems including the fuel pump and sensor circuits, can cause erratic voltage readings and trigger a P0460 code even if the sensor itself is good.
• Fuel Pump Connector Ground Pin — At the main 4-pin electrical connector on top of the fuel pump assembly, accessible under the rear seats.. One of the pins in this connector is the dedicated ground for both the fuel pump and the level sensor. Verifying solid continuity to chassis ground at this pin is a critical step before replacing the sending unit. Corrosion or a loose pin here is a common failure point.

OEM Part Supersession History

• 25060-1LA0C → 25060-1LA0D — Standard part revision, likely for improved durability or material changes to address the known failure mode.
  Heads up: The part 25060-1LA0D is listed as fitting Nissan Armada models from 2017 through 2024, extending its use beyond the original scope of this article.

Model Year Variations Within This Range

• 2020-2021: A recall (Nissan #R21A2) was issued for some 2020-2021 Armada and QX80 models for a faulty fuel pump, not the level sensor. The pump's impeller could swell, causing the pump to fail and the engine to stall. While this won't directly cause a P0460, it is a critical fuel-system issue for these model years and could be misdiagnosed if the car stalls due to running out of fuel from an incorrect gauge reading.
• 2021-2022: The 2021 model year featured a major interior and exterior refresh, including a new, larger 12.3-inch infotainment screen and a revised instrument cluster. While the fuel sensor part number remained the same, any diagnosis involving the instrument cluster or gauge behavior must account for the different electronics and software in these refreshed models compared to the 2017-2020 models.
