P0460 on 2005-2012 Nissan Pathfinder: Fuel Gauge Problems and Sending Unit Fixes

What's Unique About the 2005-2012 Nissan Pathfinder

The third-generation (R51) Pathfinder is notorious for fuel gauge problems directly linked to code P0460. The issue was so widespread that Nissan issued a voluntary safety recall (PC042) for 2006 and 2008 models because the gauge could read 1/4 tank when it was actually empty, creating a risk of stalling. This recall also applied to its platform mates, the Nissan Frontier and Xterra. While the recall targeted specific years, the underlying problem—a prematurely failing fuel level sending unit—affects the entire 2005-2012 model run. The key takeaway for owners is that this is a well-documented component failure, not a random electrical mystery.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge behaves erratically (fluctuates, drops to empty, or gets stuck)
• Fuel gauge reads empty even with a full tank
• Fuel gauge shows approximately 1/4 tank when the tank is actually empty.
• Distance-to-Empty (DTE) display is inaccurate

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability → Shop Fuel Tank Sending Unit This is a well-documented, common failure part on this platform, as evidenced by a safety recall for the same issue on certain model years. The internal resistor contacts on the sensor wear out over time, causing erratic readings. This is one of the most common problems reported by owners for this generation of Pathfinder.
   How to confirm: Use a scan tool to monitor the fuel level sensor voltage. It will likely be erratic or not correspond to the actual fuel level. A more definitive test involves removing the unit and measuring its resistance with a multimeter while moving the float arm. The resistance should change smoothly; any jumps or dead spots confirm failure. For this Nissan platform, the expected resistance is approximately 4-8 ohms when full and 78-84 ohms when empty.
   Typical fix: Replace the fuel level sending unit. This sensor is attached to the fuel pump assembly inside the fuel tank but can be replaced as a separate component. The fuel tank must be lowered to access it. 🎬 Watch: Replace the sending unit without removing the fuel tank
   Est. part cost: $60-$150

Rare But Worth Checking

• Corroded or Damaged Wiring/Connector: The wiring harness connector on top of the fuel tank is exposed to the elements. Before replacing the sensor, always inspect this connector for corrosion, moisture, or bent pins, as it can cause the same symptoms.
• Instrument Cluster Fault: → Shop Instrument Cluster This is very rare. If a new sending unit and verified wiring do not fix the problem, the instrument cluster itself could be the issue. However, this should be the last item to suspect. Some owners of other vehicles have reported this as the cause after multiple sending unit replacements failed to fix the issue.

Diagnosis Steps

1. Verify the P0460 code is present using an OBD-II scanner.
2. Check for any related TSBs or recalls for your specific VIN. Nissan had a recall (PC042) for 2006 and 2008 models for this exact issue.
3. Use the trip odometer to track mileage and manually estimate your fuel level to avoid running out of gas.
4. Visually inspect the wiring harness and connector on top of the fuel tank for any signs of corrosion, damage, or moisture.
5. If the wiring appears okay, the most probable cause is the fuel level sending unit itself.
6. Confirm by testing the sensor's resistance. With the unit removed, connect a multimeter to the sensor's terminals and measure resistance as you move the float arm. The reading should sweep smoothly from approximately 4-8 ohms (full) to 78-84 ohms (empty). If it jumps, drops out, or is out of spec, the sensor is bad.
7. Replace the fuel level sending unit. This requires dropping the fuel tank.
🎬 See this step-by-step fuel sending unit repair video

Parts You'll Likely Need

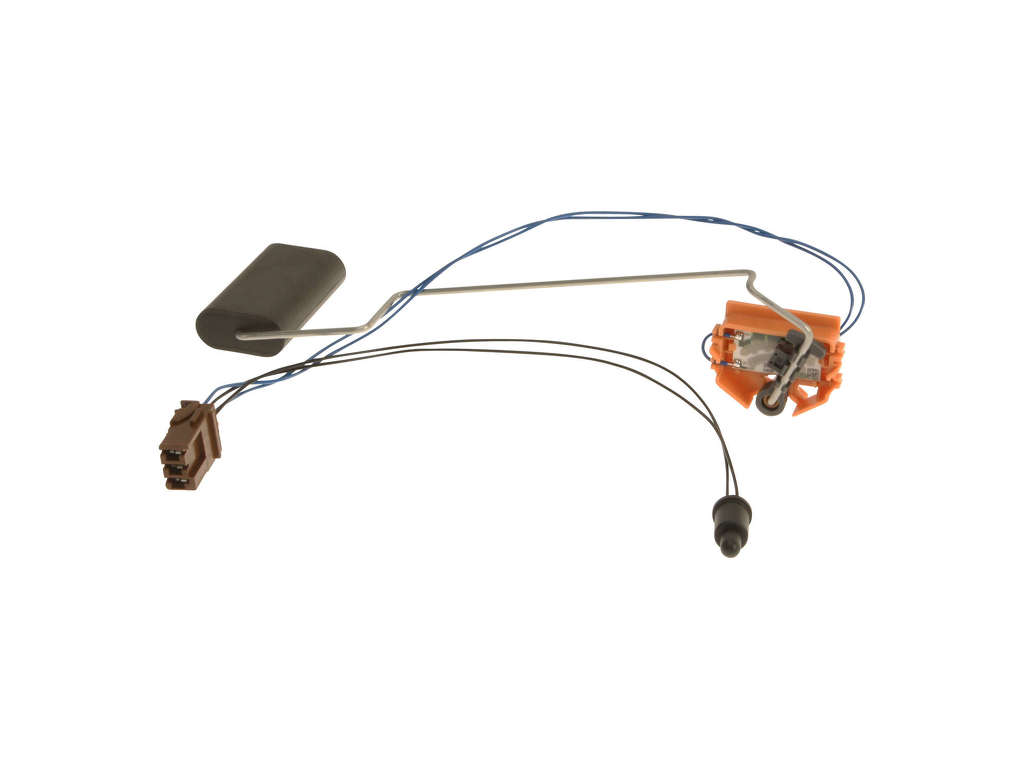

• Fuel Level Sensor (Sending Unit) (OEM #25060-ZS00B) — This is the component that fails and is the direct cause of code P0460 on this vehicle. It is a known high-failure item.
  Trusted brands: Nissan (OEM), Dorman, Standard Motor Products (SMP), Wells
  OEM price range: $95-$135
  Aftermarket price range: $60-$100

Related Codes That Often Appear With This One

• P0461 — P0461 (Fuel Level Sensor Circuit Range/Performance) is a closely related code that can be triggered by the same erratic sensor signal.
• P0463 — P0463 (Fuel Level Sensor Circuit High Input) is also frequently seen, indicating the PCM is receiving a voltage signal higher than the expected range, which can happen when the sending unit fails.

Technical Service Bulletins (TSBs) & Recalls

• PC042 - Voluntary Safety Recall Campaign for fuel gauge inaccuracy on 2006 and 2008 models, requiring replacement of the fuel level sending unit. This also applied to the Frontier and Xterra.

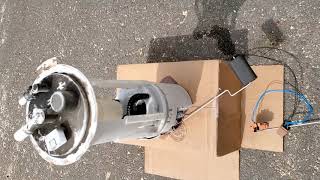

🎬 Watch: Nissan Frontier fuel sending unit replacement walkthrough
• TSB Bulletin #NTB22-026 - This manufacturer bulletin clarifies that for codes P0460 (FUEL LEV SEN SLOSH), P0461, P0462, and P0463, the fuel level sensor can be replaced separately from the entire fuel level sensor unit, fuel filter, and fuel pump assembly.

Platform-Specific Known Issues

• A voluntary safety recall campaign (ID: PC042) was issued for 2006 and 2008 models due to the fuel gauge showing ~1/4 tank when empty, caused by a faulty fuel sending unit.
• This is considered one of the most common problems for the third-generation Pathfinder.
• The recall fix involved replacing the fuel level sending unit with a new one that had a modified float arm to prevent the issue.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Live Data Voltage — expected: Approx. 4.5V (Full) to 0.5V (Empty). Failure: Voltage is erratic, stuck, or does not correspond to the known fuel level.
• Fuel Level Sensor Resistance (single sender) — expected: Approx. 4-8 Ω (Full) to 78-84 Ω (Empty). Failure: Readings are open (infinite), shorted (zero), or jump erratically when moving the float arm.
• Unified Meter & A/C Amp Output Voltage (on related platforms) — expected: Approx. 4.5V with a known good module.. Failure: A lower-than-expected voltage (e.g., 2.9V) from the module can indicate an internal fault, even with a good sending unit.

Scan Tool Commands That Help

• Advanced Scan Tool (e.g., Nissan CONSULT, Autel, Snap-on): Instrument Cluster Self-Test / Gauge Sweep — Use this to verify the fuel gauge stepper motor is physically capable of sweeping its full range of motion. If the gauge sweeps correctly during the test but reads incorrectly during normal operation, it confirms the problem is in the input signal (sender, wiring, or intermediary module), not the gauge itself.
• Advanced Scan Tool with Live Data: Live Data Monitoring of Fuel Level Sensor Input — This is the primary diagnostic step. Monitor the voltage or resistance PID from the fuel level sensor. On some Nissan platforms, it's critical to identify if the data is being read directly by the ECM/BCM or by an intermediary module like the 'Unified Meter and A/C Amp' to ensure you are testing the correct component's input/output.

Wiring & Ground Locations

• Unified Meter and A/C Amplifier — On related Nissan/Infiniti platforms, this small white control box is located behind the radio/HVAC control panel in the center dash stack.. On vehicles so equipped, this module processes the raw resistance signal from the fuel sending unit(s) and converts it into a signal for the instrument cluster (often via CAN bus). A failure here, often due to cracked solder joints on the input resistors, can perfectly mimic a failed sending unit, causing the gauge to stick (often at 1/4 tank) even when the sending unit and cluster are good. It is a critical but often-overlooked point of failure.
• Instrument Cluster Connector — Directly on the back of the instrument panel, accessed by removing the dash trim and the cluster itself.. Even if the sending unit is good, a poor connection or cracked solder joint on the cluster's circuit board can cause incorrect gauge readings. This is a known failure point on older Nissan platforms.
• IPDM E/R (Intelligent Power Distribution Module Engine Room) — Located in the right rear of the engine compartment.. This module controls power distribution for many vehicle systems. While not a primary cause, wiring diagrams show it is part of the overall system, and a fault within the IPDM or its connectors could potentially affect circuits related to the fuel system or instrument cluster.

Real Owner Repair Stories

• YouTube - 'Pathfinder Fuel Level Reads Wrong-Fuel Gauge-Cluster Repair-R50' (2003 Nissan Pathfinder (R50 generation, but demonstrates a common Nissan failure mode)) — Fuel gauge was inaccurate, reading 3/4 tank when it should have been just under 1/2 tank.
  ❌ Tried (didn't work) Owner was aware the common cause is the sending unit, but opted to check the cluster first.
  ✅ What actually fixed it The owner removed the instrument cluster and found a cracked solder joint on one of the resistors on the main circuit board. The resistor was reading nearly 500 ohms instead of the specified 160 ohms. Re-soldering the resistor restored correct fuel gauge function.
• YouTube - 'How to fix Nissan Infiniti fuel gauge problems!' (2013 Infiniti Skyline Coupe (G37 platform, demonstrates shared Nissan electronic architecture)) — Fuel gauge would not drop below 1/4 tank, causing the owner to run out of fuel unexpectedly.
  ❌ Tried (didn't work) Initial diagnosis pointed towards the dual sending units in the tank.
  ✅ What actually fixed it The actual fault was in the 'Unified Meter and A/C Amp' module located above the radio. The technician identified cracked solder joints on the input resistors from the fuel sending units. Re-soldering these connections on the module's circuit board resolved the issue without replacing any major parts.
• Reddit r/cars (2003 Nissan Pathfinder LE) — Fuel gauge was inaccurate after filling up.
  ❌ Tried (didn't work) Installed a new fuel sending unit.
  ✅ What actually fixed it The user's problem was not resolved in the thread, but it serves as a real-world example of the primary fix (replacing the sending unit) not solving the problem, pointing towards a more complex electrical issue in the wiring or another module, as described in other repair stories.

OEM Part Supersession History

• 25060-ZP00A, 25060-ZS00A, 25060-ZZ00A → 25060-ZS00B — Standard part revision and consolidation by the manufacturer.
  Heads up: The part issued under recall PC042 included a modified float arm designed to work with the out-of-spec fuel tanks in the recalled 2006 and 2008 models. While the latest part number should be compatible, this highlights that physical changes were made to address the root cause.

Model Year Variations Within This Range

• 2006, 2008: The voluntary safety recall PC042 specifically targeted these years. The root cause was identified as fuel tank shells that were 'built out of specification.' This manufacturing defect could cause the fuel sending unit to 'skew over time,' leading to the inaccurate reading. This is distinct from the simple component wear that affects all years, and explains the limited scope of the recall.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Coolant Contamination / SMOD (Strawberry Milkshake of Death) 🔴 High — Very common on 2005-2010 models with automatic transmissions. The internal transmission cooler within the radiator fails, mixing coolant and transmission fluid, which destroys the transmission. (Ref: No recall, but a class-action lawsuit led to an extended warranty (now expired). The common fix is to bypass the radiator's cooler or replace the radiator with an updated design.)
• Timing Chain Guide Wear (VQ40DE Engine) 🔴 High — Common issue, can occur as early as 40,000 miles but is more frequent at higher mileage (100k+). Caused by plastic tensioner guides being worn down by the timing chains, leading to a distinct whining or buzzing noise from the engine front, especially on cold starts. (Ref: Nissan issued TSBs (e.g., EM09-007) and faced a class-action lawsuit. If ignored, it can lead to catastrophic engine failure.)
• IPDM-ER Failure (Intelligent Power Distribution Module) 🟠 Medium — Common on 2005-2007 models. A faulty ECM relay inside the IPDM can cause intermittent stalling at low speeds, no-start conditions, and other random electrical issues. (Ref: A voluntary service campaign/recall (PC068 / NTB10-137) was issued to replace the faulty ECM relay.)
• Cracked Exhaust Manifolds (VK56DE V8 Engine) 🟠 Medium — A known issue for V8-equipped Pathfinders, though less common than V6 issues. Can cause ticking noises, exhaust fumes in the cabin, and loss of power.
• EVAP System Failures 🟡 Low — Failures of the EVAP vent control solenoid or canister are common, leading to a Check Engine Light (often for codes like P0455) and sometimes difficulty filling the fuel tank.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part is NOT recommended. The fuel level sending unit is a known high-failure wear item. Installing a used one from a junkyard is likely to result in the same problem returning shortly. The only exception might be sourcing a complete used fuel pump 'hat' assembly for the physical housing if yours is damaged, but the electronic sending unit itself should always be new.

What to inspect on the donor part:

• Not applicable, as a used sending unit is not advised.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, using a genuine Nissan sending unit is the safest bet for guaranteed compatibility and quality, especially given the known sensitivity of the system. The price difference is often minimal for this part.

Aftermarket brands forum-validated for this vehicle:

• Dorman: Dorman is a widely available aftermarket alternative. While their overall quality can be inconsistent according to forum discussions, they are a major supplier for this type of component and often the most accessible option. They are a reasonable choice if OEM is unavailable or if budget is the primary concern.

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name parts from online marketplaces should be avoided. The labor to drop the fuel tank is significant, and it is not worth risking a repeat failure on a low-quality part to save a small amount of money.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0461 — Often appears alongside P0460; indicates a fuel level sensor circuit range/performance problem, frequently caused by the same failing sending unit.
• P0455 — An EVAP system large leak code; common on this platform due to failures of the EVAP vent control solenoid or canister, which are located near the fuel tank.
• PC042 — While not a P-code, this is the specific Nissan recall code for the fuel level sending unit failure that triggers P0460.
• PC068 — Nissan recall code for the IPDM-ER/ECM relay failure, which is another common electrical issue on 2005-2007 Pathfinders.
