P0460 on 2016-2017 Nissan Quest: Fuel Level Sensor Circuit Causes and Fixes

What's Unique About the 2016-2017 Nissan QUEST

The 2016-2017 Nissan Quest is part of the fourth generation (RE52), which has a well-documented history of fuel level sensor failures. Nissan issued a specific Technical Service Bulletin (TSB NTB22-026) that covers this exact code and model year range. 🎬 Watch: Understanding the P0460 code and common sensor fixes. The key takeaway from this bulletin is that owners can replace just the failed sensor, rather than being sold a complete and costly fuel pump assembly, which is a common and unnecessary upsell for this specific problem. Nissan dealers are even warned that warranty claims for a full assembly replacement for this issue will be charged back.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is erratic, fluctuating wildly, or stuck on Full or Empty.
• Distance-to-empty display is inaccurate or shows dashes.
• Low fuel warning light may illuminate at incorrect times.

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit This is a widespread and well-documented failure point for this platform, as acknowledged by Nissan in TSB NTB22-026. The sensor's internal variable resistor wears out or gets contaminated by sulfur in the fuel over time, causing the signal to become erratic.
   How to confirm: Access the fuel sending unit and test the sensor's resistance with a multimeter. The resistance should change smoothly as you move the float arm. While specific Quest values are not published, similar Nissan sensors show approximately 4.3-6.3 ohms at Full and 73.3-84.8 ohms at Empty. If the reading is open (OL), zero, or jumps erratically, the sensor is bad.
   Typical fix: Replace the fuel level sensor (OEM Part No. 25060-1JA0A) and the fuel tank gasket. The sensor can be purchased separately from the fuel pump assembly.
   Est. part cost: $100-$200
2. Damaged Wiring or Corroded Connector ⚪ Low Probability The main electrical connector sits on top of the fuel tank. While generally protected, it can be damaged during other repairs or be subject to corrosion if liquids are spilled inside the vehicle near the access panel under the rear seat.
   How to confirm: Visually inspect the wiring harness and connector pins leading to the fuel pump module for any signs of corrosion, breaks, or loose connections. Perform a continuity test from the connector to the PCM if the sensor tests good.
   Typical fix: Clean the connector terminals or repair the damaged section of the wiring harness.
   Est. part cost: $5-$50

Rare But Worth Checking

• Faulty Instrument Cluster: → Shop Instrument Cluster This is rare. If the fuel level sensor and wiring test good, but the gauge is still incorrect, the problem may lie within the instrument cluster itself. This usually requires professional diagnosis and can be costly to repair. A gauge sweep test can help verify cluster functionality.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely unlikely and should only be considered after all other possibilities, including the sensor, wiring, and instrument cluster, have been definitively ruled out.

Diagnosis Steps

1. Read the code using an OBD-II scanner to confirm P0460 and check for any other related codes (P0461, P0462, P0463).
2. Use a scan tool with live data to monitor the fuel level sensor voltage or resistance percentage. Observe if the reading is erratic, stuck, or does not change when the vehicle is rocked gently to slosh fuel in the tank. A healthy signal should be steady, typically between 0.5V and 4.5V.
3. Locate the fuel pump access panel. On the 2011-2017 Quest, this is under the carpet beneath the second-row driver's side seat. You will need to remove some trim and pull back the carpet to expose the round metal plate.
4. Inspect the electrical connector on top of the access plate for corrosion, damage, or loose pins.

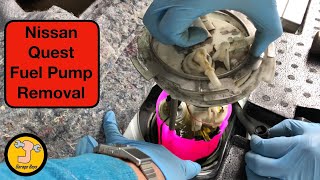

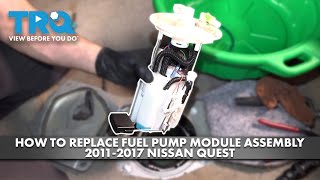

5. If the connector is clean, the next step is to test the fuel level sensor. This requires removing the fuel pump assembly from the tank.
6. Disconnect the sensor from the assembly and use a multimeter set to Ohms to measure the resistance across the sensor's terminals.
7. Slowly move the float arm from the empty to the full position. The resistance reading should change smoothly and consistently. For many Nissans, this is roughly 73-85 ohms at empty and 4-6 ohms at full. Any sudden jumps, dropouts to zero, or an open loop (OL) reading confirms the sensor is faulty.
8. If the sensor tests good, perform a continuity and resistance test on the wiring between the fuel tank connector and the PCM to rule out a wiring issue.

Parts You'll Likely Need

• Fuel Level Sensor (OEM #25060-1JA0A) — This is the component that fails most often, causing the P0460 code. It is a wearable part whose resistor strip degrades over time.
  Trusted brands: Genuine Nissan, Hitachi, Dorman, Spectra Premium
  OEM price range: $180-$250
  Aftermarket price range: $115-$180
• Fuel Tank Seal / Gasket — This seal should always be replaced whenever the fuel pump or sending unit is removed from the tank to prevent dangerous fuel leaks and fumes.
  Trusted brands: Genuine Nissan, Mahle
  OEM price range: $20-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0461 — Indicates the fuel level sensor circuit performance is out of range. It's a related fault from the same sensor and is also mentioned in TSB NTB22-026.
• P0462 — Indicates the fuel level sensor circuit input is low (short to ground). It is also covered by TSB NTB22-026.
• P0463 — Indicates the fuel level sensor circuit input is high (open circuit). It is also covered by TSB NTB22-026.

Technical Service Bulletins (TSBs) & Recalls

• NTB22-026: Addresses inaccurate fuel gauge readings and DTCs P0460, P0461, P0462, or P0463, noting the fuel level sensor can be replaced separately. It applies to a wide range of 2016-2022 Nissan vehicles.

Platform-Specific Known Issues

• Nissan has issued Technical Service Bulletin NTB22-026, which directly addresses P0460 and related codes on the 2016-2017 Quest. It confirms the fuel level sensor is a known issue and can be replaced separately from the fuel pump assembly.
• Access to the fuel pump and sensor is inside the cabin, under the second-row driver's side seat, which avoids the need to drop the entire fuel tank.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: Approximately 4.3-6.3 Ω when float is at 'Full' and 73.3-84.8 Ω when float is at 'Empty'.. Failure: The resistance reading jumps erratically, shows an open circuit (OL), or is stuck at a fixed value while moving the float arm.
• Fuel Level Sensor Live Data Voltage (via Scan Tool) — expected: A steady voltage between approximately 0.5V and 4.5V (the specific voltage for full/empty varies by system).. Failure: Voltage jumps erratically by more than 0.2V without the vehicle moving, or is stuck at 0V or 5V.

Scan Tool Commands That Help

• Manual Procedure (No Scan Tool): Instrument Cluster Self-Diagnostic Mode (Gauge Sweep Test) — Use this test to confirm the instrument cluster's fuel gauge is physically working. If the gauge sweeps correctly during the test but reads incorrectly during normal operation, it strongly suggests the fault is with the sensor or wiring, not the cluster itself. The procedure typically involves a sequence of turning the ignition on/off while holding the trip reset button.
• Nissan CONSULT-III Plus: Active Test / Work Support — The dealer-level scan tool can monitor inputs from the fuel level sensor in real-time and may have specific active tests for the Unified Meter and A/C Amp (which controls the cluster) to verify it is receiving the signal correctly from the ECM.

Wiring & Ground Locations

• Fuel Pump Relay — In the engine compartment fuse box (also known as the IPDM E/R - Intelligent Power Distribution Module Engine Room).. A faulty relay could cause intermittent power loss to the entire fuel pump assembly, including the sensor, though this would typically set other codes as well. It's a relevant part of the overall circuit.
• Fuel Pump Fuse — In the engine compartment fuse box (IPDM E/R), typically a 15A fuse labeled 'FUEL PUMP'.. This fuse protects the fuel pump circuit. While a blown fuse would cut power entirely (causing a no-start), a poor connection at the fuse block could theoretically cause intermittent voltage issues.

OEM Part Supersession History

• 25060-1JA0A → N/A — No supersession found. This part number remains the correct and active OEM part for the 2011-2017 Nissan Quest.

Model Year Variations Within This Range

• 2016-2017: No significant variations in the fuel system, powertrain, or electronics that would affect the diagnosis or repair of a P0460 code have been identified between the 2016 and 2017 model years. Both use the same 3.5L V6 engine and are covered by the same TSB.
