P0462 on 2004-2008 Ford F-150: Fuel Level Sensor Circuit Low Input Causes and Fixes

What's Unique About the 2004-2008 Ford F-150

On the 2004-2008 F-150, this code is a very common indicator of a worn-out fuel level sending unit. The sensor is a moving part that wears over time, and after a decade or more of service, failure is common. While wiring issues can occur, the sender unit itself is the primary suspect for this generation of F-150, a fact corroborated by numerous owner experiences in online forums.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads empty or is stuck on 'E'
• Fuel gauge behaves erratically, jumping between full and empty
• Low fuel warning light stays on even with a full tank
• In some cases, a crank-no-start condition can occur if the issue is related to the fuel pump module's power or ground, which the sensor shares.

Most Likely Causes

1. Failed Fuel Level Sending Unit 🔴 High Probability → Shop Fuel Tank Sending Unit The sending unit is a mechanical variable resistor that wears out over time from the float arm constantly moving. After many years and miles, the resistive contacts on the card wear down, causing a short or an out-of-spec low resistance reading, which the PCM interprets as a low voltage signal. 🎬 Watch: How to diagnose and fix a P0462 code
   How to confirm: Access the top of the fuel tank and test the resistance (ohms) of the sending unit with a multimeter. For a non-flex-fuel F-150, the resistance should be approximately 15 ohms when empty and 160 ohms when full. An erratic reading, or one that is stuck very low (near 0 ohms), confirms failure.
   Typical fix: Replace the entire fuel pump module assembly, which includes the fuel pump, filter, and the new sending unit. This is the most common and recommended repair.
   Est. part cost: $150-$400
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness leading to the fuel tank is exposed to road debris, moisture, and corrosion. A common failure point is the connector on top of the fuel pump module, where water intrusion can corrode the pins and cause a short to ground.
   How to confirm: Visually inspect the wiring harness from the frame to the top of the fuel tank for any chafing, breaks, or corroded pins in the connector. Perform a continuity test on the signal wire and check for a short to ground.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail.
   Est. part cost: $10-$50
3. Faulty Instrument Cluster ⚪ Low Probability → Shop Instrument Cluster While less common, the instrument cluster itself can fail due to cracked solder joints on the internal circuit board, causing issues with the fuel gauge. This was a more noted issue on some Ford models of this era, and some F-150 owners have traced P0462 to this cause after exhausting other options.
   How to confirm: Use an advanced scan tool to command the fuel gauge to sweep. If it doesn't respond but the sensor and wiring test good, the cluster is the likely problem. Another symptom can be other intermittent gauge or warning light issues.
   Typical fix: The instrument cluster needs to be sent to a specialist for repair of the circuit board or replaced and programmed by a dealer.
   Est. part cost: $200-$500

Rare But Worth Checking

• Powertrain Control Module (PCM) Fault: This is extremely rare, but a fault in the PCM's internal driver for the fuel level circuit can mimic a sensor failure. All other possibilities must be exhausted before condemning the PCM.

Diagnosis Steps

1. Verify the code with an OBD-II scanner.
2. Check for any Technical Service Bulletins (TSBs) related to fuel gauge issues for your specific model year and engine.
3. Visually inspect the wiring harness leading to the fuel tank. Pay close attention to the connector on top of the fuel pump module for signs of green corrosion or physical damage.
4. Using a scan tool with live data, observe the fuel level voltage reading (Fuel Level Input). A reading stuck below 0.5 volts confirms the low input condition the PCM is seeing.
5. If possible, access the fuel pump connector. With the key on, check for the correct reference voltage being sent to the sensor and check for a good ground.

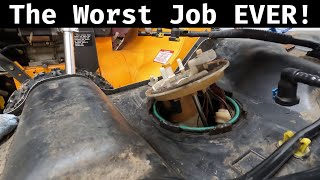

6. Test the resistance of the fuel level sensor itself. You will need to drop the fuel tank or lift the truck bed to access the top of the fuel pump module. 🎬 See this handy truck bed tilt method for easy access Disconnect the sensor and measure the resistance across its terminals while manually moving the float arm. For standard models, the resistance should change smoothly from ~15 ohms (empty) to ~160 ohms (full). If it drops out or reads open/shorted, the sending unit is bad.
7. If the sensor and wiring test good, the issue may lie with the instrument cluster or, rarely, the PCM.

Parts You'll Likely Need

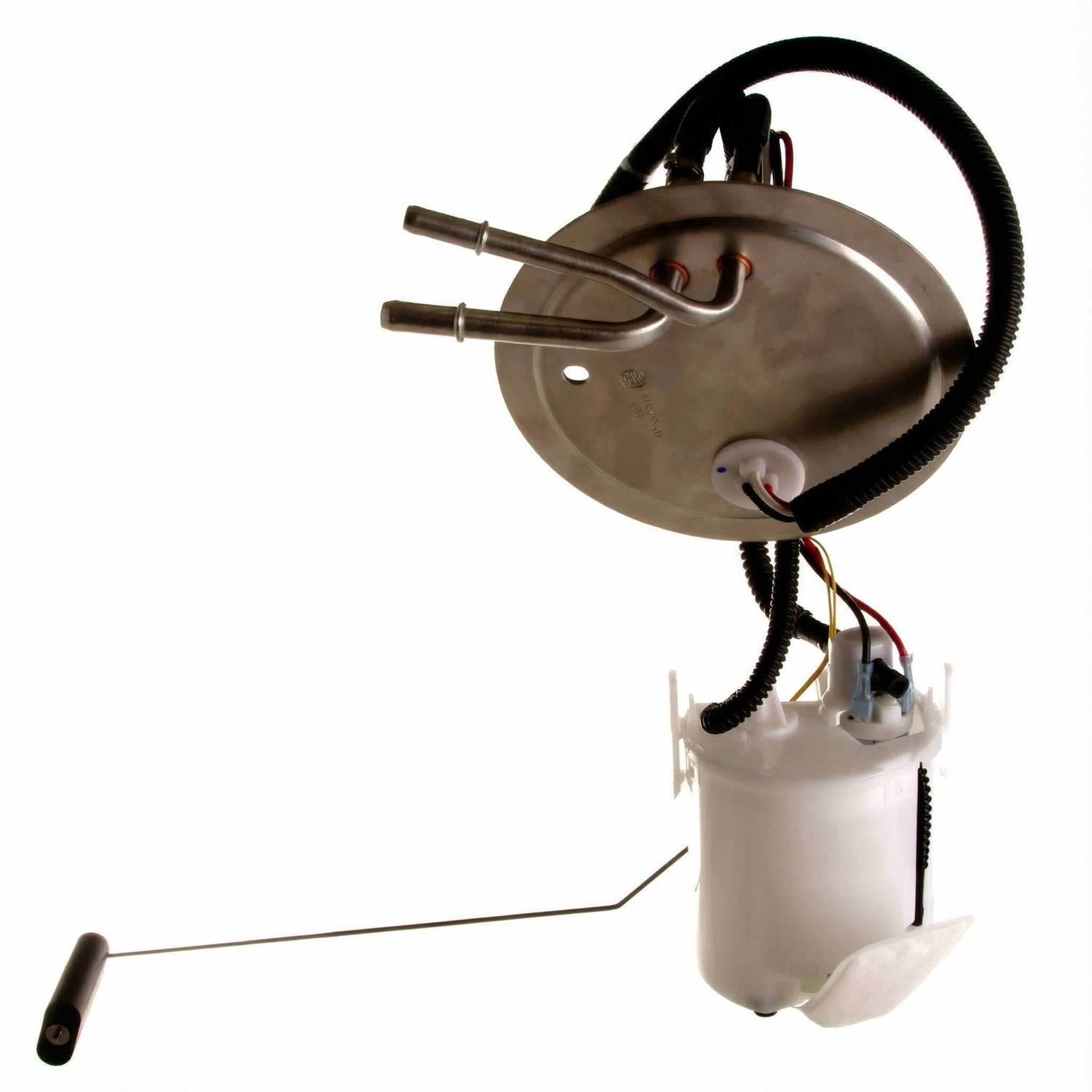

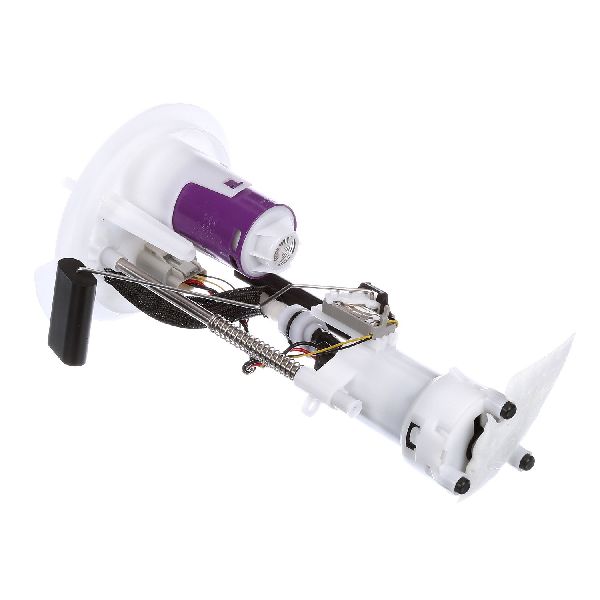

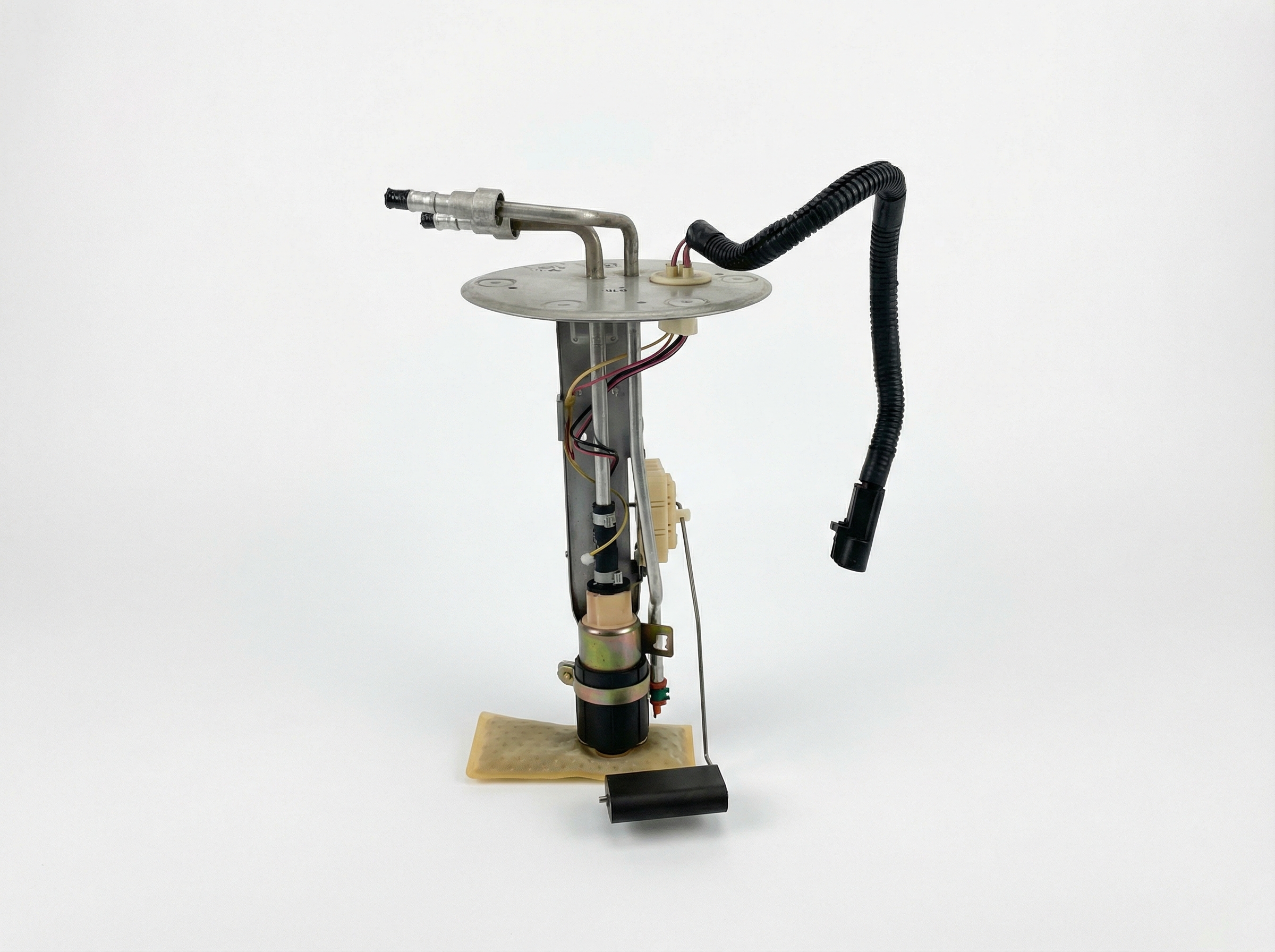

• Fuel Pump Module Assembly (OEM #Motorcraft PFS-498 (Flex Fuel), PFS-1377 (Flex Fuel), other PFS-series numbers vary by tank size and engine.) — The fuel level sending unit is integrated into the fuel pump module. It is the most common failure point and replacing the entire assembly is the standard repair, 🎬 Watch: Step-by-step F-150 fuel pump replacement walkthrough which also renews the fuel pump and filter.
  Trusted brands: Motorcraft, Delphi, Bosch, Spectra Premium
  OEM price range: $300-$500
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• P0463 — This code means "Fuel Level Sensor 'A' Circuit High," which can appear intermittently along with P0462 if the sensor is failing and sending erratic signals that swing from one extreme to the other.
• P0460 — A generic "Fuel Level Sensor 'A' Circuit Malfunction" code that can be stored if the signal is irrational or erratic, not just stuck low.

Technical Service Bulletins (TSBs) & Recalls

• A TSB for 2006-2007 5.4L Flex Fuel models points to potential water intrusion in the flex fuel converter wiring harness (14407) as a cause for erratic fuel gauge behavior and codes like P0462.

Platform-Specific Known Issues

• For 2006-2007 F-150s with the 5.4L Flex Fuel engine, a TSB was issued for erratic fuel gauge operation that could be caused by water intrusion into the flex fuel converter wiring harness.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Signal Wire Voltage — expected: ~0.5V (Empty) to ~4.5V (Full) on a 5V reference system.. Failure: A reading consistently below 0.5V, which triggers the P0462 code.
• Fuel Level Sensor Resistance (Non-Flex Fuel) — expected: Approximately 10-15 Ohms at Empty, and 150-160 Ohms at Full.. Failure: A reading near 0 ohms, an open circuit (infinite resistance), or erratic readings when moving the float arm.

Scan Tool Commands That Help

• Ford IDS / High-End Bidirectional Scanner: Instrument Cluster Gauge Sweep Test — Use this command after verifying the fuel sending unit and its wiring are good. If the gauge sweep fails or the needle does not move correctly, it strongly indicates a fault within the instrument cluster itself.
• FORScan: Instrument Panel Cluster (IPC) Module Configuration Backup/Restore — This is critical when replacing the instrument cluster. Before removing the old cluster, you must save its 'as-built' data. After installing the new (used or new) cluster, you must write this saved data to it to ensure all vehicle options and features function correctly.

Wiring & Ground Locations

• Fuel Level Sender Wires — At the 4-pin connector on top of the fuel pump module assembly.. These are the specific wires to test for voltage and resistance. The signal wire is Yellow/White, and the sensor return/ground reference is Black/Orange.
• G100 — On the left-hand (driver's) side of the radiator core support in the engine bay.. This is a primary ground point for the fuel pump and sending unit circuit on this generation of F-150. A corroded or loose connection here can cause erratic voltage readings and trigger a P0462 code.
• Fuel Pump Driver Module (FPDM) Connector — Above the spare tire, mounted to a frame crossmember.. While the FPDM itself doesn't process the fuel level signal, its connector and associated wiring are in a location prone to corrosion. A compromised ground or short in this area can sometimes affect related circuits.

Real Owner Repair Stories

• Ford F150 Forum (2004-2008 Ford F-150 5.4L) — Crank-no-start, low fuel message despite having fuel, P0462 code, intermittent power window failure, intermittent brake light warning, intermittent interior lights.
  ❌ Tried (didn't work) Initial assumption was a bad fuel pump or sending unit.
  ✅ What actually fixed it The user concluded the root cause for the multiple, seemingly unrelated electrical issues (including the P0462) was a faulty printed circuit board within the instrument cluster. The plan was to attempt a repair by re-soldering faulty joints on the board to avoid the high cost and dealer programming required for a new cluster.
• Ford F150 Forum (2006 Ford F-150 (Flex Fuel model)) — Fuel gauge not working, stuck on empty.
  ❌ Tried (didn't work) The previous owner was quoted $1200 for a repair, likely assuming a fuel pump module replacement.
  ✅ What actually fixed it The owner tested the sending unit and found its resistance (10-150 ohms) was correct. Tracing the Yellow/White and Black/Orange wires, they found a small black box identified as a 'FLEX FUEL AC/DC converter' in the circuit. A red wire to this box was broken. The owner bypassed the faulty converter box by cutting it out and splicing the corresponding Yellow/White and Black/Orange wires directly together, which completely resolved the fuel gauge issue for $0.

Model Year Variations Within This Range

• 2004-2008: Instrument clusters are often year- and trim-level specific (e.g., Lariat vs. XL). A cluster from a 2008 may not work in a 2004. While a swap from a base model to a higher trim cluster (e.g., STX to Lariat) within the same model year is physically possible, it requires reprogramming with a tool like FORScan to copy the original 'as-built' data to the new cluster to ensure all features work correctly.
• 2006-2007 (Flex Fuel): Flex Fuel models have an AC/DC converter module in the fuel level sensor circuit that non-Flex Fuel models lack. Failure of this small module or its wiring can cause P0462 and can be misdiagnosed as a bad sending unit.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 5.4L 3V Triton Cam Phaser Failure 🔴 High — Very common, especially on higher mileage engines (75k+ miles) or those with inconsistent oil change histories. Presents as a diesel-like ticking or knocking sound at hot idle.
• Two-Piece Spark Plug Breakage During Removal 🔴 High — Affects 5.4L 3V engines built before Oct 2007 and 4.6L 3V engines built before Nov 2007. The original design allows carbon buildup to seize the plug's ground shield in the head, causing it to break off during removal. (Ref: TSB 08-7-6)
• Fuel Pump Driver Module (FPDM) Corrosion/Failure 🟠 Medium → Shop Fuel Pump — Extremely common. The module is mounted directly to a steel frame crossmember above the spare tire, causing galvanic corrosion that cracks the aluminum housing, allowing water intrusion and failure. Symptoms are crank-no-start or stalling.
• Cracked or Warped Exhaust Manifolds 🟠 Medium — Common on the 5.4L V8, causing an exhaust leak ticking sound, especially when the engine is cold.
• Failing Window Regulators 🟡 Low — Common for the window to become stuck in the up or down position or fall into the door due to a failed regulator cable or motor.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used instrument cluster is a viable option to save money, but only if you are prepared to have it reprogrammed. Used wiring harness connectors (pigtails) are also a good choice for repairing corroded or damaged connectors.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For an instrument cluster, ensure the lens is not cracked or deeply scratched and there are no signs of water damage on the housing.
• When buying a used cluster for a DIY FORScan swap, you MUST buy a cluster with mileage that is LOWER than your vehicle's actual mileage. FORScan can only increase the odometer reading, not decrease it.
• For a wiring pigtail, ensure there is at least 4-6 inches of wire past the connector and that the wires are not brittle or cracked.

OEM-only on this vehicle (don't cheap out):

• Fuel Pump Module Assembly: While not strictly 'OEM-only', using a Motorcraft (OEM) part is highly recommended for longevity. Cheap, unbranded aftermarket fuel pump assemblies are known for high failure rates, which means repeating a labor-intensive job.

Aftermarket brands forum-validated for this vehicle:

• Delphi
• Bosch
• Spectra Premium

Brands owners have reported issues with on this vehicle:

• Generic, unbranded 'white-box' fuel pump assemblies from online marketplaces.
