P0462 on 2016-2022 Nissan Maxima: Fuel Level Sensor Circuit Low Causes and Fixes

What's Unique About the 2016-2022 Nissan MAXIMA

The 2016-2022 eighth-generation Nissan Maxima is known to have issues with its fuel level sensor. The problem is common enough that Nissan released a Technical Service Bulletin (NTB22-026) that covers this specific model range and code. [NTB22-026] The bulletin explicitly states that for codes P0460, P0461, P0462, or P0463, 🎬 Watch: Understanding the causes and fixes for the P0462 code technicians should replace only the fuel level sensor and not the entire fuel pump assembly, a directive aimed at preventing unnecessary costs under warranty. [NTB22-026] This separate replacement is a key detail for this platform.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is inaccurate, stuck on empty, or fluctuates erratically.
• Low fuel warning light stays on even with fuel in the tank.
• Fuel gauge reading does not change after filling up the tank.

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit This is a well-documented, known issue for this platform, as confirmed by Nissan in TSB NTB22-026. The sensor's internal variable resistor wears out or fails, causing it to send a voltage signal below the specified range, which triggers the P0462 code.
   How to confirm: Access the sensor by removing the rear seat cushion. Use a multimeter to test the resistance across the sensor's terminals while moving the float arm. The resistance should change smoothly without any dead spots. An open or shorted reading confirms failure.

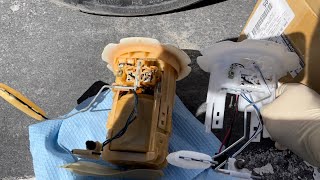

   Typical fix: Replace the fuel level sensor. It is located inside the fuel tank, attached to the fuel pump module, but can be replaced as a separate component. The OEM part number is 25060-4RA0A. Always replace the fuel tank O-ring (Part No. 17342-EA000) at the same time. [NTB22-026, 29]
   Est. part cost: $150-$270
2. Wiring or Connector Issue 🟡 Medium Probability The wiring harness connector on top of the fuel tank can be susceptible to moisture, leading to corrosion and poor electrical connection. Wires can also chafe against the body, causing a short to ground.
   How to confirm: Visually inspect the wiring harness and connector at the fuel tank access panel (under the rear seat) for any signs of damage, corrosion, or burnt pins. Test the signal wire for a short to ground using a multimeter.
   Typical fix: Repair the damaged section of wire or clean/replace the corroded connector.
   Est. part cost: $5-$50

Rare But Worth Checking

• Instrument Cluster or Body Control Module (BCM) Fault: → Shop Instrument Cluster While rare, the modules that process the sensor's signal can fail. This is a known issue on some older Nissan models and should only be considered after the sensor and wiring have been confirmed to be good. One forum user reported a bad capacitor on the instrument panel was the true cause after a new sending unit failed to fix the issue.
• Powertrain Control Module (PCM) Fault: A PCM failure is extremely unlikely but possible. This is the last resort in diagnosis after all other components in the circuit have been ruled out.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0462 is present.
2. Check for any other related codes (P0460, P0461, P0463) that are listed in TSB NTB22-026. [NTB22-026]
3. Remove the rear seat cushion to access the fuel pump/sensor service cover.
4. Inspect the wiring harness and connector at the fuel tank for visible damage, corrosion, or loose connections.
5. Use a scan tool with live data to monitor the fuel level sensor voltage. A reading consistently near or below 0.5 volts points to a short or failed sensor.
6. Disconnect the sensor and test its resistance with a multimeter while manually moving the float arm up and down. The resistance should change smoothly throughout its range of motion. A reading of OL (open) or zero indicates a faulty sensor.
7. If the sensor tests good, check the signal wire for a short to ground and verify the reference voltage (approx. 5.0 volts) and ground at the connector.
8. If the sensor and wiring are confirmed to be good, the problem may lie with the instrument cluster or BCM, which may require professional diagnosis.

Parts You'll Likely Need

• Fuel Level Sensor (OEM #25060-4RA0A) — This is the most common failure point for code P0462 on this vehicle, as confirmed by Nissan TSB NTB22-026.
  Trusted brands: Nissan (OEM)
  OEM price range: $200-$270
  Aftermarket price range: $150-$220
• Fuel Tank O-Ring / Seal (OEM #17342-EA000) — This seal should always be replaced when the fuel pump assembly is removed from the tank to prevent fuel leaks and EVAP system codes. It often swells and cannot be reused.
  Trusted brands: Nissan (OEM)
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0460 — Relates to a general fault in the fuel level sensor circuit, often set alongside P0462. [NTB22-026]
• P0461 — Indicates the sensor's signal is out of the expected performance range. [NTB22-026]
• P0463 — Indicates the fuel level sensor circuit has a high input, the opposite of P0462, but can be triggered by the same failing component. [NTB22-026]

Technical Service Bulletins (TSBs) & Recalls

• NTB22-026: SERVICE INFORMATION FOR FUEL GAUGE INACCURATE WITH DTCS STORED IN ECM. This bulletin is central to this issue, confirming the common failure of the fuel level sensor and advising against replacing the entire fuel pump assembly for codes P0460, P0461, P0462, or P0463.

Platform-Specific Known Issues

• Nissan TSB NTB22-026: Nissan issued Technical Service Bulletin NTB22-026 on April 5, 2022, for multiple vehicles including the 2016-2022 Maxima. It states that if codes P0460, P0461, P0462, or P0463 are stored, the fuel level sensor should be replaced separately from the entire fuel pump assembly. It warns that warranty claims for replacing the full assembly for this issue will be charged back. [NTB22-026]
• Real Owner Repair Experience: On Maxima.org, a user with a P0462 code and erratic fuel gauge debated replacing the instrument cluster or the sending unit. After advice from other members, they replaced the sending unit. Initially, the gauge went from stuck-empty to stuck-full, but after clearing codes and driving, the issue was resolved, confirming the sensor was the root cause. This highlights a common diagnostic path and successful repair.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Signal Voltage — expected: ~0.5V (Empty) to ~4.5V (Full). Failure: Voltage is consistently below 0.5V, often near 0V.
• Fuel Level Sensor Resistance — expected: Should sweep smoothly through a range. While vehicle-specific values are not published, a forum user's experience suggests a working range between 10 and 75 ohms is plausible for some Nissan models.. Failure: Reading is OL (Open Loop/infinite resistance) or 0 ohms, or does not change when the float arm is moved.
• Sensor Signal Wire Voltage (at PCM/Cluster, sensor disconnected) — expected: ~5.0 Volts (Reference Voltage). Failure: Voltage is 0V or significantly lower than 5.0V, indicating a short to ground in the wiring harness.

Scan Tool Commands That Help

• Advanced OBD-II Scanner (e.g., iCarsoft, Nissan CONSULT): Fuel Gauge Calibration — After replacing the fuel level sensor or repairing the circuit, this function can be used to adjust and verify the gauge's accuracy against the actual fuel level.

Wiring & Ground Locations

• Fuel Level Sensor Signal Wire — In the wiring harness accessible under the rear seat at the fuel pump assembly connector.. A forum user identified this as a green wire on their Maxima. This wire carries the variable voltage signal to the instrument cluster. A short to ground on this wire is a common cause for P0462.

Real Owner Repair Stories

• Nissan Forum user (Nissan Pathfinder (similar platform/issue)) — P0462 code, fuel gauge reading about 1/2 tank constantly.
  ❌ Tried (didn't work) Replacing the fuel level sending unit.
  ✅ What actually fixed it Replacing the instrument panel. The user stated that a bad capacitor on the instrument panel was the root cause.
• Maxima Forums user (Nissan Maxima (older generation, but relevant principle)) — Faulty OEM fuel gauge, leading to installation of an aftermarket gauge.
  ❌ Tried (didn't work) Finding a working used instrument cluster.
  ✅ What actually fixed it To prevent a CEL (P0463, high input, from the disconnected sensor), the user grounded the vehicle-side signal wire through a 47-ohm resistor. This satisfied the computer, preventing a code while allowing the aftermarket gauge to work off the sensor directly. This confirms the circuit's resistance is a key diagnostic parameter.
