P0463 on 2012-2019 BMW 3 Series: Fuel Level Sensor 'A' Circuit High Causes and Fixes

What's Unique About the 2012-2019 BMW 3 Series

The F30-generation 3 Series uses a saddle-shaped fuel tank that straddles the driveshaft, requiring two separate fuel level sensors to get an accurate reading. There is one sensor on the right (passenger) side, usually part of the fuel pump assembly, and one on the left (driver) side. The critical issue for this platform is that the left-side sensor is permanently integrated into the fuel tank and is not sold as a separate part. A failure of this specific sensor requires the replacement of the entire fuel tank 🎬 Watch: Why this internal failure requires a full tank replacement, turning a common fault into a surprisingly expensive repair, a scenario confirmed by owners on forums like Bimmerpost.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads incorrectly (e.g., stuck on full, half, or empty)
• Fuel gauge fluctuates erratically
• Low fuel warning light comes on at incorrect times, or not at all
• Running out of fuel unexpectedly despite the gauge showing fuel remaining
• Engine may stall when fuel level is actually low, even if the gauge shows otherwise

Most Likely Causes

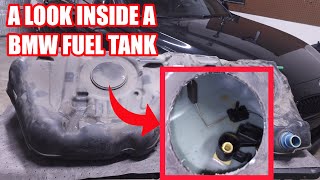

1. Failed Left-Side (Driver's Side) Fuel Level Sensor 🔴 High Probability → Shop Fuel Tank Sending Unit The sensor is integrated into the fuel tank and is not serviceable. Forum discussions, such as one on F30POST, confirm this is a known failure point that requires complete tank replacement, with one owner being quoted for the full tank replacement after their car stalled showing 1/4 tank of fuel.
   How to confirm: Use a BMW-specific scan tool (like ISTA) to read the live resistance (ohm) values for the left and right fuel level sensors separately. A reading that is stuck high, erratic, or shows an open circuit on the left sensor indicates it has failed. A good sensor should read around 50-75 ohms when its side of the tank is full.
   Typical fix: Replace the entire fuel tank assembly. The left sensor cannot be replaced individually.
   Est. part cost: $1200-$1800 for an OEM fuel tank
2. Failed Right-Side (Passenger Side) Fuel Level Sensor/Sending Unit 🟡 Medium Probability → Shop Fuel Tank Sending Unit This sensor is part of the main fuel pump assembly and is a more common wear-and-tear item in many fuel systems. It is a serviceable part.
   How to confirm: Use a BMW-specific scan tool to read the live resistance (ohm) values for both sensors. If the right sensor shows an abnormally high resistance reading (over ~500 ohms) while the left sensor reads normally, the right-side unit is the cause. You can also test its resistance with a multimeter while moving the float arm; the resistance should change smoothly. 🎬 Watch: How to test a fuel level sensor

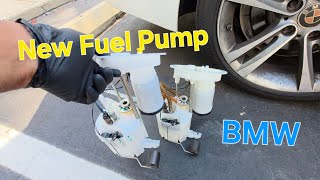

   Typical fix: Replace the right-side fuel level sending unit, which is often sold as part of the fuel pump assembly. 🎬 See this step-by-step fuel pump installation guide
   Est. part cost: $150-$300
3. Damaged Wiring or Corroded Connector ⚪ Low Probability The connectors are located under the rear seat and are generally well-protected, but moisture intrusion or physical damage is always possible. Corrosion or loose pins in the harness can increase resistance, causing the high voltage signal that triggers P0463.
   How to confirm: After identifying the faulty sensor via scan tool, access its electrical connector under the rear seat. Inspect for corrosion, bent pins, or frayed wires. Test for continuity and proper voltage at the connector with a multimeter. A healthy sensor circuit should have a signal voltage between approximately 0.5V (empty) and 4.5V (full).
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the corroded connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Blown Fuse for Fuel Pump Circuit: → Shop Fuel Pump

Diagnosis Steps

1. Connect a BMW-compatible OBD-II scanner (e.g., with ISTA software) to the vehicle.
2. Confirm that P0463 is the primary code stored. Note any other codes.
3. Access the live data stream for the fuel pump control module (EKPS).
4. Monitor the resistance (ohm) readings for the 'Fuel Level Sensor 1 (Left)' and 'Fuel Level Sensor 2 (Right)' individually.
5. A healthy sensor should show a low resistance when the tank is full (approx. 50-75 ohms) and increase as the level drops. A faulty sensor will typically show a very high, fixed resistance (e.g., >500 ohms) or an open circuit.
6. If the left sensor reading is faulty, the fuel tank needs replacement.
7. If the right sensor reading is faulty, the right-side sending unit needs replacement.
8. If both readings are erratic or illogical, inspect the shared wiring and connectors for issues before condemning both parts. Check for related fuses before ordering parts.

Parts You'll Likely Need

• Fuel Tank Assembly (OEM #Varies by model (e.g., 16117301543 for some models)) — This is required if the non-serviceable left-side fuel level sensor has failed.
  Trusted brands: Genuine BMW
  OEM price range: $1200-$1800
• Fuel Level Sensor / Sending Unit (Right Side) (OEM #16117273277 (and superseding numbers)) — This is the serviceable sensor located on the passenger side, often integrated with the fuel pump. It is replaced if diagnosis points to a failure on the right side of the tank.
  Trusted brands: Genuine BMW, Bosch, VDO
  OEM price range: $200-$250
  Aftermarket price range: $150-$200

Technical Service Bulletins (TSBs) & Recalls

• SIB 01 03 22: While not directly for P0463, this bulletin extends the emissions warranty on the fuel tank to 15 years/150,000 miles for leakage issues on certain models, which is relevant for any owner facing a mandatory tank replacement.

Platform-Specific Known Issues

• The most significant issue is the design choice of integrating the left-side fuel level sensor into the fuel tank, making it non-serviceable. This dramatically increases the cost of repair for a relatively common sensor failure. This has been documented by owners who were forced to replace the entire tank for a sensor fault.
• BMW has extended the emissions warranty for the plastic fuel tank on some models to 15 years or 150,000 miles for issues related to leakage from a welded cover plate. While this Service Information Bulletin (SIB 01 03 22) addresses a physical leak and not explicitly the P0463 sensor fault, it's a critical piece of information for owners facing a tank replacement. It is worth inquiring with a BMW dealer if any goodwill assistance is available for a sensor failure requiring tank replacement, given the known issues with the tank assembly.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance (Either Side) — expected: Approximately 50-75 ohms when the respective side of the tank is full.. Failure: A resistance reading higher than 450-500 ohms, or an open circuit (infinite resistance), indicates a faulty sensor. For P0463, the reading will be stuck high.
• Fuel Level Sensor Signal Voltage (at EKPS/DME) — expected: A normal operating range is approximately 0.5V (empty) to 4.5V (full).. Failure: A signal voltage that is stuck high, near or above 4.8V, will trigger the P0463 code.

Hidden / Shadow Codes Worth Checking

• 193208: Plausibility check failed between consumed and remaining fuel quantity. This code often accompanies a primary sensor fault, indicating the car's computer recognizes the fuel level reading doesn't make sense based on calculated fuel consumption. (see via BMW-specific diagnostic software such as ISTA or advanced handheld scanners.)
• B7F70B: Fuel level sensor implausible. This code is often stored in the instrument cluster (KOMBI) and can be caused by a software error, sometimes requiring a vehicle software update (reprogramming) with ISTA to resolve. (see via BMW-specific diagnostic software such as ISTA.)

Scan Tool Commands That Help

• ISTA (Rheingold): Vehicle Management > Service Functions > Body > Locking and security functions > Fuel level sensor > ABL Fuel level sensors — This is the primary diagnostic test plan in the BMW dealer software. It guides the technician through reading the live resistance values in ohms for the left and right sensors independently, which is the definitive step to isolate the faulty component before ordering parts.
• ISTA (Rheingold): Control Unit Tree > EKPS (Fuel pump control) > Call up ECU functions — This allows direct access to the live data from the fuel pump control module, which processes the signals from both level sensors. It's a more direct way to view the raw sensor data if you are familiar with the software.

Wiring & Ground Locations

• EKPS (Fuel Pump Control Module) — Under the rear seat bench, typically on the right (passenger) side. You must remove the rear seat cushion to access it.. The EKPS module receives the signals from both fuel level sensors and sends the processed information to the DME and instrument cluster. All wiring for the sensors converges at this module, making its connector a key point for testing voltage, resistance, and continuity if a wiring fault is suspected.
• Sensor Connectors — There are two access panels under the rear seat cushion, one on the driver's side (for the left sensor connection) and one on the passenger's side (for the right sensor/fuel pump assembly).. These are the primary points to inspect for corrosion or damage and to perform multimeter tests directly at the component before condemning the wiring harness that runs through the chassis.

Real Owner Repair Stories

• MHH AUTO Forum user (2013 BMW F30 335xi) — When the tank was filled completely, the fuel gauge would only show half full. Stored fault code 193208 for fuel plausibility.
  ❌ Tried (didn't work) Initial diagnosis focused on the tank ventilation system due to other codes, which was incorrect.
  ✅ What actually fixed it Using a diagnostic tool, the owner observed the left tank sensor resistance was 597 ohms while the right was a normal 51 ohms. Based on the knowledge that a reading over ~450 ohms indicates a bad sensor, and since the left sensor is non-serviceable, the entire fuel tank had to be replaced. This resolved the issue.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• N20/N26 Engine Timing Chain Guide Failure 🔴 High — Common on models produced between 2012 and early 2015, often appearing around 70,000-100,000 miles. The primary symptom is a distinct high-pitched whining sound from the front of the engine. (Ref: BMW issued a limited warranty extension under SIB 11 03 17, extending coverage to 7 years/70,000 miles for this issue.)
• Oil Leaks from Oil Filter Housing and Valve Cover Gaskets 🟠 Medium — Very common across all engine types as the vehicle ages, typically after 60,000 miles. Gaskets become brittle and leak oil onto other components.
• Electric Water Pump Failure 🔴 High — Common failure item on N20 and N55 engines, typically between 70,000 and 100,000 miles. Failure can be sudden and lead to rapid overheating, potentially causing severe engine damage.
• N55 Engine Charge Pipe Failure 🟠 Medium — The stock plastic charge pipe is known to become brittle and crack under boost pressure, especially on tuned vehicles. This causes a sudden loss of power.
• Suspension Bushing Wear 🟡 Low — Control arm and other suspension bushings can wear out over time, leading to clunking noises over bumps, vibrations, and uneven tire wear.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the right-side (passenger) fuel level sensor/pump assembly, a used part from a low-mileage donor car is a reasonable option to save money. For the entire fuel tank (required for a left-side sensor failure), a used part is also a viable and significant cost-saver, provided it is inspected carefully.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a fuel tank: Ensure there is no physical damage, cracking, or deep gouges from the donor vehicle's removal or from an accident.
• Verify the part number on the used tank matches the one required for your specific model and year.
• Ask the seller for the VIN of the donor car to confirm mileage and history.
• For a right-side sensor/pump: Inspect the electrical connector for any signs of melting, corrosion, or heat damage, which can indicate high resistance issues.

OEM-only on this vehicle (don't cheap out):

• Fuel Tank Assembly: While a used OEM tank is acceptable, it is strongly recommended to use only a Genuine BMW part (new or used) and avoid any aftermarket fuel tanks due to the complexity and integrated nature of the sensor.

Aftermarket brands forum-validated for this vehicle:

• VDO (often the OEM supplier for BMW)
• Bosch

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand 'white box' parts from online marketplaces, as their resistor quality and float accuracy can be questionable, leading to premature failure or incorrect readings.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
