P0463 on 2016-2021 BMW M2: Fuel Level Sensor Circuit High Causes and Fixes

What's Unique About the 2016-2021 BMW M2

The F87 M2, like many modern BMWs, uses a saddle-style fuel tank that straddles the driveshaft. This design requires two separate fuel level sensors—one on each side of the tank—to get an accurate reading. Code P0463 refers to an issue with the primary sensor, 🎬 See: P0463 fuel sensor causes and fixes designated as 'A', which is typically the sensor integrated with the fuel pump on the right (passenger) side of the tank. Diagnosing which of the two sensors has failed is crucial before ordering parts. The 2016-2018 M2 uses the N55 engine, while the 2019-2021 M2 Competition and CS models use the S55 engine, which may have slight variations in fuel system components, but the dual-sensor principle remains the same. A failure of the suction jet pump that transfers fuel from the left side to the right can also cause inaccurate readings, potentially leading to the car running out of fuel even when the gauge shows a quarter tank or more.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads inaccurately (e.g., stuck on full, empty, or fluctuates wildly)
• Low fuel warning light may illuminate even with a full tank
• Vehicle stalls unexpectedly, but restarts after adding fuel, confirming it ran out of gas despite the gauge reading.

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability → Shop Fuel Tank Sending Unit The variable resistor contacts on the sending unit can wear out over time, or the float mechanism can get stuck or fail, leading to an open circuit or high resistance reading. Contaminants in the fuel can also contribute to premature failure.
   How to confirm: Use a BMW-specific scan tool (like ISTA) to read the live resistance values from both the left and right fuel level sensors. The faulty sensor will show an abnormally high, infinite, or out-of-range reading. You can also access the sensor under the rear seat and test its resistance with a multimeter while manually moving the float arm; the resistance should change smoothly. For example, one owner measured a working sensor at 4.5 ohms (full) and 77.5 ohms (empty). An out-of-spec reading confirms a bad sensor.

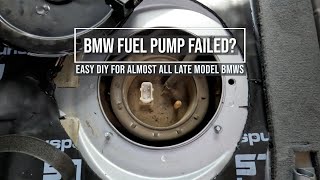

   Typical fix: Replace the faulty fuel level sending unit. On these vehicles, the right-side sensor ('A') is integrated with the main fuel pump assembly, while the left-side sensor is a separate unit. The job requires removing the rear seat bench to access the covers for the fuel tank. 🎬 Watch: Step-by-step fuel pump access and removal Always replace the large rubber O-ring/gasket when replacing a unit to prevent fuel leaks and fumes.
   Est. part cost: $150-$450
2. Damaged Wiring or Loose Connector 🟡 Medium Probability The wiring harness connector on top of the fuel tank can be exposed to moisture or physical stress during other repairs, leading to corrosion or damage to the pins. A poor ground connection for the sensor circuit can also cause a high voltage reading.
   How to confirm: Visually inspect the wiring and connector at the top of the fuel tank (accessible under the rear seat). Check for any signs of corrosion, frayed wires, or loose pins. Perform a continuity test on the sensor circuit and verify a good ground connection.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector. Ensure the ground connection is clean and secure.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Instrument Cluster (KOMBI): → Shop Instrument Cluster A software error in the instrument cluster can cause an erroneous fuel gauge display, sometimes leading to the vehicle running out of fuel while the gauge still shows fuel remaining. BMW issued a Technical Service Bulletin (SIB 62 18 17) for this issue on various models including the F87 M2 produced between March 2017 and January 2018. The fix is a vehicle software update.
• Faulty Fuel Pump Control Module (EKPS): → Shop Fuel Pump The EKPS module processes the signals from the fuel level sensors. While rare, an internal failure or corrosion on the module's connector pins could misinterpret the sensor's signal and trigger this code. One owner of an F87 reported a faulty rear electronic module caused their fuel gauge to stop updating.

Diagnosis Steps

1. Connect a BMW-capable OBD-II scanner and confirm the presence of the P0463 code. Check for any other related fuel system codes.
2. Access the live data stream for the fuel system. Monitor the voltage or resistance readings for both the left and right fuel level sensors. On BMWs, this can often be accessed through a hidden menu in the instrument cluster as well.

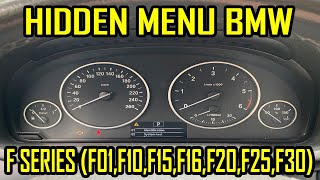

🎬 Watch: How to access the BMW hidden menu
3. Note which sensor ('A' circuit, typically right side) is providing an abnormally high or erratic reading. This will isolate the problem to one side of the tank.
4. Gain access to the top of the fuel tank by removing the rear seat cushion. You will see two access covers.
5. Disconnect the electrical connector for the suspect fuel level sensor. Visually inspect the connector and pins for any signs of corrosion, moisture, or damage.
6. If the wiring looks good, use a digital multimeter set to Ohms to test the resistance of the sending unit. Compare the reading to the manufacturer's specifications.
7. Manually move the float arm up and down while monitoring the resistance. The reading should change smoothly without any dropouts or spikes. An infinite or very high reading (kilo-ohms or mega-ohms) indicates a failed sensor.
8. If the sensor tests good, check the wiring harness between the sensor and the Fuel Pump Control Module (EKPS) for continuity and shorts to ground or power.
9. Check vehicle production date against TSB SIB 62 18 17. If it falls within the range (03/2017-01/2018), a software update may be the required fix for an inaccurate gauge, even if a P0463 code is not explicitly mentioned in the TSB.

Parts You'll Likely Need

• Fuel Pump Assembly with Sending Unit (Right Side) (OEM #16112284693 (S55), 16117243975 (N55)) — This is the primary unit on the right side of the tank that includes the main fuel pump and the 'A' level sensor. It's a common failure point. Note: Part numbers differ between N55 and S55 engines.
  Trusted brands: Bosch, VDO, Genuine BMW
  OEM price range: $350-$450
  Aftermarket price range: $200-$300
• Fuel Level Sending Unit (Left Side) (OEM #16117243975) — This is the secondary sensor on the left side of the saddle tank. If diagnostics point to this side, it must be replaced. Note: This part number is listed for the N55 M2; S55 may differ. Always verify with VIN.
  Trusted brands: Genuine BMW, URO Parts
  OEM price range: $150-$200
  Aftermarket price range: $80-$120

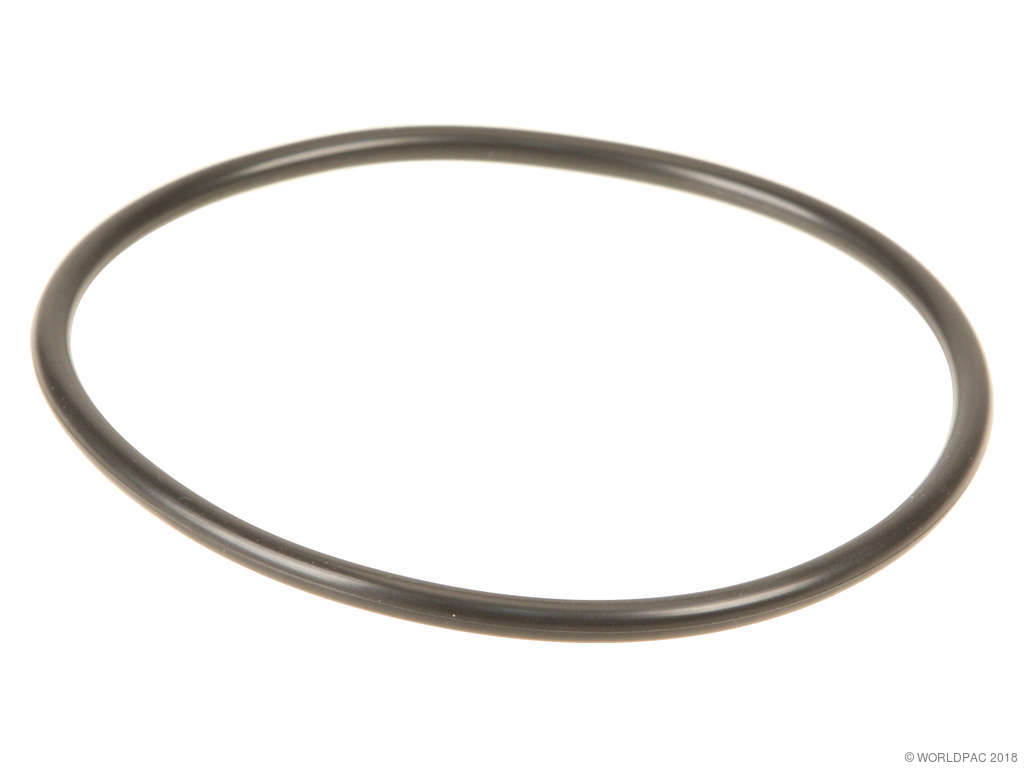

• Fuel Tank Lid O-Ring / Gasket (OEM #16117188567) — This seal should always be replaced when accessing the fuel pump or sending units to prevent dangerous fuel leaks and vapor smells.
  Trusted brands: Genuine BMW, URO Parts
  OEM price range: $20-$30
  Aftermarket price range: $10-$15

Related Codes That Often Appear With This One

• 11A031 - Low pressure fuel system, electric fuel pump: Pressure too low
• 2E0600 - Engine start, plausibility: Fuel prefeed pressure at engine start too low
• 110001 - Cylinder injection shutdown: pressure too low in high-pressure system

Technical Service Bulletins (TSBs) & Recalls

• SIB 62 18 17: A TSB was issued for various F-chassis BMWs, including the F87 M2 (produced 03/2017-01/2018), for an erroneous fuel gauge display where the vehicle could run out of fuel despite the gauge showing fuel remaining. The cause was identified as a software error in the instrument cluster, and the fix is to reprogram the vehicle with updated software (ISTA 4.09.1x or higher).

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: A functional sensor should show a smooth change in resistance as the float moves. One example for a similar BMW sensor measured approximately 4.5 Ohms (full) to 77.5 Ohms (empty).. Failure: An infinite resistance reading (Open Loop) or a value that does not change when the float arm is moved indicates a faulty sensor.
• Sensor Signal Voltage at Connector — expected: A healthy sensor circuit should typically read between 0.5V (empty) and 4.5V (full) with the key on.. Failure: A reading consistently above 4.8V or at a full 5V indicates a high circuit condition, triggering P0463.

Hidden / Shadow Codes Worth Checking

• B7F70B: Instrument cluster: fuel level sensor implausible. This code is often stored in the instrument cluster (KOMBI) when a software error causes the gauge to read incorrectly after refueling, even if the sensor itself is functional. (see via BMW-specific scan tool like ISTA.)
• 29CE, 29CF, 29D0: Combustion misfire codes for specific cylinders. While not directly related to the sensor circuit, these can appear alongside P0463 if the car runs out of fuel unexpectedly, causing misfires before stalling. (see via Most OBD-II scanners, but ISTA provides more detailed fault descriptions.)

Scan Tool Commands That Help

• ISTA: Call up ECU functions -> EKPS (Fuel pump control module) -> Diagnosis Scan -> Display fuel tank level — This allows a technician to bypass the instrument cluster and read the raw data the fuel pump control module is seeing from the sensors. If the values here are plausible but the gauge is not, it points towards an issue with the instrument cluster (KOMBI) or the wiring between the EKPS and KOMBI.
• ISTA: Call up ECU functions -> KOMBI (Instrument cluster) -> Diagnosis Scan -> Tank level — Use this to see the fuel level values as interpreted by the instrument cluster itself. Comparing this reading to the value from the EKPS module can quickly determine if the fault lies with the sensor/EKPS or the cluster/software.

Wiring & Ground Locations

• EKPS (Fuel Pump Control Module) — On the F87 M2 and related F-chassis vehicles, the EKPS module is most often found under the rear seat bench, typically on the passenger side. The rear seat cushion must be removed for access.. The EKPS module is the brain that receives the raw signals from both fuel level sensors, processes them, and sends the final fuel level information to the instrument cluster. A failure in this module or its wiring can trigger P0463.
• Fuel Pump/Sensor Connector — Located on top of the fuel tank, accessible by removing the rear seat cushion and then removing the circular metal or plastic access covers on the left and right sides.. This is the primary connection point for the fuel level sensor. Corrosion or damage to the pins in this connector is a common cause of the 'Circuit High' fault.

Real Owner Repair Stories

• Bimmerpost user 'ruback' (2017 BMW M2 (N55)) — Ran out of fuel and stalled while the gauge showed 1/4 tank and a range of 70km remaining.
  ❌ Tried (didn't work) Initially suspected a fuel pump issue.
  ✅ What actually fixed it The issue was confirmed to be running out of fuel despite the inaccurate gauge. A responding dealer technician confirmed this is a known issue caused by a faulty level sensor or the suction jet pump that transfers fuel between the tank halves. In many cases, the left-side sensor is not serviceable independently, requiring a full fuel tank replacement.

OEM Part Supersession History

• 16117853942 → 16112284693 — Standard part revision and update by BMW.
  Heads up: This applies to the S55 engine fuel pump assembly. Always verify the correct part number with the vehicle's VIN before ordering.

Model Year Variations Within This Range

• 2016-2018 (N55) vs 2019-2021 (S55): The core difference is the high-pressure fuel pump (HPFP) system. The N55 engine uses a single HPFP. The S55 engine in the M2 Competition/CS uses a more complex dual high-pressure fuel pump setup. While P0463 relates to the low-pressure in-tank sensor, the part numbers for the in-tank low-pressure fuel pump (LPFP) assembly, which includes the sensor, are different between the N55 and S55 models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Plastic Charge Pipe (N55) 🔴 High — Very common, especially on tuned cars. The original plastic pipe becomes brittle with heat cycles and can crack under boost, causing a sudden loss of power.
• Oil Leaks (Valve Cover & Oil Filter Housing Gasket) 🟠 Medium — Extremely common on both N55 and S55 engines, typically appearing after 50,000-60,000 miles. Gaskets harden and crack over time.
• Electric Water Pump Failure 🔴 High — A well-known BMW issue affecting the N55. The electric water pump can fail without warning, typically between 50,000 and 80,000 miles, leading to rapid overheating.
• S55 Crank Hub Spinning 🔴 High — A widely discussed but statistically rare (estimated 2-3%) issue on the S55 engine. The friction-fit crank hub can spin, causing valve timing to go off, which can lead to catastrophic engine damage. The risk is higher on tuned and DCT-equipped cars.
• S55 Top-Mount Intercooler (Charge Cooler) Failure 🟠 Medium — The air-to-water intercooler can fail internally, leaking coolant into the engine. This becomes more common as cars age (8+ years or 80k+ miles) and can be identified by white exhaust smoke and coolant loss from the intercooler's dedicated reservoir.
• VANOS Solenoid Failure (N55) 🟠 Medium — Common on the N55, leading to rough idle, loss of power, and check engine lights. It's a relatively easy and inexpensive part to replace.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is generally not recommended. The fuel level sensor is a wear item with delicate electronic contacts and a moving float. A used assembly from a junkyard carries a high risk of having the same wear or being close to failure.

Donor-vehicle mileage cap: roughly under 40000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number matches your vehicle's engine (N55 vs. S55).
• Inspect the electrical connector pins for any signs of corrosion or heat damage.
• If possible, ask for the mileage of the donor vehicle; lower is always better.
• Ensure the plastic housing is not cracked or damaged from removal.

OEM-only on this vehicle (don't cheap out):

• Fuel Pump Assembly (including sending unit)

Aftermarket brands forum-validated for this vehicle:

• VDO (often the Original Equipment Manufacturer for BMW)
• Bosch

Brands owners have reported issues with on this vehicle:

• Generic, unbranded parts from online marketplaces should be avoided due to high failure rates and potential incompatibility with the BMW EKPS control module.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0461 — Related to fuel level sensor circuit range/performance; often diagnosed alongside P0463 when the sensor provides erratic but not consistently high voltage.
• P0462 — The low-voltage counterpart to P0463, indicating a short to ground or low resistance in the same fuel level sensor circuit.
• P0087 — Fuel Rail/System Pressure - Too Low; may be triggered if the P0463 fault causes the driver to run out of gas, leading to a loss of fuel pressure.
