P0463 on 2008-2012 Chevrolet Malibu: Fuel Level Sensor Circuit High Input Causes and Fixes

What's Unique About the 2008-2012 Chevrolet Malibu

The 2008-2012 Chevrolet Malibu (seventh generation, on the GM Epsilon platform) commonly triggers a P0463 code due to a failure of the fuel level sending unit. Unlike some vehicles where this is a minor inconvenience, on many of these GM models, this specific code will illuminate the Check Engine Light, causing an automatic failure on emissions tests. A very common failure mode is the wearing out of the resistive contacts on the sending unit card, creating an open circuit which the ECM interprets as a high voltage signal. While the sensor can sometimes be replaced separately, it is integrated into the fuel pump module, making a complete module replacement the most common and reliable repair.

Symptoms You May Notice

• Check Engine Light is on.
• Fuel gauge is inaccurate, stuck on full, or (most commonly) stuck on empty.
• Low fuel warning light is on constantly, even with a full tank.
• Fuel gauge fluctuates erratically.

Most Likely Causes

1. Failed Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The sensor's resistor strip or the wiper contacts that move across it wear out over time, creating an open circuit. Contaminants in fuel, particularly sulfur, can also corrode the contacts, leading to a high-resistance or open reading. This is the most common point of failure for P0463 on this platform.
   How to confirm: Use a scan tool to monitor the fuel level sensor voltage. If the voltage is stuck high (GM-specific diagnostics show this is often fixed at 5 volts), the sensor has likely failed open. Another test involves accessing the sensor connector and measuring its resistance while moving the float arm; an open circuit (infinite resistance) or a reading that doesn't change smoothly confirms failure. A good GM sensor of this era typically reads around 40 ohms when empty and 250 ohms when full.
   Typical fix: Replace the fuel level sensor. On this vehicle, the sensor is integrated into the complete fuel pump module assembly. Replacing the entire module is the standard, most reliable repair.
   Est. part cost: $250-$620
2. Wiring Harness Damage or Corrosion 🟡 Medium Probability The wiring that runs to the fuel tank is exposed to road salt and moisture, making it susceptible to corrosion. The ground strap for the fuel tank is a specific point to check for rust and poor connection. The main connector on top of the fuel pump module can also accumulate dirt and moisture, leading to corroded pins.
   How to confirm: Visually inspect the wiring harness leading to the fuel tank for any signs of chafing, breaks, or corrosion. Pay close attention to the ground wire connection to the chassis, specifically ground point G303 located in the left kick panel. Disconnect the connector at the fuel pump module and inspect for green or white corrosion on the pins. Use a multimeter to check for continuity on the signal (purple wire) and ground (orange/black wire) between the PCM and the sensor connector.
   Typical fix: Repair or replace the damaged section of the wiring harness. Clean the ground connection point to bare metal. Clean or replace the corroded connector with a new pigtail.
   Est. part cost: $20-$75

Rare But Worth Checking

• Faulty Instrument Panel Cluster (IPC): → Shop Instrument Cluster The IPC receives fuel level data from the BCM (Body Control Module) via a data network, which gets its info from the ECM. While very rare, an internal failure in the cluster could cause the gauge to read incorrectly even if the ECM has the correct data. This would not typically set a P0463 code, which originates from the ECM's direct sensor reading. A bidirectional scan tool can command a 'Gauge Sweep Test' to verify IPC functionality independently.
• Faulty Powertrain Control Module (PCM): An internal fault in the PCM's sensor input circuit could cause it to misinterpret the signal from the fuel level sensor. This is extremely unlikely and should only be considered after all other possibilities, including wiring and the sensor itself, have been definitively ruled out.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0463 is present. Note any other codes.
2. Observe the fuel gauge. Is it stuck on empty with the low fuel light on? This is the most common presentation.
3. Use the scanner's live data function to view the 'Fuel Level Sensor' voltage. A reading stuck at or near 5V indicates an open or high-resistance circuit.
4. Perform a visual inspection of the wiring harness leading to the fuel tank. Look for any obvious signs of damage, corrosion, or loose connections, particularly at the main connector on top of the fuel pump module and the tank's chassis ground. The primary ground for this circuit is G303, located in the left kick panel.
5. If wiring appears intact, the next step is to test the fuel level sensor itself. This requires accessing the top of the fuel tank. On the Malibu, there is no access panel under the rear seat; the fuel tank must be lowered for access.
6. With the key off, disconnect the fuel pump module connector. Identify the purple (signal) and orange/black (low reference/ground) wires.
7. Measure the resistance across the corresponding pins on the fuel pump module side. A healthy sensor should read between approximately 40 ohms (empty) and 250 ohms (full). An infinite resistance reading (OL) confirms the sensor has failed open.
8. If the sensor tests good, the fault lies in the wiring. Check for 5V reference on the purple wire from the PCM and check the orange/black wire for a good path to ground.
9. If the sensor is confirmed faulty, replace the entire fuel pump module assembly.

Parts You'll Likely Need

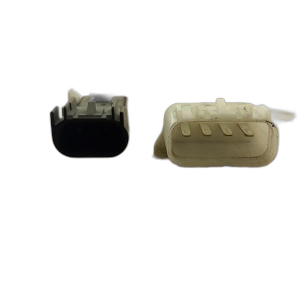

• Fuel Pump and Level Sensor Module (OEM #19366851, M10011 (ACDelco)) — This is the most common cause of P0463. The fuel level sensor is integrated into the module, and replacing the entire assembly is the most reliable fix. The ACDelco part number M10011 supersedes previous numbers like 19331304.
  Trusted brands: ACDelco, Delphi
  OEM price range: $310-$620
  Aftermarket price range: $150-$300
• Fuel Level Sensor — If you choose to replace only the sensor, it can be a more affordable option. However, it requires disassembling the fuel pump module and is often not sold as a separate OEM part. Aftermarket options like the Dorman 911-016 exist but are listed for the previous Malibu generation (2004-2006) and are not compatible with the 2008-2012 models.
  Trusted brands: Dorman, ACDelco
  OEM price range: $40-$60
  Aftermarket price range: $35-$55

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: Approx. 40 Ohms (Empty) to 250 Ohms (Full). Failure: Infinite resistance (OL) indicates an open circuit. A reading that does not change smoothly when moving the float arm indicates a worn resistor card.
• Fuel Level Sensor Signal Voltage (Live Data) — expected: Varies between approx. 0.5V (Empty) and 2.5V (Full).. Failure: A voltage reading stuck at or near 5.0V indicates an open circuit, which triggers P0463.
• Sensor Ground Voltage at Connector (Circuit Loaded) — expected: Near 0.0V (less than 100mV).. Failure: Voltage significantly above 0V (e.g., reading 5V) indicates a bad ground connection between the connector and the chassis.

Scan Tool Commands That Help

• GM Tech 2 / GDS2 or equivalent professional scanner: IPC Gauge Sweep Test — Use this command to verify the functionality of the instrument panel cluster's fuel gauge. If the gauge sweeps correctly from empty to full when commanded, it proves the gauge itself is working, isolating the fault to the sensor, wiring, or ECM/BCM.

Wiring & Ground Locations

• G303 — In the left kick panel, near the driver's left foot.. This is a primary ground point for several interior components, including the fuel pump sender circuit. Corrosion or a loose connection at G303 can cause a high resistance in the ground path, leading to a high voltage reading on the signal wire and triggering P0463.
• Fuel Pump/Sender Connector — On top of the fuel tank, accessible after lowering the tank.. This is the main connection point for the fuel pump and sender. The purple wire is the fuel level signal, and the orange/black wire is the low reference (ground). Testing for voltage and resistance at these pins is the primary method for diagnosing the sensor vs. wiring.
• Fuel Pump Fuse/Relay — In the rear fuse block, located in the trunk.. The 15A fuse (blue) and the corner relay power the fuel pump. While a failure here typically causes a no-start condition rather than a P0463, checking them is a basic electrical diagnostic step.

Real Owner Repair Stories

• YouTube user 'l_KEIMimqsI' (2007 Chevrolet Silverado 1500 Classic (similar GM platform)) — Fuel gauge stuck on empty, low fuel light on, P0463 code stored.
  ❌ Tried (didn't work) Using Techron fuel system cleaner as suggested by a GM TSB did not fix the issue.
  ✅ What actually fixed it Upon removing the fuel pump module, a visual inspection revealed that one of the two metal wiper contacts on the fuel level sensor had physically broken off, creating an open circuit. The final fix was replacing the entire fuel pump module assembly.
• YouTube user 'Payne's DIY' (2005 Chevrolet Malibu (previous generation, but identical circuit principle)) — Check Engine Light on with P0463, failing emissions test.
  ❌ Tried (didn't work) Owner did not want to spend the money to drop the tank and replace the sending unit.
  ✅ What actually fixed it As a workaround to pass emissions, the mechanic disconnected the fuel sender signal wire (purple wire) and wired in a resistor to ground to simulate a valid fuel level reading. This turned off the Check Engine Light, allowing the car to pass the test. This is not a repair for the gauge but a documented real-world bypass.
• NHTSA ODI #10583473 — An owner reported that the check low fuel light and check engine light would illuminate, with a dealer confirming code P0463 for the fuel tank level sending unit. They noted that as time went on, the gauge would fail specifically when the tank reached three-fourths full.
• NHTSA ODI #10553100 — A report describes a fuel gauge that intermittently works in a few spots until the tank hits about 1/4 full, at which point it tracks correctly to empty, despite the P0463 code being active.
• NHTSA ODI #10610473 — One owner experienced recurring issues where the error code P0463 appeared every 18 months, leading to the fuel system being replaced twice and possibly a third time.

OEM Part Supersession History

• 19331304 → ACDelco M10011 / GM 19366851 — Standard part number update/revision.
  Heads up: The Dorman 911-016 standalone sensor is often listed for 'Chevrolet Malibu' but is only compatible with the 2004-2006 generation, not the 2008-2012 models which require a different sensor design typically only sold with the full module.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Stretch/Failure (2.4L Ecotec) 🔴 High — Very common, especially on vehicles with over 80,000 miles. Often accelerated by oil consumption issues. Symptoms include rattling noise on startup and codes like P0016/P0017. (Ref: No recall for the primary chain, but special coverage programs existed for oil consumption and the balance shaft chain (12313C).)
• Loss of Electric Power Steering (EPS) 🔴 High — Widespread issue affecting many 2008-2009 models. The steering torque sensor or motor fails, causing a sudden loss of steering assist. (Ref: Yes, multiple recalls including GM Safety Recall 14116.)
• Fractured 3-5-R Wave Plate (6T70/6T75 6-Speed Automatic) 🔴 High — Common failure in V6 models, typically occurring between 60,000 and 120,000 miles. Results in loss of 3rd, 5th, and Reverse gears. (Ref: Multiple TSBs exist, but no recall. A class-action lawsuit was filed over this issue.)
• Shift Cable Failure (4-Speed Automatic) 🟠 Medium — The clip on the transmission shift cable can break, causing a mismatch between the gear shifter position and the actual transmission gear. (Ref: Yes, GM Safety Recall 12V460000.)
• Faulty Door Lock Actuators 🟡 Low — A very common annoyance where one or more door lock actuators fail, preventing locking/unlocking with the fob or interior button.
• Intermediate Steering Shaft Noise 🟡 Low — A common issue causing a clunking or popping noise in the steering column when turning at low speeds. The typical fix is to lubricate or replace the intermediate shaft. (Ref: Yes, TSB #07-02-35-004A and others.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used fuel pump module is generally not recommended. The failure is a wear item (the resistor card), and the fuel pump motor itself has a finite lifespan. A used part from a very low-mileage, collision-totaled vehicle might be a cost-effective option, but it carries significant risk of premature failure.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the donor vehicle's mileage is low.
• Inspect the electrical connector pins for any signs of corrosion or overheating (discoloration).
• If possible, test the resistance of the sending unit before purchase to ensure it's within the 40-250 ohm range and not open circuit.

OEM-only on this vehicle (don't cheap out):

• Fuel Pump Module Assembly

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM)
• Delphi (often the original equipment supplier)

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white-box' parts from online marketplaces have a high failure rate according to forum discussions. While brands like Spectra or Carter may offer a warranty, the labor to replace a failed unit a second time makes the OEM part more cost-effective in the long run.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0016 — Often appears on the 2.4L Ecotec engine alongside other faults due to timing chain stretch, a common high-severity issue for this Malibu generation.
• P0017 — A companion code to P0016 related to timing chain failure on the 2.4L engine.
• P0230 — Fuel pump primary circuit code; may appear with P0463 if there is a shared wiring harness issue or a total failure of the fuel pump module.
• P0315 — Crankshaft position system variation not learned; reported by owners alongside P0463 during multi-fault electrical or starting issues.
