P0463 on 2009-2017 Chevrolet Traverse: Fuel Level Sensor Circuit High Input Fixes

What's Unique About the 2009-2017 Chevrolet Traverse

For the first-generation Chevrolet Traverse and its GM Lambda platform siblings (Buick Enclave, GMC Acadia, Saturn Outlook), the P0463 code is a straightforward and extremely common issue. The primary cause is the failure of the fuel level sending unit, which is an integrated component of the in-tank fuel pump module. There are no widespread, unique design flaws that cause this code, but like many vehicles of this era, the sending unit's resistor can wear out or become corroded from fuel contaminants over time, leading to the fault.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads incorrectly (e.g., stuck on full, stuck on empty, or fluctuates wildly)
• Low fuel light may be on constantly, even with a full tank
• Difficulty knowing how much fuel is in the tank
• In some cases, the fuel gauge may work intermittently before failing completely

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The fuel level sensor is a moving part (a float arm connected to a variable resistor) located inside the fuel tank. Over time, the resistor strip can wear out or corrode from contact with fuel, causing it to send an incorrect, high voltage signal. This is the most common failure point for this code on the Traverse platform.
   How to confirm: The most definitive test is to access the fuel pump module connector and measure the resistance of the sending unit circuit. The resistance should change smoothly as the float arm is moved. On many GM vehicles, the range is approximately 40 ohms (full) to 250 ohms (empty). An open circuit (infinite resistance) will confirm a bad sensor.

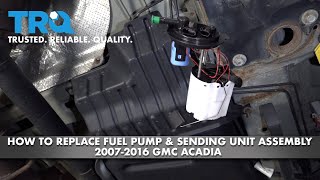

   Typical fix: Replace the entire fuel pump module, as the sensor is typically integrated into it. This requires dropping the fuel tank for access. 🎬 See this step-by-step Traverse fuel pump installation video Some forum users have noted that the sender can be purchased separately, but most mechanics replace the entire module to avoid repeat labor. 🎬 Watch: How to remove the fuel pump on a Traverse
   Est. part cost: $100 - $400
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness runs from the fuel tank along the vehicle's frame to the PCM. It is exposed to road debris, moisture, and corrosion, which can cause a wire to break or a connector pin to lose contact, creating an open circuit. The main connector on top of the fuel tank is a common area for corrosion to develop.
   How to confirm: Visually inspect the wiring harness from the fuel tank to the engine bay for any signs of damage, chafing, or corrosion, paying close attention to the connector on top of the fuel tank. Use a multimeter to check for continuity and voltage on the signal and ground wires at the PCM and the fuel pump connector.
   Typical fix: Repair the broken section of wire or clean/replace the damaged connector.
   Est. part cost: $10 - $50

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is very rare. Before condemning the PCM, all other possibilities, especially the sensor and wiring, must be exhaustively ruled out.
• Instrument Cluster Malfunction: → Shop Instrument Cluster In some cases, the instrument cluster itself can fail, leading to incorrect gauge readings. However, this would not typically set a P0463 code in the PCM. It's a possible related issue but not a direct cause of the code.

Diagnosis Steps

1. Use an OBD-II scanner to confirm P0463 is the only code present. Note any other codes.
2. Check the fuel gauge reading. Does it read full, empty, or fluctuate? Note its behavior.
3. Perform a visual inspection of the wiring harness leading to the fuel tank. Look for any obvious signs of damage, corrosion, or loose connections, especially at the main connector on top of the tank.
4. If the tank is not full, add a few gallons of fuel and observe if the gauge responds at all. A completely dead gauge points more strongly to an open circuit.
5. If possible, access the fuel pump module electrical connector on top of the fuel tank.
6. With the key on, use a multimeter to check for the correct reference voltage (typically 5V) and ground at the connector.
7. With the key off, measure the resistance across the fuel level sensor pins. A reading of infinite resistance (OL) indicates an open circuit within the sending unit, confirming it has failed. 🎬 Watch: How to test a GM fuel sending unit A normal reading should be between approximately 40 and 250 ohms.
8. If wiring and the sensor check out, the issue could be with the PCM, but this is highly unlikely.

Parts You'll Likely Need

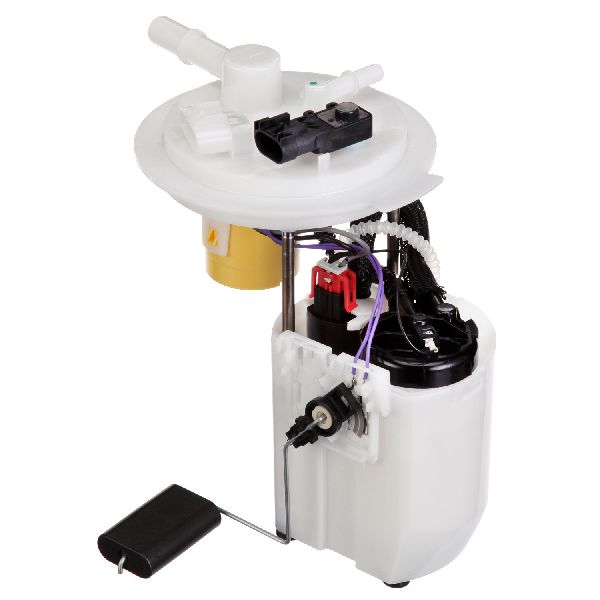

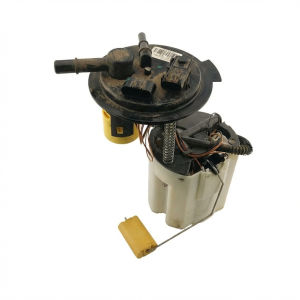

• Fuel Pump Module Assembly (OEM #ACDelco MU2136 (example, verify by VIN)) — The fuel level sensor (sending unit) is almost always integrated with the fuel pump in a single module. Replacing the entire assembly is the standard repair and ensures all related components are new.
  Trusted brands: ACDelco, Delphi, Bosch, Spectra Premium
  OEM price range: $250-$400
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0461 — This code indicates a 'Fuel Level Sensor Circuit Range/Performance' issue. It can appear alongside P0463 as the sensor begins to fail and provides erratic or irrational signals before failing completely to a 'high input' state.
• P0462 — This is the opposite code, 'Fuel Level Sensor Circuit Low Input.' Seeing both codes intermittently could point to a sensor that is shorting out or has a completely failed resistor strip.
• P0452 — This code for the fuel tank pressure sensor circuit may appear alongside P0463, as noted in NHTSA ODI #11615682, where an owner reported both codes occurring simultaneously.
• P069E — This code indicates the Fuel Pump Control Module has requested MIL illumination. NHTSA ODI #11399819 describes a case where P0463 and P069E returned even after multiple fuel level sensor replacements.

Platform-Specific Known Issues

• This is a very common failure on the GM Lambda platform. Owners on forums frequently report the fuel gauge getting stuck on full or empty, with the P0463 code present, and the ultimate fix being a new fuel pump module.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: 40 Ohms (Full) to 250 Ohms (Empty). Failure: A reading of infinity/OL (Open Loop) or a value that does not change when the fuel level is altered.
• Fuel Level Sensor Signal Wire Voltage (at connector X350) — expected: ~5.0 Volts (Key On). Failure: Voltage significantly below 5.0V suggests a wiring issue or short.
• Fuel Level Sensor Ground Wire Voltage (at connector X350) — expected: Near 0.0 Volts (ideally < 0.1V). Failure: Voltage significantly above 0.1V indicates a poor ground connection, which can cause a P0463 code.

Scan Tool Commands That Help

• GDS2 / Tech2: Instrument Panel Cluster > Output Control > Fuel Gauge — Use this bidirectional command to sweep the fuel gauge from empty to full. If the gauge needle moves correctly through its range, it confirms the instrument cluster and its stepper motor are functional, effectively ruling them out as the cause of the problem and pointing the diagnosis back toward the sensor or wiring.

Wiring & Ground Locations

• X350 — The main electrical connector located on top of the fuel tank, connecting the chassis wiring harness to the fuel pump module harness.. This is the primary point for testing sensor resistance and circuit voltage without dropping the fuel tank. It is exposed to the elements and is a common location for corrosion or damage that can cause an open circuit and trigger P0463.
• G401 — A primary rear body ground point located near the base of the left 'D' pillar.. A poor ground at this location can affect various rear-body electrical components, including the fuel pump module. A bad ground can cause a floating voltage reference, leading to a high signal reading and a P0463 code.
• Fuel Pump Flow Control Module (FPCM) — Mounted on the driver's side frame rail, just ahead of the rear axle and near the fuel tank.. While not the most common cause for P0463, this module processes the fuel level signal on its way to the PCM. A failure within this module can corrupt the signal and cause fuel level codes. Its connector, X308, is another point to check for corrosion or damage.
