P0463 on 2014-2018 GMC Sierra 1500: Fuel Level Sensor Circuit High Input Causes and Fixes

What's Unique About the 2014-2018 GMC Sierra 1500

The fuel level sensor is a notoriously common failure point on this generation of GMC Sierra and its sibling, the Chevrolet Silverado (K2XX platform). While wiring or computer issues can theoretically cause this code, the overwhelming majority of cases on these specific trucks point directly to a faulty sending unit. The sensor's internal resistor card or the wiper contacts wear out, creating an open circuit. The sensor is integrated into the fuel pump module, making the repair a single, albeit labor-intensive, job.

Symptoms You May Notice

• Inaccurate or erratic fuel gauge (stuck on full, empty, or fluctuating wildly)
• Check Engine Light is on
• Low fuel warning light may stay on or flash, even with a full tank
• Risk of running out of fuel unexpectedly
• Fuel gauge drops to zero intermittently, then returns to normal reading later.

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit The fuel level sensor is a very common failure item on this GM truck platform. The internal components, specifically the spring-loaded contacts that ride on the resistor board, wear out or corrode, creating an open circuit. As noted in NHTSA ODI #10371391, the failure often involves the variable resistor showing a high input instead of a typical small value, which changes the voltage sent to the fuel gauge.
   How to confirm: After verifying wiring is intact, the most definitive test is to measure the resistance of the sensor itself. An infinite resistance reading (Open Loop) across the sensor's terminals confirms a failed sensor. A scan tool will show the fuel level sensor voltage stuck at 5 volts. A technician can also jump the signal and ground wires at the fuel pump connector; the scan tool reading should drop to 0 volts, confirming the wiring integrity to the PCM.
   Typical fix: Replace the fuel level sensor. It is highly recommended to replace the entire fuel pump module, as the sensor is integrated and the labor is the same. This also preemptively replaces the fuel pump, which is another common failure item.
   Est. part cost: $250-$1100
2. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness runs along the frame and the main connector sits on top of the fuel tank, exposed to the elements. This makes it susceptible to corrosion, moisture intrusion, or physical damage from road debris.
   How to confirm: Visually inspect the wiring harness from the fuel tank to the PCM for any breaks, chafing, or corrosion, especially at the connector on top of the fuel tank. A multimeter can be used to check for continuity on the signal (typically purple) and ground wires. Wiggling the connector while observing live scan tool data can also reveal an intermittent connection.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail.
   Est. part cost: $20-$150
3. Poor Ground Connection ⚪ Low Probability The ground strap for the fuel tank can corrode over time where it attaches to the frame, leading to a bad connection and causing a high or open circuit reading.
   How to confirm: Locate the fuel system ground on the chassis frame rail. Check the ground wire from the fuel pump module connector to the chassis for continuity and low resistance (less than 1 ohm). A voltage drop test on the ground circuit under load is the most effective way to identify a poor connection.
   Typical fix: Remove the ground bolt, clean the grounding point on the frame and the wire terminal with a wire brush, and re-secure it tightly.
   Est. part cost: $1-$10

Rare But Worth Checking

• Faulty Instrument Panel Cluster (IPC): → Shop Instrument Cluster This is uncommon. Before suspecting the cluster, all components of the fuel level sensor circuit must be tested and confirmed to be working correctly. A scan tool capable of reading live data from the Body Control Module (BCM) can help determine if the BCM is receiving the correct signal from the PCM.
• Faulty Powertrain Control Module (PCM): This is extremely rare. The PCM is the last component to suspect after every other possibility has been exhausted through rigorous testing.
• Faulty Fuel Pump Control Module (FPCM): → Shop Fuel Pump While not a primary cause for a sensor circuit code, a malfunctioning FPCM can sometimes cause erratic behavior in the fuel system. The FPCM is a separate module that controls the fuel pump's speed. Part numbers for this module include ACDelco 23382215. However, this is an unlikely cause for P0463 specifically.

Diagnosis Steps

1. Scan the vehicle with an OBD-II scanner to confirm P0463 is the only code present. Note any other codes.
2. Check live data on the scanner to see the fuel level voltage reading. A reading stuck at the maximum (typically 5 volts) confirms the 'High Input' condition.
3. Perform a visual inspection of the wiring harness leading to the fuel tank. Look for any obvious signs of damage, corrosion, or loose connections, paying close attention to the main connector on top of the tank.
4. Access the fuel pump module connector. This requires either lowering the fuel tank or lifting the truck bed.
5. With the key on, engine off, test the signal wire (often purple) and ground wire. The signal wire should read 5V with the sensor unplugged, and the ground wire should have less than 0.1V.
6. Perform a circuit integrity test: use a jumper wire to connect the signal and ground pins on the vehicle-side harness connector. The fuel level voltage on the scan tool should drop to 0 volts. If it does, the wiring to the PCM is good, and the fault is within the fuel tank module.
7. If the wiring and ground are good, the fuel level sensor is confirmed as the culprit. The entire fuel pump module should be replaced.
8. If the circuit integrity test fails (voltage does not drop to 0), there is a wiring issue between the connector and the PCM that must be traced and repaired.

Parts You'll Likely Need

• Fuel Pump Module Assembly (OEM #ACDelco M100264 (example, verify by VIN)) — This is the most common failure. The assembly includes the fuel pump, fuel pressure regulator, and the integrated fuel level sensor (sending unit). Replacing the whole module is the standard repair and is preventative maintenance for the fuel pump itself. 🎬 Watch: Step-by-step Silverado fuel pump replacement walkthrough
  Trusted brands: ACDelco (GM Genuine), Delphi, Spectra Premium, Carter
  OEM price range: $400-$1100
  Aftermarket price range: $250-$600

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB for P0463 on this platform was found, GM has issued TSBs for related fuel system issues on similar trucks, such as 15-06-04-002 for EVAP system codes on 2014-2015 models, indicating a sensitivity in the overall fuel system monitoring.
• Historical manufacturer data referenced in NHTSA ODI #10362931 suggests that GMC technical service bulletins have long addressed issues where fuel system codes like P0463 are associated with sudden performance changes.

Platform-Specific Known Issues

• Failure of the fuel level sensor is a widely documented and common problem for the 2014-2018 GM K2XX truck platform.
• The repair is labor-intensive as it requires either lifting the truck bed or dropping the fuel tank 🎬 See how to access the tank using the bed tilt method to access the top of the tank where the fuel pump module is located.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: 40 Ohms (Empty) to 250 Ohms (Full). Failure: An infinite resistance reading (OL - Open Loop) across the sensor terminals indicates a failed sensor, which is the direct cause of P0463.
• Fuel Level Sensor Signal Voltage (at PCM/Scan Tool) — expected: ~0.5V (Empty) to ~4.5V (Full). Failure: A reading stuck at or near 5.0V confirms the 'Circuit High' condition and points to an open in the sensor or wiring.
• Sensor Ground Wire Voltage Drop (at module connector, under load) — expected: Less than 0.1V (100mV). Failure: A reading significantly higher than 0.1V indicates a poor ground connection, which can cause the signal voltage to read incorrectly high.

Wiring & Ground Locations

• Fuel Pump Module Ground — A black wire from the fuel pump wiring harness is attached directly to the inside of the driver's side frame rail, typically near the fuel tank.. A corroded or loose ground at this location can create high resistance in the sensor circuit, causing the PCM to see an artificially high voltage and trigger P0463. This should be cleaned and secured before condemning the fuel pump module.

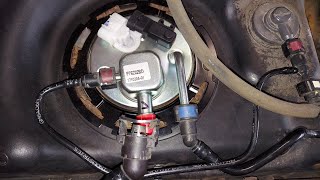

• Fuel Pump Module Connector (at the tank) — On top of the fuel pump module, accessible by lifting the bed or dropping the tank.. This is the primary test point. The fuel level sensor signal is on the purple wire, and the sensor ground is on the black or black-with-white-stripe wire. Testing for resistance and voltage here isolates the problem to either the in-tank unit or the vehicle's main harness.

Real Owner Repair Stories

• YouTube user short video (Chevrolet Silverado (same platform)) — P0463 code, fuel gauge bottomed out and stopped working.
  ❌ Tried (didn't work) Used Techron fuel system cleaner in the gas tank. Some GM service bulletins suggest this can clean sulfur deposits off the sensor contacts and sometimes fix erratic readings.
  ✅ What actually fixed it The Techron treatment did not work. Upon disassembly, the owner found the fuel level sensor had a physically broken contact. The entire fuel pump module assembly had to be replaced to resolve the code.
• Reddit r/MechanicAdvice user (Chevrolet Silverado 5.3L) — P0463 code.
  ✅ What actually fixed it The user described the code as a 'pure electrical failure.' The final fix was confirmed to be the replacement of the entire fuel pump assembly after testing the sensor terminals with a multimeter and finding an open-circuit (infinite resistance) reading, confirming the internal failure of the sensor.

Documented NHTSA Reports

• An owner reported in NHTSA ODI #10513803 that a failed fuel sending unit triggered code P0463, leading to a situation where the vehicle would not turn on.
• According to NHTSA ODI #10551564, an owner experienced the fuel gauge fluctuating from full to empty every few minutes after using approximately 5 gallons of fuel, accompanied by the check engine light and code P0463.
• NHTSA ODI #10520340 describes a case where code P0463 was produced due to an inaccurate fuel reading, requiring professional repairs to the fuel system.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 8-Speed Transmission Shudder/Hard Shift 🔴 High — Very common on 2015-2018 models with 8L90/8L45 transmissions. Often described as driving over rumble strips between 40-70 mph. (Ref: TSB 18-NA-355 recommends a fluid flush with an updated Mobil 1 Synthetic LV ATF HP fluid.)
• A/C Condenser Leak 🔴 High — Extremely common across the entire 2014-2018 model range. The condenser often develops leaks at the welds, causing the A/C to blow warm air. (Ref: TSB PIT5331 addresses a related leaking A/C line, but the condenser failure itself is the more widespread issue.)
• Active Fuel Management (AFM) Lifter Failure 🔴 High — A known issue on the 5.3L and 6.2L EcoTec3 engines where the AFM lifters can collapse or become stuck, leading to misfires, a ticking noise, and potential engine damage. (Ref: Multiple TSBs exist related to engine oil consumption which can be a contributing factor.)
• Brake Vacuum Pump Failure 🔴 High — Common enough to warrant a major safety recall. The vacuum pump can fail, leading to a hard brake pedal and increased stopping distances. (Ref: NHTSA Recall 19V888000)
• Direct Injection Intake Valve Carbon Buildup 🟠 Medium — A long-term consequence of direct injection engines since 2014. Over 30-60k miles, carbon can build up on the back of intake valves, as they are not cleaned by fuel spray. This can lead to rough idle and misfires.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, using a used part from a junkyard is strongly discouraged. The fuel pump and level sensor are wear items, and the labor to access the module (dropping the tank or lifting the bed) is significant. The risk of premature failure of a used unit outweighs any potential cost savings. A used wiring harness pigtail could be a viable option if only the connector is damaged.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring pigtail, ensure the plastic is not brittle and the locking tab is intact.
• Check for any signs of corrosion (green or white powder) on the metal pins inside the connector.
• Ensure there is at least 6-8 inches of wire attached to allow for proper splicing.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a high-quality OEM (ACDelco) or reputable OEM-supplier (like Delphi) fuel pump module is highly recommended to ensure longevity and avoid repeating this labor-intensive job.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (GM Genuine)
• Delphi (often the OEM supplier, some feature improved gold-filled sensors to resist corrosion)

Brands owners have reported issues with on this vehicle:

• Avoid generic, unbranded 'white box' parts from online marketplaces, as their reliability is unproven and they often have high failure rates.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0442 — Related to EVAP system sensitivity mentioned in TSB 15-06-04-002 for 2014-2015 models.
• P0455 — An EVAP system code that may appear alongside fuel system issues due to the shared location of components on top of the fuel tank.
• P0171 — Lean condition code that may occur if the fuel pump (often replaced with the sensor) is failing to provide adequate pressure.
• P0300 — Random misfire code that can be triggered by AFM lifter failure or carbon buildup on intake valves, both of which are known issues for this vehicle platform.
