P0463 on 1997-2006 Jeep Wrangler: Fuel Level Sensor Circuit High Causes and Fixes

What's Unique About the 1997-2006 Jeep Wrangler

On the Jeep Wrangler TJ, this code is a very common and straightforward issue. The fuel level sending unit, a variable resistor, wears out over time, creating the 'high circuit' or open condition. Because these Wranglers are often used for off-roading, the wiring harness leading to the fuel tank is also susceptible to damage from trail debris or water intrusion, which can mimic the symptoms of a failed sender. A significant vehicle-specific challenge in this repair is dealing with the fuel tank skid plate, which often has heavily rusted bolts that can break or spin in the frame, complicating the process of dropping the tank.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge reads full all the time
• Fuel gauge reads empty when the tank has fuel
• Fuel gauge fluctuates erratically
• Low fuel warning light may be on constantly
• Fuel gauge takes a long time to respond after filling up

Most Likely Causes

1. Failed Fuel Level Sending Unit 🔴 High Probability → Shop Fuel Tank Sending Unit The resistive strip on the sending unit's float arm wears out from normal use, creating dead spots or a complete open circuit. This is a common wear-and-tear item on the TJ platform.
   How to confirm: Disconnect the fuel pump module connector and measure the resistance across the sending unit pins with a multimeter. For the TJ, the approximate resistance range is 20 ohms (Full) to 220 ohms (Empty). As you gently rock the vehicle to slosh fuel, the resistance should change smoothly. An infinite (OL) reading confirms an open circuit and a failed sender. A user on a Cherokee forum with a similar system confirmed this exact test method revealed an erratic and open sender.
   Typical fix: Replace the entire fuel pump module, as the 🎬 See: TJ fuel pump replacement tips and common mistakes sending unit is integrated into it. This requires dropping the fuel tank for access.
   Est. part cost: $100-$300
2. Damaged Wiring or Connectors 🟡 Medium Probability Wranglers used for off-roading are susceptible to damage to the wiring harness that runs along the frame to the fuel tank. Debris, rocks, and water can cause chafing, breaks, or corrosion. Water intrusion into the main connector on top of the tank is a known issue that can cause intermittent P0463 codes.
   How to confirm: Visually inspect the entire length of the wiring harness from the engine bay to the fuel tank connector. Look for any signs of physical damage, chafing, or corrosion, especially at the connector on top of the tank. Unplug the connector and check for bent, pushed-out, or corroded pins.
   Typical fix: Repair the damaged section of wire or replace the corroded connector.
   Est. part cost: $5-$50
3. Poor Ground Connection ⚪ Low Probability Rust and corrosion are common on the TJ platform. The ground strap for the fuel tank can become corroded, creating high resistance in the circuit.
   How to confirm: Locate the ground wire/strap for the fuel tank and check for a clean, tight connection to the frame. Use a multimeter to test for high resistance (more than 5 ohms) between the ground pin at the pump connector and a known good chassis ground.
   Typical fix: Clean the contact points of the ground connection with a wire brush and re-secure it. If the strap is heavily corroded, replace it.
   Est. part cost: $10-$25

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is extremely rare. The PCM should only be considered after all other possibilities, including the sending unit and all related wiring, have been definitively ruled out.

Diagnosis Steps

1. Scan the PCM for stored trouble codes to confirm P0463 is the primary code.
2. Using a scan tool with live data, observe the voltage reading from the Fuel Level Sensor. A reading consistently at or near 5 volts points towards an open circuit.
3. Perform a thorough visual inspection of the wiring harness leading to the fuel tank. Pay close attention to areas where it might rub against the frame or suspension components.
4. Inspect the main electrical connector on top of the fuel pump module for corrosion, moisture, or pushed-out pins.
5. If wiring appears intact, test the sending unit resistance at the fuel pump connector before dropping the tank. The expected range is approximately 20 ohms (Full) to 220 ohms (Empty). An 'OL' or infinite reading indicates a failed sender.
6. If the sender tests bad, prepare to drop the fuel tank. It is highly recommended to do this when the tank is as empty as possible. Be prepared for rusted and seized skid plate bolts.
7. Drop the fuel tank to access the fuel pump module.
8. Replace the entire fuel pump module assembly.

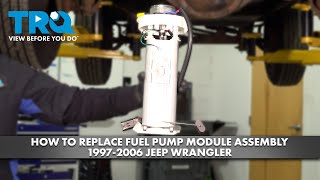

🎬 Watch: Step-by-step fuel pump module replacement guide
9. While the tank is down, verify the integrity of the ground strap from the tank/pump to the chassis.

Parts You'll Likely Need

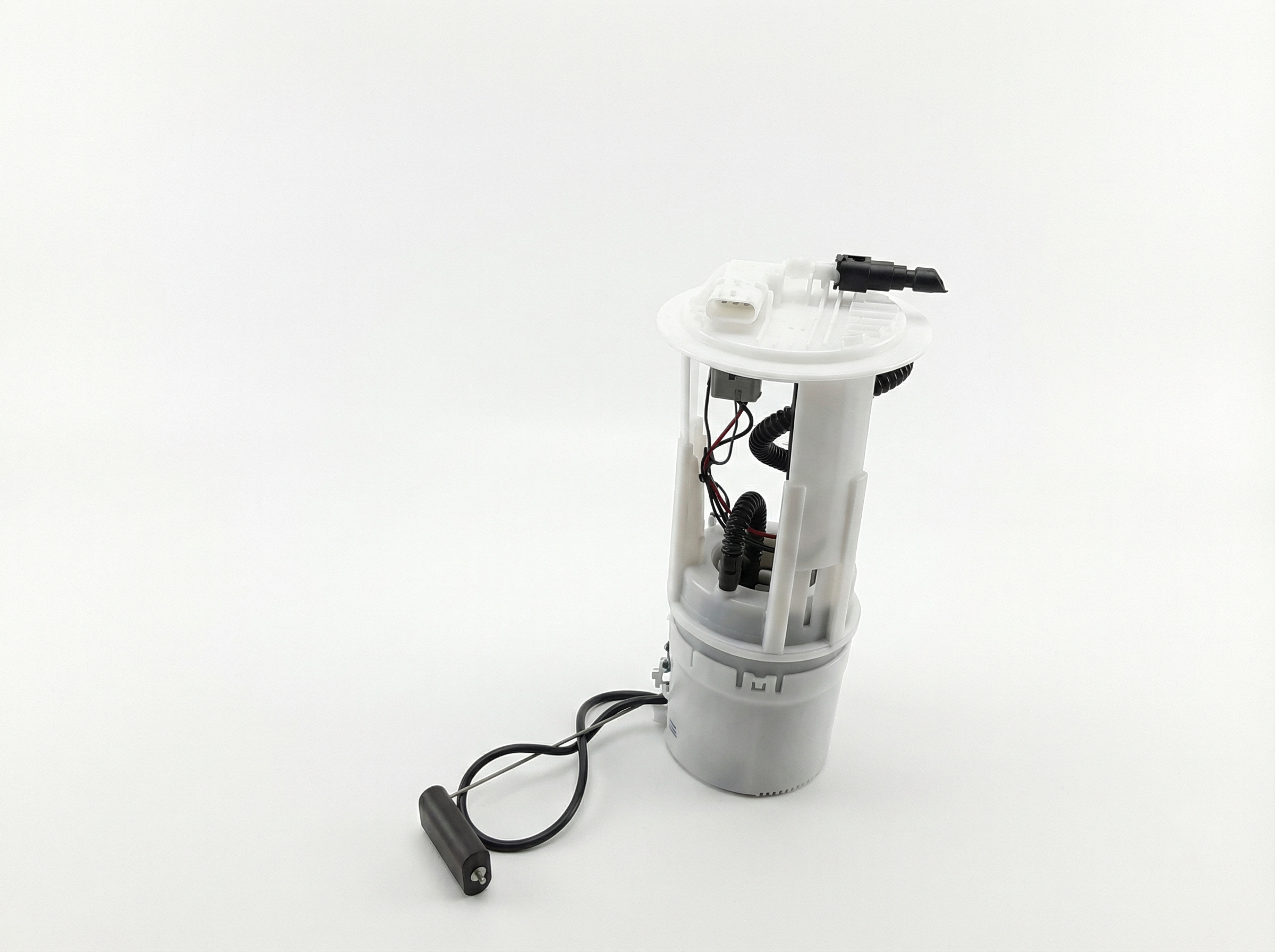

• Fuel Pump Module Assembly (OEM #5161335AK (or superseding part number, fits 2005-2006 models). Part numbers vary by year; e.g., 2000-2004 may use a different part. Always verify with VIN.) — The fuel level sending unit that causes P0463 is an integrated part of the fuel pump module. The entire assembly must be replaced to fix the faulty sender.
  Trusted brands: Mopar, Bosch, Delphi, Spectra Premium
  OEM price range: $250-$400
  Aftermarket price range: $100-$250

Related Codes That Often Appear With This One

• P0462 — This code for 'Fuel Level Sensor 'A' Circuit Low' is the counterpart to P0463. Seeing both intermittently could suggest a severely erratic sending unit or a wiring harness that is shorting to ground and also has an open.

Platform-Specific Known Issues

• The fuel tank skid plate bolts are notoriously prone to rust. The nutserts inside the frame can break loose and spin, or the bolts can snap off entirely during removal. Owners should soak the bolts in penetrating oil for several days beforehand and be prepared to use methods like prying down on the skid plate while using an impact wrench, or even drilling out the old hardware and installing new nutserts.

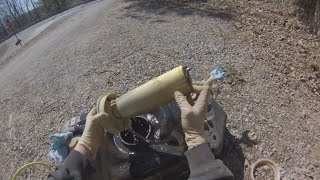

🎬 Watch: Fuel sending unit replacement on a TJ Wrangler

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Signal Voltage — expected: 0.5V (Empty) to 4.5V (Full). Failure: A reading consistently above 4.8V indicates a high circuit condition and will trigger P0463.
• Fuel Level Sending Unit Resistance — expected: ~220 ohms (Empty) to ~20 ohms (Full). Failure: An infinite (OL) reading indicates an open circuit in the sender. Erratic or jumping readings while sloshing fuel also indicate failure.
• Fuel Pump Ground Circuit Resistance — expected: Less than 5 ohms. Failure: A reading higher than 5 ohms between the ground pin on the pump connector and a clean chassis ground point indicates a poor ground connection.
• Fuel Pressure (1997-2004 models) — expected: 49 +/- 5 PSI. Failure: While not a direct cause of P0463, low fuel pressure (e.g., ~32 PSI) indicates a failing pump motor, which is part of the same assembly as the sending unit.
• Fuel Pressure (2005-2006 models) — expected: 58 +/- 5 PSI (~60 PSI). Failure: Low fuel pressure indicates a failing pump motor. Note that these later models do not have a Schrader valve for easy testing.

Wiring & Ground Locations

• Fuel Pump Module Connector — On top of the fuel tank, accessible after lowering the tank a few inches.. This is the primary test point for checking voltage and resistance of the fuel level sending unit without fully removing the tank.
• Fuel Pump Ground Wire — A small black wire that runs from the sending unit/pump assembly directly up to the body/floor bracing above the fuel tank.. A corroded or broken ground at this location can cause high resistance in the circuit, leading to erratic readings or a P0463 code.
• Fuel Pump Relay Output Wire (at harness) — In the main vehicle harness. On 2003 models, this is a Dark Green with White tracer wire. This color code should be verified for other years.. While not the signal wire, damage to this wire within the same harness can indicate a larger harness problem that could also affect the fuel level sensor circuit.

Real Owner Repair Stories

• YouTube channel 'Hiram Gutierrez' (2006 Jeep Wrangler TJ) — Check Engine Light with lean codes P0171 and P0174.
  ❌ Tried (didn't work) Initial diagnosis pointed towards a fuel delivery issue, but the specific cause was unconfirmed due to the lack of a fuel rail test port on 05-06 models.
  ✅ What actually fixed it Replaced the entire fuel pump module assembly with a Bosch unit. The original pump was weak, and replacing the assembly resolved the lean codes and passed emissions. This is relevant to P0463 as it demonstrates that when the pump motor fails, the entire module (including the sender) is the correct replacement part.
• JK-Forum.com user (with a TJ tank) (Jeep Wrangler JKU with a swapped-in 2006 TJ fuel tank.) — Fuel gauge read half-full when the tank was empty, ran out of gas. Initially threw P0462 (Circuit Low), but later confirmed the incompatibility causing incorrect readings.
  ❌ Tried (didn't work) Replacing the fuel pump with a new Bosch unit for a TJ., Verifying the float arm had full range of motion.
  ✅ What actually fixed it The user discovered and confirmed the resistance ranges for TJ and JK sending units are completely different. The TJ sender is ~220 ohms (Empty) to 21 ohms (Full), while the JK sender is ~998 ohms (Empty) to 80 ohms (Full). This confirms the specific resistance values for the TJ platform.

Model Year Variations Within This Range

• 1997-2004: The fuel pump module for these years has an internal fuel pressure regulator set to approximately 49 PSI.
• 2005-2006: The fuel pump module was updated and uses an internal regulator set to approximately 58-60 PSI. These modules are not directly interchangeable with earlier years without modifications. Additionally, these model years lack a Schrader valve test port on the fuel rail, making fuel pressure diagnosis more difficult.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Frame Rot 🔴 High — Very common, especially in regions that use road salt. The frame can rot from the inside out, with critical areas near the control arm mounts and rear suspension being most vulnerable.
• Death Wobble 🔴 High — A violent shaking of the front end that can occur after hitting a bump at speed. It's common on solid front axle Jeeps and is usually caused by worn or loose steering/suspension components like the track bar, ball joints, or tie rod ends.
• Cracked 0331 Cylinder Head (4.0L Engine) 🔴 High — A casting flaw in the '0331' cylinder head used on 2000-2001 4.0L engines makes it prone to cracking between the #3 and #4 cylinders. This leads to coolant mixing with oil and can cause catastrophic engine failure if not caught early.
• OPDA Failure (2005-2006 4.0L Engine) 🟠 Medium — The Oil Pump Drive Assembly (OPDA) on the last two years of the 4.0L engine can wear prematurely, leading to a 'laughing monkeys' or 'sewing machine' sound. If it fails completely, it can damage the camshaft and cause engine failure.
• Cracked Exhaust Manifold (4.0L Engine) 🟡 Low — The factory exhaust manifolds on the 4.0L engine are prone to cracking over time, causing an exhaust leak that is most noticeable as a ticking sound on a cold start.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: It is strongly recommended to NOT use a used fuel pump module. The labor to drop the fuel tank is significant, and the sending unit is a known wear item. Installing a used part carries a high risk of premature failure, forcing you to do the entire job again.

What to inspect on the donor part:

• Not applicable, avoid used parts for this repair.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a quality Mopar, Bosch, or Delphi unit is highly recommended over generic, unbranded parts to ensure longevity and avoid repeat failures.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the original OEM supplier)
• Delphi

Brands owners have reported issues with on this vehicle:

• Airtex (had a recall for potential fuel leaks on 1997-2004 models)
• Carter (often cited on forums as having lower quality/longevity compared to Bosch/Delphi)
• Spectra Premium (mixed reviews, generally considered a budget option)

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0461 — Related to fuel level sensor performance; often shares the same root causes like a worn resistive strip or damaged wiring as P0463.
• P0462 — Fuel Level Sensor Circuit Low Input; the opposite of P0463, often caused by a short to ground in the same wiring harness or a failure within the sending unit.
• P0331 — While not an OBD-II code itself, the 0331 cylinder head is a known high-severity issue on 2000-2001 4.0L Wranglers that owners may encounter alongside electrical maintenance.
