P0463 on 2016-2022 Nissan Frontier: Fuel Level Sensor Circuit High Causes and Fixes

What's Unique About the 2016-2022 Nissan FRONTIER

The 2016-2022 year range covers two different generations of the Frontier, but this issue is well-documented on the D40 generation (2016-2021) and its platform mates, the Nissan Xterra and Suzuki Equator. Nissan issued a Technical Service Bulletin (NTB22-026) specifically for this and related codes (P0460, P0461, P0462) across the 2016-2022 model years. The TSB advises technicians to replace only the fuel level sensor rather than the entire fuel pump assembly, indicating that isolated sensor failure is a recognized common problem on this platform.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2016-2022 range includes the end of the second generation (D40, 2016-2021) and the start of the third generation (D41, 2022). While the powertrain carried over from 2020, the 2022 model was a major redesign. The provided TSB NTB22-026 explicitly covers up to the 2022 model year, indicating the fuel level sensor issue can affect both generations. The sensor part number 25060-ZS00B is listed for Frontier models from 2005-2021, showing the component's long history on the D40 platform.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge is inaccurate (may be stuck on 'Full' or 'Empty')
• Distance to Empty (DTE) reading is inaccurate or shows '---'
• Low fuel warning light may be on or flashing, even with a full tank
• Running out of fuel unexpectedly

Most Likely Causes

1. Faulty Fuel Level Sensor 🔴 High Probability → Shop Fuel Tank Sending Unit This is a known issue acknowledged by Nissan through TSB NTB22-026, which instructs dealers to replace the sensor independently of the fuel pump for this fault. The sensor's resistive strip can wear out or get contaminated, causing an open circuit and a high voltage reading.
   How to confirm: Access the sensor and test its resistance with a multimeter. The resistance should change smoothly as the float arm is moved. For many Nissan models, the range is approximately 4-6 ohms at full and 73-85 ohms at empty. An infinite reading (OL) indicates an open circuit and a failed sensor.

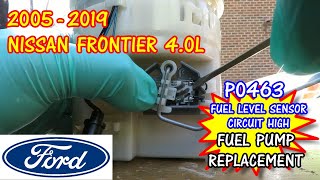

   Typical fix: Replace the fuel level sensor. The sensor is located inside the fuel tank, attached to the fuel pump module. The OEM part number for the D40 generation is commonly 25060-ZS00B.
   Est. part cost: $90-$250
2. Damaged Wiring or Connectors 🟡 Medium Probability Wiring is susceptible to damage from road debris, corrosion, or stress, especially the harness connector on top of the fuel tank and any grounding straps.
   How to confirm: Visually inspect the wiring harness from the fuel tank to the PCM for any signs of damage, corrosion, or loose connections, particularly at the connector on top of the fuel pump assembly. Check for continuity and voltage using a multimeter. A high resistance reading on the ground circuit can also cause this code.
   Typical fix: Repair the damaged section of the wire or clean/replace the corroded connector. Ensure the fuel tank ground strap is clean and secure.
   Est. part cost: $5-$50

Rare But Worth Checking

• Faulty Instrument Cluster: → Shop Instrument Cluster While a faulty gauge cluster can cause incorrect readings, it is less likely to trigger a P0463 code, which originates from the PCM's reading of the sensor circuit. A self-test of the instrument cluster can sometimes help rule this out.
• Faulty Powertrain Control Module (PCM): This is extremely rare and should only be considered after all other possibilities, including the sensor and wiring, have been thoroughly ruled out.

Diagnosis Steps

1. Use an OBD-II scanner to confirm P0463 is the active code and check for any other related codes.
2. Observe the fuel gauge. Is it stuck on full, empty, or fluctuating erratically?
3. Use a scan tool with live data capability to monitor the fuel level sensor voltage. A reading that is stuck high (typically near 5 volts) regardless of the actual fuel level points to an open circuit or faulty sensor.
4. Inspect the wiring harness and connector at the top of the fuel tank. Look for any visible damage, corrosion, or loose pins. Check the fuel tank ground strap for corrosion or looseness.

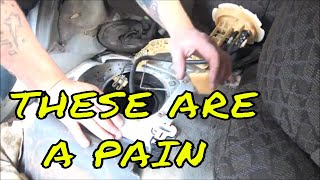

5. If wiring appears intact, the next step is to test the sensor itself. This requires accessing the top of the fuel tank. On the Frontier, this can be accomplished by either dropping the fuel tank or unbolting and lifting/tilting the truck bed for easier top-side access.
6. Disconnect the sensor and use a multimeter set to Ohms to measure its resistance. Manually move the float arm up and down; the resistance reading should change smoothly throughout its range of motion (e.g., ~4-85 Ohms). If the reading is infinite (OL) or doesn't change, the sensor has failed and needs replacement.

Parts You'll Likely Need

• Fuel Level Sensor (OEM #25060-ZS00B) — This is the most common failure point for code P0463 on this vehicle, as confirmed by Nissan's own service bulletin. This part number fits the 2005-2021 Frontier (D40).
  Trusted brands: Nissan Genuine, Dorman, Hitachi, TRQ
  OEM price range: $92-$135
  Aftermarket price range: $70-$120

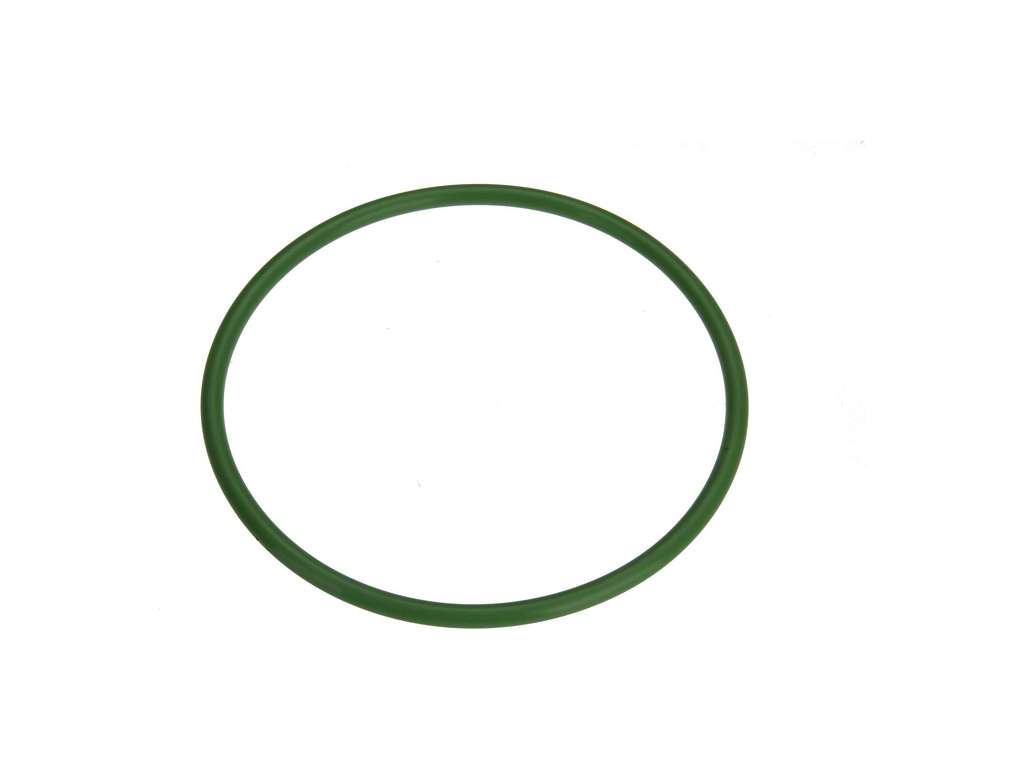

• Fuel Pump Tank Seal / Gasket (OEM #17342-EA000) — This seal should always be replaced when the fuel pump module is removed from the tank to prevent fuel leaks and vapor smells.
  Trusted brands: Nissan Genuine
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0460 — This code relates to the Fuel Level Sensor 'A' Circuit in general and often appears with more specific circuit-high or circuit-low codes. It is listed in the same TSB from Nissan.
• P0461 — This code indicates an issue with the sensor's range or performance, which can be caused by the same failing component and is also covered by TSB NTB22-026.
• P0462 — This is the opposite of P0463, indicating a 'Circuit Low' condition. Seeing both could suggest an intermittent wiring problem or a failing sensor that is fluctuating wildly. It is also part of TSB NTB22-026.

Technical Service Bulletins (TSBs) & Recalls

• NTB22-026: Service Information for Fuel Gauge Inaccurate with DTCs Stored in ECM.

Platform-Specific Known Issues

• Nissan Technical Service Bulletin NTB22-026 was issued on April 5, 2022, for 2016-2022 models. It states that if DTC P0463 (or P0460, P0461, P0462) is stored due to an incorrect signal from the fuel level sensor, the sensor should be replaced separately, not the entire fuel pump assembly.

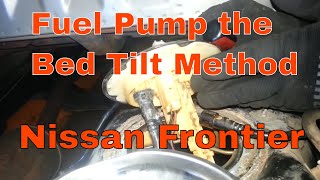

• A common repair shortcut for Frontier owners is to unbolt the truck bed and tilt it up or slide it back rather than dropping the entire fuel tank, which can make accessing the fuel pump assembly much easier.
• Owners on forums like Nissan Frontier Forums have discussed the fuel gauge sticking or giving erratic readings for years, confirming this is a long-standing issue with the platform.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: Approximately 4.3-6.3 Ohms when full, and 73.3-84.8 Ohms when empty.. Failure: An infinite (OL) reading, or resistance that does not change smoothly as the float arm is moved.
• Body Ground Voltage Drop — expected: 0.10 to 0.20 volts, with a maximum acceptable limit of 0.50 volts.. Failure: A reading higher than 0.50 volts indicates a poor ground connection that needs to be cleaned or repaired.

Scan Tool Commands That Help

• Nissan CONSULT: Instrument Cluster Self-Diagnosis / Gauge Test — To command the fuel gauge to sweep through its range, verifying if the gauge itself and its communication with the PCM are working. This helps isolate the fault to the sending unit or wiring if the gauge responds correctly to the command.

Wiring & Ground Locations

• Main Body Ground — On the passenger-side inner fender panel. Nissan uses a design where the negative battery cable insulation is stripped and the exposed copper is strapped directly to the body.. A corroded or loose main body ground can cause a variety of electrical issues, including incorrect sensor readings. Verifying this ground has low voltage drop (under 0.50V) is a critical first step in diagnosing electrical faults.
• Fuel Pump Module Connector — On top of the fuel tank, accessible by lifting the truck bed or through a service panel under the rear seat on some Crew Cab models.. This is the primary connection point for the fuel level sensor. Corrosion or damage to the pins and wires at this connector is a common cause of P0463. The signal and ground wires for the sensor must be tested here.

Real Owner Repair Stories

• Innova Repair Solutions (2019 Nissan Altima (similar system logic)) — Malfunction Indicator Lamp (MIL) on with DTC P0463 stored.
  ❌ Tried (didn't work) Initial diagnosis confirmed the code and symptoms.
  ✅ What actually fixed it The confirmed fix was to replace the Fuel Level Sensor. The diagnostic procedure involved checking voltages and resistance at the sensor connector, which ultimately pointed to a faulty sensor.

OEM Part Supersession History

• 25060-ZP00A, 25060-ZS00A, 25060-ZZ00A → 25060-ZS00B — Standard part evolution and consolidation.
  Heads up: Part 25060-ZS00B is specified for the 2005-2021 Nissan Frontier (D40 generation) and its platform mates like the Xterra and Pathfinder of the same era.

Model Year Variations Within This Range

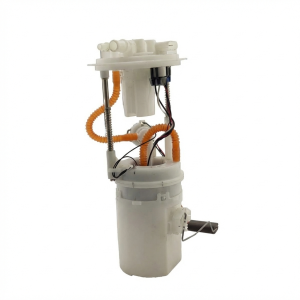

• 2022: The 2022 model year marked a major redesign (D41 generation). While the 3.8L V6 engine and transmission carried over from 2020-2021, the frame, interior, and electronics were heavily updated. This includes a completely new interior with a larger 8-inch or 9-inch touchscreen, a new instrument cluster (combination meter), and updated NissanConnect services. While the TSB covers the 2022 model, the physical part numbers for the sending unit and the diagnostic procedures for the new combination meter may differ from the prior D40 generation.
