P0480 on 2016-2019 Ford F-450 SD: Cooling Fan Circuit Causes and Fixes

What's Unique About the 2016-2019 Ford F-450 SD

The 2016-2019 F-450 Super Duty with the 6.7L Power Stroke diesel uses a sophisticated, electronically controlled viscous fan clutch. Unlike a simple on/off electric fan, this system allows the PCM to vary the fan speed precisely based on inputs from the Engine Coolant Temperature (ECT) sensor, A/C pressure, and vehicle speed. However, this complexity introduces specific failure points. The fan clutch itself is a very common failure item, often getting stuck fully engaged (causing a loud roar 🎬 Watch: What a stuck fan clutch sounds like on a 6.7L.) or failing to engage (leading to overheating under load). Ford has issued technical service bulletins, like SSM 47999, acknowledging these issues and advising technicians to perform specific electrical tests to avoid unnecessarily replacing the fan clutch, as wiring problems are also a frequent cause.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2016 model year is the last year of the third-generation Super Duty (2011-2016), while 2017-2019 models are part of the fourth generation (2017-2022). While both generations use the 6.7L Power Stroke engine and a similar electronically controlled fan clutch, part numbers and specific wiring harness routing may differ slightly. The fundamental causes and diagnostic procedures for P0480 are the same across this year range. Notably, dually (DRW) trucks like the F-450 may use a different fan clutch calibrated for higher cooling demands than single rear wheel (SRW) trucks.

Symptoms You May Notice

• Engine cooling fan is stuck on high speed, creating a loud roar that sounds like a 'jet engine' and changes with engine RPM.
• Engine overheating, especially at low speeds, in traffic, or when towing a trailer.
• Check Engine Light is illuminated.
• Reduced fuel economy due to the engine being under constant load from a fan that is stuck on.
• A/C blows warm air when the vehicle is at idle or in stop-and-go traffic.

Most Likely Causes

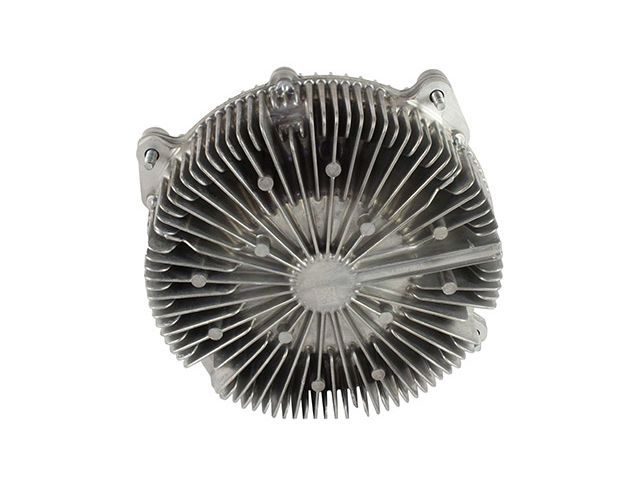

1. Failed Electronic Fan Clutch 🔴 High Probability The electronically controlled viscous fan clutch on the 6.7L Power Stroke is a known high-failure item. It can fail either mechanically (seized bearing, fluid leakage) or electrically (internal circuit fault), leading to it being stuck on or completely inoperative.
   How to confirm: With the engine off, check for excessive play or wobble in the fan blade assembly, which indicates a bad bearing. Use a bi-directional scan tool to command the fan speed (duty cycle) and see if it responds. If the fan roars constantly regardless of temperature or doesn't engage when the engine gets hot, the clutch has likely failed.
   Typical fix: Replace the fan clutch assembly. This requires a special fan clutch wrench set, which can often be rented from auto parts stores.
   Est. part cost: $250-$450
2. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness leading to the fan clutch is routed near moving parts and hot surfaces. It can rub against the lower radiator support, fan shroud, or even the serpentine belt if it comes loose from its retaining clips, causing chafing that leads to a short or open circuit.
   How to confirm: Visually inspect the entire length of the wiring from the PCM to the fan clutch connector. Pay close attention to where the harness is secured to the fan shroud and where it passes near the belt and pulleys. Unplug the connector and check for corrosion, melted plastic, or damaged pins.
   Typical fix: Repair the damaged section of the wire or replace the connector pigtail. A user on Ford-Trucks.com reported their connector came out of its hold-down bracket and was eaten by the serpentine belt, requiring a new connector to be spliced in. Secure the harness away from any sharp edges or hot components.
   Est. part cost: $20-$60 for a pigtail connector.
3. Poorly Seated PCM Connector (2018 models) ⚪ Low Probability TSB SSM 47656 specifically calls out that 6.7L engines built between Dec 1, 2017, and Aug 1, 2018, may have a PCM connector (C1232B) that was not properly seated from the factory, causing P0480 and other codes.
   How to confirm: This is a very specific issue for a limited production run. If your truck falls into this build date range and has P0480 along with other seemingly unrelated codes (like P2122, U0401, etc.), inspect the C1232B connector at the PCM for proper seating.
   Typical fix: Ensure the PCM connector is fully seated and locked in place.
   Est. part cost: $0

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): This is rare. The PCM should only be considered a cause after all other possibilities, including the fan clutch and all related wiring, have been thoroughly tested and ruled out. TSB SSM 47999 advises technicians to follow updated diagnostic procedures to avoid unnecessarily replacing components.
• Faulty Engine Coolant Temperature (ECT) Sensor: While less common for this specific code, a faulty ECT sensor can provide incorrect data to the PCM, leading to improper fan control commands. If the PCM receives a false overheating signal, it may command the fan to run at full speed constantly. This is usually diagnosed by comparing the ECT reading on a scan tool to the actual engine temperature.

Diagnosis Steps

1. Check for other DTCs. Codes like P0494, P0529, or P0691 can help pinpoint the nature of the fault.
2. Perform a visual inspection. With the engine off and cool, check the fan for wobble or excessive front-to-back play, which indicates a bad bearing in the clutch. Check for oily streaks on the clutch body, indicating a fluid leak.
3. Inspect the wiring harness. Carefully check the harness running to the fan clutch for any signs of chafing, melting, or corrosion. A common chafe point is on the lower radiator support. Also check where the harness clips to the fan shroud and ensure it hasn't fallen into the serpentine belt.
4. Use a bi-directional scan tool. Command the fan on and off and at various speeds (PWM duty cycle). If the fan does not respond, the problem is likely the clutch or the wiring. If it responds but the code remains, the issue may be in the feedback portion of the circuit.
5. Test the circuit. If you have access to a wiring diagram, use a multimeter to check for power (12V), ground, and the PWM signal at the fan clutch connector. The 5-wire connector should have power, ground, a 5V reference, the fan speed signal wire, and the fan control variable (duty cycle) wire. This confirms if the clutch is receiving the correct signals from the PCM.
6. If all wiring and signals are good, the fan clutch itself is the most likely culprit.

Parts You'll Likely Need

• Engine Cooling Fan Clutch (OEM #HC3Z-8A616-B) — This is the most common failure point for code P0480 on the 6.7L Power Stroke. It fails either by seizing on (causing a roar) or failing to engage (causing overheating). Note that this part number supersedes FC3Z-8A616-B and FC3Z-8A616-A.
  Trusted brands: Motorcraft
  OEM price range: $350-$450
  Aftermarket price range: $250-$350

Related Codes That Often Appear With This One

• P0494 — This code relates to 'Fan Speed Low.' It often appears with P0480 when the fan is failing to engage properly. It is explicitly mentioned in TSB SSM 47999.
• P0529 — This code indicates an issue with the 'Fan Speed Sensor Circuit Intermittent.' Both P0480 and P0529 are listed in TSB SSM 47999 as being related to an inoperative or always-on fan.
• P0691 / P0692 — These codes ('Fan 1 Control Circuit Low' and 'Fan 1 Control Circuit High') are also mentioned in TSB SSM 47999 and point to specific electrical faults within the fan control circuit.

Technical Service Bulletins (TSBs) & Recalls

• SSM 47999: 6.7L - Cooling Fan Stays On Or Is Inoperative - DTCs P0480, P0494, P0495, P0529, etc.
• SSM 47656: 6.7L - Illuminated MIL With Various DTCs Due To Unseated PCM Connector

Platform-Specific Known Issues

• TSB SSM 47999: Acknowledges that on 2016-2019 models with the 6.7L engine, the cooling fan may stay on at all times or be inoperative, triggering codes like P0480. It directs technicians to use updated online pinpoint tests in the PC/ED to aid in diagnosis and prevent unnecessary fan clutch replacement.
• TSB SSM 47656: Notes that on some 2018 models with the 6.7L engine (built from 1-Dec-2017 to 1-Aug-2018), P0480 can be one of several codes caused by a PCM connector (C1232B) that is not properly seated.
• Wiring Harness Chafing: Owners on forums frequently report that the fan clutch wiring harness can rub through on the lower radiator support or get damaged by the serpentine belt if it comes loose from its retaining clip.

Mechanic-Grade Diagnostic Values

• Fan Clutch Solenoid Internal Resistance — expected: 6.0 to 10.0 Ohms. Failure: A reading outside this range indicates a faulty fan clutch.
• Fan Clutch Solenoid Control Circuit to Ground — expected: Greater than 10,000 Ohms. Failure: A lower reading indicates a short to ground in the wiring or the clutch itself.
• Voltage at Fan Clutch Connector (VPWR circuit) — expected: Greater than 10.5 Volts (battery voltage). Failure: Low or no voltage indicates a problem with the power supply from the fuse (F3, 20A).
• Scan Tool PID: Desired vs. Actual Fan Speed (Stuck Fan) — expected: Desired Fan Speed: ~0 RPM at idle, no load. Actual Fan Speed: ~325 RPM.. Failure: If Desired Fan Speed is 0 RPM but Actual Fan Speed is significantly higher (e.g., 850+ RPM at idle), the fan clutch is mechanically stuck on.
• Fan Clutch Harness to PCM Resistance — expected: Less than 5.0 Ohms. Failure: Higher resistance indicates corrosion or a break in the wire between the fan connector and the PCM.

Hidden / Shadow Codes Worth Checking

• No DTC / No Check Engine Light: A common failure mode for the fan clutch is to mechanically seize, causing it to be stuck on and produce a loud 'roaring' sound at all times. The PCM's self-test logic only checks for a fan speed that is too low when commanded on; it does not have a test for a fan speed that is too high when commanded off. Therefore, a mechanically stuck clutch will often not set P0480 or any other trouble code. (see via This condition is diagnosed by symptom (loud, constant fan noise) and by comparing 'Desired Fan Speed' vs 'Actual Fan Speed' PIDs on a scan tool.)

Scan Tool Commands That Help

• FORScan or equivalent Ford IDS: PID Monitoring: FAN_SPEED (Actual RPM), FANDC (Commanded Duty %), FAN_DES (Desired RPM) — Use these PIDs to compare what the PCM is commanding the fan to do versus what the fan speed sensor is reporting. A mismatch is the primary indicator of a fault.
• FORScan or equivalent Ford IDS: Bidirectional Control: 'Viscous Fan Pulse Width Modulated Control Test' or 'Fan Var %' — This active command allows you to manually control the fan duty cycle with a slider (e.g., 0% to 100%) to see if the fan responds. If you command 100% and the fan speed doesn't increase, or command 0% and it doesn't slow down, it helps isolate the fault to the wiring or the clutch itself. Note that the fan may take up to 2 minutes to fully respond to commands.

Wiring & Ground Locations

• Fan Clutch Connector (C1580) — At the electronic fan clutch, routed near the fan shroud.. This 5-pin connector is the primary interface for the fan. Pin functions are: Pin 1 (Fan Speed Sensor Signal), Pin 4 (Solenoid Control), Pin 5 (Solenoid Power, 12V), Pin 6 (Sensor VREF), and a ground wire. Damage here is a direct cause of P0480.
• G101 — On the rear right-hand side of the 6.7L engine block.. This is a primary engine ground. A poor connection here can cause a variety of sensor and actuator issues, including erratic fan control.
• G104 — Located in the left rear of the engine compartment.. This is a key chassis ground in the engine bay. A corroded or loose G104 can cause floating grounds and unpredictable electrical behavior for components controlled by the PCM.
• Fan Clutch Harness Retainer — A plastic clip/bracket that secures the engine-side of the fan clutch harness, often near the fan clutch itself.. If this retainer fails, the harness can fall into the path of the serpentine belt, which will quickly destroy the connector and wiring, causing an immediate P0480 fault.

Real Owner Repair Stories

• Ford Truck Enthusiasts Forum user (2011+ Ford F-Series with 6.7L Power Stroke) — Check Engine Light with code P0480, A/C compressor clutch cycling erratically.
  ❌ Tried (didn't work) Initial visual inspection of the fan clutch pigtail showed no issues., Servicing the A/C system.
  ✅ What actually fixed it The engine-side harness connector, which plugs into the fan clutch pigtail, had popped out of its hold-down bracket. It was rubbing on the serpentine belt, which had worn through the side of the connector and damaged the internal wires. Repairing this connector resolved the P0480 code.

OEM Part Supersession History

• FC3Z-8A616-A (also YB-3174) → FC3Z-8A616-B — Part revision by manufacturer.
• FC3Z-8A616-B → HC3Z-8A616-B — Part revision by manufacturer. This is the most current number commonly cited for the 2016-2019 6.7L Power Stroke.
  Heads up: Be cautious of similar part numbers like LC3Z-8A616-B (for 7.3L gas) or 7C3Z-8A616-B (for 6.8L/5.4L gas engines) as they are for different applications and will not work correctly.

Model Year Variations Within This Range

• 2017-2019: The 2017 model year marked the beginning of the fourth-generation Super Duty. While the 6.7L engine is largely a carryover from the 2015-2016 update, there were minor tuning and injector differences. The core electronically controlled fan clutch system and its diagnosis for P0480 remain fundamentally the same, but wiring harness routing and connector locations may have minor differences due to the new chassis and body.
