P0481 on 2014 Ram 2500: Cooling Fan Circuit Causes and Fixes

What's Unique About the 2014-2014 Ram 2500

What's unique to the 2014 Ram 2500 is a well-documented software issue. Ram issued multiple Technical Service Bulletins (TSBs) stating that the P0481 code could be triggered due to a PCM software glitch, with no actual hardware defect present. 🎬 Watch: Understanding the P0481 code and circuit control This makes it crucial to check the vehicle's service history for a PCM update before replacing any parts. Additionally, the 6.7L Cummins engine uses a sophisticated and expensive electronically controlled fan clutch, which is a common failure point for this code when a true hardware problem exists. This is not a simple on/off electric fan found in many other vehicles.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine overheating, especially under load or at low speeds
• Air conditioning performance is poor or blows warm at idle
• Cooling fan is excessively loud and runs constantly at full speed (less common failure mode)
• Cooling fan does not engage or speed up when the engine gets hot (most common)
• A roaring sound from the engine bay that does not change with engine RPM

Most Likely Causes

1. Powertrain Control Module (PCM) Software Glitch 🔴 High Probability Manufacturer TSBs #18-112-15, #18-072-14, and #18-025-14 REV. A specifically call out a software issue causing a false P0481 code on 2014 models with no actual hardware fault.
   How to confirm: Contact a Ram dealership with your Vehicle Identification Number (VIN) to determine if the software updates specified in the TSBs have been performed. The dealer's wiTECH scan tool can also read the current software version.
   Typical fix: The dealership must update or 'reflash' the PCM with the corrected software. This is not a DIY repair as it requires proprietary tools.
   Est. part cost: $0-$200
2. Faulty Electronically Controlled Fan Clutch 🟡 Medium Probability This component on the 6.7L Cummins contains internal electronics and a solenoid that can fail, leading to an open or shorted circuit condition. It is a known high-failure item after several years of service.
   How to confirm: After confirming the PCM software is up-to-date, use a capable bidirectional scan tool to command the fan speed from 0% to 100%. If the fan does not respond as commanded (e.g., no change in sound or speed) and the wiring is confirmed to be good, the clutch is faulty. A visual sign is a fan that is always fully engaged (very loud) or never engages at all.

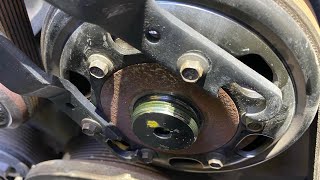

   Typical fix: Replace the fan clutch assembly. 🎬 See this walkthrough for removing a Gen 4 fan clutch The OEM part is Mopar 52014729AC.
   Est. part cost: $298-$564
3. Damaged Wiring or Connectors 🟡 Medium Probability The wiring harness leading to the fan clutch is located in a harsh environment. A common cause of damage is a serpentine belt failure, which can whip around and rip the connector off the fan clutch. The connector pins can also corrode or the wires can chafe over time.
   How to confirm: Visually inspect the entire length of the wiring harness from the fan clutch connector back to the main loom. Pay close attention to the connector itself for broken plastic, corroded pins, or pushed-out terminals. A common failure point is the connector itself becoming brittle and breaking.
   Typical fix: Repair the damaged section of the harness or, more commonly, replace the connector pigtail. The Mopar pigtail is part number 68052582AB. Aftermarket pigtails like Fleece FPE-HAR-CUMM-CF-1322 are also available.
   Est. part cost: $25-$75
4. Faulty Cooling Fan Relay ⚪ Low Probability → Shop Engine Cooling Fan Blade This cause is primarily applicable to the gas engine (5.7L/6.4L HEMI) models which use a different, relay-based electric fan system, not the electronically controlled viscous clutch of the 6.7L Cummins. The relay is an electromagnetic switch that can wear out.
   How to confirm: Locate the relay in the under-hood fuse box (TIPM). You can often swap it with an identical relay from a non-critical system (like the horn) to see if the fan begins to function correctly.
   Typical fix: Replace the faulty relay.
   Est. part cost: $10-$40

Rare But Worth Checking

• Faulty Totally Integrated Power Module (TIPM): → Shop Fuse Box The TIPM (fuse box) houses the control circuitry for the fan. While some owners may suspect the TIPM, and it can fail, it is an uncommon and expensive failure for this specific code. All other causes, especially software, the fan clutch itself, and wiring should be exhaustively ruled out first before condemning the TIPM.

Diagnosis Steps

1. Check for TSBs: The first and most important step for this specific vehicle and code. Contact a Ram dealer with your VIN to see if TSBs #18-112-15, #18-072-14, or #18-025-14 REV. A apply and if the software update has been performed.
2. Perform Software Update (if needed): If the update has not been done, have the dealer reflash the PCM. This resolves a high percentage of P0481 cases on this truck. Expect a cost of $100-$200 for labor.
3. Visual Inspection: If software is not the issue, thoroughly inspect the wiring harness and connector going to the fan clutch. Look for signs of a past serpentine belt failure, chafing against other components, melting from heat, or green/white corrosion inside the connector pins.
4. Scan Tool Command: Use a bidirectional scan tool to command the cooling fan to various speeds (e.g., 25%, 50%, 100%). Listen for changes in fan noise and observe its operation. If it doesn't respond, proceed with electrical testing.
5. Test the Circuit: Unplug the fan clutch connector. Using a multimeter and a vehicle-specific wiring diagram, check for battery voltage (12V+), a good ground, and the PWM signal from the PCM. The PWM signal wire should show a fluctuating voltage or duty cycle reading on a multimeter when the fan speed is commanded by the scan tool.
6. Test the Component: If the wiring provides the correct power, ground, and a changing signal, but the fan clutch does not operate correctly, the fan clutch itself is condemned and should be replaced.

Parts You'll Likely Need

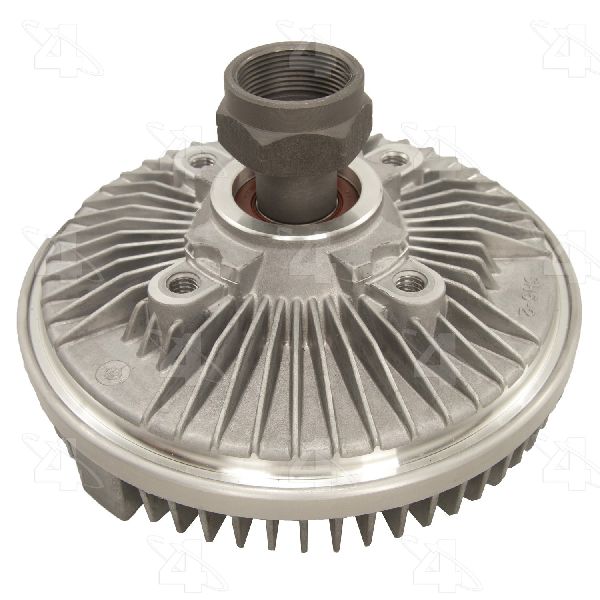

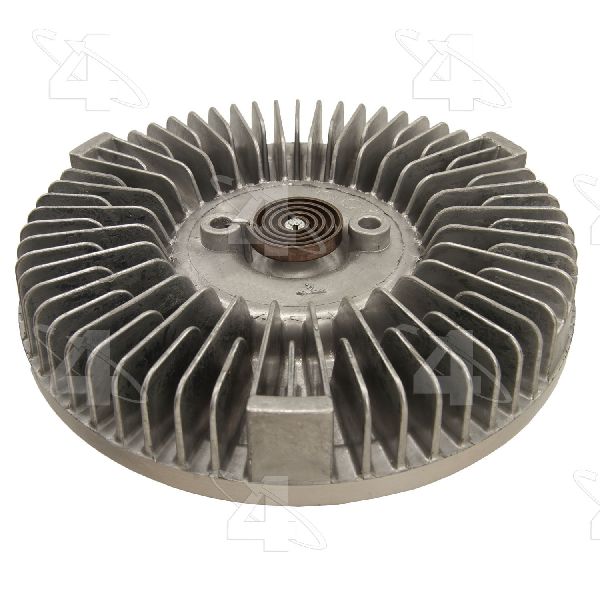

• Electronically Controlled Viscous Fan Clutch (OEM #52014729AC) — This is the most common hardware component to fail for this code on the 6.7L Cummins engine after the software issue is ruled out. The original part 52014729AA was superseded by 52014729AB, and then by the current 52014729AC.
  Trusted brands: Mopar, Hayden, GMB, SKP, Four Seasons
  OEM price range: $390-$600
  Aftermarket price range: $250-$450
• Fan Clutch Connector Pigtail (OEM #68052582AB) — The connector on the harness is prone to damage from serpentine belt failures or becoming brittle from heat cycles. Replacing the pigtail is often necessary to ensure a good connection to the new fan clutch.
  Trusted brands: Mopar, Fleece Performance Engineering, Dorman
  OEM price range: $50-$75
  Aftermarket price range: $25-$50
• Cooling Fan Relay — For Hemi gas engines (5.7L/6.4L), a simple relay failure can cause this code and is an inexpensive part to replace during diagnosis. Not applicable to the 6.7L Cummins for this specific function.
  Trusted brands: Mopar, Standard Motor Products
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0480 — P0480 refers to 'Fan 1 Control Circuit'. On systems with multiple fans or complex controls, a fault in one part of the fan system can sometimes trigger related codes.
• P0483 — P0483 is a 'Cooling Fan Rationality Check Malfunction', which means the PCM is seeing a difference between the commanded fan speed and the actual fan speed. This often appears alongside control circuit codes like P0481 when the fan clutch is failing mechanically or electronically.
• P0694 — P0694 stands for 'Fan 2 Control Circuit High'. This code can appear with P0481 and often points towards a short to voltage in the control circuit or a faulty fan clutch assembly. Some basic code readers may not see this secondary code, but a dealer's scan tool will.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #18-112-15: Addresses software to correct Malfunction Indicator Lamp (MIL) illumination with DTC P0481.
• Bulletin #18-072-14: Mentions software to prevent MIL illumination with no defect found for Diagnostic Trouble Code (DTC) P0481.
• Bulletin #18-025-14 REV. A: Also cites a software correction for a false P0481 code.

Platform-Specific Known Issues

• Software Update Required: TSB #18-112-15, #18-072-14, and #18-025-14 REV. A were released by Ram to address a software problem that would incorrectly set a P0481 DTC. The fix is a PCM reflash per

Mechanic-Grade Diagnostic Values

• Fan Clutch Connector Pin 1 Voltage (Key On, Engine Off) — expected: ~12V (Battery Voltage). Failure: 0V or significantly low voltage indicates a power supply issue.
• Fan Clutch Connector Pin 2 to Chassis Ground Resistance — expected: < 1 Ohm. Failure: High resistance or an open circuit (OL) indicates a bad ground connection.
• Fan Clutch Connector Pin 5 Voltage (PWM Signal) — expected: Fluctuating 0-5V square wave signal when fan speed is commanded by a scan tool.. Failure: No voltage, steady voltage, or a signal that doesn't change with commands points to a wiring or PCM issue.
• Fan Clutch Connector Pin 6 Voltage (Fan Speed Sensor) — expected: A signal that varies with fan speed, providing feedback to the PCM.. Failure: No signal or an erratic signal when the fan is known to be spinning can indicate a faulty sensor within the clutch.

Scan Tool Commands That Help

• wiTECH (Chrysler/Ram Dealer Tool): Cooling Fan Speed Actuator Test — This is a critical diagnostic step after verifying power and ground. It allows the technician to bypass temperature sensors and directly command the PCM to send a PWM signal to the fan clutch, confirming if the clutch and its control circuit are responding.

Wiring & Ground Locations

• Fan Clutch Connector (C135) — Directly on the electronically controlled viscous fan clutch, at the front of the engine.. This is the primary connection point for all power, ground, and control signals for the fan clutch. It is a common point of failure due to damage from serpentine belts, heat, and vibration.
• G102 — On the driver's side of the engine block, below the intake horn.. This is a major engine ground point for multiple sensors and actuators. A loose or corroded connection here can cause a variety of intermittent electrical issues, including problems with the fan control circuit.
• Harness Chafe Point — The fan clutch wiring harness is often routed near the A/C compressor lines and brackets.. Vibrations can cause the harness to rub against a bracket or A/C line, eventually wearing through the insulation and causing a short or open circuit, which directly triggers P0481.

Real Owner Repair Stories

• cumminsforum.com user report (2014 Ram 2500 6.7L Cummins) — Check Engine Light with codes P0480 and P0481.
  ❌ Tried (didn't work) Replaced the fan clutch assembly.
  ✅ What actually fixed it Found the fan clutch wiring harness had chafed through on a bracket for the A/C compressor lines. Repairing the damaged wires resolved both codes.
• hdrams.com user report (2014 Ram 2500 6.7L Cummins) — Check Engine Light with P0481 immediately after a serpentine belt failure.
  ✅ What actually fixed it The failed serpentine belt had physically ripped the connector off the fan clutch. Replacing the connector pigtail (Mopar P/N 68052582AB) and plugging it into the fan clutch fixed the issue.
• RamForum.com user report (2014 Ram 1500 5.7L Hemi (Gas Engine)) — Check Engine Light with P0481, fan not working correctly.
  ❌ Tried (didn't work) Swapping relays., Checking fuses and wiring.
  ✅ What actually fixed it The user suspected the TIPM (fuse box) was faulty. They ordered a remanufactured TIPM, installed it, and the P0481 code was resolved and the fan began functioning correctly. This highlights a potential, though less common, failure on gas models.

OEM Part Supersession History

• 52014729AA → 52014729AB, then 52014729AC — Standard part revision and improvement by the manufacturer.
  Heads up: The newer part numbers are direct, backward-compatible replacements for the older ones. There are no known incompatibility issues when using the latest 'AC' version on a 2014 model.
