P0496 on 2003-2007 Cadillac CTS: Causes and Fixes for EVAP High Purge Flow

What's Unique About the 2003-2007 Cadillac CTS

The first-generation Cadillac CTS, like many GM vehicles from the 2000s, is highly prone to this specific failure. The vapor canister purge solenoid is a known weak point. The good news is that on these models, the part is very accessible, located on the top driver's side of the engine after removing the decorative engine cover, making it a straightforward repair for most owners.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty starting the engine, long crank times, or stalling immediately after refueling.
• Rough, unstable, or surging idle.
• Slightly decreased fuel economy
• A faint smell of fuel
• Failed emissions test.

Most Likely Causes

1. Faulty Vapor Canister Purge Solenoid/Valve 🔴 High Probability → Shop Vapor Canister This component is a very common failure item on GM vehicles from this period, especially those with the 3.6L V6 engine. The internal valve mechanism fails and gets stuck in the open position, creating a constant vacuum leak.
   How to confirm: With the engine running, disconnect the EVAP line from the purge solenoid. If you can feel vacuum suction from the port on the solenoid with your finger, it is stuck open and must be replaced. This is the definitive test.
   Typical fix: Replace the vapor canister purge solenoid. It is located on the top, driver's side of the engine, under the plastic engine cover. It is typically held on by a single 10mm bolt. The repair can be done in under 15 minutes. 🎬 See this replacement walkthrough for the 2.8L engine.
   Est. part cost: $25-$75

Rare But Worth Checking

• Faulty Fuel Tank Pressure (FTP) Sensor: → Shop Fuel Tank The FTP sensor tells the computer how much vacuum or pressure is in the EVAP system. If the sensor is faulty and provides an incorrect reading, it can trick the computer into setting a P0496 code, even if the purge valve is working correctly. This is much less common than the valve itself failing.
• Cracked or Disconnected EVAP Hose: A crack or disconnection in one of the EVAP system hoses, particularly between the purge solenoid and the intake manifold, can create a vacuum leak that might trigger this code. A smoke test is the best way to find such a leak.

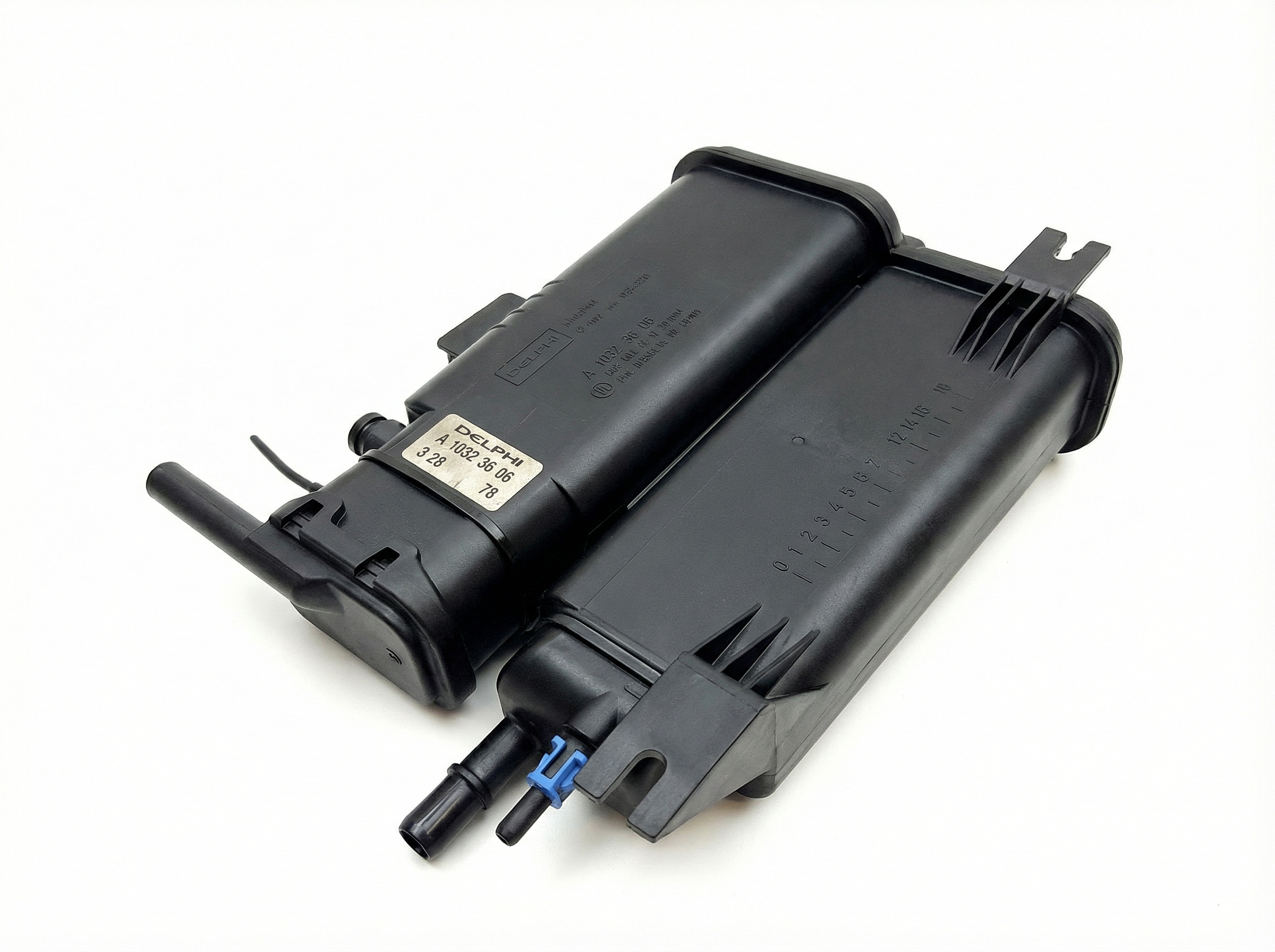

• Blocked EVAP Canister: → Shop Vapor Canister If the charcoal canister becomes saturated with fuel or the filter becomes clogged with debris, it can cause abnormal flow and pressure issues within the EVAP system, potentially leading to a P0496 code.

Diagnosis Steps

1. Verify the Check Engine Light is on and code P0496 is present using an OBD-II scanner.
2. Confirm the primary symptom: Does the car have trouble starting immediately after refueling? If yes, the purge valve is the prime suspect.
3. Remove the plastic engine cover by first unscrewing the oil filler cap, then lifting the cover off. Replace the oil cap to prevent debris from entering the engine.
4. Locate the vapor canister purge solenoid on the top, driver's side of the engine.
5. Start the engine and let it idle.
6. Disconnect the electrical connector from the solenoid.
7. Carefully disconnect the vapor line that runs from the solenoid towards the back of the car. Place your finger over the port on the solenoid where the hose was connected.
8. If you feel suction, the valve is stuck open and has failed. It needs to be replaced. This is the most common outcome.
9. If there is no suction, the problem may lie with the Fuel Tank Pressure (FTP) sensor, wiring, or a different system leak. At this point, more advanced diagnostics with a professional scan tool or a smoke machine may be needed.

Parts You'll Likely Need

• Vapor Canister Purge Solenoid / Valve (OEM #12597567) — This is the most common failure point for code P0496 on this vehicle. It gets stuck open, causing uncommanded vapor flow.
  Trusted brands: ACDelco (OEM), Dorman, Standard Motor Products (SMP)
  OEM price range: $45-$70
  Aftermarket price range: $20-$50

Related Codes That Often Appear With This One

• P0171 — System Too Lean (Bank 1). A stuck-open purge valve creates a vacuum leak, allowing unmetered air and fuel vapor into the intake, which can cause a lean condition.
• P0174 — System Too Lean (Bank 2). Similar to P0171, the vacuum leak affects both cylinder banks on the V6 engine.
• P0442 — Small EVAP Leak. It is very common to see P0496 and P0442 together, as the stuck-open purge valve is interpreted by the system as both an improper flow condition and a small leak.
🎬 See how these multiple codes are fixed by finding the vacuum leak.

Technical Service Bulletins (TSBs) & Recalls

• GM Special Coverage N192210240: While this specific TSB applies to later model years (e.g., 2016-2017 Chevrolet Caprice), it addresses the exact same P0496 failure from a stuck-open purge valve and extends the warranty to 10 years/120,000 miles. This highlights GM's acknowledgement of the high failure rate of this part across multiple platforms.
• TSB Bulletin #PIP5634: Although issued for different Cadillac models like the XT4, this manufacturer bulletin notes that technicians may find DTC P0496 set in the ECM and advises that diagnostics should be completed to determine if the code is the result of an air leak in the purge system.

Platform-Specific Known Issues

• Owner Repair Experience: Hard Start After Fueling: Numerous owners in forums and videos report the classic symptom of the car cranking excessively or stalling only after filling the gas tank. 🎬 Watch: How a stuck valve causes stalling after refueling. They confirm that replacing the purge solenoid (a 10-15 minute job) completely resolves both the starting issue and the P0496 code.
• DIY Tip: Removing the Engine Cover: To access the purge valve, the plastic engine cover must be removed. This is done by first unscrewing the oil filler cap, lifting the cover up and off, and then temporarily putting the oil cap back on to prevent anything from falling into the engine while you work.

Mechanic-Grade Diagnostic Values

• Fuel Tank Pressure (FTP) Sensor Voltage — expected: Approximately 1.5 volts with the fuel cap removed (atmospheric pressure).. Failure: A voltage reading significantly different from 1.5V with the tank open to atmosphere suggests a faulty FTP sensor or wiring issue.
• EVAP Purge Solenoid Electrical Test — expected: A 'click' should be heard when 12V power and ground are applied to the two pins on the solenoid's connector.. Failure: No click indicates a dead solenoid. However, a click does not guarantee the valve isn't mechanically stuck; the finger vacuum test is more definitive for a stuck-open failure.

Scan Tool Commands That Help

• Tech2 / Professional Scan Tool: EVAP System Seal / Service Bay Test — This command is used to manually close the EVAP canister vent solenoid, sealing the system. This allows a technician to monitor the Fuel Tank Pressure (FTP) sensor for vacuum decay or to perform a smoke test without the vent valve being open.
• Tech2 / Professional Scan Tool: Purge/Seal — Allows a technician to command the purge solenoid ON and OFF to verify its operation while monitoring system pressure, confirming if the valve is responding to ECM commands.

Wiring & Ground Locations

• G105 — On the right side of the engine compartment for 2.8L & 3.6L models.. This is a primary engine compartment ground. While not directly tied to the purge solenoid circuit in most diagrams, a poor ground here can cause erratic behavior in various engine sensors and actuators controlled by the ECM, potentially leading to incorrect diagnostic readings.
• Purge Solenoid Connector — On the purge solenoid itself, top driver's side of the engine.. This 2-pin connector provides power and ground to the solenoid. The terminals are where voltage and resistance tests are performed. It has a female oval shape.

Real Owner Repair Stories

• CaddyInfo Cadillac Forum (2006 Cadillac CTS) — Check Engine Light with code P0496.
  ❌ Tried (didn't work) Clearing the code (it returned).
  ✅ What actually fixed it The user was advised that the issue is likely a sticking EVAP canister purge solenoid valve, which is the common fix for this intermittent code.
• YouTube - P0496 EVAP Code FIX (2007 Cadillac) (2007 Cadillac) — P0496 code returned immediately after repair, rough idle.
  ❌ Tried (didn't work) Replacing the EVAP purge solenoid valve.
  ✅ What actually fixed it The actual cause was a clogged vapor canister (Dorman 911-149). The technician noted that a previously failed-open purge valve may have allowed oil or debris to travel down the line and contaminate the canister, causing a restriction. Replacing the canister resolved the code and rough idle.

"I Checked Everything" — The Actual Cause

• In some cases, a smoke test may not reveal a leak, but the code P0496 persists. This can happen if the vapor canister is internally restricted or saturated with fuel/oil. The system holds pressure, but flow is impeded, which can still trigger flow-related diagnostic faults under certain conditions. A technician in one video diagnosed this by removing the canister and finding it was contaminated with oil after a purge valve replacement didn't fix the issue.

When the Usual Fixes Don't Work

• While the vast majority of P0496 codes on this vehicle are fixed by replacing the purge solenoid, there are documented cases where this does not solve the problem. In one instance involving a 2007 Cadillac, the owner replaced the purge valve, but the code and rough idle persisted. The final solution was to replace the vapor canister itself, which had become contaminated and clogged, likely as a long-term result of the original purge valve being stuck open. This highlights that if a new purge valve doesn't fix the issue, the next logical step is to inspect the vapor canister for contamination or blockage before suspecting more complex issues like wiring or the ECM.

OEM Part Supersession History

• 12570469, 12597341, 12597566, 12606684 → 12597567 (also sold as ACDelco 214-1680) — Part consolidation and potential design revisions over time for reliability.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used purge solenoid is generally not recommended. It is an inexpensive electronic and mechanical part with a very high failure rate. The risk of getting a part that has already failed or will fail shortly is high. Given the low cost of a new aftermarket part, buying used offers poor value.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ensure the part is from a vehicle that was not in a front-end collision.
• Check for cracks in the plastic housing.
• Verify the electrical connector pins are clean and not corroded.
• If possible, perform a bench test by applying 12V to hear it click.

OEM-only on this vehicle (don't cheap out):

• No parts for this specific repair require OEM-only. Quality aftermarket solenoids are widely available and effective.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM supplier)
• Standard Motor Products (SMP)
• Wells

Brands owners have reported issues with on this vehicle:

• Some users have reported premature failures with Dorman purge valves, though experiences are mixed. One customer reported receiving a Dorman part in an ACDelco box, suggesting potential supply chain issues or mis-boxing at the retail level.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — System Too Lean (Bank 1). A stuck-open purge valve creates a constant vacuum leak, allowing unmetered air into the engine and causing a lean fuel condition.
• P0174 — System Too Lean (Bank 2). Companion code to P0171 for V6 engines, triggered by the same vacuum leak from the faulty purge solenoid.
• P0300 — Random/Multiple Cylinder Misfire. The lean condition and unstable idle caused by the vacuum leak from the purge valve can lead to misfires.
• P0452 — EVAP System Pressure Sensor/Switch Low. If the purge valve is confirmed to be working correctly, a fault with the Fuel Tank Pressure (FTP) sensor could be the next potential cause for an EVAP system code.
• P0453 — EVAP System Pressure Sensor/Switch High. Like P0452, this code points to the FTP sensor, which is a secondary diagnostic path if the common purge valve failure is ruled out.

Frequently Asked Questions
