P0496 on 2012-2016 Chevrolet Impala 3.6L: EVAP Purge Flow Causes and Fixes

What's Unique About the 2012-2016 Chevrolet Impala

The 3.6L V6 (RPO code: LFX) used in this generation of Impala and many other GM vehicles has a well-documented, high failure rate of the purge valve solenoid. The failure is so frequent that GM issued Special Coverage Adjustments #18029 for 2015 models and #N192210240 for 2016-2017 models, extending the warranty on this specific part to 10 years or 120,000 miles. Furthermore, for 2014-2018 models with aluminum camshaft covers, Technical Service Bulletin (TSB) 17-NA-409 notes that a leaking camshaft cover gasket (Part #12688703) can contaminate the purge valve with oil, causing it to fail repeatedly.

Generation note: The 2012-2016 year range covers two distinct generations of the Impala. The 9th generation includes 2012-2013 models 🎬 See this easy purge valve replacement for 2012-2013 models. and the fleet-only "Impala Limited" from 2014-2016. The 10th generation is the completely redesigned model sold from 2014-2020. The P0496 code caused by a failed purge valve is a common problem on BOTH generations. The part is located on top of the engine in both cases, though access may vary slightly.

Symptoms You May Notice

• Check Engine Light is on
• Difficulty starting the engine, especially right after refueling.
🎬 Watch: Why your Impala is hard to start after refueling.
• Rough or unstable idle, sometimes stalling at stops.
• Engine hesitates or runs rough while pumping gas.
• Slight decrease in fuel economy.
• A 'whoosh' sound of vacuum when opening the gas cap.
• Audible ticking noise from the purge valve itself.

Most Likely Causes

1. Faulty EVAP Canister Purge Valve/Solenoid 🔴 High Probability → Shop Vapor Canister This specific part (ACDelco #12690512) has a high failure rate across many GM vehicles with the 3.6L LFX V6 engine. The valve's internal mechanism can get stuck in the open position due to wear, or contamination from fuel tank debris or engine oil.
   How to confirm: Remove the purge valve from the engine (it's on top, held by one 10mm bolt). With the valve disconnected from power, try to blow through it. If any air passes through, it is bad and must be replaced. A good valve is completely sealed when not powered. You can also test it on the car: with the engine running at idle, disconnect the electrical connector and feel the inlet port for suction. Any vacuum pull indicates a failed, stuck-open valve.
   Typical fix: Replace the EVAP canister purge valve. It is a simple repair that involves removing the plastic engine cover, disconnecting one electrical connector and two hoses, and removing a single 10mm bolt. The job typically takes 10-20 minutes.
   Est. part cost: $25-$50

Rare But Worth Checking

• Leaking Camshaft Cover Gasket: According to GM TSB 17-NA-409, a faulty camshaft cover gasket on 2014-2018 models with aluminum covers can leak oil into the EVAP vacuum line, contaminating and destroying the purge valve. If you have replaced the purge valve before and the code returned, this could be the root cause. The fix requires replacing the gasket (Part #12688703) along with the purge valve.
• Faulty Fuel Tank Pressure (FTP) Sensor: → Shop Fuel Tank In rare cases, the sensor that detects the vacuum in the EVAP system can send incorrect readings to the computer, making it think there is a flow when there isn't one. This is much less common than a failed purge valve and should be considered only after the valve has been tested and confirmed good.
• Charcoal Canister Debris: → Shop Vapor Canister If the charcoal canister begins to break down internally, small particles of charcoal can travel up the EVAP lines and jam the purge valve open, causing repeat failures. One owner on a forum attempted to solve this by installing an inline fuel filter before the purge valve.
• Damaged O-Rings: Manufacturer TSB Bulletin #PIP6037A notes that P0496 can also be triggered by damaged purge solenoid valve O-rings.

Diagnosis Steps

1. Confirm the code P0496 is present using an OBD-II scanner. Note any other codes like P0442, P0174, or P0300.
2. Locate the EVAP purge valve on top of the engine, under the plastic engine cover. It will have one electrical connector and two EVAP hoses attached.
3. To test, disconnect the electrical connector and the EVAP hose coming from the charcoal canister (the line that does NOT go directly to the intake manifold).
4. Start the engine. Place your finger over the open port on the valve. If you feel any suction at idle, the valve is stuck open and is faulty.
5. Alternatively, remove the valve completely from the vehicle (one 10mm bolt). Try to blow air through either port with your mouth. If any air passes through, the valve is bad. A new, good valve will be completely sealed.
6. If the valve passes these tests, inspect the vacuum lines for cracks or damage. If the code returns after replacing the valve, investigate rarer causes like the camshaft cover gasket leak (TSB 17-NA-409) or a faulty Fuel Tank Pressure sensor. Manufacturer TSB Bulletin #PIP5284A suggests that if P0496 continues to set after standard diagnostics, the customer's drive cycle should be evaluated as a contributing factor.

Parts You'll Likely Need

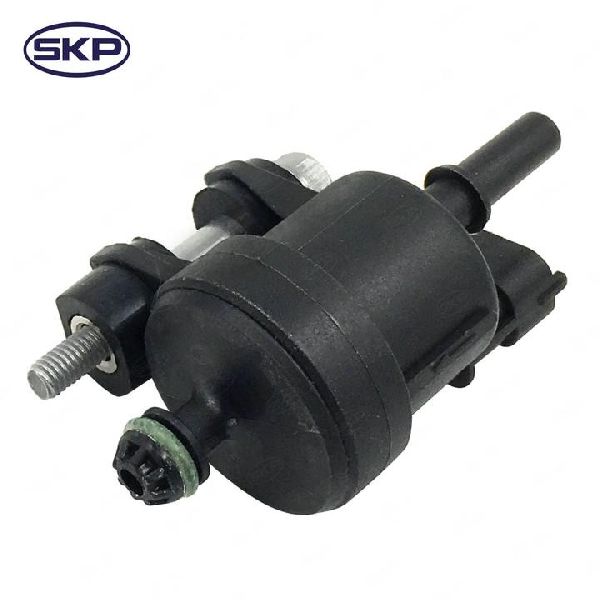

• Vapor Canister Purge Valve / Solenoid (OEM #12690512 (supersedes 12610560)) — This is the component that fails in over 95% of P0496 cases on this vehicle. It gets stuck open, allowing un-commanded fuel vapor flow.
  Trusted brands: ACDelco (OEM), Dorman (Aftermarket, P/N 911-082)
  OEM price range: $30-$50
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0442 — Stands for 'Small EVAP Leak.' A stuck-open purge valve is a type of system leak, so it's common to see both codes together.
• P0443 — Stands for 'EVAP Purge Control Valve Circuit Malfunction.' This code points to an electrical problem with the valve or its wiring, and can appear alongside P0496 if the failure is both mechanical and electrical.
• P0171 / P0174 — Stands for 'System Too Lean.' A stuck-open purge valve creates a vacuum leak, allowing unmetered air (and fuel vapor) into the intake manifold, which can disrupt the air-fuel ratio and trigger lean codes.
• P0300 — Stands for 'Random Misfire.' The vacuum leak from the faulty purge valve can cause an unstable idle and lead to misfires, especially at low RPM.
🎬 Watch: Diagnosing P0496 along with lean and misfire codes.

Technical Service Bulletins (TSBs) & Recalls

• 17-NA-409: Notes that on 2014-2018 3.6L models with aluminum cam covers, a faulty camshaft cover gasket (new P/N 12688703) can cause oil to contaminate and destroy the purge valve, leading to codes P0442, P0455, and/or P0496.
• Bulletin #PIP6037A: Communicates a potential for DTC P0496 to fail due to damaged purge solenoid valve O-rings.
• Bulletin #PIP5284A: Informs dealers that if P0496 continues to set after performing strategy-based diagnostics, the customer's drive cycle may be a contributing factor.

Platform-Specific Known Issues

• GM Special Coverage Adjustment #18029: For some 2015 Impalas, GM extended the warranty for the purge solenoid to 10 years or 120,000 miles. Owners may be eligible for a free replacement at a dealership if the vehicle is within the specified limits.
• GM Special Coverage Adjustment #N192210240: For some 2016-2017 Impalas, GM extended the warranty for the purge solenoid to 10 years or 120,000 miles due to a condition where the valve may not fully close.
• TSB 17-NA-409: Repeat Failures due to Oil Contamination: For 2014-2018 models, a leaking camshaft cover gasket can cause repeat failures of the purge valve due to oil contamination. The fix requires replacing the updated gasket (P/N 12688703) in addition to the valve.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve Solenoid Resistance — expected: 15-30 Ohms. Failure: A reading of infinite resistance (Open Loop) or near-zero resistance (short) indicates a failed coil. Note: This test will not detect the common mechanical failure where the valve is stuck open.
• EVAP Purge Valve Connector Voltage — expected: Battery voltage (12V+) on one pin with Key On, Engine Off.. Failure: No voltage suggests a wiring or fuse issue upstream of the valve.
• Fuel Tank Pressure (FTP) Sensor Voltage (Key On, Engine Off) — expected: Approximately 1.3V to 1.7V with the gas cap off (atmospheric pressure).. Failure: A significantly different voltage at atmospheric pressure may indicate a faulty sensor giving a false reading of vacuum in the system.
• Fuel Tank Pressure (FTP) Sensor Reading (Scan Tool) — expected: Less than -11 inches of H2O when the system is sealed and under vacuum.. Failure: The ECM sets code P0496 if it detects a vacuum greater than 10 inches H2O for 5 seconds when the purge valve is commanded closed. This indicates an undesired vacuum source, almost always a stuck-open purge valve.

Scan Tool Commands That Help

• GDS2 / Tech2: EVAP Purge/Seal — This bidirectional command allows a technician to manually close the EVAP vent valve and command the purge valve on or off. It is used to verify the purge valve's operation and to seal the entire system to monitor the Fuel Tank Pressure (FTP) sensor, confirming if a vacuum is being drawn when it shouldn't be.
• GDS2 / Tech2: Fuel Trim Reset — After replacing the purge valve, a fuel trim reset should be performed. A stuck-open purge valve creates a vacuum leak that causes positive long-term fuel trims (P0171/P0174). Resetting the trims forces the ECM to relearn the fuel delivery strategy with the new, correctly functioning part.

Wiring & Ground Locations

• G111 — On the engine block, located above the starter motor.. This is a primary engine ground. While not directly for the purge solenoid, a poor connection here can cause erratic behavior and electrical noise in various engine sensors, potentially complicating diagnosis by introducing other codes or symptoms.
• EVAP Purge Solenoid Connector — On top of the engine, connected to the purge valve solenoid.. This 2-pin connector provides power and control to the valve. One wire is ignition voltage (typically Pink/Black) and the other is the control wire (ground signal) from the ECM. Checking for 12V+ at the connector is a key step in diagnosing a P0443 (circuit code) that may accompany a P0496.

Real Owner Repair Stories

• GM-Trucks.com Forum User (2004 Chevrolet Avalanche (similar EVAP system design)) — P0496 code, hard start after refueling, near-stall at idle on a steep grade.
  ❌ Tried (didn't work) Replacing the gas cap, Replacing the EVAP vent solenoid on the canister
  ✅ What actually fixed it The final fix was replacing the EVAP purge solenoid valve on the engine. The user's symptoms of hard starting after fueling and the P0496 code pointed directly to this component being stuck open.
• NHTSA ODI #11088522: An owner reported a stuck open EVAP purge solenoid setting the SES light with codes P0300 and P0496. Diagnosis also found Bank 1 injectors out of specification, requiring replacement of injectors 1, 3, and 5.
• NHTSA ODI #11606943: An owner reported a rough idle and code P0496. Despite replacing the purge solenoid, the engine still did not feel 100 percent fixed.
• NHTSA ODI #11710113: A report describes a vehicle with rough running and a "Engine Power Reduced" message while driving uphill. Diagnostic codes included P0171, P0299, P0300, P0442, P0449, and P0496.

OEM Part Supersession History

• 12610560 → 12690512 — Improved design to address the high failure rate of the original part. The new part is the standard service replacement.
• 12661763 → 12690512 — Part number consolidation and design updates.

Model Year Variations Within This Range

• 2012-2013, and 2014-2016 "Limited": These model years belong to the 9th generation Impala platform. While they received the 3.6L LFX engine in 2012, the chassis and body are from the previous generation (2006-2013). When ordering parts, it is critical to specify "Impala Limited" for 2014-2016 models to avoid getting parts for the redesigned 10th generation.
• 2014-2016 (non-Limited): These models are the redesigned 10th generation Impala. While they share the same 3.6L LFX engine and the common P0496 purge valve failure, some surrounding components and access points may differ slightly from the 9th generation "Limited" models sold in the same years.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Timing Chain Stretch 🔴 High — Common, especially on earlier 2012-2013 models or vehicles with extended oil change intervals. Can occur as early as 60,000 miles, but more common around 100,000 miles. (Ref: Multiple TSBs exist for related codes (P0008, P0016, P0017), but no direct recall.)
• Oil Consumption / Camshaft Cover Gasket Leak 🟠 Medium — The camshaft cover gasket leak is common enough to warrant a TSB (17-NA-409) on 2014-2018 models. General oil consumption is also frequently reported by owners. (Ref: TSB 17-NA-409)
• Transmission Control Module (TCM) / Solenoid Failure 🟠 Medium — Owners report issues with hard shifting, hesitation, or erratic transmission behavior, often traced to internal solenoids or the TCM. Frequency increases with mileage.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part is NOT recommended. The EVAP purge valve is a known high-failure component with a limited service life. The cost of a new OEM or quality aftermarket part is low enough that the risk and labor of installing a used part with unknown remaining life is a poor value proposition.

What to inspect on the donor part:

• Not applicable as used parts are not advised for this repair.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using a genuine ACDelco purge valve (P/N 12690512) is highly recommended for longevity. Forum and owner reports indicate some aftermarket versions can fail prematurely.

Aftermarket brands forum-validated for this vehicle:

• Standard Motor Products (SMP) is often cited as a reliable aftermarket alternative.

Brands owners have reported issues with on this vehicle:

• Be cautious of unbranded, low-cost parts from online marketplaces, as some owners have reported receiving valves that are dead-on-arrival or fail very quickly.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0442 — An EVAP system leak code that often accompanies P0496 or can be triggered by the same oil contamination issue described in TSB 17-NA-409.
• P0455 — A large EVAP leak code cited in TSB 17-NA-409 as a potential companion to P0496 when the purge valve is compromised.
• P0174 — A lean condition code that may appear alongside P0496 because a stuck-open purge valve acts as an unmetered vacuum leak.
• P0300 — A random misfire code that can be triggered by the rough idle and unstable combustion caused by a faulty purge valve.
• P0008 — A timing-related code mentioned as a common known issue for the 2012-2013 3.6L Impala, though distinct from the EVAP system.
• P0016 — A crankshaft/camshaft position correlation code related to the timing chain stretch issues common on this vehicle platform.
