P0496 on 2017-2019 Jaguar XE: EVAP High Purge Flow Causes and Fixes

What's Unique About the 2017-2019 Jaguar XE

What's unique to this Jaguar platform and its relatives (F-Pace, XF, and some Land Rovers) is a documented software sensitivity. According to Jaguar's Technical Service Bulletin (TSB) #Jaguar_H422, this code can be set simply by refueling the vehicle within 15 seconds of turning the engine off. This means the first diagnostic step isn't mechanical but related to user behavior and a potential software update from a dealer. Forum users and owners of platform-mates like the F-Pace have confirmed receiving notices for the H422 campaign.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp or MIL) is on. [SSM74280]
• No loss of power or restricted performance. [JTB00697NAS1]
• Slightly rough idle, especially at a stop.
• Difficulty starting the engine immediately after refueling.
• Possible faint fuel smell.
• Slightly reduced fuel economy due to the un-metered vacuum leak.

Most Likely Causes

1. Faulty Canister Purge Valve (Stuck Open) 🔴 High Probability → Shop Vapor Canister This is the most common mechanical failure for P0496 across most manufacturers, including Jaguar. The valve can get stuck open due to age, carbon buildup, or internal failure, allowing un-commanded vacuum to pull fuel vapors into the engine.
   How to confirm: With the engine off, disconnect the hose on the engine side of the purge valve and apply a hand-held vacuum pump. 🎬 Watch this quick bench test for a stuck open valve. If the valve does not hold vacuum, it is stuck open and must be replaced. You can also try to blow through it; if air passes, it's faulty. A definitive test is to disconnect the intake-side hose, start the engine, and feel the valve's port for vacuum; there should be none at idle.
   Typical fix: Replace the canister purge valve.
   Est. part cost: $80-$230
2. Software Calibration Issue (Refueling Habit) 🔴 High Probability As documented in TSB #Jaguar_H422, the Powertrain Control Module (PCM) software is sensitive and may incorrectly flag a P0496 if refueling begins within 15 seconds of engine shutdown. This is a well-documented issue across the JLR lineup, affecting the XE, XF, F-Pace, and others.
   How to confirm: Clear the code. For the next few fill-ups, consciously wait at least 30 seconds after turning the engine off before opening the gas cap and refueling. If the code does not return, this was the likely cause.
   Typical fix: Change refueling habits. If the issue persists despite waiting, a Jaguar dealer may need to perform a software update on the PCM as per the TSB. This is a no-cost campaign for affected vehicles.
   Est. part cost: $0 (for changing habits), or dealer labor cost for software update if out of warranty/campaign period.
3. Short Circuit in Purge Valve Wiring ⚪ Low Probability → Shop Vapor Canister
   How to confirm: Inspect the wiring harness and connector going to the purge valve for any signs of damage, melting, or corrosion. Use a multimeter to check for voltage at the connector with the key on; a constant voltage on the control wire could indicate a short to power, holding the valve open.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $5-$50

Rare But Worth Checking

• Faulty Fuel Tank Pressure (FTP) Sensor: → Shop Fuel Tank

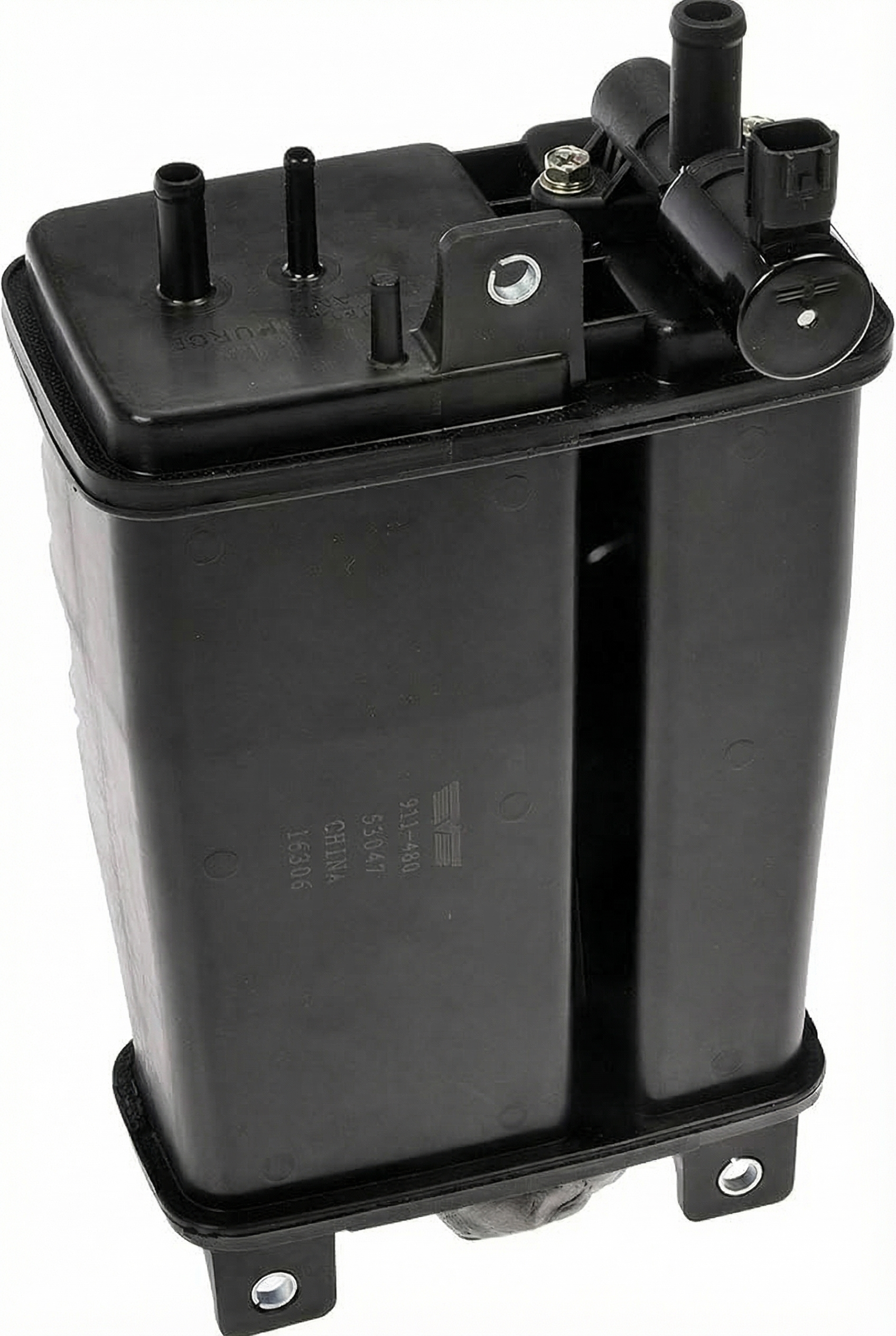

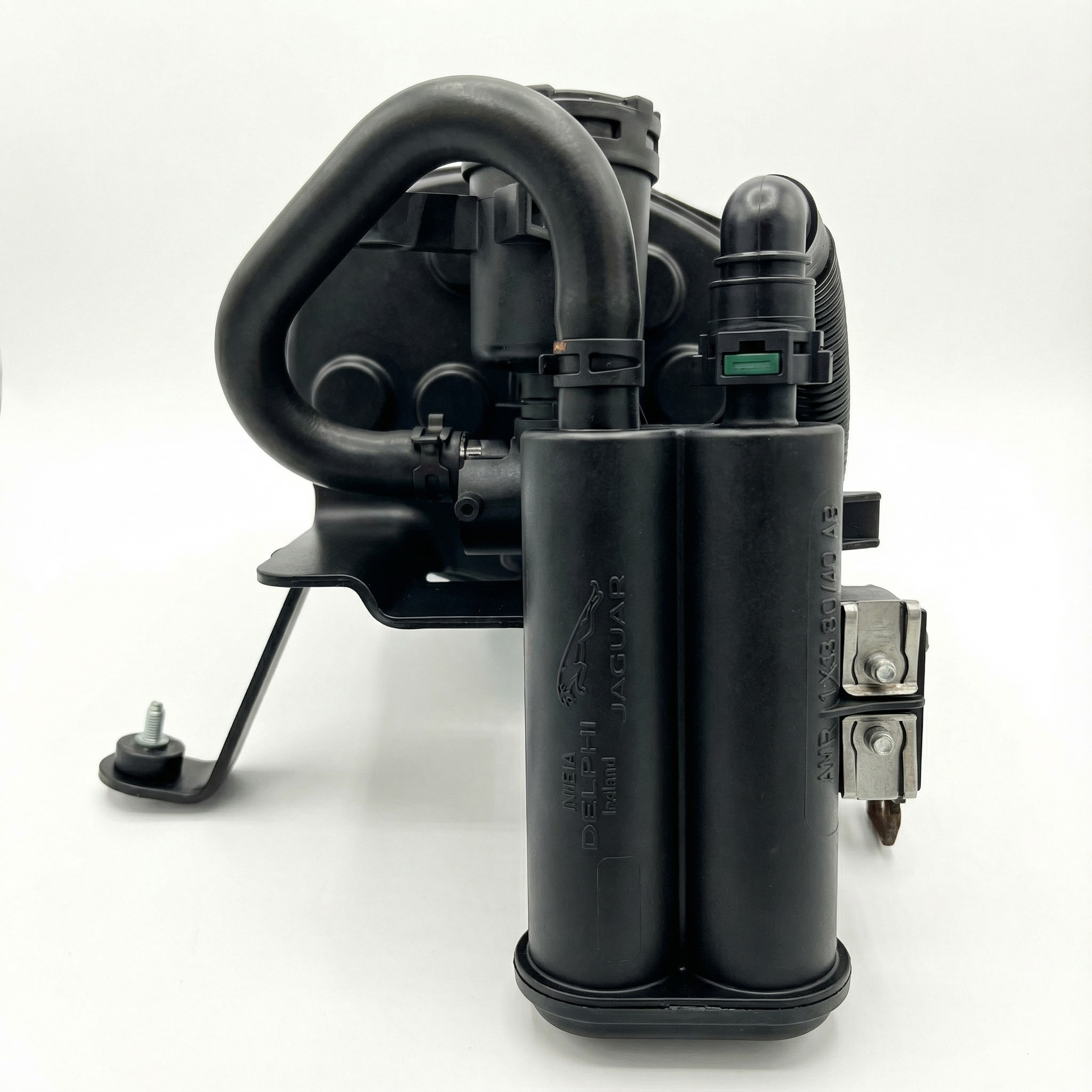

• Blocked or Saturated Charcoal Canister: → Shop Vapor Canister

Diagnosis Steps

1. Read the code with an OBD-II scanner and confirm P0496-00 is present. Note any other codes.
2. Check for Technical Service Bulletins (TSBs). TSBs #Jaguar_H422, #JTB00697NAS1, and #SSM74280 are directly related to this code. Note that H422 is a major service campaign.
3. Crucial First Step: Clear the code. Change your refueling habit by waiting at least 30 seconds after engine-off before opening the gas cap. Drive the vehicle through several cycles. If the code does not return, the problem was refueling procedure.
4. If the code returns, locate the canister purge valve (also called a purge solenoid) in the engine bay. It's a small black cylinder with two hoses and an electrical connector.
5. Inspect the valve, its connector, and associated hoses for any visible damage, cracks, or loose connections.
6. Mechanical Valve Test: With the engine off, disconnect the electrical connector and the vacuum lines from the purge valve. Attempt to blow through the valve. If air passes through, the valve is stuck open and needs to be replaced.
7. Definitive Live Test: If the blow test is inconclusive, reconnect the hoses and electrical connector. Start the engine and let it idle. Disconnect the hose that runs from the purge valve to the intake manifold. Feel the port on the valve for suction. There should be NO vacuum at idle. If you feel suction, the valve is faulty and must be replaced.
8. Electrical Check: If the valve passes the mechanical tests, check the wiring. With the key on and engine off, disconnect the valve's electrical connector. Use a multimeter to check for voltage. If there is constant power on the control wire (not just the power supply wire), there may be a short in the harness keeping the valve energized.
9. Sensor Check: If the valve and wiring are good, use a scan tool to view live data from the Fuel Tank Pressure (FTP) sensor. If it shows a constant vacuum, it may be faulty.
10. If all components test good, the issue is almost certainly the software calibration. Consult a Jaguar dealer about performing the update mentioned in TSB #Jaguar_H422.

Parts You'll Likely Need

• Canister Purge Valve / Solenoid (OEM #AJ814246 (supersedes AJ811695)) — This is the most common mechanical part to fail, getting stuck open and causing the un-commanded vapor flow that triggers code P0496. This part number is used for both the 2.0L Ingenium and 3.0L V6 engines in the XE, XF, and F-Pace.
  Trusted brands: Jaguar (Genuine), Bosch, URO Parts
  OEM price range: $190-$230
  Aftermarket price range: $80-$150

Related Codes That Often Appear With This One

• In some cases on other vehicles, P0496 can be accompanied by rich condition codes like P0172 or P0175 if the vacuum leak from the stuck purge valve is severe enough to significantly alter the air-fuel mixture, though this is not commonly reported on the XE.

Technical Service Bulletins (TSBs) & Recalls

• Jaguar_H422_19JUL24 / H422: A service campaign to update PCM software. Notes that refueling within 15 seconds of engine-off can cause P0496-00. This is the most critical TSB for this issue.
• JTB00697NAS1: Confirms that the MIL can be illuminated with P0496-00 stored, but with no restricted performance or loss of power.
• SSM74280: States the Check Engine Light is on and DTC P0496-00 is stored in the PCM. This is a general bulletin acknowledging the code. [SSM74280]
• SSM74799: A Land Rover bulletin for the same AJ126 engine that describes P0496-00 as being caused by the syst

Platform-Specific Known Issues

• A Malfunction Indicator Lamp (MIL) may illuminate if the vehicle is refueled within 15 seconds of turning the engine off, setting DTC P0496-00. This is a known software issue addressed by TSB H422. [Jaguar_H422_19JUL24, 12]
• Owners may experience the Check Engine Light with no noticeable loss of power or performance issues, which can lead to complacency, but will cause an emissions test failure. [JTB00697NAS1]
• The issue is not isolated to the XE and is prevalent across the JLR lineup using the same engines and software logic, including the XF, F-Pace, and some Land Rover models.

Mechanic-Grade Diagnostic Values

• Canister Purge Valve Coil Resistance — expected: 15-30 Ohms. Failure: A reading of infinity (open circuit) or near-zero Ohms (short circuit) indicates a failed coil.
• Fuel Tank Pressure (FTP) Sensor Voltage at Atmospheric Pressure — expected: ~1.5 Volts (with gas cap off, engine running). Failure: Voltage is significantly different from 1.5V with the system open to the atmosphere, suggesting a biased or failed sensor.
• Purge Valve Connector Voltage (Control Wire) — expected: Pulsed ground (PWM signal) when commanded by PCM; no ground at idle.. Failure: A constant ground signal at idle indicates a short or a faulty PCM driver, holding the valve open.

Hidden / Shadow Codes Worth Checking

• P0496-00: The '-00' is a JLR-specific symptom byte. For P0496, it indicates the monitor failed because the system diagnosed an excessive pressure drop between the fuel tank and the purge valve, which is the specific fault logged when the purge valve is stuck open or there's a leak between the valve and tank. (see via Professional JLR diagnostic tools like SDD/Pathfinder, and some comprehensive aftermarket OBD-II scanners.)

Scan Tool Commands That Help

• Jaguar SDD/Pathfinder or advanced bidirectional scanner: EVAP System Leak Test / Purge & Seal Test — This function allows a technician to command the canister vent solenoid closed and then manually command the purge valve to open, applying engine vacuum to the EVAP system. By monitoring the Fuel Tank Pressure (FTP) sensor's live data, a technician can verify if the system holds vacuum, confirming the function of both the purge and vent valves without needing a smoke machine.

Wiring & Ground Locations

• Purge Valve Connector — On the purge valve itself, located in the engine bay near the intake manifold.. The connector has two pins. One receives constant battery voltage (B+) with the ignition on. The other is the control wire, which the Powertrain Control Module (PCM) connects to ground using a Pulse Width Modulated (PWM) signal to open the valve. Testing for B+ and a switching ground signal at this connector is critical to rule out a wiring or PCM issue before replacing the valve.

Real Owner Repair Stories

• Jaguar Forums user discussion (2018 Jaguar F-Pace R-Dynamic (shares engine and PCM logic with XE)) — Owner received an email from a JLR Dealer for an open service action H422: Fuel Vapor Purge.
  ❌ Tried (didn't work) Initially, there was confusion whether the fix was a part replacement or software.
  ✅ What actually fixed it A user posted the official campaign document for H422, confirming it is a PCM software update to address the P0496 issue caused by refueling habits. This confirms the TSB is actively being addressed by dealers as a software-only fix.

"I Checked Everything" — The Actual Cause

• The most common scenario for this vehicle where a smoke test would pass, yet the P0496 code persists, is the software issue detailed in TSB H422. A smoke test checks for physical leaks in the EVAP system, but it cannot detect a software calibration that is too sensitive and incorrectly flags a high-flow condition during refueling. In this case, the system is mechanically sound, but the PCM's logic is the root cause.

When the Usual Fixes Don't Work

• While the purge valve and software update are the most common fixes, it's not always that simple. A Reddit user with a P0496 code on a different vehicle reported replacing the purge solenoid, a boost control sensor, and the fuel tank pressure sensor, yet the code remained. They were planning to replace the fuel rail pressure sensor and the entire EVAP canister next. This illustrates that while rare, the issue can sometimes be more complex than the two primary causes, potentially involving a wiring fault or a less common component failure that is being overlooked.

OEM Part Supersession History

• AJ811695 → AJ814246 — Not officially stated, but supersessions typically involve improvements to durability, material composition, or internal design to prevent the original failure mode (sticking open).
  Heads up: None noted. AJ814246 is the direct replacement for AJ811695 across all specified Jaguar and Land Rover applications.
