P0501 on 2007-2017 Jeep Patriot: ABS Wheel Speed Sensor Causes and Fixes

What's Unique About the 2007-2017 Jeep Patriot

Unlike many other vehicles that use a single vehicle speed sensor (VSS) on the transmission or differential, the Jeep Patriot (and its platform mates, the Dodge Caliber and Jeep Compass) relies on its four ABS wheel speed sensors to determine vehicle speed. This is a critical distinction, as the diagnostic process must focus on the ABS system rather than a non-existent transmission-mounted VSS. A failing wheel speed sensor is a very common issue on this platform, often leading to a trio of warning lights: Check Engine, ABS, and Traction Control (ESP/BAS).

Symptoms You May Notice

• Check Engine Light is on
• ABS warning light is on
• Traction Control (ESP/BAS) warning light is on
• On 4WD models, the "4WD!" warning light may illuminate
• Speedometer may behave erratically or drop to zero
• Automatic transmission may shift harshly or at incorrect times
• Cruise control may not function

Most Likely Causes

1. Faulty ABS Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensors are exposed to road debris, water, and salt, which leads to corrosion and failure over time. A very common issue is the sensor seizing inside the steering knuckle/hub due to rust, making removal difficult and often resulting in the plastic sensor breaking apart.
   How to confirm: Use an OBD-II scanner capable of reading ABS codes to identify the specific failing sensor (e.g., 'Left Front Wheel Speed Sensor Circuit'). You can also test the sensor's resistance with a multimeter or watch its live data on the scan tool while spinning the wheel.

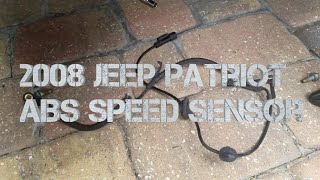

   Typical fix: Replace the faulty ABS wheel speed sensor. They are sold individually for each wheel. 🎬 Watch: Step-by-step Jeep Patriot ABS speed sensor replacement Soaking the old sensor in penetrating oil before removal is highly recommended.
   Est. part cost: $20 - $60
2. Damaged or Corroded Wheel Speed Sensor Wiring/Connector 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The wiring harness is routed near the wheels and suspension components, making it susceptible to damage from road debris, chafing, or improper repairs. Wires can break inside the insulation right at the connector from repeated suspension movement.
   How to confirm: Visually inspect the wiring leading to the wheel speed sensor for any breaks, corrosion, or loose connections. Wiggle the wire near the connector while monitoring live data on a scan tool to see if the signal drops out. Perform a continuity test on the wires with a multimeter if a visual fault isn't obvious.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail.
   Est. part cost: $10 - $30
3. Damaged Tone Ring / Wheel Hub Bearing Assembly ⚪ Low Probability → Shop Hub Assembly The tone ring, which the ABS sensor reads, is integrated into the wheel hub bearing. Severe corrosion can cause the tone ring to crack or swell, or a failing wheel bearing can create an excessive air gap, causing an erratic signal.
   How to confirm: After removing the wheel speed sensor, inspect the tone ring inside the hub for rust, debris, or damage. A noisy, grinding, or loose wheel bearing is also a strong indicator.
   Typical fix: Replace the entire wheel hub bearing assembly.
   Est. part cost: $70 - $150

Rare But Worth Checking

• Faulty ABS Control Module: This is uncommon. Before condemning the module, exhaust all other possibilities, including thorough wiring checks. A module failure would likely present with multiple, persistent wheel speed sensor codes that don't resolve with sensor replacement.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. A faulty PCM would typically cause numerous other unrelated trouble codes and drivability issues. This should be considered a last resort after all other diagnostics have failed.

Diagnosis Steps

1. Connect an OBD-II scanner that can read ABS/Chassis codes.
2. Read the codes from both the Powertrain Control Module (PCM) and the Anti-lock Brake System (ABS) module.
3. Note the P0501 code in the PCM. Look for a corresponding C-code or U-code in the ABS module that identifies the specific wheel sensor at fault (e.g., 'Left Rear Wheel Speed Sensor Signal Erratic').
4. Raise the vehicle safely and locate the identified sensor on the wheel hub. The front sensors are held by a 10mm bolt; the rear sensors are often clipped into the hub assembly.
5. Visually inspect the sensor and its wiring for any obvious damage, corrosion, or loose connections.
6. If the wiring looks good, disconnect the sensor. You can test the sensor's internal resistance using a multimeter and compare it to a known good sensor on the other side of the vehicle.
7. Alternatively, use the scan tool to monitor the live data for the specific wheel speed sensor while spinning the wheel by hand. The reading should increase smoothly. If it's erratic, jumps, or shows zero, the sensor or tone ring is likely faulty.
8. If the sensor is seized, apply penetrating oil and allow it to soak. It may be necessary to carefully break apart the old plastic sensor to remove it piece by piece.
🎬 See this guide on removing a stuck ABS sensor
9. If the sensor and wiring test good, inspect the tone ring inside the wheel hub for damage or excessive rust buildup.
10. If no issues are found with the sensor, wiring, or tone ring, the problem may lie within the ABS module, although this is rare.

Parts You'll Likely Need

• ABS Wheel Speed Sensor (OEM #Front Right: 5105572AB (replaces 5105572AA); Front Left: 5105573AB (replaces 5105573AA). Rear part numbers vary by 2WD/4WD. 🎬 Watch: How to replace the rear ABS wheel speed sensor Always verify with VIN.) — This is the most common failure point for the P0501 code on the Jeep Patriot. The sensor fails due to exposure to the elements.
  Trusted brands: Mopar, Delphi, NGK/NTK, Dorman
  OEM price range: $40-$60
  Aftermarket price range: $20-$50
• Wheel Hub Bearing Assembly — If the tone ring integrated into the hub is damaged, or if the bearing has failed causing excessive play, the entire hub assembly must be replaced.
  Trusted brands: Mopar, Timken, SKF, MOOG
  OEM price range: $150-$250
  Aftermarket price range: $70-$150

Related Codes That Often Appear With This One

• C-codes (e.g., C100A, C101C, etc.) — These are ABS-specific codes that will pinpoint the exact wheel speed sensor that is malfunctioning. A capable scanner is required to read these.
• U-codes (e.g., U1417, U1418) — These network codes can indicate a loss of communication or implausible data from a specific wheel speed sensor.

Platform-Specific Known Issues

• Recall S89 / NHTSA 16V-907 was issued for some 2016 model year Jeep Patriots for an intermittent crankshaft or camshaft sensor issue that could cause stalling. While not directly related to the P0501 code, it's a known electrical issue on this platform and worth checking if your vehicle is affected.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor AC Voltage Output — expected: Minimum of 0.25 Volts AC. Failure: A reading of less than 0.25V AC while spinning the wheel by hand (at least 1/2 revolution per second) indicates a faulty sensor or an issue with the tone ring/air gap.
• Wheel Speed Sensor Signal (Chrysler/Jeep specific) — expected: 7 to 14 milliamp square wave signal. Failure: No signal when back-probing the return circuit while slowly rotating the wheel indicates a bad sensor or wiring fault. This requires a multimeter set to milliamps or a digital scope.

Hidden / Shadow Codes Worth Checking

• U1409: Implausible Left Front Wheel Speed Signal Received. This code directly points to the left front wheel speed sensor circuit as the source of the P0501. (see via An OBD-II scanner with ABS/Chassis system capabilities.)
• U1417: Implausible Left Rear Wheel Distance Signal Received. This code often appears with P0501 and points specifically to an issue with the left rear wheel speed sensor circuit. (see via An OBD-II scanner with ABS/Chassis system capabilities.)
• U1418: Implausible Right Rear Wheel Distance Signal Received. This code often appears with P0501 and points specifically to an issue with the right rear wheel speed sensor circuit. (see via An OBD-II scanner with ABS/Chassis system capabilities.)

Wiring & Ground Locations

• Engine Bay Ground Points — There are several key ground points in the engine bay: one behind the passenger side headlight, one to the left of the hood brace, and another on the driver's side near the belt which is prone to damage.. Poor grounds can cause a wide range of electrical issues, including erratic sensor readings. A bad ground connection for the ABS module or associated sensors can lead to intermittent or false P0501 codes. Ensuring these are clean and tight is a crucial diagnostic step.
• G300 — Under the right rear quarter trim panel.. This is a major interior ground point. While less likely to be the primary cause for a wheel speed sensor code, a fault here could contribute to communication issues with the ABS module or other interior modules that share data.
• G305 — Located in the left kick panel.. Similar to G300, this is another key interior ground point. Verifying its integrity is important when diagnosing complex electrical faults that don't resolve with component replacement.

Real Owner Repair Stories

• Reddit user on r/JeepPatriot (2012 Jeep Patriot) — ABS, 4WD!, and traction control lights all illuminated.
  ❌ Tried (didn't work) Replacing the left rear ABS sensor, as indicated by an ABS scan tool.
  ✅ What actually fixed it The user tested the harness connector for the sensor and found it was receiving less than 5V, when it should have been around 12V. The ultimate fix required tracing the wire back from the sensor to find the fault in the wiring harness, not the sensor itself.

Model Year Variations Within This Range

• 2007: A safety recall (F50) was issued for 2007 model year Jeep Patriots. The original software in the ABS control module could cause rear brake lock-up under certain conditions. The fix was a dealer-installed software reprogram of the ABS control module.
• 2014-2017: For the 2014 model year, a 6-speed Hyundai automatic transmission was introduced on Freedom Drive I models, replacing the previous Continuously Variable Transmission (CVT). While this doesn't directly change the cause of P0501 (which is still the wheel speed sensors), it's a significant powertrain difference to be aware of when diagnosing any related shifting symptoms.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature CVT Transmission Failure 🔴 High → Shop Transmission Assembly — Very common, especially on earlier models (2007-2014). Symptoms like whining, overheating warnings, and loss of acceleration can appear at various mileages. (Ref: A class-action lawsuit was filed concerning the Jatco JF011E CVT used in these vehicles.)
• Front and Rear Subframe Corrosion 🔴 High — Widespread issue, particularly in regions that use road salt. Can lead to catastrophic suspension component failure. (Ref: Chrysler issued an extended warranty (X69) for 10 years/150,000 miles for this issue, but many vehicles have now aged out of the coverage.)
• Water Leaks into Cabin 🟠 Medium — Commonly reported across many model years. Leaks often originate from clogged sunroof drains, roof seams, or improperly sealed grommets, dripping from the dome light or A-pillars.
• Failing Throttle Body 🟠 Medium — A known issue that can cause the vehicle to stall, idle erratically, or enter limp mode.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is generally not recommended. The primary failure parts are the ABS sensors and wheel hub bearings, which are wear items. A used ABS sensor is likely to have significant age and exposure, and may fail soon after installation. A used wheel hub may have unknown mileage and wear.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If considering a used wheel hub, verify the donor vehicle had low mileage.
• Inspect the tone ring on the used hub for any signs of rust, cracks, or damage.
• Ensure the bearing spins smoothly with no noise or play.

Aftermarket brands forum-validated for this vehicle:

• Delphi (Sensors)
• NGK/NTK (Sensors)
• Dorman (Sensors - noted as a cost-effective solution)
• Timken (Wheel Hub Bearings)
• MOOG (Wheel Hub Bearings)
• SKF (Wheel Hub Bearings)

Brands owners have reported issues with on this vehicle:

• No-name, unbranded sensors from online marketplaces should be avoided, as their quality and longevity can be highly inconsistent.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C-CODES — Chassis codes (like C0035) are often found in the ABS module alongside P0501 to identify the specific wheel (e.g., Left Front) that has the failing sensor.
• U-CODES — Network communication codes may appear in the ABS or PCM modules when the wheel speed signal is lost or erratic.
• P0335 — Crankshaft Position Sensor Circuit code; while not a direct companion to P0501, it is part of a known electrical issue (Recall S89) on 2016 Patriots that causes similar drivability symptoms like stalling.
• P0340 — Camshaft Position Sensor Circuit code; related to the same 2016 model year electrical recall that owners may encounter when diagnosing sensor-related issues.
