P0502 on 2003-2010 BMW 5 Series (E60): Causes and Fixes for Low Speed Sensor Input

What's Unique About the 2003-2010 BMW 5 Series

Unlike many vehicles that have a single speed sensor on the transmission, the E60 5 Series relies entirely on its four ABS wheel speed sensors for vehicle speed data. This means a P0502 code stored in the engine computer is almost always a symptom of a problem within the ABS/DSC system. The most common failure point by far is one of the rear wheel speed sensors or its wiring, as this is the primary data source for the speedometer and DME. Therefore, diagnosis must begin by scanning the ABS module for BMW-specific chassis codes, not just the engine module, to identify the exact wheel circuit at fault.

Symptoms You May Notice

• ABS warning light illuminated on the dashboard.
• DSC/Traction Control warning light illuminated (often called the 'trifecta' of lights with the brake warning).
• Check Engine Light is on.
• Speedometer reads 0 MPH or works erratically.
• Cruise control is inoperative.
• Automatic transmission may shift harshly or at incorrect points.
• A 'juddering' or hesitation when turning, as the DSC system falsely activates due to incorrect wheel speed readings.

Most Likely Causes

1. Failed Wheel Speed Sensor (ABS Sensor) 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensors are exposed to road debris, moisture, and heat from the brakes, causing the internal magnetic components or plastic housing to fail over time. They can also become seized in the wheel hub, making removal difficult. BMWs are known to be sensitive to non-OEM sensors, which can cause the fault to persist even after replacement.
   How to confirm: Scan the ABS/DSC module for fault codes. The code will specify which sensor has failed (e.g., 'rear left wheel speed sensor'). Using a scan tool with live data, observe the speed reading from all four wheels while driving; the faulty sensor will read 0 or have an erratic signal. A user on 5series.net confirmed this method, noting their faulty rear right sensor showed no reading in INPA software.
   Typical fix: Replace the faulty wheel speed sensor. The sensor is held in by a single 5mm Allen bolt and has one electrical connector. Applying a thin coat of grease to the new sensor body can aid future removal. 🎬 Watch: Step-by-step BMW wheel speed sensor replacement guide
   Est. part cost: $40-$100
2. Damaged Wheel Speed Sensor Wiring or Connector 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The wiring harness runs down the suspension to the wheel hub and is susceptible to damage from road debris, improper jacking, or corrosion from road salt and water, especially at the connector pins.
   How to confirm: After identifying the faulty sensor circuit via a scan, visually inspect the entire length of the wire from the sensor to where it enters the chassis. Look for breaks, chafing, or green corrosion inside the connector pins. A multimeter can be used to check for continuity from the sensor connector back to the main ABS module connector.
   Typical fix: Repair the broken wire with a solder joint and heat shrink, or replace the damaged section of the harness. Clean or replace the connector if corroded. One owner on a forum traced their issue to a wiring fault 'further up behind the wheel well,' which resolved the issue after a sensor replacement did not.
   Est. part cost: $5-$25 for repair materials

Rare But Worth Checking

• Damaged or Corroded ABS Reluctor Ring: The toothed ring (reluctor or tone ring) on the axle shaft can swell with rust underneath it, especially in regions with road salt. This swelling pushes the ring outward, causing it to physically contact and destroy the tip of the wheel speed sensor. Replacing only the sensor will result in the new sensor failing quickly. Diagnosis involves removing the sensor and visually inspecting the ring for runout, swelling, or damage. A BMW technician on Reddit notes that the correct professional repair is to replace the entire axle shaft, as cleaning the rust-pitted surface and pressing on a new ring is often an unreliable fix.
• Failed ABS/DSC Control Module: → Shop ABS Control Module This is a known, albeit less common, failure on E60 models, often involving the ATE MK61 hydraulic unit. It typically presents with multiple wheel speed sensor codes, communication errors, or specific internal module fault codes like 5DF0 (Hydraulic Unit Pump Motor) and 5DF1 (Hydraulic Unit Pump Motor Connector Faulty). If these codes are present, the module is the primary suspect. 🎬 See: How to fix 5DF0 and 5DF1 ABS module faults The fix involves sending the module to a specialist for rebuilding. A used module can be an option but will require VIN programming to work with the car.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading BMW-specific codes to the vehicle.
2. Scan ALL system modules, paying close attention to the ABS/DSC module, not just the Engine (DME) module.
3. If a fault for a specific wheel speed sensor (e.g., 'Rear Left Wheel Speed Sensor Plausibility') is present in the ABS/DSC module, that is your primary lead.
4. If no specific sensor is faulted, use the scanner's live data function to monitor the output from all four wheel speed sensors while driving slowly.
5. Identify the sensor that is reading 0 MPH or has a signal that drops out or doesn't match the others. This is the faulty circuit.
6. Raise the vehicle and remove the wheel corresponding to the faulty circuit.
7. Visually inspect the sensor wiring for any signs of physical damage, chafing, or corrosion at the connector.
8. Remove the 5mm Allen bolt holding the sensor and carefully pry the sensor out of the wheel bearing carrier. They are often seized.
9. Inspect the tip of the sensor and look inside the mounting hole at the ABS reluctor ring. If the sensor tip is damaged or the ring appears rusty, swollen, or warped, the reluctor ring/axle is the likely cause.
10. If wiring and the reluctor ring appear intact, replace the wheel speed sensor. Use of OEM/OES brands like ATE or Bosch is highly recommended.
11. If the sensor and wiring are good, but you have communication errors or internal faults for the ABS module (like 5DF0/5DF1), the module itself is the likely problem.

Parts You'll Likely Need

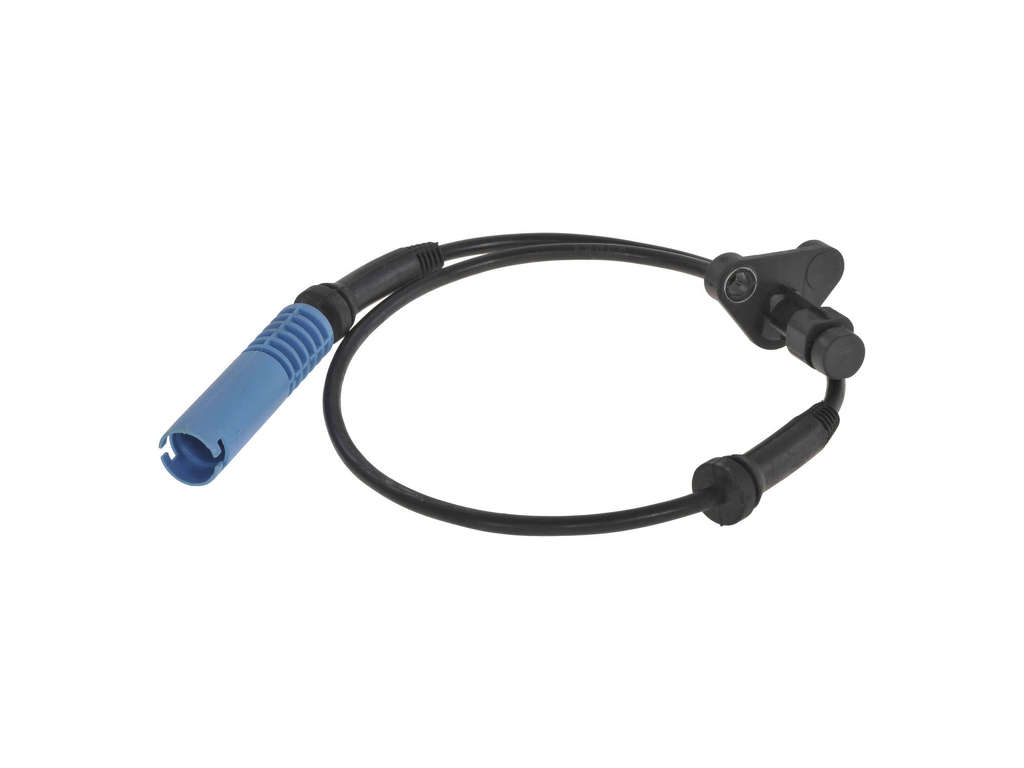

• Wheel Speed Sensor (ABS Sensor) (OEM #Front: 34526771702 (supersedes 34526760045), Rear: 34526771703 (supersedes 34526760046) - Note: Verify with VIN) — This is the most common component to fail and trigger a P0502 code on this platform.
  Trusted brands: ATE (OEM), Bosch, VDO
  OEM price range: $120-$180
  Aftermarket price range: $40-$100

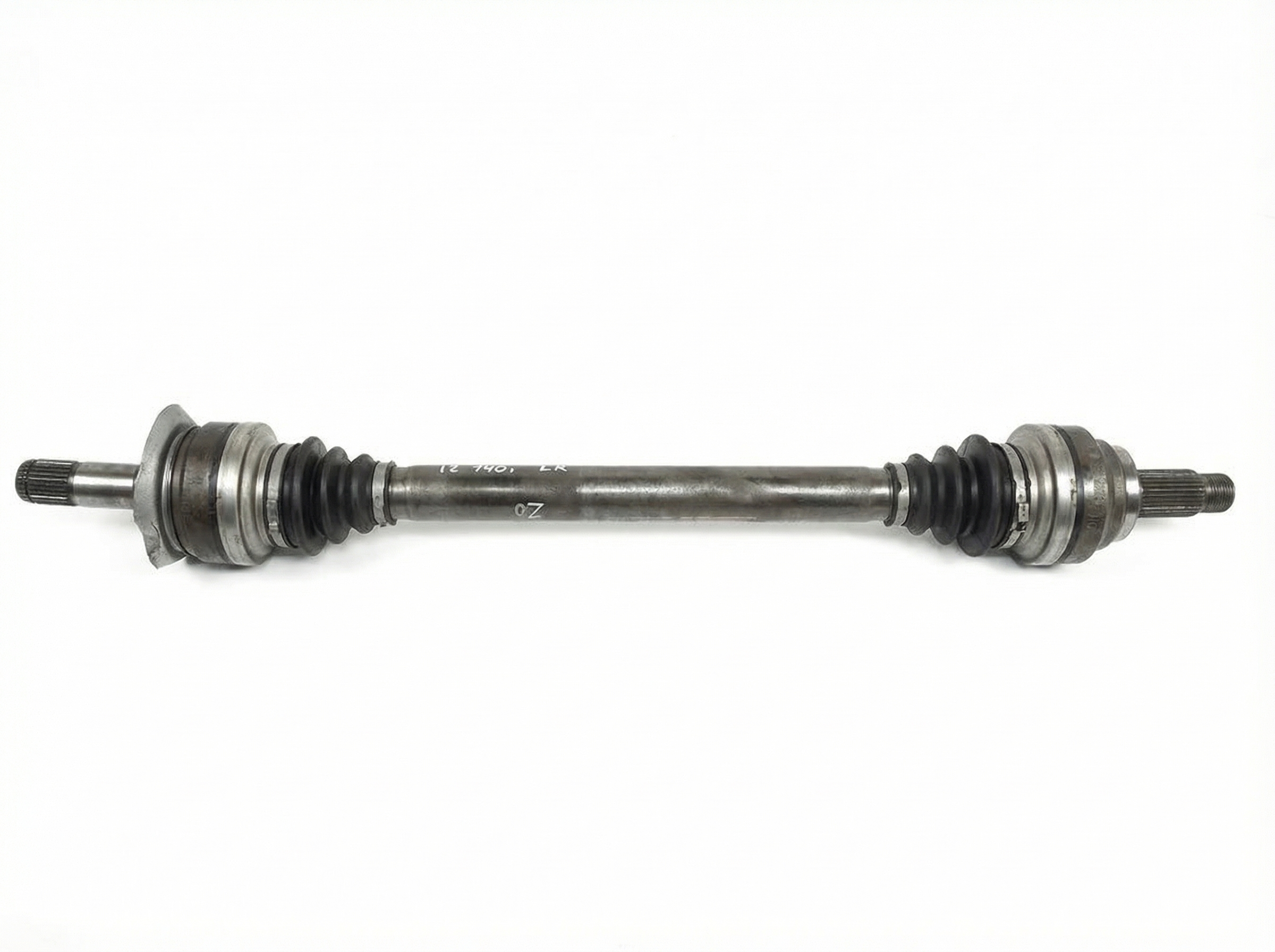

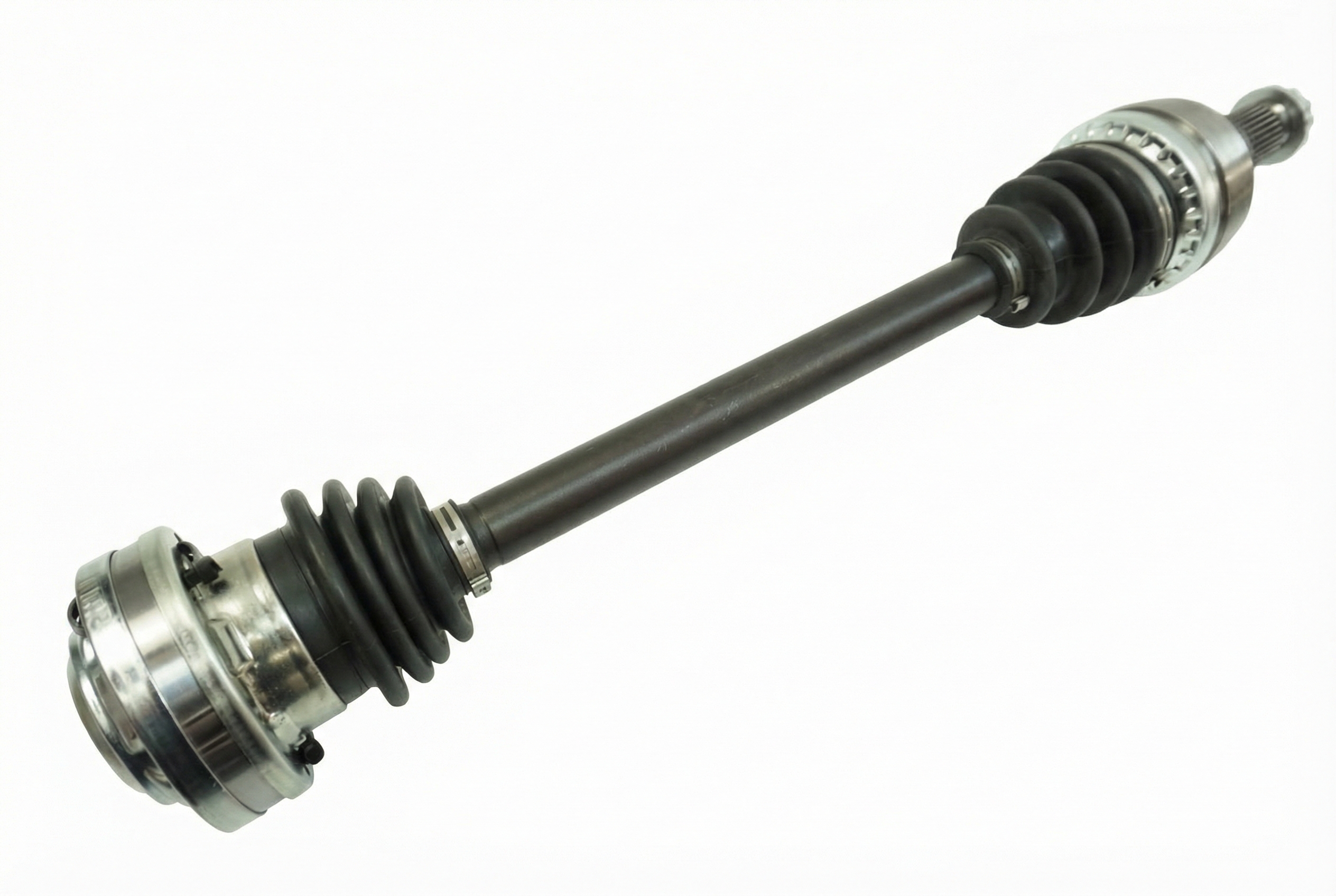

• Rear Axle Shaft (OEM #Varies by specific model/drivetrain) — May be required if the integrated ABS reluctor ring has failed due to rust, as this is the professionally recommended repair over replacing the ring alone.
  Trusted brands: GKN, BMW (Genuine)
  OEM price range: $700-$1500
  Aftermarket price range: $200-$500

Related Codes That Often Appear With This One

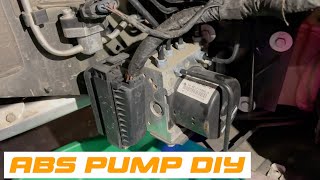

• 5DF0, 5DF1 — These are BMW-specific fault codes for the ABS/DSC pump motor and internal module failure. If you see these along with P0502, the ABS module itself is the likely culprit, not a wheel speed sensor.
• Various C-codes or BMW-specific chassis codes — Any chassis code related to a specific wheel speed sensor (e.g., '5EBA: Steering angle sensor, plausibility' or a code for 'rear right wheel speed sensor plausibility') directly points to the root cause that is triggering the generic P0502 in the engine computer.

Technical Service Bulletins (TSBs) & Recalls

• SI B07 03 14: While not for P0502 directly, this BMW bulletin lists numerous chassis and sensor fault codes (e.g., 5EB1 for steering angle sensor supply) that are known to cause repeat workshop visits if not diagnosed thoroughly. This highlights the importance of addressing the root DSC fault rather than just clearing the generic P0502 code.

Platform-Specific Known Issues

• The ABS/DSC control module (ATE MK61) is a known failure point on this generation, though less common than a sensor. Failure often requires the module to be sent out for professional rebuilding.
• In rust-belt regions, the rear ABS reluctor rings are prone to corrosion, which causes them to swell and damage the wheel speed sensor. The proper fix is often a complete axle shaft replacement.

Mechanic-Grade Diagnostic Values

• Active Wheel Speed Sensor Signal Voltage — expected: A digital square wave signal switching between approximately 0.75V (low) and 2.5V (high).. Failure: No signal, a flat line voltage, or an erratic/noisy pattern when viewed on an oscilloscope. A simple multimeter test is not recommended for these active sensors.
• Voltage Supply at Wheel Speed Sensor Connector — expected: At least 10.5V (ideally battery voltage, ~12V) with the ignition on.. Failure: Low or no voltage indicates a wiring problem between the DSC module and the sensor connector.

Scan Tool Commands That Help

• ISTA/D: Brake Bleeding Routine — This service function is required after replacing the DSC hydraulic unit to properly bleed air from the ABS pump and valve block.
• ISTA/D or other advanced scanners: Steering Angle Sensor (SZL) Adjustment/Calibration — Required after replacing the DSC module, steering angle sensor, or performing a wheel alignment to ensure the DSC system knows the steering wheel's straight-ahead position. Failure to calibrate can cause plausibility faults like 5EBA.
• NCS Expert / Tool32: DSC Module VIN Coding (A_E65.IPO -> c_fg_schreiben) — When installing a used DSC module, the vehicle's VIN must be written to the replacement module to allow it to communicate with other vehicle systems. This is a mandatory step for a used part to function correctly.

Wiring & Ground Locations

• DSC Control Module (ATE MK61) — Located on the driver's side of the engine compartment, near the strut tower and behind the wheel arch liner.. This module is the central hub for all wheel speed data. All sensor wiring terminates here, and it's the source of the vehicle speed signal sent to the DME. Power supply and ground issues at this module can mimic sensor failures.
• Yaw Rate / DSC Sensor — Under the driver's seat, beneath the carpet and a foam insulation layer.. While not a direct cause of P0502, a faulty yaw rate sensor can set other DSC faults that appear alongside the wheel speed sensor codes, complicating diagnosis. Knowing its location is useful for comprehensive DSC system troubleshooting.
• DSC Module Power Supply Pins — Pins 1 and 32 on the main DSC module electrical connector.. These pins should have 12V+ with the ignition on. A lack of power here, often due to a blown fuse or wiring issue, will cause the entire DSC system to fail and can log codes like 5DF0/5DF1.

Real Owner Repair Stories

• BMWFanatics forum user (2007 BMW 335i (E92) - (Note: E92 uses the same ATE MK61 DSC system as the E60)) — ABS, DTC, start-off assistance inactive, cruise control malfunction lights. Codes 5DF0 (Pump motor faulty) & 5DF1 (Pump motor connector damaged).
  ❌ Tried (didn't work) Removing, checking, and cleaning all wheel speed sensors., Unplugging and resetting the ABS pump motor connector.
  ✅ What actually fixed it The user temporarily fixed the issue by hitting the ABS motor with a rubber mallet. The permanent fix was disassembling the ABS motor and finding a stuck carbon brush. After cleaning the brush and its holder with electrical lube spray until it moved freely, the pump functioned correctly and the codes were resolved.

OEM Part Supersession History

• 34526760046 → 34526771703 — Standard part revision and update by BMW.
  Heads up: The new part number is a direct replacement for the old one. No known incompatibility issues.
• 34526760045 → 34526771702 — Standard part revision and update by BMW.
  Heads up: The new part number is a direct replacement for the old one. No known incompatibility issues.

Model Year Variations Within This Range

• 2007-2010 (LCI Models): The Life Cycle Impulse (LCI) update for the 2007/2008 model year brought significant improvements to electronics and overall quality control. While the fundamental DSC system (ATE MK61) remained, later models are generally considered more reliable. Cosmetic changes included new headlights and taillights, but the underlying causes for P0502 (sensors, wiring, module) are consistent across both pre-LCI (2003-2007) and LCI (2007-2010) models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Oil Leaks from Gaskets 🟠 Medium — Very common after 60,000-80,000 miles. The primary culprits are the valve cover gasket and the oil filter housing gasket (OFHG), which harden and crack over time.
• Cooling System Failure (Water Pump/Thermostat) 🔴 High — The electric water pump is a common failure item, often between 60,000 and 100,000 miles. Failure can lead to rapid overheating. Preventative replacement of the pump and thermostat is widely recommended.
• N47 Diesel Engine Timing Chain Failure 🔴 High — Primarily affects 4-cylinder diesel models (e.g., 520d). The timing chain, located at the rear of the engine, can stretch or snap prematurely. A rattling noise on startup is a key warning sign. Repair is extremely labor-intensive.
• Complex Electronic Module Failures 🟠 Medium — The E60's complex electronics, including the iDrive system, Body Gateway Module (KGM), and various sensors, can be a source of faults as the vehicle ages. Issues can range from non-functioning features to battery drain.
• Automatic Transmission (ZF 6HP) Issues 🟠 Medium → Shop Transmission Assembly — The ZF 6-speed automatic can develop harsh shifting, jerking, or delayed engagement, often between 100,000-150,000 km. Problems can sometimes be traced to the mechatronics sleeve leaking fluid onto the connector.
• Suspension Bushing Wear 🟡 Low — Front control arm bushings (thrust arms) are a common wear item, typically failing around 50,000-70,000 miles, leading to clunking noises over bumps and vague or vibrating steering.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used DSC/ABS module can be a cost-effective alternative to a new unit, which is very expensive. However, it is a complex repair that is not plug-and-play.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Match the part number on the module exactly. There are variations, especially for early (pre-2005) models.
• Source from a vehicle in a dry, salt-free climate to minimize the risk of corrosion on the housing and connector pins.
• Ensure the donor vehicle was not involved in a major front-end collision that could have damaged the module.
• Ask for a warranty or return period from the seller if possible.

OEM-only on this vehicle (don't cheap out):

• ABS/DSC Control Module: While a used OEM module is an option, new aftermarket modules are not available. The only other choice is rebuilding the original unit.
• Wheel Speed Sensor: While some high-quality aftermarket brands are acceptable, cheap, unbranded sensors are a significant gamble and a common cause of repeat failures.

Aftermarket brands forum-validated for this vehicle:

• ATE (This is the Original Equipment Manufacturer for the DSC module and sensors)
• Bosch
• Delphi
• VDO

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost sensors from online marketplaces. Forum users report these often fail to work out of the box or have very short lifespans, sometimes causing different error codes like 'direction detection' faults.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• 5DF0 — Internal fault code for the ABS/DSC control module (ATE MK61) often seen alongside wheel speed sensor issues.
• 5DF1 — Internal fault code for the ABS/DSC control module pump motor, frequently occurring on the E60 and E9x platforms.
• 5EB1 — Steering angle sensor supply fault mentioned in BMW TSB SI B07 03 14 as a related chassis system failure.
• C1E24 — A manufacturer-specific code that may appear when the DSC system falsely activates due to incorrect wheel speed readings.
