P0502 on 1999-2004 Jeep Grand Cherokee: Vehicle Speed Sensor Low Input Causes and Fixes

What's Unique About the 1999-2004 Jeep Grand Cherokee

The 1999-2004 (WJ) Grand Cherokee uses a transmission-mounted speed sensor to determine vehicle speed, and sensor failure is a common issue on this platform. Depending on the engine, the setup differs slightly: the 4.0L I6 with the 42RE transmission has a single output speed sensor, while the 4.7L V8 with the 45RFE/545RFE transmission has both an input and an output speed sensor. In both cases, the output sensor is the culprit for P0502.

Symptoms You May Notice

• Speedometer reads 0 MPH or works intermittently
• Harsh, erratic, or delayed automatic transmission shifts
• Cruise control will not engage
• ABS and/or Traction Control warning light is illuminated on the dash
• Check Engine Light is on
• Odometer may not accumulate mileage or work intermittently

Most Likely Causes

1. Failed Transmission Output Speed Sensor 🔴 High Probability → Shop Transmission Assembly Sensor failure is a widely documented common fault on the WJ Grand Cherokee platform. The sensor element can fail internally, causing it to produce a voltage signal that is too low for the PCM to read correctly.

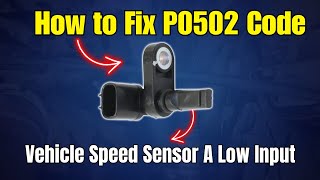

   How to confirm: Use a scan tool to monitor vehicle speed data while driving. If the reading is zero or erratic while the vehicle is moving, the sensor is the most likely cause. The sensor itself can also be tested for AC voltage output while spinning the wheels; 🎬 Watch: How to diagnose and fix a P0502 code a reading that is consistently low (e.g., under 3V AC at highway speeds) suggests failure.
   Typical fix: Replace the output speed sensor. On both the 4.0L and 4.7L models, this involves raising the vehicle, disconnecting the electrical connector, removing a single bolt, and swapping the old sensor for the new one.
   Est. part cost: $15-$60
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness leading to the transmission is exposed to road debris, heat, and moisture, which can cause wires to fray, break, or corrode over time.
   How to confirm: Visually inspect the wiring harness and connector for the output speed sensor. Look for any signs of cracking, chafing, or corrosion on the pins. Perform a continuity test on the signal and ground wires between the sensor connector and the PCM.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. Ensure the connection is clean and secure.
   Est. part cost: $5-$25
3. Metal Debris on Sensor Tip ⚪ Low Probability The speed sensor is magnetic and can attract metallic particles from normal transmission wear. Excessive buildup can interfere with the sensor's ability to read the reluctor wheel.
   How to confirm: Remove the sensor and inspect the magnetic tip. If it is covered in a significant amount of metal shavings, this may be the cause.
   Typical fix: Clean the debris from the sensor tip and reinstall. If the code returns, the sensor itself may be weak or there may be excessive internal transmission wear.
   Est. part cost: $0

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very uncommon. The PCM should only be considered after the sensor and wiring have been thoroughly tested and confirmed to be good. A PCM failure would likely present with other trouble codes as well.
• Worn or Damaged Reluctor Ring: The toothed ring inside the transmission that the sensor reads can become damaged or worn, but this is rare and typically points to more severe internal transmission problems.

Diagnosis Steps

1. Scan for Codes: Use an OBD-II scanner to confirm P0502 is the primary code. Note any other transmission-related codes, like P0720.
2. Monitor Live Data: Use the scanner's live data function to view 'Vehicle Speed'. Drive the vehicle slowly and check if the reading stays at 0 MPH. If it does, the problem is in the VSS circuit.
3. Visual Inspection: Safely raise the vehicle and locate the output speed sensor on the driver's side of the transmission or transfer case. Inspect the sensor's connector and wiring for obvious damage, corrosion, or loose connections.
4. Test the Sensor (Advanced): For a definitive diagnosis, connect a multimeter set to AC volts to the sensor's two pins. With the rear wheels off the ground and the vehicle in drive, monitor the AC voltage. A failing sensor may produce a very low voltage (e.g., under 3-4V AC at highway speed), while a healthy replacement sensor should produce a significantly higher voltage (e.g., over 6V AC). This confirms the 'Low Input' condition.
5. Replace the Sensor: Given the high failure rate and low cost of the sensor for this vehicle, the most practical step is often to replace it. It is held in by a single bolt.
6. Inspect and Clean: When the old sensor is removed, check its magnetic tip for excessive metal shavings and clean the area before installing the new sensor.
7. Clear Codes and Test Drive: After replacing the sensor, clear the trouble codes with the scanner and perform a test drive to ensure the speedometer works, the transmission shifts correctly, and the Check Engine Light does not return.

Parts You'll Likely Need

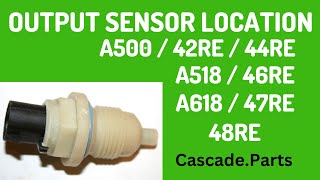

• Transmission Output Speed Sensor (4.0L I6 w/ 42RE) (OEM #4800879) — This is the most common failure point for code P0502 on the 4.0L Grand Cherokee. 🎬 See: 42RE output speed sensor location and info
  Trusted brands: Mopar, Crown Automotive, Standard Motor Products (SMP), NTK
  OEM price range: $45-$65
  Aftermarket price range: $15-$30
• Transmission Speed Sensor (Input/Output for 4.7L V8 w/ 45RFE) (OEM #56028187AD) — On the 4.7L V8, the same sensor part number is often used for both the input and output speed sensors. The output sensor is the one responsible for the P0502 code. Verify the correct location before replacing. 🎬 Watch: How to replace the 45RFE speed sensors
  Trusted brands: Mopar, Dorman, WVE, ATP
  OEM price range: $50-$70
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0720 — This code specifically indicates a low or erratic signal from the Output Speed Sensor, directly related to the VSS function.

Mechanic-Grade Diagnostic Values

• Output Speed Sensor AC Voltage Generation — expected: AC voltage should be generated and increase with wheel speed. A healthy sensor may produce over 6V AC at highway speeds.. Failure: A consistently low voltage (e.g., under 3V AC at highway speed) or a flat 0V AC signal while wheels are turning indicates a failed or weak sensor.
• Output Speed Sensor Retaining Bolt Torque — expected: 105 in-lbs (11.9 N·m). Failure: Over-tightening can crack the sensor housing; under-tightening can allow fluid leaks or improper sensor reading.

Wiring & Ground Locations

• PCM Connector C2, Pin 33 (4.7L V8) — At the Powertrain Control Module (PCM), which is located on the passenger side of the firewall.. This is the specific pin where the Output Speed Sensor signal is received by the PCM. Testing for a signal here can confirm if the wiring from the sensor to the PCM is intact.
• PCM Connector C2, Pin 34 (4.7L V8) — At the Powertrain Control Module (PCM), on the passenger side of the firewall.. This is the sensor ground pin for the speed sensor circuit at the PCM. A continuity check from this pin to the sensor connector's ground wire is essential for diagnosing wiring faults.
• G103 (4.0L I6) — On the passenger side of the engine block, near the crank position sensor.. This is a primary ground for the PCM. Corrosion or a loose connection here can cause a wide range of erratic electronic issues, including faulty sensor readings that could potentially trigger a P0502.
• G108 (Both Engines) — On the passenger side inner fender, towards the back of the power distribution block.. This ground point serves the Transmission Control Module (TCM). A bad ground here can directly impact transmission functions and sensor readings, making it a critical point to inspect when diagnosing transmission-related codes.

Real Owner Repair Stories

• JeepForum.com user (2000 Jeep Grand Cherokee WJ 4.0L) — Speedometer not working, Check Engine Light on with code P0502.
  ❌ Tried (didn't work) Replaced the output speed sensor with a new aftermarket part, but the problem persisted.
  ✅ What actually fixed it The user replaced the new, faulty aftermarket sensor with a different brand (specifically, one from a NAPA auto parts store), which resolved the issue. This indicates that even new parts can be defective, especially from budget brands.

OEM Part Supersession History

• 56028187AD → 56028187AE — Part revision or supplier change.
  Heads up: The parts are interchangeable. 56028187AE is the current replacement for 56028187AD.
