P0505 on 2003-2009 Kia Sorento: Idle Control Malfunction Causes and Fixes

What's Unique About the 2003-2009 Kia Sorento

The 2003-2009 Sorento spans two distinct engine families. The 2003-2006 models use the 3.5L Sigma V6, which has a separate, replaceable Idle Air Control (IAC) valve mounted to the throttle body. The 2007-2009 models with the 3.8L Lambda V6 use an electronic throttle body where the idle control function is integrated and not serviced separately. For the 3.8L V6, a P0505 code often requires cleaning or replacing the entire throttle body assembly, whereas the earlier 3.5L V6 allows for a more targeted and cheaper replacement of just the IAC valve.

Generation note: The 2003-2009 Kia Sorento covers the first generation (BL). However, there is a significant engine change. The 2003-2006 models use the 3.5L Sigma V6 with a serviceable Idle Air Control (IAC) valve. The 2007-2009 models use the 3.8L Lambda V6, which has an integrated electronic throttle control system, meaning the entire throttle body must be addressed for idle issues.

Symptoms You May Notice

• Check Engine Light is on
• Engine stalls, especially when coming to a stop, braking, or when the A/C is turned on.
• Idle speed is too high (surging) or too low (stumbling).
• Erratic or fluctuating idle RPM, sometimes described as 'hunting'.
• Difficulty starting the engine, especially when cold.
• Vehicle shakes or vibrates when stopped and in gear.

Most Likely Causes

1. Dirty or Faulty Idle Air Control (IAC) Valve (3.5L V6) 🔴 High Probability → Shop Idle Air Control Valve Carbon buildup from the PCV system is extremely common. It clogs the small air passages and causes the internal plunger/motor to stick or fail completely. This is the number one cause for P0505 on the 2003-2006 models.
   How to confirm: Remove the IAC valve from the throttle body. Inspect it and the air passages for heavy black carbon deposits. You can try cleaning it with throttle body cleaner. If cleaning provides only a temporary fix or no fix at all, the internal motor has failed. A multimeter can be used to test the valve's electrical resistance; a reading between 10-20 ohms is typically expected.
   Typical fix: Replace the Idle Air Control valve and its gasket. Cleaning is often not a permanent solution.
   Est. part cost: $40-$150 for an aftermarket IAC valve, $300-$450 for an OEM part.

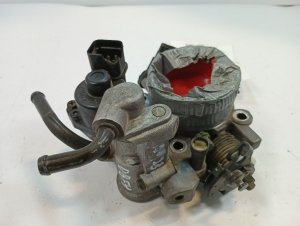

2. Dirty or Faulty Electronic Throttle Body (3.8L V6) 🔴 High Probability → Shop Fuel Injection Throttle Body On the 2007-2009 models, the idle control is managed by the electronic throttle body. Carbon can build up around the throttle plate, preventing it from closing properly and disrupting the PCM's ability to control idle airflow. The internal electronics can also fail.
   How to confirm: Remove the intake boot and inspect the throttle plate and bore for a ring of black carbon. If cleaning the throttle body thoroughly does not resolve the issue, the throttle body assembly itself is likely faulty. A scan tool can be used to monitor the throttle position percentage at idle; it should be stable and low (e.g., under 20%).
   Typical fix: First, attempt to clean the throttle body with a dedicated cleaner. If the problem persists, the entire electronic throttle body assembly must be replaced. An idle relearn procedure is often required after replacement.
   Est. part cost: $150-$400 for an aftermarket or remanufactured unit, $450-$600+ for an OEM part.
3. Vacuum Leak 🟡 Medium Probability Rubber vacuum hoses, especially the PCV hose and the main intake air duct, can become brittle and crack with age, introducing unmetered air that throws off the idle. Intake manifold gaskets can also fail.
   How to confirm: With the engine running, listen for a distinct hissing sound. You can also carefully spray brake cleaner or use a smoke machine around vacuum lines and gasket sealing surfaces. A change in engine idle or the appearance of smoke indicates a leak.
   Typical fix: Replace the cracked vacuum hose or leaking gasket.
   Est. part cost: $5-$50
4. Wiring or Connector Issue ⚪ Low Probability
   How to confirm: Visually inspect the electrical connector and wiring going to the IAC valve (3.5L) or electronic throttle body (3.8L). Look for corrosion, pushed-out pins, or damaged wires. A multimeter can be used to check for proper voltage, ground, and signal continuity back to the PCM. With the key on, you should find a 9-14V supply at the connector.
   Typical fix: Repair the damaged wiring or clean/replace the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. The PCM should only be considered after all other possibilities have been exhausted. A faulty PCM might fail to send the correct signals to the idle control system or have corrupted software.

Diagnosis Steps

1. Scan for other stored trouble codes. Address any codes related to the MAF sensor, TPS, or system lean conditions first.
2. Visually inspect the entire air intake system from the air filter to the throttle body for any cracks, loose connections, or disconnected hoses.
3. Inspect all accessible vacuum lines for cracks, brittleness, or loose fittings. Pay close attention to the PCV valve and its hose, as it's a common failure point.
4. For 3.5L V6 models (2003-2006): Locate the IAC valve on the throttle body. Remove and inspect it and its passages for heavy carbon buildup. Clean both the valve and the throttle body passages with throttle body cleaner. If cleaning doesn't work, replacement is the next step.
5. For 3.8L V6 models (2007-2009): The idle control is part of the electronic throttle body. Remove the intake duct and thoroughly clean the throttle plate and bore with a dedicated cleaner and a soft brush. Be careful not to force the throttle plate open manually on an electronic unit.
6. If a vacuum leak is suspected but not visible, perform a smoke test to pinpoint the source of the unmetered air.
7. Inspect the electrical connector for the IAC valve or throttle body. Check for corrosion, bent pins, or damaged wires.
8. After any cleaning or replacement, perform an idle relearn procedure. This can sometimes be done by disconnecting the battery for 15-20 minutes, but a more specific procedure may be required. A typical procedure involves warming the engine, turning the ignition off for 10 seconds, and then idling for at least 30 seconds.

Parts You'll Likely Need

• Idle Air Control (IAC) Valve (for 3.5L V6 2003-2006) (OEM #35103-39800) — This is the most common failure point for the P0505 code on the 3.5L engine, typically due to internal carbon buildup or motor failure.
  Trusted brands: Genuine Kia, Standard Motor Products, Walker Products
  OEM price range: $300-$450
  Aftermarket price range: $40-$150
• Electronic Throttle Body (for 3.8L V6 2007-2009) (OEM #35100-3C300) — On the 3.8L engine, the idle control is integrated. If cleaning doesn't work, the entire unit must be replaced due to internal electronic or mechanical failure.
  Trusted brands: Genuine Kia, Bosch (Remanufactured), Cardone
  OEM price range: $450-$610
  Aftermarket price range: $150-$400
• IAC Valve Gasket / Throttle Body Gasket — This should always be replaced when the IAC valve or throttle body is removed to prevent future vacuum leaks.
  Trusted brands: Fel-Pro, Mahle
  OEM price range: $5-$15
  Aftermarket price range: $2-$10

Related Codes That Often Appear With This One

• P0506 — This code means 'Idle Air Control System RPM Lower Than Expected' and can be set if the IAC valve is stuck closed or heavily clogged, causing the engine to stumble or stall.
• P0507 — This code means 'Idle Air Control System RPM Higher Than Expected' and can be set if the IAC valve is stuck open or there is a significant vacuum leak, causing a high idle.

Platform-Specific Known Issues

• On the 3.5L Sigma V6, owners report that cleaning the IAC valve is often only a temporary fix lasting a few weeks to a few months. Full replacement is highly recommended to solve the problem long-term.
• For the 3.8L Lambda V6, after replacing the throttle body, an idle relearn procedure is critical. Failure to do so can result in a continued high or erratic idle even with the new part.

Mechanic-Grade Diagnostic Values

• Idle Air Control (IAC) Valve Coil Resistance (3.5L V6) — expected: 10 - 20 Ohms. Failure: A reading outside of this range (open circuit or short) indicates a faulty internal motor.
• IAC Valve / Electronic Throttle Body Connector Voltage (Key On, Engine Off) — expected: 9 - 14 Volts. Failure: No voltage or low voltage indicates a problem with the wiring or the ECU's power supply to the circuit.
• Throttle Position Sensor (TPS) Voltage at Closed Throttle (3.8L V6) — expected: ~0.45 Volts or <20% on a scan tool. Failure: A significantly higher voltage or percentage at closed throttle can indicate carbon buildup holding the plate open or a miscalibrated sensor.

Scan Tool Commands That Help

• Kia GDS / Professional Scan Tool: Active Test: ETC (Electronic Throttle Control) Motor — For the 3.8L V6, this bidirectional command allows a technician to activate the throttle motor on and off. This helps verify if the motor itself is functional and responding to commands from the scan tool, isolating the problem between the throttle body, wiring, and the PCM.

Wiring & Ground Locations

• Engine/Transmission Ground Points — Typically found on the engine block, cylinder head, and transmission housing, secured to the vehicle's chassis or firewall.. A poor engine ground can cause a variety of electrical issues, including erratic sensor readings and incorrect actuator operation. The PCM, IAC valve, and electronic throttle body all rely on a stable ground reference to function correctly. While specific locations for the Sorento require a factory manual, checking and cleaning all major ground straps is a key step in diagnosing elusive electrical faults.

Real Owner Repair Stories

• YouTube video comment section (2008 Kia Sorento 3.8L) — P0505 code, engine would stall out.
  ❌ Tried (didn't work) Cleaning the throttle body
  ✅ What actually fixed it The owner reported that after cleaning the throttle body didn't work, replacing the entire throttle body assembly finally resolved the stalling and cleared the P0505 code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Crankshaft Pulley Bolt Failure (3.5L V6) 🔴 High — A well-documented issue where the bolt can back out or break, causing a loss of power steering and alternator function, potentially leading to catastrophic engine damage. Affects earlier 3.5L models primarily. (Ref: Kia issued revised parts to address this, but failures are still reported.)
• Frame and Suspension Rust 🔴 High — Common in regions that use road salt. The frame, particularly near the rear wheels, and front lower control arms are susceptible to severe corrosion. This can lead to structural failure. (Ref: Recalls were issued for suspension components on related models like the Sedona, but Sorento owners report similar frame issues.)
• Alternator Failure 🟠 Medium — The alternators on first-generation Sorentos, particularly on gasoline engines, are known to have a shorter-than-average lifespan.
• Leaking Expansion Tank 🟡 Low — The plastic coolant expansion tank is prone to developing leaks over time, which can lead to coolant loss and potential overheating if not addressed.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the 3.8L V6, a used OEM electronic throttle body from a low-mileage donor vehicle can be a cost-effective alternative to a new aftermarket part, which can have questionable electronic quality. For the 3.5L V6, the IAC valve is a common wear item and relatively inexpensive new, so a used part offers little value.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a throttle body, inspect the throttle plate and bore for deep scoring or damage beyond normal carbon buildup.
• Check the electrical connector for any signs of corrosion, bent pins, or heat damage.
• Ensure the donor vehicle was not in a front-end collision that could have damaged the component.
• Ask for the donor vehicle's VIN to verify mileage and check for any reported issues.

OEM-only on this vehicle (don't cheap out):

• Powertrain Control Module (PCM) - Used PCMs often require dealer-level programming to match the vehicle's VIN and options, making them a poor DIY choice.

Aftermarket brands forum-validated for this vehicle:

• Standard Motor Products (for IAC Valve)
• Walker Products (for IAC Valve)
• Bosch (for remanufactured Throttle Body)

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' electronic throttle bodies and IAC valves from online marketplaces are frequently reported on forums as being dead-on-arrival or failing within a few months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — System Lean — often occurs alongside P0505 when a vacuum leak (such as a cracked PCV hose or intake gasket) introduces unmetered air into the engine.
• P0174 — System Lean (Bank 2) — similar to P0171, this can be triggered by the same vacuum leaks or intake manifold gasket failures that disrupt idle control.
• P0101 — MAF Sensor Circuit Range/Performance — the diagnosis steps recommend addressing MAF-related codes before P0505, as a faulty sensor can cause similar erratic idle symptoms.
• P0121 — TPS Range/Performance — related to throttle position; on 3.8L models, throttle position issues are directly linked to the electronic throttle body's ability to manage idle.
