P0506 on 1998-2002 Honda Accord: Low Idle Causes and Fixes

What's Unique About the 1998-2002 Honda Accord

The sixth-generation Honda Accord, like many Hondas of this era, uses a mechanical Idle Air Control Valve (IACV) that is highly prone to carbon buildup over time. The passages for air and coolant within the valve and the throttle body can become restricted, hindering the valve's ability to precisely regulate airflow at idle. This is a very common maintenance item on these engines as they age, and cleaning is often the first and most effective step before considering replacement. The IACV is located on the back of the intake manifold on 4-cylinder (F23A) engines and on the bottom of the throttle body on V6 (J30A1) engines.

Symptoms You May Notice

• Rough or vibrating idle, feeling like the car will shut off.
• Engine idle speed is noticeably lower than normal (e.g., ~500-600 RPM).
• Stalling when coming to a stop or when the A/C is turned on.
• Hesitation or poor throttle response when accelerating from a stop.
• Check Engine Light is on.
• In some cases on V6 models, it can cause a delay or harsh engagement when shifting from Reverse to Drive due to low transmission line pressure at idle.

Most Likely Causes

1. Dirty or Carbon-Clogged Idle Air Control Valve (IACV) 🔴 High Probability → Shop Idle Air Control Valve The design of the IACV on this generation Accord makes it susceptible to carbon and gunk buildup from the crankcase ventilation system, which restricts the movement of the internal rotary valve.

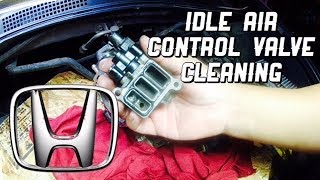

   How to confirm: Remove the IACV. On 4-cyl models, it's on the back of the intake manifold. On V6 models, it's on the bottom of the throttle body. 🎬 Watch: Step-by-step removal and cleaning for V6 models Visually inspect the air passages and the screen for heavy, black carbon deposits.
   Typical fix: Thoroughly clean the IACV with carburetor cleaner and a small brush, paying special attention to the screen and internal passages. Always replace the IACV gasket upon reinstallation to prevent vacuum leaks.
   Est. part cost: $5-$15 for cleaner and a new gasket.
2. Dirty Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body Carbon buildup around the throttle plate and within the idle air passages of the throttle body is very common. This restricts the small amount of air needed to maintain a stable idle, especially the small bypass port that feeds the IACV.
   How to confirm: Remove the air intake hose from the throttle body and inspect the throttle plate and bore for a thick black ring of carbon.
   Typical fix: Clean the throttle body bore, throttle plate, and all small air ports with throttle body cleaner and a rag or soft brush. It is most effective to remove the throttle body for a thorough cleaning.
   Est. part cost: $10-$20 for cleaner.
3. Vacuum Leak 🟡 Medium Probability After many years and heat cycles, rubber vacuum hoses can become brittle, crack, and leak. The large air intake tube between the filter box and throttle body is a common culprit for cracks. Intake manifold gaskets can also fail.
   How to confirm: With the engine running, listen for hissing sounds. Carefully spray short bursts of brake cleaner or a propane torch (unlit) around gasket surfaces and vacuum lines; a change in engine idle indicates a leak. A smoke test is the most definitive method.
   Typical fix: Replace the cracked vacuum hose or failed gasket.
   Est. part cost: $5-$50 depending on the hose or gasket.
4. Faulty Idle Air Control Valve (IACV) ⚪ Low Probability → Shop Idle Air Control Valve
   How to confirm: If a thorough cleaning of the IACV and throttle body does not resolve the code, and there are no vacuum leaks, the electronic motor in the valve itself may have failed. This is common after 150,000+ miles. You can test the valve's resistance with a multimeter to see if it's within spec (typically checking for continuity between specific pins).
   Typical fix: Replace the Idle Air Control Valve and its gasket. Many owners report that only an OEM or OEM-supplier (like Hitachi) part works reliably.
   Est. part cost: $40-$150 for aftermarket, $150-$250 for OEM.

Rare But Worth Checking

• Failing PCV Valve: → Shop PCV Valve A stuck-closed or clogged Positive Crankcase Ventilation (PCV) valve can disrupt crankcase pressure and affect idle quality. It's an inexpensive part to check and replace during diagnosis. One owner on DriveAccord.net reported this as the ultimate fix for their P0506.

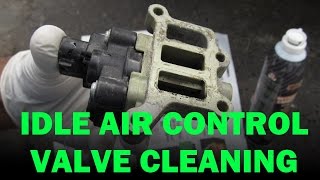

🎬 See how to clean the IACV, PCV, and throttle body
• Failing A/C Compressor or Low Refrigerant: A dragging or failing A/C compressor can put an excessive load on the engine at idle. Additionally, a low refrigerant charge can cause the A/C system to cycle rapidly, confusing the idle control system and causing the RPM to dip and trigger the code.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0506 is present.
2. Inspect the large air intake hose between the air filter box and the throttle body for cracks or loose connections.
3. Remove the air intake hose and visually inspect the throttle body for carbon buildup. Clean it thoroughly with throttle body cleaner and a soft brush. For best results, remove the throttle body (typically four 12mm nuts/bolts).
4. Locate and remove the Idle Air Control Valve (IACV). On 4-cyl engines, it's on the back of the intake manifold held by two 12mm bolts. On V6 engines, it's on the bottom of the throttle body held by Phillips head screws. Be prepared to clamp off two small coolant hoses to minimize coolant loss.
5. Vigorously clean the IACV's internal passages and screen with carburetor cleaner and a soft brush until the internal rotary valve moves freely.
6. Replace the old IACV gasket with a new one to prevent vacuum leaks. This is a critical step.
7. Reinstall the IACV and all related components. Torque throttle body bolts to 16 ft-lbs (22 Nm).
8. Check for vacuum leaks around the intake manifold and all vacuum hoses using a smoke machine or the carb cleaner method.
9. After reassembly, perform an idle relearn procedure. A common method is: disconnect the negative battery terminal for 10 minutes. Reconnect it, start the engine with all accessories off, and hold the RPM at 3,000 until the radiator fan comes on (or for 5 minutes). Then, let it idle for about 5-10 minutes until the fan cycles twice.
🎬 Watch: How to perform an idle relearn without a scan tool
10. If the code returns after cleaning and confirming no vacuum leaks, test the IACV's electrical circuit and consider replacing the valve itself, preferably with an OEM part.

Parts You'll Likely Need

• Idle Air Control Valve Gasket (OEM #36461-PAA-A01 (For V6 J30A1) / 16455-P0A-A00 (For 4-Cyl F23A)) — The gasket should always be replaced when the IACV is removed for cleaning or replacement to prevent future vacuum leaks.
  Trusted brands: Honda OE, Fel-Pro, Mahle
  OEM price range: $8-$15
  Aftermarket price range: $3-$10
• Idle Air Control Valve (IACV) (OEM #36460-PAA-L21 (For V6 J30A1) / 36450-P0A-A01 (For 4-Cyl F23A)) — If cleaning the original valve doesn't restore proper function, the valve's internal motor has likely failed and the entire unit needs to be replaced.
  Trusted brands: Honda OE, Hitachi (OEM Supplier), Standard Motor Products, Denso
  OEM price range: $150-$250
  Aftermarket price range: $40-$120

Related Codes That Often Appear With This One

• P0505 — P0505 indicates a general Idle Control System Malfunction. It's very common to see this code alongside or instead of P0506, as they both point directly to a problem with the IACV or its related components.
• P0401 — P0401 (EGR Flow Insufficient) is also common on this generation of Accord due to carbon buildup in the EGR port and intake manifold passages. If these passages are clogged, it's highly likely the IACV and throttle body are also dirty.
• P0171/P0174 — These 'System Too Lean' codes can appear if a significant vacuum leak is the root cause of the idle problem, as unmetered air is entering the engine and disrupting the air-fuel ratio.

Platform-Specific Known Issues

• IACV Location Difference: The location of the IACV differs between engine types. On the 4-cylinder (F23A) engine, it is bolted to the back of the intake manifold. On the V6 (J30A1) engine, it is mounted to the bottom of the throttle body.
• Real-World Repair Story: Cleaning Isn't Enough: A user on the Snap-On Diagnostics Forum with a 2000 Accord V6 documented their struggle with P0506. After cleaning the throttle body and IACV passages with no success, they replaced the IACV, which also did not fix the issue, indicating a deeper, less common problem in their specific case. This highlights that while cleaning is the most common fix, it is not a guaranteed solution.

Mechanic-Grade Diagnostic Values

• Idle Air Control Valve (IACV) Coil Resistance — expected: 8-15 Ohms between the center power pin and each of the two outer control pins.. Failure: A reading outside this range, such as an open circuit (infinite resistance) or a short (zero resistance), indicates a faulty internal coil.
• IACV Connector Voltage (Key On, Engine Off) — expected: Approximately 12V (battery voltage) at the center pin (typically a Yellow/Black wire) of the harness-side connector.. Failure: No voltage at the center pin suggests a problem with the PGM-FI main relay or the wiring providing power to the circuit.

Scan Tool Commands That Help

• Honda Diagnostic System (HDS) or equivalent professional scanner: IAC DUTY CYCLE or IAC STEPS Live Data — When observing live data, the IAC duty cycle or step count should actively change as the engine warms up and as electrical loads (like A/C or headlights) are turned on and off. A static or unresponsive value suggests the PCM is not commanding the valve or the valve is not responding, even if its resistance tests are good.
• Honda Diagnostic System (HDS) or equivalent professional scanner: ECU/PCM Reset — After cleaning or replacing the IACV and/or throttle body, a PCM reset is the professional method to clear learned fuel trims and idle positions. This forces the system to begin the idle relearn process from a clean slate. While disconnecting the battery achieves a similar result, this is the dealer-level procedure.

Wiring & Ground Locations

• G101 — On the intake manifold plenum, often near the thermostat housing on the driver's side of the engine bay.. This is a critical ground point for the PCM/ECU and the IAC valve itself. A loose or corroded G101 ground can cause erratic voltage, leading to improper IAC valve operation and incorrect sensor readings, which can directly cause a P0506 code even if the IAC valve is clean and functional.
• IAC Valve Connector — Plugged directly into the Idle Air Control Valve.. The 3-pin connector provides power and control signals. The center pin is typically a 12V power feed (YEL/BLK wire), while the two outer pins are control signals from the PCM. Corrosion or damage to these pins or wires can prevent the valve from operating correctly.

Real Owner Repair Stories

• DriveAccord.net user (2003 Honda Accord V6 (Note: This is the next generation, but the J-series V6 has similar P0506 causes)) — P0506 code, rough idle at 500 RPM, especially when the engine was hot and the A/C was on.
  ❌ Tried (didn't work) Turning off the A/C would temporarily improve the idle.
  ✅ What actually fixed it The user ultimately replaced the PCV valve, which resolved the issue. This suggests the stuck valve was altering crankcase pressure enough to disrupt the idle.

OEM Part Supersession History

• 36460-PAA-L21 → This part number has been discontinued by Honda. — End of life for the vehicle generation.
  Heads up: Cross-reference numbers include AC271, AC4072, and 36460PAAL41. When buying replacements, ensure they are specified for the V6 (J30A1) engine, as the 4-cylinder part is different.
• 36450-P0A-A01 → This part number appears to still be available through some OEM channels but is also widely cross-referenced by aftermarket manufacturers. — N/A
  Heads up: This part is for the 4-cylinder (F23A) engine only and is not interchangeable with the V6 part.

Model Year Variations Within This Range

• 2001-2002: A mild facelift was introduced for the 2001 model year. This included revised front grilles, deeper bumpers, and different rear light styling. While core engine components like the IACV and throttle body remained the same, some engine options changed. For example, a 2.3L engine became available. However, these changes do not significantly alter the diagnosis or repair for a P0506 code within this generation.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Automatic Transmission Failure 🔴 High — Extremely common, especially on V6 models, often occurring between 60,000 and 120,000 miles. Symptoms include slipping, harsh shifts, and flashing 'D4' light. (Ref: Honda Service Bulletin TSB 02-062 extended the warranty for some 2000-2001 models. A class-action lawsuit was also settled regarding these failures.)
• Ignition Switch Failure 🔴 High — Widespread issue where internal contacts wear, causing intermittent no-start conditions or engine stalling while driving. (Ref: Subject of multiple recalls, including a major one in May 2002 for 1998-1999 Accords and another in 2005 (05-007) for 1999-2002 models.)
• Peeling Paint and Clear Coat Failure 🟡 Low — Very common, especially on dark-colored vehicles. The clear coat fails and peels, typically starting on the roof, hood, and trunk.
• Clogged EGR Ports 🟠 Medium — Carbon buildup in the EGR passages within the intake manifold is common, leading to rough running, hesitation, and code P0401. Often requires manual cleaning. (Ref: Honda Service Bulletin 00-026 addresses this issue for some models.)
• Cracked Exhaust Manifold 🟠 Medium — The cast iron exhaust manifold, particularly on 4-cylinder models, is prone to cracking over time, causing an exhaust leak noise that is most noticeable on a cold start.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the Idle Air Control Valve (IACV), a used OEM part from a reputable junkyard is often a smarter and more reliable choice than a new, non-OEM aftermarket part. Many owners report that cheap aftermarket IACVs fail quickly or are dead-on-arrival.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Look for a donor vehicle with lower mileage if possible.
• Inspect the IACV for physical damage, cracks, or heavy corrosion.
• If possible, test the resistance of the used valve with a multimeter before purchase; it should be within the 8-15 Ohm range.
• Ensure it is the correct part for your engine (4-cylinder vs. V6).

OEM-only on this vehicle (don't cheap out):

• Idle Air Control Valve (IACV) - While not strictly 'OEM-only', forum consensus strongly favors OEM or a known OEM supplier like Hitachi to avoid repeat failures common with generic aftermarket brands.

Aftermarket brands forum-validated for this vehicle:

• Hitachi (often the original OEM supplier)
• Standard Motor Products
• Denso

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' parts from online marketplaces are frequently reported by owners to be unreliable for this specific component.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0505 — A companion idle control system code often discussed alongside P0506; both are frequently resolved by cleaning the IACV and intake manifold ports.
