P0506 on 2004-2011 Mazda RX-8: Low Idle Causes and Fixes

What's Unique About the 2004-2011 Mazda RX-8

The Renesis rotary engine in the RX-8 is prone to carbon buildup and can be sensitive to oil contamination in the intake system. It's common for oil from the crankcase ventilation system to coat the inside of the intake tract, leading to a dirty throttle body and MAF sensor. These two components are the primary culprits for P0506 on this platform, often before any parts have actually failed. Additionally, after disconnecting the battery or cleaning these parts, a specific idle relearn procedure is often necessary for the ECU to recalibrate, as the learned fuel trims and idle settings are lost.

Symptoms You May Notice

• Engine idle is lower than normal (typically below 750 RPM)
• Rough or unstable idle, sometimes described as a bouncy idle.
• Engine stalling when coming to a stop or in neutral.
• Hesitation when accelerating from a stop.
• Check Engine Light is on.
• Increased engine vibrations when idling.

Most Likely Causes

1. Dirty Throttle Body 🔴 High Probability → Shop Fuel Injection Throttle Body The RX-8's crankcase ventilation system can introduce oil vapor into the intake, which mixes with carbon and gums up the throttle plate and bore, restricting the small amount of air needed for a stable idle.
   How to confirm: Remove the accordion intake tube and visually inspect the throttle plate and bore for a thick, black, oily residue. The engine side is often dirtier than the intake side.
   Typical fix: Carefully clean the throttle plate and bore using a dedicated throttle body cleaner and a soft, lint-free cloth. Manually open the plate to clean the edges. Do not use abrasive materials. An idle relearn procedure is required after cleaning.
   Est. part cost: $10-$20 for cleaner
2. Dirty Mass Airflow (MAF) Sensor 🔴 High Probability Oil vapor from the intake can also contaminate the sensitive wires of the MAF sensor, causing it to send inaccurate (lower) airflow readings to the PCM, which then calculates an incorrect idle speed.
   How to confirm: Carefully remove the MAF sensor from the intake tube. Visually inspect the small sensor wires for any signs of oil, grime, or debris.
   Typical fix: Spray the sensor wires and bulb liberally with a dedicated MAF sensor cleaner. Do not touch the wires. 🎬 See how to clean the RX-8 MAF sensor Allow it to dry completely before reinstalling.
   Est. part cost: $10-$15 for cleaner
3. Vacuum Leak 🟡 Medium Probability Over time, the various rubber and plastic hoses in the engine bay can become brittle and crack, allowing unmetered air to enter the intake manifold, which disrupts the air-fuel ratio and can lower the idle. The accordion-style intake tube itself is a common failure point.
   How to confirm: With the engine running, listen for hissing sounds around the intake manifold. You can also carefully spray short bursts of brake cleaner or a propane torch (unlit) around vacuum lines and gasket surfaces; a change in engine RPM indicates a leak.
   Typical fix: Identify and replace the cracked or disconnected vacuum hose or faulty gasket.
   Est. part cost: $10-$50 for hoses
4. Failing Ignition System (Plugs, Coils, Wires) 🟡 Medium Probability The RX-8's ignition system is a high-wear area, and weak coils are a chronic problem. Weak spark from worn plugs, coils, or wires leads to incomplete combustion, resulting in a rough, low idle and misfires that can eventually damage the catalytic converter.
   How to confirm: Inspect spark plugs for wear or fouling. Test ignition coils for proper resistance and output. A flashing check engine light under acceleration is a strong indicator of a misfire caused by the ignition system. Overheating marks on the underside of the coils are also a sign of failure.
   Typical fix: Replace spark plugs, ignition coils, and wires as a set. This is considered regular maintenance on an RX-8, often recommended every 30,000 miles. 🎬 Watch: RX-8 ignition coil and spark plug replacement
   Est. part cost: $200-$400 for a full set

Rare But Worth Checking

• Low Engine Compression: This is the most serious potential cause. The Renesis rotary engine is known for apex seal wear, which leads to low compression. A primary symptom is difficulty starting, especially when warm (hot start issues), along with a rough, low idle and stalling. A professional compression test specific to rotary engines is required to confirm this, as standard piston engine testers will not work.
• Clogged Catalytic Converter: An engine misfire or internal engine failure can cause the catalytic converter to overheat and break apart, creating an exhaust restriction. This can lead to low power, a sluggish feeling, and a low, struggling idle. The converter may glow red after a hard drive or you may hear a rattling noise from the exhaust if the internal honeycomb has broken apart.

Diagnosis Steps

1. Read the code: Use an OBD-II scanner to confirm P0506 is the only code present. If other codes exist, especially misfire codes (P0300, P0301, P0302), address them first as they often point to the root cause.
2. Inspect and Clean MAF Sensor: Disconnect the battery. Carefully remove the MAF sensor (two Phillips screws) and unplug its connector. Spray the delicate wires and bulb with dedicated MAF sensor cleaner. Do not touch the wires. Let it air dry completely before reinstalling.
3. Inspect and Clean Throttle Body: While the MAF is out, remove the intake accordion tube and inspect the throttle body. If dirty, spray throttle body cleaner on a rag and wipe the bore and both sides of the throttle plate until clean.
4. Check for Vacuum Leaks: Reassemble the intake. With the engine running, listen for hissing sounds. Pay close attention to the accordion intake tube and any vacuum lines connected to the intake manifold. A smoke test is the most effective way to find small leaks.
5. Perform NVRAM Reset and Idle Relearn Procedure: After cleaning and reassembly, reconnect the battery. This procedure is crucial. Turn the ignition to 'ON' (do not start). Within 8 seconds, pump the brake pedal 20 times rapidly. On later models, the oil pressure gauge will sweep to confirm the reset. 🎬 Watch: RX-8 idle reset and battery disconnect fix Then, start the car without touching the throttle and let it idle for 15-20 minutes as it warms up and the ECU relearns the idle trims. You may also need to turn the steering wheel lock-to-lock to reset the DSC light.
6. Inspect Ignition System: If the problem persists, inspect the spark plugs, wires, and ignition coils. Coils are a very common failure point and can cause a low, rough idle even without a consistent misfire code. Look for signs of overheating on the bottom of the coils.
7. Professional Diagnosis: If all the above steps fail to resolve the issue, the problem may be more severe, such as low engine compression or a clogged catalytic converter, and should be diagnosed by a qualified mechanic, preferably one with rotary engine experience.

Parts You'll Likely Need

• Mass Airflow (MAF) Sensor (OEM #L321-13-215) — Often becomes contaminated with oil but can also fail electronically. Cleaning is the first step, but replacement is necessary if cleaning doesn't work or the sensor has failed.
  Trusted brands: Denso (OEM supplier), Hitachi, Walker
  OEM price range: $250-$300
  Aftermarket price range: $50-$150
• Electronic Throttle Body (OEM #N3H1-13-6B0C) — Typically only needs cleaning. Replacement is rare and only necessary if the electronic motor or position sensor fails, which is not a common cause of P0506 alone.
  Trusted brands: Mazda (Genuine), A1 Cardone (Remanufactured)
  OEM price range: $700-$900
  Aftermarket price range: $150-$300

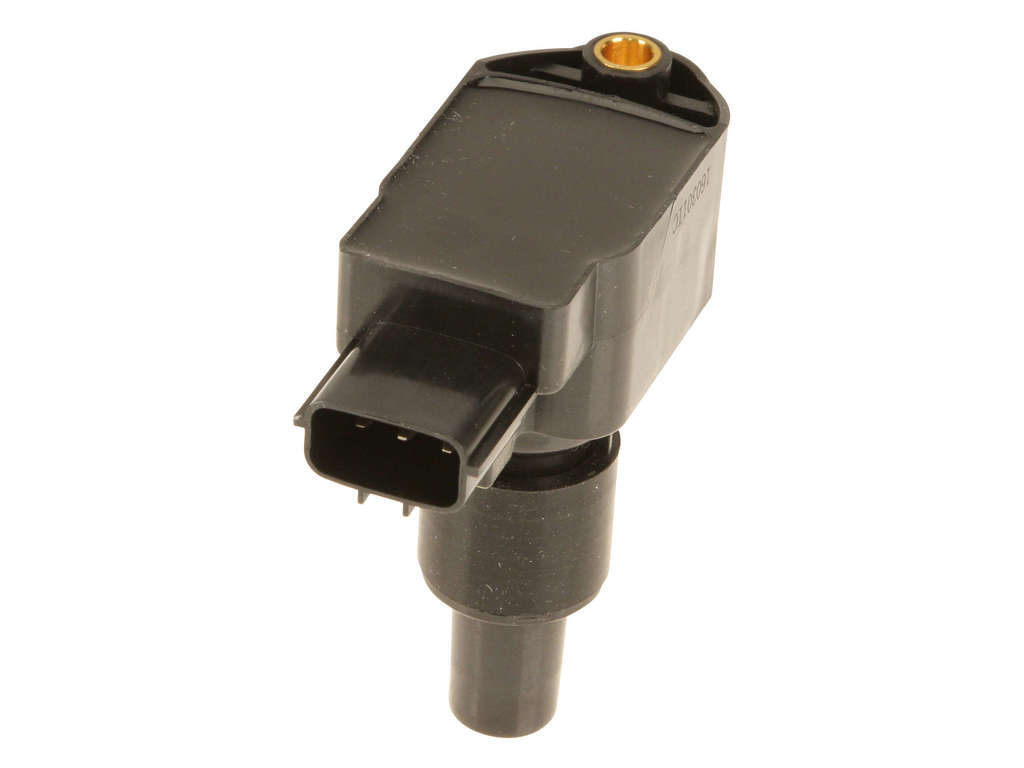

• Ignition Coil Set (OEM #N3H1-18-100C (Latest Revision)) — A very common failure item on the RX-8. Weak coils cause poor combustion, leading to rough/low idle, misfires, and potential catalytic converter damage. It's highly recommended to replace all four at once.
  Trusted brands: Mazda (Genuine), NGK, Delphi
  OEM price range: $250-$300 (for set of 4)
  Aftermarket price range: $100-$200 (for set of 4)

Related Codes That Often Appear With This One

• P0300 — Random Misfire. Often appears if the low idle is caused by a failing ignition system or severe vacuum leak.
• P0301 / P0302 — Cylinder 1 or 2 Misfire. Points more specifically to an ignition or compression issue on one of the rotors.
• P0420 — Catalyst System Efficiency Below Threshold. This can appear if a failing ignition system has allowed unburnt fuel to damage the catalytic converter.

Platform-Specific Known Issues

• Disconnecting the battery for any reason will erase the ECU's learned idle settings (keep-alive memory) and eccentric shaft profile from the NVRAM. This frequently results in a low, unstable idle or immediate stalling upon startup until the specific NVRAM reset (20 brake pedal pumps) and idle relearn procedure (15-20 minutes of idling from a cold start) is completed.
• Engine Flooding: If the car is started cold and shu

Mechanic-Grade Diagnostic Values

• Mass Airflow (MAF) Sensor Voltage at Idle — expected: Approximately 1.25 V.. Failure: Significantly lower or higher voltage at idle can indicate contamination or sensor failure. Voltage should smoothly increase with RPM.
• Throttle Position Sensor (TPS) 1 Voltage (Closed Throttle) — expected: 0.4V - 0.8V.. Failure: Voltage outside this range with the throttle plate fully closed indicates a miscalibrated or faulty TPS.
• Throttle Position Sensor (TPS) 1 Voltage (Wide Open Throttle) — expected: 3.8V - 4.095V.. Failure: Voltage that does not reach this range at WOT, or has dead spots while opening, indicates a faulty TPS.
• Eccentric Shaft Position Sensor Resistance — expected: 950 - 1,250 Ohms at room temperature.. Failure: Resistance outside this range indicates a failed sensor coil.
• Target Idle RPM (fully warm) — expected: Approximately 800-900 RPM.. Failure: A consistent idle below 750 RPM will trigger the P0506 code.

Scan Tool Commands That Help

• Mazda IDS or equivalent: KAM (Keep Alive Memory) Reset — This function should be used after replacing or cleaning components like the throttle body or MAF sensor to clear learned fuel and idle trims. It is an alternative to the 20-brake-pedal-stomp NVRAM reset.
• Mazda IDS or equivalent: Power Balance Test — If a weak ignition system is suspected, this bidirectional test can help identify a poorly performing rotor by monitoring RPM drop when each ignition coil is deactivated, helping to pinpoint the source of a rough idle.

Wiring & Ground Locations

• PCM/ECU Ground — The PCM is located next to the battery under a plastic cover. It is grounded through its harness to multiple points, with key grounds located on the left side of the engine bay near the firewall and under the airbox.. A poor PCM ground can cause erratic sensor readings and incorrect idle control calculations, leading to a P0506 code.
• Engine to Chassis Ground — A primary ground strap connects from the lower intake manifold to the chassis. Additional grounds are on the crossmember under the battery/airbox and on the passenger side fender from the main harness.. Corrosion on these main grounds can affect the performance of all engine sensors, including the MAF, TPS, and eccentric shaft sensor, which are critical for stable idle.
• Throttle Body Connector — The 6-pin electrical connector on the electronic throttle body.. Corroded or loose pins in this connector can interrupt the signals for the dual throttle position sensors or the throttle actuator motor, preventing the PCM from accurately controlling idle speed.

Real Owner Repair Stories

• RX8Club.com user 'nycgps' (2004-2008 Mazda RX-8 with 43,000 miles and an aftermarket Racing Beat intake.) — Intermittent P0506 Check Engine Light. The car was otherwise running fine.
  ❌ Tried (didn't work) A visit to the dealership, who were unable to diagnose due to the aftermarket intake.
  ✅ What actually fixed it The owner purchased CRC MAF cleaner and thoroughly cleaned the MAF sensor and the IAT (Intake Air Temperature) sensor, which were both found to be extremely dirty. After cleaning, the P0506 code did not return.

OEM Part Supersession History

• N3H1-18-100 / N3H1-18-100A → N3H1-18-100C (via N3H1-18-100B) — The original ignition coils were prone to premature failure, often due to internal shorting or overheating, leading to weak spark, misfires, and rough idle. The 'C' revision is the latest, most durable version.
  Heads up: The newest 'C' coils are backward compatible with all model years (2004-2011). However, in North America, they may be sold in a box labeled with the 'B' part number ending in '9U', but the coil inside is the updated 'C' version.

Model Year Variations Within This Range

• 2009-2011 (Series 2): Series 2 RX-8s feature a revised engine with an additional oil injector per rotor housing and a different MAF sensor design. While the causes for P0506 are largely the same, the specific part numbers for the MAF sensor and some engine components differ from the Series 1 (2004-2008) models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Apex Seal Wear / Low Compression 🔴 High — Common, especially on engines over 60,000-80,000 miles. Symptoms include hard starting when hot, rough idle, and power loss.
• Ignition Coil Failure 🔴 High — Very common, often recommended for replacement every 30,000 miles. Original coils were prone to overheating. Failure leads to misfires, poor performance, and can quickly destroy the catalytic converter.
• Engine Flooding 🟠 Medium — Can happen to any owner at any time, but is caused by user error (shutting the engine off before it's fully warmed up). Results in a no-start condition that requires a specific 'de-flooding' procedure.
• Catalytic Converter Failure 🟠 Medium — Often a secondary failure caused by a faulty ignition system allowing unburnt fuel into the exhaust. Can become clogged or melt internally, causing severe power loss.
• Weak Starter Motor 🟠 Medium — Early models (2004-2005) were equipped with a slower, less powerful starter. This exacerbates the hot start issue common with low compression engines. Upgrading to the later, faster starter is a common modification. (Ref: There was an early service bulletin allowing owners to have the starter upgraded.)
• High Oil Consumption 🟡 Low — This is a characteristic of the engine design, not a failure. The engine intentionally injects oil for lubrication. Owners must check and top off oil frequently (e.g., every other fuel fill-up). Running the engine low on oil is catastrophic.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, used parts are generally not recommended for sensors or ignition components. A used throttle body could be a viable option if it's guaranteed to be in good working condition, as failures of the electronic components are rare compared to just needing a cleaning.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a throttle body, ensure the throttle plate moves smoothly without binding.
• Check electrical connectors for any signs of corrosion, melting, or damaged pins.
• Avoid parts from vehicles that show signs of major engine failure (e.g., significant oil in the intake) or flood damage.

OEM-only on this vehicle (don't cheap out):

• Mass Airflow (MAF) Sensor: Aftermarket MAF sensors for the RX-8 are notoriously inconsistent and can cause persistent fuel trim and idle issues. Stick with Denso (the OEM supplier) or genuine Mazda parts.
• Eccentric Shaft Position Sensor: Given its criticality for engine timing and idle stability, using a genuine Mazda or OEM equivalent part is highly recommended to avoid chasing intermittent issues.

Aftermarket brands forum-validated for this vehicle:

• Ignition Coils: NGK and Delphi are reputable aftermarket brands that offer reliable alternatives to the genuine Mazda coils.
• Ignition Wires: MSD 8.5mm leads are a popular and reliable upgrade over stock wires.

Brands owners have reported issues with on this vehicle:

• Generic/No-Name Ignition Coils: Cheap, unbranded ignition coils, often found on eBay or Amazon, have a very high failure rate and should be avoided. They can lead to misfires, poor performance, and potential engine damage.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Documented NHTSA Reports

Related OBD-II Codes

• P0300 — Random or multiple cylinder misfire; often caused by the same failing ignition coils or worn spark plugs that contribute to a low/rough idle.
• P0301 — Misfire detected in Rotor 1; should be addressed before P0506 as ignition issues are a root cause of idle instability.
• P0302 — Misfire detected in Rotor 2; indicates ignition system wear (coils, plugs, or wires) which frequently causes the low idle associated with P0506.
