P0513 on 2015-2019 Cadillac Escalade: Causes and Fixes for 'Incorrect Immobilizer Key'

What's Unique About the 2015-2019 Cadillac ESCALADE

While the code definition points to a key issue, on the fourth-generation Cadillac Escalade and its K2XX platform mates (Chevy Tahoe/Suburban, GMC Yukon/Yukon XL), the root cause is very frequently a wiring or grounding problem, not a faulty key or module. General Motors has issued multiple Technical Service Bulletins (TSBs) pointing technicians directly to specific known problem areas, such as a bad ground under the dashboard (G218) and corroded wires under the driver's door sill plate. Owners who focus only on the key are likely to misdiagnose the problem and spend unnecessary money on key fobs or module replacement.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine will not start (cranks but does not fire).
🎬 See a real-world diagnosis of an Escalade no-start condition.
• Engine starts and immediately stalls.
• Security light flashing or illuminated on the instrument panel.
• Check Engine Light (Malfunction Indicator Lamp) is on.
• Message on Driver Information Center (DIC) such as "Theft Deterrent" or "Key Invalid".
• Service Engine Soon light may fail to illuminate when the ignition is on (as noted in TSB #PIT5391E).
• "Service 4WD" message may appear on 4WD models (as noted in TSB #PIT5391A).
• Multiple other seemingly unrelated electrical issues, like flickering lights or blank instrument panel, due to the underlying ground fault.

Most Likely Causes

1. Poor Body Control Module (BCM) Ground at G218 🔴 High Probability → Shop Body Control Module As cited in GM TSB #PIT5405C, the front dash insulator mat can get trapped between the ground eyelet and the chassis during assembly, causing a high-resistance connection for the BCM and other modules. This is a well-documented factory assembly issue.
   How to confirm: Locate ground G218. On K2XX trucks, 🎬 Watch: How to find and fix the G218 ground connection. it is on the driver's side, up under the dash, near the base of the A-pillar, sometimes accessible after removing the driver-side dash speaker grille. Visually inspect for the black insulator mat trapped under the ground eyelet. Unscrew the ground bolt (typically a 10mm nut), and check for clean metal-to-metal contact.
   Typical fix: Remove the ground nut. Cut away the section of the dash insulator mat that is interfering with the connection. Clean the contact surfaces of the eyelet and chassis with a wire brush or sandpaper to ensure good contact, and securely tighten the ground nut. Torque spec is often around 9 Nm (62 lb in).
   Est. part cost: $0
2. Damaged or Corroded Wiring Under Driver's Sill Plate 🔴 High Probability As cited in GM TSB #PIT5391E, wiring in this area is susceptible to moisture intrusion from wet shoes or clogged sunroof drains, and damage from foot traffic. This leads to corrosion and broken circuits, specifically circuit 5199 which is related to the ignition relay.
   How to confirm: Remove the driver's side plastic door sill plate and peel back the carpet to inspect the wiring harness that runs in the channel along the floor. Look for signs of water intrusion (dampness, rust stains), and green or white corrosion on wires and connectors, or physically broken wires. Pay close attention to splice points within the harness, specifically circuit 5199.
   Typical fix: Repair the damaged section of the wiring harness. This involves cutting out the corroded sections, splicing in new 18-22 gauge wire, and using heat-shrink butt connectors to protect the repair from future moisture. Ensure all connections are solid before re-wrapping the harness.
   Est. part cost: $5-$20
3. Faulty Immobilizer Key or Key Fob Battery ⚪ Low Probability → Shop Door Lock Key
   How to confirm: First, try starting the vehicle with a spare key. If the spare key works reliably, the issue is with the primary key. Second, replace the key fob battery (typically a CR2032). If the battery is dead, you can often still start the vehicle by placing the key fob in the designated transmitter pocket, usually located in the center console storage bin, which allows the BCM to read the key via induction.
   Typical fix: Replace the battery in the key fob. If that fails, the key itself may be damaged and require replacement and programming by a dealer or automotive locksmith.
   Est. part cost: $5-$400

Rare But Worth Checking

• Faulty Body Control Module (BCM): → Shop Body Control Module The BCM is the hub for the anti-theft system. While it can fail, the wiring and ground issues documented in TSBs are far more common. All wiring and ground checks should be performed before condemning the BCM. A BCM replacement requires programming by a dealer or a properly equipped independent shop.
• Faulty Underhood Fuse Block (UBEC): In some cases, internal corrosion or failure within the underhood fuse block can cause intermittent power loss to critical circuits, mimicking the symptoms of a bad ground or wiring harness and setting a P0513. TSB PIT5391F points to checking the X50A connectors at the UBEC for issues.

Diagnosis Steps

1. Scan for all Diagnostic Trouble Codes (DTCs) in all modules, not just the engine computer. Note any communication (U-codes) or body (B-codes) that are present, as they are strong indicators of a ground or wiring issue.
2. If multiple communication codes (U0073, U0140, U0100, etc.) are present with P0513, immediately inspect the G218 ground location as per TSB #PIT5405C. Clean and secure the ground connection regardless of its appearance, ensuring no insulation is trapped.
3. If codes like P262B are present, or if the G218 ground is confirmed good, proceed to inspect the wiring harness under the driver's side sill plate for corrosion or damage, as per TSB #PIT5391E. Look for evidence of water entry and check the integrity of circuit 5199.
4. If no wiring or ground faults are found, try starting the vehicle with a known-good spare key to rule out a faulty primary key.
5. Replace the battery in the key fob (usually CR2032) as a simple, low-cost diagnostic step. If the battery is dead, test starting by placing the fob in the center console transmitter pocket.

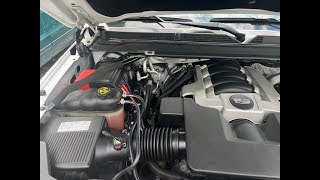

6. Perform a battery health test. 🎬 Watch: How to replace a faulty GM truck ground cable. A weak or failing battery can cause a low voltage condition that may trigger a P0513 code, as noted in TSB 21-NA-277.
7. If all the above steps fail, the problem may lie with the BCM or its antenna, which may require professional diagnosis with advanced scan tools.

Parts You'll Likely Need

• Wiring Repair Supplies — The most common fixes involve repairing existing wires, not replacing parts. This includes wire, butt connectors, and heat-shrink tubing.
  Trusted brands: 3M
  Aftermarket price range: $5-$20
• Body Control Module (BCM) (OEM #13508761) — This part is only needed if it is proven to be faulty after all wiring and ground issues have been ruled out. It is a common misdiagnosis. Part number should be verified with VIN.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $350-$500
  Aftermarket price range: $200-$350
• Key Fob Battery (OEM #CR2032) — A simple and inexpensive item to replace as a first step when troubleshooting a potential key issue.
  Trusted brands: Duracell, Energizer
  Aftermarket price range: $5-$10

Related Codes That Often Appear With This One

• P262B — Often set alongside P0513 due to the same electrical circuit issues (specifically circuit 5199) under the driver's sill plate, as noted in TSB #PIT5391E.
• U0073 — A general CAN bus communication code that frequently appears with the G218 ground issue, as listed in TSB #PIT5405C.
• U0140 — Indicates a loss of communication with the Body Control Module (BCM), which is a direct result of the poor ground at G218 mentioned in TSB #PIT5405C.
• P0650 — Relates to the Malfunction Indicator Lamp (MIL) control circuit, which can be affected by the same electrical faults described in TSB #PIT5391A.
• U0100 — Loss of communication with the ECM/PCM, another common code set in conjunction with P0513 when the G218 ground is faulty.

Technical Service Bulletins (TSBs) & Recalls

• PIT5391E: Points to damaged/corroded wiring (Circuit 5199) under the driver's sill plate as a cause for a no-start and P0513.
• PIT5405C: Identifies a poor BCM ground at G218, caused by a trapped dash insulator mat, as a root cause for P0513 and numerous other electrical DTCs.
• PIT5391A: Mentions P0513 in a list of codes that can set due to electrical issues, also noting a potential "Service 4WD" message.

Platform-Specific Known Issues

• Per TSB #PIT5405C, the dash insulator mat can become trapped under the G218 ground eyelet during assembly, causing a poor connection that leads to a host of communication DTCs, including P0513.
• Per TSB #PIT5391E, the wiring harness located under the driver's sill plate is a known weak point for corrosion and damage, which can cause P0513 and other electrical codes. This TSB specifically points to circuit 5199 as a potential culprit.
• A low voltage event from a weak battery, jump start, or battery replacement can sometimes corrupt module communication and set a P0513 code, as described in TSB 21-NA-277.

Mechanic-Grade Diagnostic Values

• Battery Cable Clamp Nut Torque — expected: 7 Nm (62 lb in). Failure: Loose connections can cause low voltage and set various electrical codes, including P0513.
• Battery Fuse Block Cable Connection Nut Torque — expected: 15 Nm (11 ft lb). Failure: Loose connections at the fuse block can cause intermittent power to critical modules.
• Negative Battery Cable to Engine Block Nut Torque — expected: 45 Nm (33 ft lb). Failure: A poor main engine ground can cause a wide range of electrical issues.

Scan Tool Commands That Help

• GDS2 (GM Diagnostic Software): Immobilizer Key Relearn — Used after replacing a key, BCM, or PCM to program new keys to the vehicle. This is typically found under the BCM or Immobilizer menu.
• GDS2 (GM Diagnostic Software): Add/Replace Key Fobs — Located under the 'Remote Control Door Lock Receiver' module functions, this allows for programming additional key fobs without erasing existing ones.
• GDS2 (GM Diagnostic Software): BCM Control Functions (Bidirectional) — Allows a technician to command various BCM-controlled outputs (lights, locks, etc.) to verify the module is receiving power, has a good ground, and is capable of controlling circuits. This helps differentiate a bad module from a wiring problem.
• Manual Procedure (No Scan Tool): 30-Minute Security Relearn Procedure — If a scan tool is not available after a component replacement, this procedure can be used to relearn the key's transponder value. It involves cycling the ignition to 'ON' for three consecutive 10-minute intervals.

Wiring & Ground Locations

• G218 — Driver's side, under the dash near the base of the A-pillar. It is often located behind the dash speaker grille or accessible by removing the driver's side dash end panel.. This is a primary ground point for the Body Control Module (BCM). As documented in TSB #PIT5405C, insulation can get trapped here during assembly, causing a poor ground, which directly leads to P0513 and other communication codes.
• Circuit 5199 — Runs in the wiring harness located under the driver's side door sill plate.. This circuit provides power to the KR73 Ignition Run Relay. TSB #PIT5391E states that an open or high resistance in this circuit due to corrosion or damage will prevent the relay from activating, causing a no-start or stall and setting code P0513.
• X50A Connector — Underhood Fuse Block (UBEC).. This is a major connector at the fuse block. TSB #PIT5391F recommends inspecting this connector for backed-out or damaged terminals as a potential cause for ignition voltage issues that can lead to P0513.

Real Owner Repair Stories

• YouTube user comment on a G218 Ground fix video (2014-2018 Chevy Silverado (K2XX Platform)) — Flickering headlights and dash lights, especially when turning or braking. Intermittent stalling when turning at low speeds, with park assist and power steering disabled messages appearing on the dash.
  ❌ Tried (didn't work) Had battery and alternator tested, both were fine.
  ✅ What actually fixed it The owner found information online about the G218 ground issue. After locating the ground under the driver's side dash, they found sound-deadening material trapped under the ground connection. Cleaning the connection and ensuring the insulation was clear resolved all electrical issues.

OEM Part Supersession History

• Varies by model year → 13508761, 13535147, 84458569 (among others) — Part updates and revisions.
  Heads up: The BCM is a programmable module. The correct part number must be verified using the vehicle's VIN. A used BCM from another vehicle will not work without being reprogrammed. A new BCM requires programming with GM's GDS2 software to function.

Model Year Variations Within This Range

• 2018-2019: For the 2018 model year, the 8-speed (8L90) automatic transmission was replaced with a 10-speed (10L90) automatic transmission. While this does not directly affect the P0513 code, it is a significant mechanical difference within the 2015-2019 generation.
• 2016: The Cadillac CUE system received upgraded hardware and software, and the SD card slot was removed. Lane Keep Assist was added.
• 2019: A new 'Sport Package' was made available, and some exterior color options were changed.
