P0520 on 2000-2005 Cadillac DeVille: Engine Oil Pressure Switch Circuit Causes and Fixes

What's Unique About the 2000-2005 Cadillac DeVille

The Northstar V8 in this generation of DeVille uses a simple oil pressure switch rather than a variable sensor. This switch is a known and extremely common failure point. It not only fails electrically, causing the P0520 code and false "Low Oil Pressure" warnings, but it is also a frequent source of oil leaks. The switch's location, tucked behind the oil filter adapter housing, makes what should be a simple repair a significantly more labor-intensive job. Many owners report oil physically leaking from the switch's electrical connector, which confirms internal seal failure.

Symptoms You May Notice

• Check Engine Light is on
• "Low Oil Pressure - Stop Engine" message on the Driver Information Center (DIC)
• Oil pressure gauge reads zero or behaves erratically
• Visible oil leak from the area around the oil filter
• Oil found inside the electrical connector for the pressure switch

Most Likely Causes

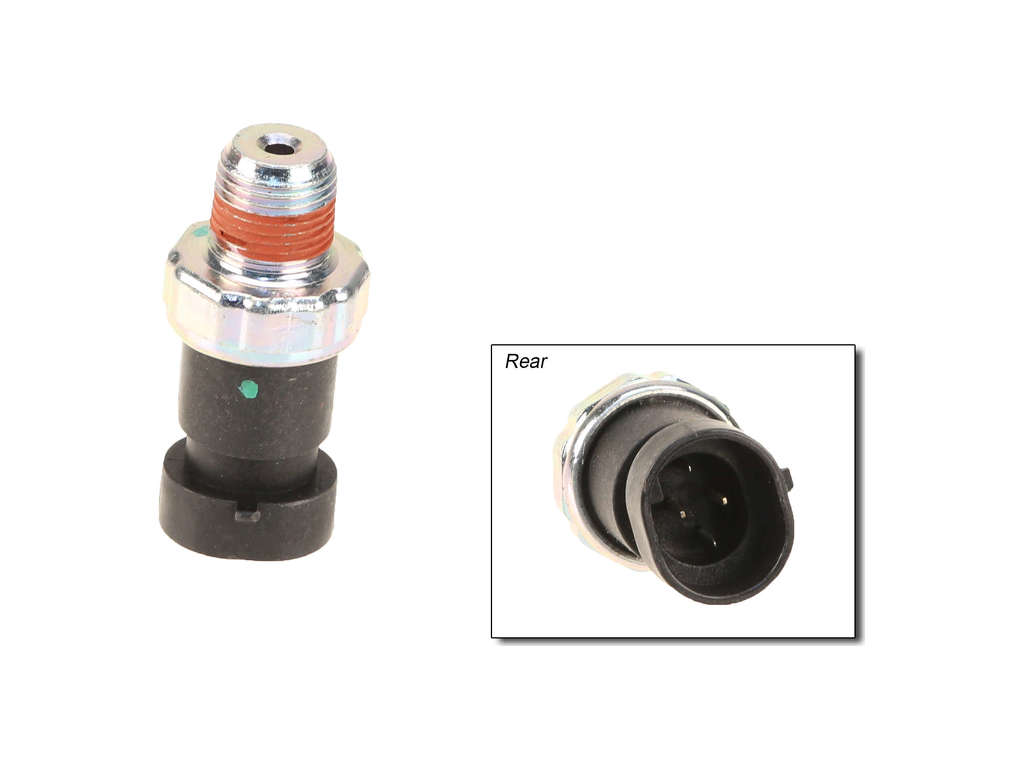

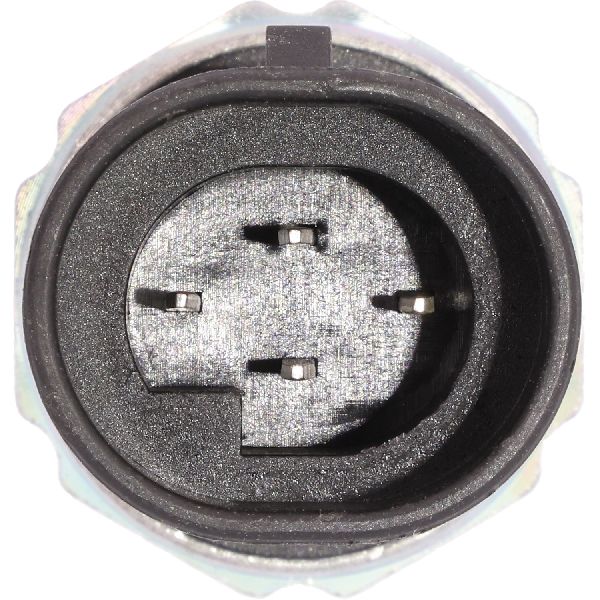

1. Faulty Engine Oil Pressure Switch 🔴 High Probability → Shop Engine Oil Pressure Switch The oil pressure switch is a notorious failure point on the Northstar V8 engine, known for both electrical failure and developing oil leaks. The internal diaphragm fails, allowing oil to pass through the body of the sensor and into the electrical connector.
   How to confirm: Check for oil leaking specifically from the switch's electrical connector. If oil is present, the switch's internal seal has failed and it must be replaced. If no leak is visible, the switch has likely failed internally, which is the most common cause for this code.
   Typical fix: Replace the engine oil pressure switch. This requires removing the oil filter and the oil filter adapter housing to access the switch. The adapter housing gasket must also be replaced. 🎬 See this Northstar oil pressure sensor replacement walkthrough The torque specification for the new sensor is 12 ft-lbs.
   Est. part cost: $15-$40
2. Damaged Wiring or Connector ⚪ Low Probability The wiring is located near hot and oily engine components, which can cause it to become brittle or damaged over time. Oil leaking from a failed switch can also saturate and ruin the connector pigtail.
   How to confirm: Visually inspect the wiring harness and connector leading to the oil pressure switch for any signs of breaks, corrosion, or oil saturation. Use a multimeter to check for continuity and proper voltage at the connector.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail. If the connector is full of oil, it should be replaced along with the sensor.
   Est. part cost: $10-$30

Rare But Worth Checking

• Powertrain Control Module (PCM) Issue: → Shop Engine Control Module (ECM) This is extremely rare. The PCM should only be considered as a potential cause after the switch and wiring have been thoroughly tested and ruled out.

Diagnosis Steps

1. Check the engine oil level and condition. Ensure it is full and not sludgy.
2. Scan the vehicle for any other stored trouble codes.
3. Visually inspect the area around the oil filter housing for oil leaks. The oil pressure switch is located behind this housing.
4. If possible, inspect the electrical connector on the oil pressure switch for oil contamination. If oil is inside the connector, the switch has failed and is the source of the problem. This is a very common and definitive finding.
5. If no leaks are found, the next logical step is to assume the switch has failed electrically, as this is the most common cause.
6. To be 100% certain, you can test the circuit. According to the service manual, the switch should have continuity to ground (closed) with the engine off. A lack of continuity indicates a failed switch or open circuit.
7. As a final verification before major repairs, you can connect a mechanical oil pressure gauge to the engine to confirm that the actual oil pressure is within specification (typically 25-65 PSI). This definitively rules out any mechanical engine problems.

Parts You'll Likely Need

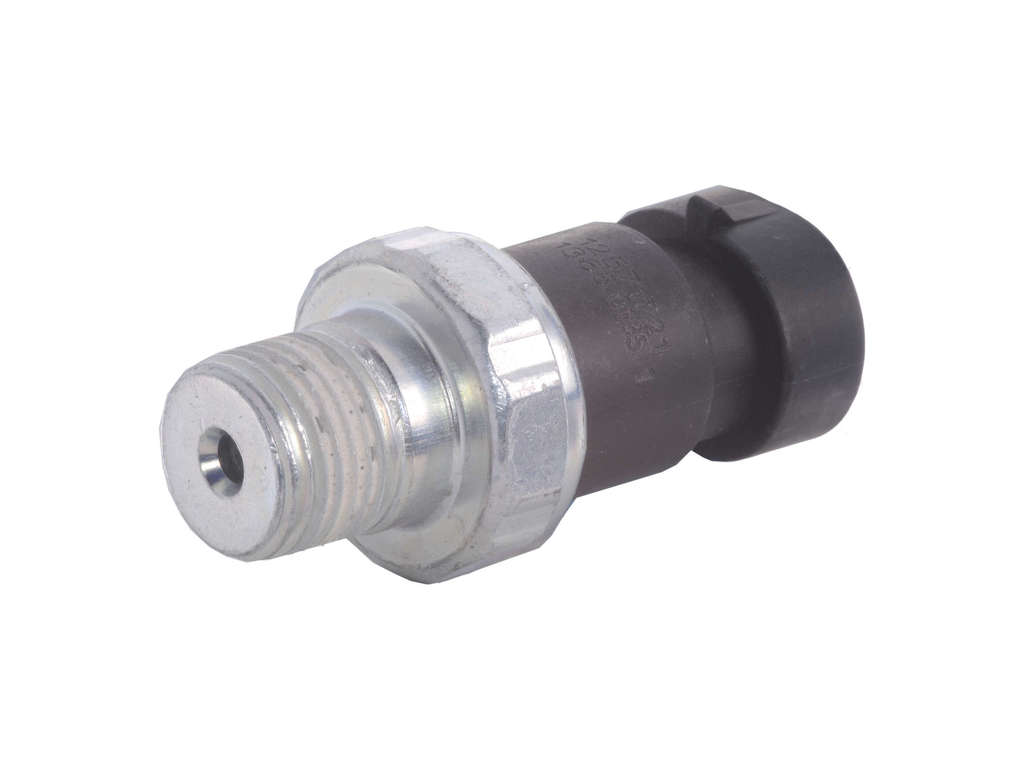

• Engine Oil Pressure Switch (OEM #ACDelco D1846A (Supersedes 12616646)) — This is the most common cause of the P0520 code on this vehicle due to a high failure rate. It is strongly recommended to use the OEM ACDelco part, as aftermarket sensors have a reputation for premature failure.
  Trusted brands: ACDelco
  OEM price range: $20-$40
  Aftermarket price range: $15-$30
• Engine Oil Filter Adapter Gasket (OEM #12573044 (Supersedes 12625053)) — The oil filter adapter housing must be removed to access the pressure switch. This gasket is a one-time use part and must be replaced during the repair.
  Trusted brands: ACDelco, Fel-Pro
  OEM price range: $10-$20
  Aftermarket price range: $5-$15

Platform-Specific Known Issues

• The location of the oil pressure switch behind the oil filter adapter housing makes replacement significantly more difficult than on many other engines.
• Owner Experience: A user on YouTube demonstrates the replacement process, confirming the need to remove the oil filter and the three bolts holding the adapter housing to gain access. A swivel socket is recommended for the hard-to-reach bolts.
🎬 Watch: Step-by-step oil pressure sensor replacement guide
• Owner Experience: Multiple forum users and mechanics emphasize using only the ACDelco OEM replacement switch. A thread on Reddit discusses how aftermarket sensors fail quickly, sometimes within months, leading to a repeat of the difficult repair.

Mechanic-Grade Diagnostic Values

• Engine Oil Pressure Switch State (Engine OFF) — expected: Closed (Continuity to ground). Failure: Open (No continuity). This triggers P0520 because the PCM expects a closed switch (low signal) when the engine is off, but sees an open switch (high signal).
• Engine Oil Pressure Switch State (Engine ON) — expected: Open (No continuity to ground). Failure: Closed (Continuity to ground). This would indicate either extremely low oil pressure or a stuck switch.
• Oil Pressure Required to Open Switch — expected: > 4.5 PSI. Failure: Switch remains closed above 4.5 PSI or is stuck open at 0 PSI.
• Torque Specification for New Switch — expected: 12 ft-lbs. Failure: N/A - This is an installation specification.

Wiring & Ground Locations

• Engine Oil Pressure Switch Signal Wire — Runs from the single-pin connector at the oil pressure switch (behind oil filter adapter) to the Powertrain Control Module (PCM).. This wire, typically Tan with a Black stripe (TAN/BLK), carries the signal the PCM uses to determine switch status. A short to voltage or an open circuit in this wire can mimic a failed switch and cause P0520.
• G103 — On the right rear of the engine, below the EGR valve.. This is a primary engine and PCM ground point. While the oil pressure switch grounds through the engine block itself, a poor G103 connection can cause erratic behavior in the PCM, which is responsible for interpreting the switch's signal. A poor ground here is a rare but possible cause of false electrical codes.

OEM Part Supersession History

• 12616646 → ACDelco D1846A — Standard part lifecycle replacement. D1846A is the GM Original Equipment service part number for the switch previously identified as 12616646.
  Heads up: There are no known incompatibilities; D1846A is the correct and direct replacement.
• 12625053 → 12573044 — Part number consolidation/update for the oil filter adapter gasket.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Head Gasket Failure ('The Northstar Condition') 🔴 High — Very common on 1993-2004 models, typically between 50,000 and 100,000 miles. Caused by head bolts pulling threads from the aluminum block.
• Torque Converter Clutch (TCC) Solenoid Failure 🟠 Medium — Common failure item in the 4T80-E transmission, causing high RPMs at highway speeds, shuddering, or stalling when stopping. Repair is labor-intensive. (Ref: A TSB exists for a torn seal inside the transmission that can cause TCC issues.)
• Excessive Oil Consumption / Half-Case Seal Leak 🟠 Medium — Many Northstar engines consume oil, but significant leaks often develop from the lower crankcase seal (half-case seal). This is a major, engine-out repair.
• Rear Air Suspension Failure 🟡 Low — The air compressor for the Electronic Level Control (ELC) system or the rear air shocks are common failure points due to age, leading to a sagging rear end and a harsh ride.
• Ignition Switch Failure (Recall) 🔴 High — A widespread issue where the weight on the key ring could cause the ignition to switch out of the 'Run' position, shutting off the engine while driving. (Ref: NHTSA Recall 14V355000)
• Crankshaft Position Sensor Failure 🟠 Medium — A common cause of intermittent stalling, no-start conditions, and rough idling.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used part is NEVER recommended. The oil pressure switch is a known high-failure item with a very low cost for a new OEM part. The labor to access the switch is significant, so installing a used part with unknown remaining life is a major risk and a poor economic choice.

What to inspect on the donor part:

• Not applicable. Do not source this part from a donor vehicle.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Switch

Brands owners have reported issues with on this vehicle:

• All non-OEM/ACDelco brands. Forum and mechanic consensus strongly indicates that aftermarket switches for this application have an unacceptably high rate of premature failure, often leading to a repeat of the labor-intensive repair within months.
