P0520 on 2014-2019 Nissan Sentra: Engine Oil Pressure Sensor Circuit Causes and Fixes

What's Unique About the 2014-2019 Nissan Sentra

For the seventh-generation (B17) Nissan Sentra with the 1.8L MRA8DE engine, the P0520 code is a very common and well-documented issue. The failure pattern strongly points towards the oil pressure sensor itself, which is known to fail electrically or develop physical oil leaks through the sensor body into the connector. While the code can indicate a severe mechanical issue, on this specific platform, it is far more likely to be a simple and inexpensive sensor problem, provided the engine oil level is correct. This is a recurring theme across many Nissan models of the era, which use the same or similar sensor designs.

Symptoms You May Notice

• Check Engine Light is on.
• Red oil pressure warning light is on or flickering.
• Oil pressure light flickers at idle but may go out when accelerating.
• Visible oil leak from the oil pressure sensor itself, often seeping into the electrical connector.
• Inaccurate or zero reading on the oil pressure gauge (if equipped).
• In rare cases of actual low oil pressure, engine knocking or ticking sounds may be heard.

Most Likely Causes

1. Faulty Engine Oil Pressure Sensor/Switch 🔴 High Probability The sensor is a common failure point on many Nissan models of this era. It can fail internally, providing incorrect voltage readings, or develop leaks through the sensor body. The diaphragm inside the sensor can rupture, leading to oil contamination in the connector and inaccurate readings.
   How to confirm: After confirming the oil level is correct and the wiring is intact, testing with a mechanical oil pressure gauge is definitive. If mechanical pressure is good (above 10.3 PSI at idle for the MRA8DE), the sensor is bad. Oil found inside the electrical connector is also a direct confirmation of sensor failure.
   Typical fix: Replace the engine oil pressure sensor. It is often recommended to perform an oil and filter change at the same time.
   Est. part cost: $25-$75
2. Low Engine Oil Level 🟡 Medium Probability This is not a vehicle-specific issue but a universal first check for any oil pressure related code. The MRA8DE is not known for excessive oil consumption, but leaks or infrequent checks can lead to low levels.
   How to confirm: Physically check the engine oil level using the dipstick. Ensure the vehicle is on level ground and the engine has been off for several minutes.

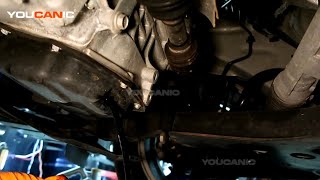

   Typical fix: Top up the engine oil to the correct level with the manufacturer-specified viscosity (typically 0W-20). Investigate 🎬 Watch: How to change the oil and filter on this Sentra and repair the cause of the oil loss (e.g., leaks, consumption).
   Est. part cost: $10-$20
3. Damaged Wiring or Connector ⚪ Low Probability The sensor's location near the oil filter housing can expose its wiring to heat, oil, and road debris over time, potentially causing shorts or breaks in the harness.
   How to confirm: Visually inspect the wiring harness and connector leading to the oil pressure sensor for breaks, corrosion, or oil contamination. Test for 5V reference, ground, and signal continuity with a multimeter.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector pigtail.
   Est. part cost: $5-$30
4. Incorrect or Dirty Engine Oil/Filter ⚪ Low Probability → Shop Engine Oil Filter Adapter
   How to confirm: Check service records or the oil's condition on the dipstick. Oil that is extremely old, sludgy, or of the wrong viscosity (e.g., using 10W-30 instead of 0W-20) can affect pressure readings.
   Typical fix: Perform an engine oil and filter change using oil that meets Nissan's specifications for your vehicle (0W-20 Synthetic).
   Est. part cost: $40-$70

Rare But Worth Checking

• Failing Oil Pump or Clogged Oil Passages: This is a major mechanical failure. It should only be considered after a mechanical oil pressure test shows genuinely low pressure (below 10.3 PSI at idle), ruling out a sensor/electrical issue.
• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM should only be suspected if all other possibilities, including the sensor, wiring, and mechanical pressure, have been thoroughly tested and ruled out.

Diagnosis Steps

1. Safely park the vehicle on a level surface and turn off the engine.
2. Check the engine oil level using the dipstick. If low, top it off with 0W-20 oil and check for leaks. If the oil is very dirty or sludgy, an oil change is needed.
3. If the oil level is correct, locate the oil pressure sensor. On the 1.8L MRA8DE engine, it is screwed into the back of the oil filter housing, near the A/C compressor.
4. Inspect the sensor's electrical connector for a secure fit, corrosion, or oil saturation. Oil inside the connector is a clear sign the sensor has failed internally and is leaking.
5. Inspect the visible wiring leading to the sensor for any signs of damage, fraying, or melting.
6. To definitively rule out a mechanical engine problem, disconnect the sensor and thread in a mechanical oil pressure gauge. A 24mm deep socket is typically needed to remove the sensor.
7. Start the engine and check the mechanical gauge's reading at idle. According to MRA8DE engine specs, pressure should be above 71 kPa (10.3 PSI). If pressure is within spec, the engine is healthy and the problem lies with the sensor or its circuit.
8. If a mechanical gauge is not available, and the oil level and wiring are confirmed to be good, the most probable cause is the sensor itself. Given the low cost of the part, replacement is a common and often successful next step.
9. If a new sensor does not resolve the code, perform electrical tests on the circuit for 5V reference, ground, and signal continuity back to the ECM.

Parts You'll Likely Need

• Engine Oil Pressure Sensor / Switch (OEM #25070-1MC0A) — This is the most common failure point for the P0520 code on this vehicle. It fails both electrically and by developing physical leaks. This part is sometimes superseded by or cross-referenced with 25070-7DB0A.
  Trusted brands: Nissan (OEM), Standard Motor Products (PS650), Beck/Arnley (201-2757), Carquest Premium (SBC1335)
  OEM price range: $90-$140
  Aftermarket price range: $25-$75

Related Codes That Often Appear With This One

• P0521 — Indicates 'Engine Oil Pressure Sensor/Switch Range/Performance', suggesting the sensor's readings are erratic or illogical, which often happens when the sensor is failing.
• P0524 — Indicates 'Engine Oil Pressure Too Low'. If this code appears with P0520, it increases the urgency to check for a genuine low oil pressure condition immediately.

Technical Service Bulletins (TSBs) & Recalls

• No Technical Service Bulletins (TSBs) from Nissan were found specifically addressing the P0520 trouble code for this vehicle range.
• NTB22-006: While not for P0520, this TSB for 2013-2016 Sentras involves an ECM reprogram for an oxygen sensor issue. It is relevant as it shows a precedent for ECM updates on this platform and provides the correct procedure for reprogramming.

Platform-Specific Known Issues

• Owner on a Reddit thread for a different vehicle with the same code was told by a mechanic that the sensor is so common they keep them in stock. This reflects the high failure rate of this part design across multiple platforms.
• On Dodge/Chrysler forums discussing P0520 (a common issue on their V6 engines as well), users report that aftermarket sensors can sometimes fail quickly or read inaccurately, leading to repeat codes. Many recommend using an OEM Mopar part. While this is a different brand, the experience suggests that for critical sensors, sticking with the OEM Nissan part (25070-1MC0A) can prevent repeat repairs.

Mechanic-Grade Diagnostic Values

• Sensor Signal Voltage Range — expected: 0.5V - 4.5V. Failure: Voltage is stuck at a specific value, reads 0V, or is outside the expected range while the engine is running.
• Sensor Reference Voltage — expected: ~5V. Failure: Significantly lower or no voltage indicates a wiring or ECM issue.
• Mechanical Oil Pressure at Idle (Engine at operating temp) — expected: Greater than 98 kPa (14 PSI). Failure: Pressure below this specification indicates a mechanical engine issue (e.g., oil pump, clogged passages), not a sensor problem.
• Mechanical Oil Pressure at 2000 RPM (Engine at operating temp) — expected: Greater than 294 kPa (43 PSI). Failure: Pressure below this specification under load points to a mechanical lubrication system fault.

Wiring & Ground Locations

• Oil Pressure Sensor Connector — Screwed into the back of the oil filter housing, near the A/C compressor on the 1.8L MRA8DE engine.. This is a 3-pin connector. The pins are for the 5V reference from the ECM, the sensor ground, and the variable voltage signal wire back to the ECM. Checking for voltage, ground, and signal integrity at this connector is a primary diagnostic step.
• Engine Control Fuse/Relay Box — There are two main fuse locations: one inside the cabin on the driver's side and another in the engine bay near the battery.. A blown fuse related to the ECM or engine sensors could cause the P0520 code. The fuse box lid contains a diagram to identify relevant fuses.

Real Owner Repair Stories

• Reddit user on r/350z (discussing same sensor design) (Nissan 350Z (uses a similar sensor philosophy)) — No oil pressure reading after maintenance.
  ❌ Tried (didn't work) An aftermarket sensor from Amazon which failed within one hour., Another user reported an aftermarket sensor that read low, causing unnecessary diagnostic time with a mechanical gauge.
  ✅ What actually fixed it Replacing the faulty aftermarket sensor with a genuine OEM Nissan part resolved the issue. The consensus was 'buy once, cry once' and use OEM for critical sensors.

OEM Part Supersession History

• 25070-1MC0A → 25070-7DB0A — Standard part evolution for improved reliability or manufacturing efficiency.
  Heads up: The part 25070-7DB0A also replaces 25070-3JT0A and 25070-5TA0A, indicating it is a widely used and backward-compatible sensor across many Nissan platforms.

Model Year Variations Within This Range

• 2017-2019: For the 2017 model year, Nissan introduced SR Turbo and NISMO trims with a 1.6L turbocharged engine. While the base 1.8L MRA8DE engine remained, a P0520 code on these turbo models could have slightly different diagnostic considerations due to the different engine and the presence of a turbocharger that is highly dependent on oil pressure.
• 2016: The Sentra received a cosmetic facelift for the 2016 model year, but the 1.8L MRA8DE powertrain and its associated sensors remained unchanged, so diagnosis for P0520 is identical to pre-facelift models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature CVT Transmission Failure 🔴 High — Extremely common. Can occur at any mileage, but often reported between 60,000 and 120,000 miles. Symptoms include shuddering, jerking, loss of power, and whining noises. (Ref: Multiple class-action lawsuits have been filed and settled, leading to extended warranties for some model years.)
• Faulty Mass Air Flow (MAF) Sensor 🟠 Medium — Common issue leading to poor acceleration, stalling at low speeds, and reduced fuel economy. Often occurs after 50,000 miles.
• Cracked Intake Manifold Hose 🟡 Low → Shop Engine Intake Manifold — The air intake hose between the MAF sensor and throttle body can crack, causing a vacuum leak that leads to a rough idle and stalling.
• Defective Brake Master Cylinder 🔴 High — Some vehicles may experience a condition where the brake pedal feels soft or travels to the floor, requiring pumping to stop. This is a serious safety concern.
• Failing Fuel Pump 🟠 Medium — A notable number of owners report fuel pump failures, which can cause the engine to stall while driving. (Ref: A recall was issued for some 2014 models related to the fuel pump, but issues persist across the generation.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part is strongly discouraged. The oil pressure sensor is a low-cost, high-failure-rate electronic component. The risk of getting a part that is already near the end of its life or non-functional is very high.

What to inspect on the donor part:

• Not applicable as a used sensor is not recommended.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Sensor

Aftermarket brands forum-validated for this vehicle:

• Beck/Arnley
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, generic sensors from online marketplaces (e.g., eBay, Amazon) are frequently reported by users to be inaccurate, fail quickly, or have incorrect thread specifications, leading to repeat repairs.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0101 — Related to Faulty Mass Air Flow (MAF) sensor failure, which is a known common issue for this Sentra generation alongside oil sensor failures.
• P0171 — Can be triggered by a cracked intake manifold hose (vacuum leak), a known issue on this platform that affects engine performance.
• P0130 — Related to oxygen sensor issues addressed in TSB NTB22-006 for the 2013-2016 Sentra platform.
