P0521 on 2005-2009 Chevrolet Trailblazer: Oil Pressure Sensor Causes and Fixes

What's Unique About the 2005-2009 Chevrolet TRAILBLAZER

On the Trailblazer and its GMT360 platform mates, particularly models with the 5.3L or 6.0L V8 engines featuring Active Fuel Management (AFM), the P0521 code is notoriously common. The issue is often not the sensor itself, but a small, thimble-sized filter screen located in the engine block directly beneath the sensor. This screen, officially called the 'Valve Lifter Oil Filter' in GM TSB PIP4786C, is prone to clogging with sludge or debris. A clog starves the sensor of an accurate pressure reading, causing it to send faulty data to the computer. The location of the sensor also varies significantly by engine, being relatively easy to access on the 4.2L I6 but extremely difficult on the V8s. Interestingly, on the 4.2L I6 engine, the instrument cluster gauge is buffered and does not display a live reading; it will continue to show pressure even if the sensor is unplugged, making a scan tool's live data essential for diagnosis.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Low oil pressure warning light or message on the dashboard
• Oil pressure gauge reading erratically, dropping to zero at idle then jumping up with acceleration, or pegged at its maximum reading (80 psi).
• Engine ticking or knocking noises (in cases of actual low oil pressure).

Most Likely Causes

1. Faulty Oil Pressure Sensor (Sending Unit) 🔴 High Probability These sensors are a common failure point on many GM vehicles of this era. The internal diaphragm can fail, causing incorrect readings or allowing oil to leak into the electrical connector, causing a bad connection.
   How to confirm: After verifying actual oil pressure with a mechanical gauge, if the pressure is good but the gauge/scan tool reading is bad, the sensor is the likely culprit. Finding engine oil inside the electrical connector is a definitive sign of a failed sensor.
   Typical fix: Replace the oil pressure sensor. A special 1-1/16 inch oil pressure switch socket is highly recommended.
   Est. part cost: $40-$80

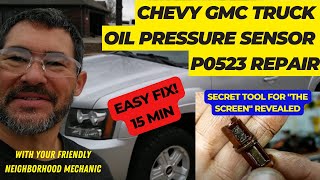

2. Clogged Oil Pressure Sensor Filter Screen (V8 Engines) 🔴 High Probability → Shop Engine Oil Pressure Sensor The small screen under the sensor on 5.3L and 6.0L V8 engines, officially the 'Valve Lifter Oil Filter,' is a known weak point per TSB PIP4786C. It easily clogs with oil sludge and debris, blocking pressure from reaching the sensor, especially on engines with Active Fuel Management (AFM). 🎬 See how to clean the screen and fix the P0521 code.
   How to confirm: This is typically found during the sensor replacement. If the screen is visibly clogged with debris, it is the cause. It can be extracted with a pick tool or by threading a small lag bolt into it.
   Typical fix: Remove and replace the small filter screen located in the block underneath the sensor. This should always be done when replacing the sensor on a V8 model to prevent a repeat failure.
   Est. part cost: $5-$15
3. Incorrect or Clogged Oil Filter 🟡 Medium Probability → Shop Engine Oil Filter Adapter GM service bulletins for related models warn that non-OEM spec oil filters can cause pressure fluctuations that trigger this code, especially after an oil change. The ACDelco PF48E filter has specific bypass characteristics required by the V8 engines.
   How to confirm: Check the brand and part number of the installed oil filter. If it's a low-quality or incorrect filter (not an ACDelco PF48E or equivalent for V8s), it could be the cause. Some owners on forums report the code disappearing after switching to the correct filter.
   Typical fix: Replace the oil filter with a quality OEM (ACDelco) or equivalent filter that meets GM specifications.
   Est. part cost: $10-$20
4. Low or Incorrect Engine Oil 🟡 Medium Probability
   How to confirm: Check the engine oil level using the dipstick and verify its condition. Ensure the correct viscosity (e.g., 5W-30) is being used.
   Typical fix: Top off or change the engine oil and filter.
   Est. part cost: $40-$70

Rare But Worth Checking

• Damaged Wiring or Connector: The wiring to the sensor can become damaged or corroded, especially on the V8 where it's tucked behind the engine. Oil leaking from a failed sensor can also contaminate the connector and should be cleaned with electrical contact cleaner.
• Failing Oil Pump or Worn Engine Bearings: → Shop Engine Oil Pump This is the worst-case scenario. If a mechanical gauge confirms that the actual oil pressure is low, it indicates a serious internal engine problem that is not related to the sensor circuit.
• Sticking Oil Pressure Relief Valve: Though less common, some GM TSBs for other models with P0521 mention that the pressure relief valve within the oil pump can stick, causing pressure regulation issues. This is a mechanical problem, not a sensor fault.

Diagnosis Steps

1. Check the engine oil level and condition. Top off or change if necessary, ensuring the correct 5W-30 viscosity is used.
2. For V8 models, verify that the correct oil filter (ACDelco PF48E or equivalent) is installed, as the wrong filter can cause this code.
3. Connect an OBD-II scanner to confirm the P0521 code and check for any other related codes.
4. Observe the oil pressure reading on the scan tool's live data. Note if it is stuck, erratic, or illogical (e.g., showing high pressure with the engine off).
5. CRITICAL STEP: Connect a mechanical oil pressure gauge to the engine to verify the actual oil pressure. Compare the mechanical reading to the scan tool reading.
6. If mechanical pressure is good but the scanner/dash gauge is bad, the problem is in the sensor circuit. Proceed with inspecting the sensor, its connector, and wiring.
7. If mechanical pressure is low, STOP. This indicates a serious mechanical issue (e.g., worn bearings, failing oil pump) that requires professional diagnosis.

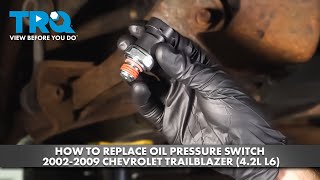

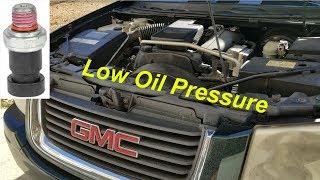

8. On 4.2L I6 engines, locate the sensor on the driver's side of the block, above the oil filter. Access is tight but possible from underneath. 🎬 Watch: Step-by-step guide for replacing the sensor on 4.2L engines. Inspect the connector for oil contamination or damage.

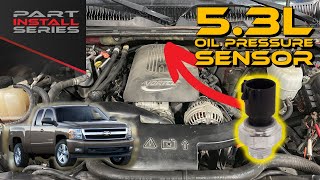

9. On 5.3L/6.0L V8 engines, locate the sensor at the top rear of the engine block, behind the intake manifold. Inspect the connector. Many owners successfully replace it without removing the intake manifold by reaching from the driver's side.
10. If the sensor is deemed faulty, replace it. For V8 models, it is mandatory to also remove and replace the small 'Valve Lifter Oil Filter' screen underneath it.

Parts You'll Likely Need

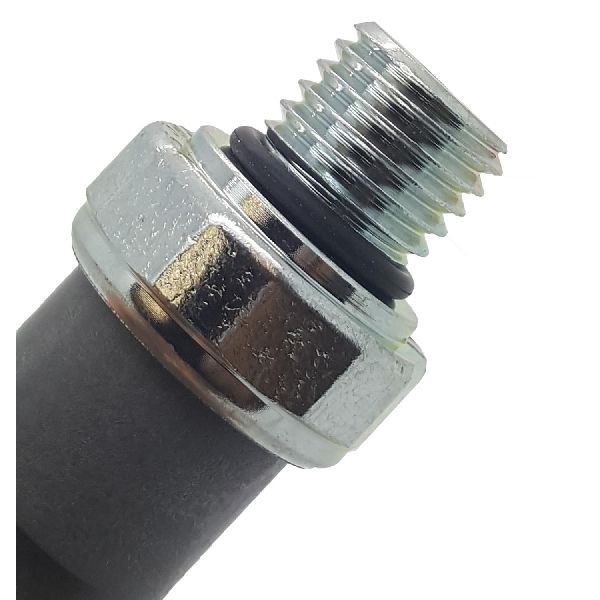

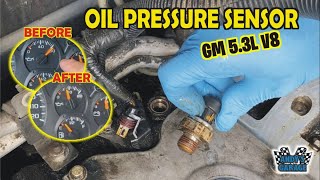

• Engine Oil Pressure Sensor (OEM #12673134 (supersedes 12621234, 12596951)) — This is the most common part to fail and cause the P0521 code. It sends the pressure reading to the ECM.
  Trusted brands: ACDelco (OEM), Standard Motor Products (SMP)
  OEM price range: $45-$70
  Aftermarket price range: $30-$55
• Engine Oil Pressure Sensor Filter Screen (Valve Lifter Oil Filter) (OEM #12585328) — On V8 models, this small screen is located under the sensor and is a primary cause of failure due to clogging, as noted in TSB PIP4786C. It should always be replaced with the sensor.
  Trusted brands: ACDelco, Dorman
  OEM price range: $5-$15
  Aftermarket price range: $3-$10

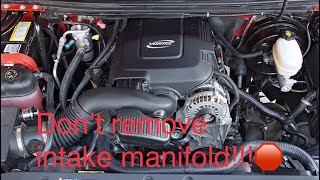

• Oil Pressure Switch Socket — A special 1-1/16 inch deep socket designed to fit the sensor without damaging the plastic connector. While not required, it is highly recommended, especially for the difficult V8 replacement. 🎬 Watch: A clever trick to replace the V8 sensor much faster.
  Trusted brands: Lisle (13250), OEMTOOLS
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0522 — This code indicates 'Engine Oil Pressure Sensor/Switch Circuit Low,' which can be triggered by the same failing sensor or wiring issue.
• P0523 — This code indicates 'Engine Oil Pressure Sensor/Switch Circuit High,' which can also be caused by a faulty sensor sending an incorrect voltage signal.

Technical Service Bulletins (TSBs) & Recalls

• PIP4786C: This is the most relevant TSB. It addresses P0521 on V8 AFM engines. It advises that if a mechanical gauge shows good pressure but the scan tool shows low pressure, the technician should inspect the 'Valve Lifter Oil Filter' (the screen under the sensor) for debris before replacing any other parts. It recommends cleaning or replacing this filter.

Platform-Specific Known Issues

• 4.2L I6 Engine: The oil pressure sensor is located on the driver's side of the engine block, just above the oil filter. Access is tight and from underneath the vehicle, but it is a manageable DIY job without extensive disassembly.
• 5.3L & 6.0L V8 Engines: The sensor is in a very difficult-to-access spot at the top rear of the engine, behind the intake manifold. While some guides show removing the intake manifold, many owners successfully perform the replacement without doing so. This method requires reaching behind the engine by feel, often disconnecting the brake booster vacuum hose for slightly more room.

Mechanic-Grade Diagnostic Values

• Minimum Oil Pressure (5.3L V8, VIN '0') — expected: 22 psi @ 1000 RPM, 30 psi @ 2000 RPM, 33 psi @ 3000 RPM. Failure: Readings below these minimums at operating temperature indicate a mechanical issue (pump, bearings, etc.), not a sensor fault.
• Minimum Oil Pressure (5.3L V8, VIN '3') — expected: 24 psi @ 1000 RPM, 35 psi @ 2000 RPM, 38 psi @ 3000 RPM. Failure: Readings below these minimums at operating temperature indicate a mechanical issue (pump, bearings, etc.), not a sensor fault.
• Oil Pressure Sensor Connector Voltage (Key On, Engine Off) — expected: Pin A (Tan/White or Brown): ~5V reference. Pin B (Light Green): Signal wire, voltage varies. Pin C (Tan or Brown/Black): Ground circuit, should show continuity to ground.. Failure: No voltage on the reference wire or an open ground circuit points to a wiring or ECM issue, not a sensor failure.

Wiring & Ground Locations

• G107 (4.2L) — On the driver's side of the engine block.. This is a major engine ground. A poor connection here can cause numerous, seemingly unrelated electrical issues, including problems with sensor readings and fuel pump relay operation, which could mimic symptoms of a P0521 fault.
• G109 (5.3L, 6.0L) — On the lower left side of the engine.. This is a primary engine ground point for the V8 models. Corrosion or a loose connection can affect the stability of sensor grounds, potentially causing erratic readings from the oil pressure sensor.
• G103 — On the left front of the engine compartment, on the left side of the radiator support.. This is a key chassis and forward lamp harness ground. While not directly tied to the engine sensor, poor grounding here can introduce electrical noise into the system, which can sometimes affect sensitive sensor circuits.
• Oil Pressure Sensor Connector — On the sensor itself, driver's side block on 4.2L, rear top of engine on V8s.. The connector has three pins: Pin A (Tan/White or Brown) is the 5V reference, Pin B (Light Green) is the signal, and Pin C (Tan or Brown/Black) is the ground. Verifying voltage and ground at this connector is a key diagnostic step.

Real Owner Repair Stories

• GMTNation forum user 'CajunWon' (2005 Trailblazer 5.3L) — P0521 code triggered, oil pressure gauge pegged at maximum (80 psi). Scan tool confirmed 128.9 psi reading.
  ❌ Tried (didn't work) The user first sought to verify the actual pressure with a mechanical gauge before proceeding.
  ✅ What actually fixed it The user replaced the oil pressure sensor. They were able to perform the repair without removing the intake manifold by disconnecting the brake booster hose for better access. They noted that the special sensor socket was essential. The user was unable to remove the filter screen underneath but replacing the sensor alone resolved the pegged gauge and cleared the code.

OEM Part Supersession History

• 12596951 → 12621234, then 12673134 — Standard part evolution for improved reliability or manufacturing changes.
  Heads up: The newest part number, 12673134, is the correct service replacement for all previous versions and is recommended to ensure the latest design is used. Some aftermarket sensors may not meet the precise specifications, leading to persistent or recurring codes.

Model Year Variations Within This Range

• 2007+: For 2007 and later models with the 6.0L V8 (LS2), a heavy-duty Hydra-Matic 4L70-E transmission was standard, which has different internal characteristics than the 4L60-E used on 4.2L and 5.3L models. While not directly related to the P0521 code, it's a notable powertrain variation within the specified year range.
