P0521 on 2017-2024 Chrysler Pacifica 3.6L: Oil Pressure Sensor Performance Causes and Fixes

What's Unique About the 2017-2024 Chrysler Pacifica

The 3.6L Pentastar V6 engine has a well-documented history with this code, which is very frequently tied to the integrated oil filter/cooler housing assembly located in the engine's valley. This plastic housing contains the oil pressure sensor and is known to develop cracks or leaks over time, directly causing this code. When this housing cracks, oil pools in the valley and can run down the back of the engine, often being misdiagnosed as a much more expensive rear main seal leak. Unlike many other engines where P0521 might first suggest an oil pump or sludge issue, on the Pacifica, the diagnostic focus almost immediately turns to this specific, high-failure-rate component.

Symptoms You May Notice

• Check Engine Light is on
• Oil pressure warning light may be illuminated on the dashboard
• Oil pressure gauge reading may be erratic, too high, or too low
• Scan tool reads oil pressure at 99 PSI with the key on, engine off.
• In rare cases of actual low pressure, the engine may run rough or make ticking/clattering noises
• Visible oil leak at the back of the engine, dripping from the bellhousing area (often misdiagnosed as a rear main seal).

Most Likely Causes

1. Faulty Engine Oil Pressure Sensor 🔴 High Probability The sensor is a very common failure point on the 3.6L Pentastar engine. It lives in a high-heat area and is prone to electronic failure. A revised part was specified in TSB 18-034-14 Rev. A for the related P0520 code.
   How to confirm: A scan tool showing 99 PSI with the engine off is a strong indicator of a failed sensor. After confirming proper oil level and verifying actual oil pressure is good with a mechanical gauge, the sensor is the primary suspect. The sensor is often replaced along with the housing it sits in as a preventative measure. It is highly recommended to use an OEM Mopar sensor, as aftermarket units are known to fail out of the box or prematurely.
   Typical fix: Replace the oil pressure sensor. This requires removing the upper and lower intake manifolds for access.
   Est. part cost: $25-$60
2. Cracked or Leaking Oil Filter/Cooler Housing 🔴 High Probability → Shop Engine Oil Filter Adapter The OEM housing is made of plastic and is situated in the hot valley of the engine. Over time, heat cycles can cause the plastic to become brittle and crack, leading to oil and/or coolant 🎬 Watch: How to identify a coolant leak from the housing. leaks and erratic sensor readings. Over-tightening the oil filter cap is also a known cause of fractures.
   How to confirm: Visually inspect the engine valley (under the intake manifold) for signs of oil pooling or active leaks around the black plastic housing. Often, a significant oil leak will be present, which may drip down the back of the engine.

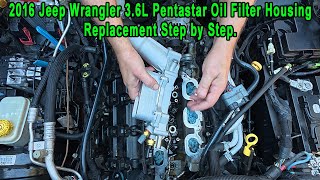

   Typical fix: Replace the entire oil filter/cooler housing assembly. This is a labor-intensive job. Many owners opt for an upgraded cast aluminum replacement housing from brands like Dorman (P/N 926-959) for better durability.
   Est. part cost: $150-$250
3. Incorrect Oil Viscosity or Clogged/Improper Oil Filter 🟡 Medium Probability → Shop Engine Oil Filter Adapter The Pentastar's variable valve timing (VVT) and dual-stage oil pump systems are sensitive to oil viscosity and flow. Using oil other than the specified 0W-20 or a low-quality aftermarket filter can cause pressure deviations that trigger P0521. A GM TSB (PIP5276E) for a similar engine design directly links P0521 to using incorrect oil filters.
   How to confirm: Check service records or drain the oil to see if the correct type is being used. Inspect the oil filter to ensure it is a quality OEM or equivalent part and not collapsed or damaged. Some owners have reported issues with specific budget filter brands.
   Typical fix: Perform an oil and filter change using the correct specification synthetic 0W-20 oil and a high-quality or Mopar oil filter.
   Est. part cost: $50-$100

Rare But Worth Checking

• Failing Oil Pump: → Shop Engine Oil Pump While rare, a sticking pressure relief valve inside the dual-stage oil pump can cause this code, often accompanied by P06DD. This should only be considered after the sensor, housing, and oil quality have been ruled out and a mechanical gauge confirms an actual pressure problem.
• Wiring Harness Damage: The wiring to the oil pressure sensor can become damaged or corroded, causing a bad signal. This is worth inspecting while the intake is removed before replacing parts, as the harness sits in a hot, oil-filled environment if the housing is leaking. In some cases, a wiring fault has been the root cause even after the sensor and housing were replaced.

Diagnosis Steps

1. Check the engine oil level and condition. Ensure it is full and not sludgy or overdue for a change.
2. Scan the PCM for any other stored trouble codes. Note if P0520 or P06DD are also present.
3. With the key on and engine off, check the live data for the oil pressure reading. If it reads a static high value like 99 PSI, the sensor has failed electrically.
4. CRITICAL: Connect a mechanical oil pressure gauge to the engine. This is the only way to know if you have a serious mechanical problem or just a sensor fault. On the 3.6L Pentastar, this requires a special adapter (OEM tool #10242-A or equivalent) that replaces the oil filter cap.
5. Start the engine and compare the mechanical gauge reading to the reading from the scan tool. If mechanical pressure is good and the scan tool reading is erratic or incorrect, the problem is in the sensor circuit.
6. If mechanical pressure is confirmed to be good, proceed with replacing the oil pressure sensor and the oil filter housing assembly. This requires removing the upper and lower intake manifolds.
7. While the intake is off, inspect the wiring and connector going to the oil pressure sensor for any signs of damage, corrosion, or oil contamination.
8. If mechanical pressure is low, further diagnosis of the oil pump and internal engine components (like bearing wear) is required.

Parts You'll Likely Need

• Engine Oil Filter Housing / Cooler Assembly (OEM #68596317AB) — This is the most common point of failure. The original plastic housing cracks, causing leaks and sensor faults. The assembly includes the cooler, new filter, and often new sensors.
  Trusted brands: Mopar, Dorman (offers an upgraded aluminum version, P/N 926-959)
  OEM price range: $190-$250
  Aftermarket price range: $110-$180
• Engine Oil Pressure Sensor (OEM #68295556AA) — This sensor is a high-failure item. It is often replaced with the housing, but can be purchased separately if the housing is not leaking. It is highly recommended to use an OEM Mopar sensor as aftermarket units can be faulty out of the box.
  Trusted brands: Mopar, Standard Motor Products, Walker
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• Upper and Lower Intake Manifold Gaskets (OEM #Fel-Pro P/N: MS 97204) — These must be replaced anytime the intake manifolds are removed to access the oil filter housing and sensor.
  Trusted brands: Mopar, Fel-Pro, Mahle
  OEM price range: $40-$60
  Aftermarket price range: $25-$40

Related Codes That Often Appear With This One

• P0520 — This code indicates a general fault in the 'Engine Oil Pressure Sensor/Switch Circuit'. P0521 is a more specific 'Range/Performance' fault, but they often point to the same root cause: a bad sensor. A TSB was issued for P0520 on Pentastar engines.
• P06DD — This code means 'Engine Oil Pressure Control Circuit Performance/Stuck Off'. It relates to the dual-stage oil pump. An issue causing P0521 can sometimes affect the oil pump's operation, or vice-versa, leading to both codes appearing.

Technical Service Bulletins (TSBs) & Recalls

• Chrysler Service Bulletin 18-034-14 Rev. A, dated July 15, 2014, addresses DTC P0520 on a wide range of 2013-2014 vehicles with the 3.6L engine. It involves replacing the oil pressure sensor with a revised part. While not for P0521 specifically, it confirms a known issue with the sensor on this engine family.

Platform-Specific Known Issues

• The plastic oil filter/cooler housing assembly is a known weak point on the 3.6L Pentastar engine across many Chrysler/Dodge/Jeep/Ram platforms, not just the Pacifica. It is prone to cracking from heat cycles.
• A leaking housing is frequently misdiagnosed as a rear main seal leak because the pooled oil from the engine valley drips down the bellhousing.

Mechanic-Grade Diagnostic Values

• Oil Pressure Sensor Signal Voltage — expected: Approx. 0.5V at low pressure (idle) and rises towards 4.5V at high pressure (high RPM).. Failure: Voltage is stuck at 0V, 5V, or a fixed value that doesn't change with engine RPM. A scan tool reading of ~99 PSI KOEO (Key On, Engine Off) indicates an electrical failure.
• Oil Pressure Sensor Internal Resistance — expected: A good sensor will show continuity (a measurable resistance value) between its three pins in various combinations.. Failure: A failed sensor will often show an open loop (OL) or infinite resistance between all pins, indicating an internal circuit failure.
• Mechanical Oil Pressure (Cold Start) — expected: Can be as high as 139 PSI.. Failure: Significantly lower pressure on a cold start may indicate a problem, though this value will drop rapidly as the engine warms.
• Mechanical Oil Pressure (Warm Engine at Curb Idle) — expected: Minimum of 5 PSI.. Failure: Pressure at or below 5 PSI indicates a serious mechanical issue (worn bearings, failing oil pump) that is not a sensor fault.

Scan Tool Commands That Help

• wiTECH (or equivalent high-level scanner): Dual-Stage Oil Pump Solenoid Actuation — When P06DD is present with P0521, this command can be used to manually toggle the oil pump between its low and high-pressure stages while monitoring a mechanical gauge. This directly tests the pump's solenoid and its ability to change pressure, isolating it from a sensor reading issue.

Wiring & Ground Locations

• Oil Pressure Sensor Connector — On the oil filter housing, located in the engine valley, underneath the upper and lower intake manifolds.. This 3-pin connector provides the sensor with a 5V reference, a ground, and sends the signal back to the PCM. It is highly susceptible to oil contamination from a leaking housing, which can cause corrosion and a poor connection, directly triggering P0521.
• Main Chassis/Engine Grounds — The primary battery ground connects to the chassis on a stud near the battery tray, under the air intake duct. Other critical grounds are located on the engine block and attached to the firewall.. A loose or corroded ground can create an unstable reference voltage for the PCM and its sensors, including the oil pressure sensor. This can cause erratic or incorrect readings, leading to a P0521 code even if the sensor and wiring are otherwise intact. A TSB for another manufacturer (GM PIT5562) highlights how improperly hardened ground bolts can cause a host of electrical issues, a principle that applies here.

Real Owner Repair Stories

• JeepSolid on YouTube (similar 3.6L Pentastar engine) (2012-2017 Jeep Wrangler 3.6L) — Check Engine Light with code P0520 (related to P0521).
  ❌ Tried (didn't work) Replacing the oil pressure sensor., Replacing the entire oil filter housing assembly with new sensors.
  ✅ What actually fixed it The problem persisted after replacing the most common parts. The final fix was tracing the wiring harness from the sensor to the PCM and discovering a fault in the wiring itself, which required repair.
• Reddit user (describing a similar Pentastar issue) (Dodge Charger with HEMI (uses similar sensor logic)) — Persistent P0521 code.
  ❌ Tried (didn't work) Replacing the sensor with an aftermarket part from a local auto parts store.
  ✅ What actually fixed it After the aftermarket sensor failed to resolve the code, the owner replaced it a second time with a genuine OEM Mopar sensor, which finally fixed the issue. This highlights the sensitivity to part quality.

When the Usual Fixes Don't Work

• While the Dorman aluminum oil filter housing (926-959) is widely recommended as a permanent fix over the OEM plastic unit, there are owner reports of the Dorman unit's included gaskets/O-rings failing after about a year, causing a repeat leak. One owner documented replacing a leaking one-year-old Dorman unit with a brand new OEM Mopar housing to resolve the issue. This suggests that while the aluminum body is superior, the sealing components may be a weak point.

OEM Part Supersession History

• 68105583AA, AB, AC, AD, AE, AF, AG; 68310865AA, AB, AC, AF; 68365925AA, AB, AC, AD → 68596317AB — Multiple revisions to the plastic oil filter housing to address cracking and leaking issues. The latest part number represents the most current Mopar design.
  Heads up: While all are for the 3.6L, the newest part (68596317AB) is the recommended replacement. Note that some newer Mopar housings may not include the oil pressure and temperature sensors, requiring them to be purchased separately or transferred from the old unit.

Model Year Variations Within This Range

• 2017-2024: Mopar parts catalogs note that different engine plants used different oil filter adapter assemblies and corresponding temperature/pressure sensors during production. It is critical to verify the correct part using the vehicle's VIN and potentially the 'Engine Plant Code' to avoid incompatibility.
• 2021-2024: A facelift was introduced for the 2021 model year, which included revised styling and the option for All-Wheel Drive (AWD) on non-hybrid models. This does not change the location or diagnosis of P0521, as the 3.6L engine and oil filter housing assembly remain the same.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Harsh Shifting / Transmission Failure (ZF 9-Speed) 🔴 High — Very common, especially in 2017-2018 models. Can occur at low mileage (e.g., 27,000 miles) and may require complete transmission replacement. (Ref: Multiple software update TSBs exist to improve shift quality. A recall (NHTSA 23V-010) was issued for hybrids due to a wiring short causing engine shutdown.)
• Engine Stop-Start (ESS) System Failure 🟠 Medium — Widespread issue where the ESS system becomes unavailable, often stating 'Battery Charging'. This is typically caused by a failing auxiliary battery, which has a short lifespan (approx. 2 years). (Ref: TSB 18-083-24 addresses software logic for low battery/ESS inoperability.)
• Uconnect Infotainment System Glitches 🟡 Low — Common across many model years. Symptoms include screen freezing, random reboots, and unresponsive controls. (Ref: Software updates are often released to address these bugs.)
• Premature Engine Mount Failure 🟠 Medium — Some owners report needing to replace engine mounts as early as 50,000 miles to resolve rough driving and knocking noises.
• Paint Bubbling and Peeling 🟡 Low — Reported on 2017 models, often starting around the hood at approximately 34,000 miles.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: It is strongly advised NOT to buy a used oil filter housing assembly. Since the original part is plastic and known to fail from heat cycles, a used part from a junkyard has already been subjected to years of the same stress and is likely near the end of its service life.

What to inspect on the donor part:

• Not applicable; avoid used plastic housings entirely.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Sensor - Many owners and technicians report that aftermarket sensors (including those that may come pre-installed in aftermarket housings) are often faulty out of the box or fail very quickly. Using a genuine Mopar sensor (P/N 68295556AA) is highly recommended to prevent a repeat repair.

Aftermarket brands forum-validated for this vehicle:

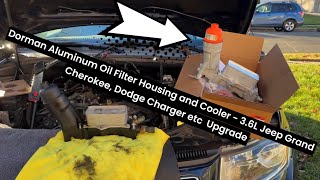

• Dorman (P/N 926-959) - For the housing itself, the cast aluminum Dorman unit is a popular upgrade to prevent the cracking that plagues the OEM plastic part.
• Wix or Mopar - For the oil filter cartridge. The Pentastar engine is sensitive to filter quality and bypass pressure; using a high-quality filter is crucial.

Brands owners have reported issues with on this vehicle:

• Generic/unbranded oil pressure sensors - Prone to early failure.
• Low-cost oil filters - Can cause incorrect pressure readings and trigger P0521. Some owners report issues with the filter included in the Dorman housing kit and recommend replacing it with a Mopar or Wix filter immediately.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0520 — Engine Oil Pressure Sensor Circuit — often mentioned alongside P0521 as a related failure of the oil pressure sensor, addressed in TSB 18-034-14 Rev. A.
• P06DD — Engine Oil Pressure Control Circuit Stuck Low — a code reported by Pacifica owners that relates to the dual-stage oil pump and pressure sensing system.
• P0522 — Engine Oil Pressure Sensor/Switch Low Voltage — related to the electrical failure of the oil pressure sensor located in the engine valley.
• P0523 — Engine Oil Pressure Sensor/Switch High Voltage — often occurs when the sensor fails and sends a static high signal (like 99 PSI) to the PCM.
