P0521 on 2016-2020 Kia Sorento 3.3L V6: Engine Oil Pressure Sensor Fixes

What's Unique About the 2016-2020 Kia Sorento

On the Kia Sorento with the 3.3L Lambda II V6, the oil pressure sensor is a notoriously common failure item. The sensor itself can fail internally or develop a significant oil leak. The primary challenge with this repair is the sensor's location; it is buried deep in the engine valley, underneath the entire upper and lower intake manifold assembly. This makes what would be a simple sensor swap on many other engines a much more involved and labor-intensive job on this specific platform. 🎬 Watch: Step-by-step guide to replacing the oil pressure switch. Some owners and mechanics note that the 2019 and newer models have a slightly different engine valley design that makes accessing the sensor even more difficult, sometimes requiring modification of tools to gain clearance.

Symptoms You May Notice

• Check Engine Light is on
• Oil pressure warning light on the dashboard may be on or flickering, especially at idle when the engine is warm.
• Oil leak from the back of the engine, often dripping from the bellhousing area or weep hole.
• Engine may run rough or make ticking/clattering noises if the oil pressure is actually low.
• Visible oil pooling in the engine valley around the sensor (visible only after intake manifold removal).

Most Likely Causes

1. Faulty Engine Oil Pressure Sensor (Switch) 🔴 High Probability This specific sensor is a well-documented, high-failure-rate part on the 3.3L Lambda V6 engine, known for both electrical failure and developing oil leaks. Kia has acknowledged this by issuing a warranty extension (WTY026) covering this exact part on Sorentos and other models with the same engine.
   How to confirm: The most definitive way is to replace the sensor. A visual inspection after removing the intake manifold will likely reveal oil leaking directly from the sensor's body or oil pooled in the valley. A technician can also use a scan tool to observe erratic voltage readings from the sensor. Before replacement, a mechanical oil pressure test is the proper procedure to rule out a base engine issue.
   Typical fix: Replace the oil pressure sensor. Due to the labor involved, it is highly recommended to also replace the upper and lower intake manifold gaskets at the same time. The GDI high-pressure fuel lines 🎬 Watch: How to remove the intake manifold to access the sensor. may also need to be replaced per manufacturer recommendations.
   Est. part cost: $10-$40
2. Low or Dirty Engine Oil 🟡 Medium Probability
   How to confirm: Check the engine oil level using the dipstick and observe the condition of the oil. If the level is low or the oil is dark, sludgy, or past its service interval, this could be the cause.
   Typical fix: Top off the oil to the correct level or perform a complete oil and filter change using the manufacturer-specified oil viscosity (typically 5W-30).
   Est. part cost: $50-$100
3. Damaged Wiring or Connectors ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness leading to the oil pressure sensor for any signs of damage, corrosion, or loose connections. This is difficult without first removing the intake manifold. Oil saturation from a leaking sensor can also contaminate the connector and wiring.
   Typical fix: Repair or replace the damaged section of the wiring harness or the connector pigtail.
   Est. part cost: $15-$50

Rare But Worth Checking

• Failing Oil Pump: → Shop Engine Oil Pump While rare, if the oil pressure sensor and wiring are confirmed to be good but a mechanical gauge shows low oil pressure, the oil pump itself may be failing. This is a symptom of more severe internal engine wear.
• Clogged Oil Passages or Incorrect Oil Filter: → Shop Engine Oil Filter Adapter Engine sludge from neglected oil changes can block oil passages, and a poor-quality or incorrect oil filter can restrict flow, causing pressure issues. Always use an OEM or equivalent quality oil filter.
• Worn Connecting Rod / Main Bearings: A serious and unfortunately documented issue on some Lambda II 3.3L engines is premature bearing failure. Excessive clearance from worn bearings causes a significant drop in oil pressure, which can trigger P0521 before catastrophic failure. This would be accompanied by knocking noises and metal shavings in the oil.

Diagnosis Steps

1. Check the engine oil level and condition. If low or dirty, correct this first, clear the code, and see if it returns.
2. If the oil level is correct, DO NOT continue to run the engine. The next step is to verify the actual engine oil pressure to prevent catastrophic damage.
3. A professional technician should connect a mechanical oil pressure gauge to the engine to measure the true oil pressure. This is a critical step to rule out a serious internal engine problem like a bad oil pump or worn bearings.
4. If mechanical oil pressure is within specification, the problem is almost certainly electrical (the sensor or its wiring).
5. Given the high failure rate of the sensor and the labor required to access it, the most common and practical next step is to replace the oil pressure sensor.
6. Check with a Kia dealer using your VIN to see if your vehicle is covered under the Oil Pressure Switch Warranty Extension (WTY026), which extends coverage to 15 years / 150,000 miles.
7. While the intake manifold is off, inspect the sensor's wiring connector for oil contamination, corrosion, or damage. Clean any oil out of the connector and engine valley.
8. After reassembly with a new sensor and new intake gaskets, clear the code and perform a test drive to ensure the fix is complete.

Parts You'll Likely Need

• Engine Oil Pressure Switch (OEM #94750-37100) — This is the most common cause of code P0521 on this engine due to a high failure rate. The original part number 94750-37000 has been superseded by 94750-37100.
  Trusted brands: Genuine Kia/Hyundai
  OEM price range: $10-$40
  Aftermarket price range: $10-$30
• Upper and Lower Intake Manifold Gasket Set (OEM #Fel-Pro MS 98024 (Upper Set)) — These gaskets must be replaced anytime the intake manifold is removed to access the oil pressure sensor. Reusing old gaskets will cause vacuum leaks. A complete set including upper and lower gaskets is required.
  Trusted brands: Fel-Pro, Mahle, Genuine Kia/Hyundai
  OEM price range: $50-$80
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• P0520 — This code indicates a general fault in the oil pressure sensor circuit and often appears alongside the more specific P0521 performance code.
• P0522 — This code indicates the sensor circuit voltage is too low, which can be triggered by the same sensor or wiring faults that cause P0521.
• P0524 — This code for 'Engine Oil Pressure Too Low' is more serious. If it appears with P0521, it increases the urgency of verifying actual mechanical oil pressure, as it may not be just a sensor fault.

Technical Service Bulletins (TSBs) & Recalls

• WTY026: Warranty Extension for leaking Oil Pressure Switch on 2014-2018 Sorento 3.3L GDI models, extending coverage to 15 years / 150,000 miles.

Platform-Specific Known Issues

• Kia issued Warranty Extension Program WTY026 for the 2014-2018 Sorento with the 3.3L GDI engine. This extends the warranty for a leaking oil pressure switch to 15 years or 150,000 miles, whichever comes first. Owners may be eligible for reimbursement if they paid for this repair out-of-pocket.

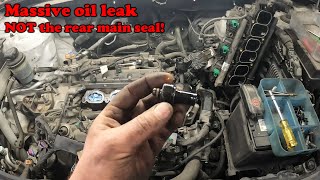

• A leaking oil pressure switch on this engine is frequently misdiagnosed as a rear main seal leak because the oil runs down the valley and exits through a weep hole in the bellhousing, mimicking a leak from the transmission area.
• Accessing the sensor requires a special 24mm (or 15/16") deep socket for oil pressure switches. On some model years, particularly 2019+, mechanics report needing to grind down the socket to get it to fit past obstructions in the engine valley.

Mechanic-Grade Diagnostic Values

• Mechanical Engine Oil Pressure at Idle (engine warm) — expected: 10 - 30 PSI (0.7 - 2.1 bar). Failure: Pressure significantly below 10 PSI, or fluctuating wildly.
• Mechanical Engine Oil Pressure at Higher RPM (e.g., 3000 RPM) — expected: 40 - 70 PSI (2.8 - 4.8 bar). Failure: Pressure does not rise with RPM or is significantly below this range.
• Oil Pressure Sensor Circuit Power — expected: 5 Volt reference feed from the ECM/PCM.. Failure: Voltage that is not 5V indicates a wiring or ECM issue.
• Oil Pressure Sensor Signal Voltage — expected: Varies with pressure, typically within a 0.5V to 4.5V range.. Failure: Voltage is stuck at 0V, 5V, or does not change when engine RPMs are raised and lowered.

Scan Tool Commands That Help

• Kia Diagnostic System (KDS): Data Analysis / Live Data Graphing — To monitor the oil pressure sensor's reported voltage or pressure value in real-time. This is used to see if the sensor signal is erratic, stuck, or does not correlate with changes in engine speed, which would point to a faulty sensor or wiring.

Wiring & Ground Locations

• Engine Ground Wiring Assembly (2016-2018) — Main ground strap for the engine block.. A poor engine ground (Part No. 91860-C6020 for 2015-2018 models) can cause erratic readings from any sensor on the engine, including the oil pressure sensor. Verifying its integrity is a key electrical diagnostic step.
• Transmission Ground Wiring Assembly (2019-2020) — Main ground strap for the transmission case.. On later models, the ground strategy changed (Part No. 91865-C6510 for 2019-2020 models). A poor ground here can affect the overall stability of the powertrain control system and its sensor inputs.
• Oil Pressure Sensor Connector — Deep in the engine valley, under the intake manifolds, on the engine block.. This connector is the primary failure point for wiring issues. It is highly susceptible to contamination from a leaking sensor, which can degrade the connection and cause incorrect signals. The pigtail is available as a separate part for repairs.

Real Owner Repair Stories

• YouTube channel 'Automotive Insight' (2016 Kia Sorento 3.3L V6) — Intermittent oil pressure light and a visible oil leak, diagnosed by a dealer as a faulty oil pressure switch.
  ✅ What actually fixed it The mechanic performed the full job of removing the upper/lower intake manifolds and GDI fuel rails to access and replace the leaking oil pressure sensor. The video highlights the difficulty, confirming the need to create a modified deep socket to gain access in the tight space.
• Reddit user in r/ChevyTrucks (cross-applicable issue) (Chevrolet Truck with P0521) — Recurring P0521 code.
  ❌ Tried (didn't work) Replacing the oil pressure sensor with an aftermarket part from a local auto parts store.
  ✅ What actually fixed it The code was only resolved after replacing the sensor again, but this time with a genuine OEM part. This suggests the vehicle's computer may be sensitive to the specific electrical characteristics of the OEM sensor.
• Reddit user in r/ChevyTrucks (cross-applicable issue) (Chevrolet Truck with P0521) — Recurring P0521 code after a sensor replacement.
  ❌ Tried (didn't work) Replacing the oil pressure sensor.
  ✅ What actually fixed it The issue was resolved by switching to a specific high-quality oil filter (Mobil 1 M1-113A). This indicates that oil flow characteristics of the filter can be a root cause of the code, even if the sensor is new.

When the Usual Fixes Don't Work

• While the oil pressure sensor is the most common failure, simply replacing it does not guarantee a fix. In several documented cases (on other vehicles with the same code), the P0521 code returned after sensor replacement. The actual root cause was found to be either the use of a non-OEM sensor that the PCM rejected, or the use of a low-quality oil filter that altered the oil pressure characteristics just enough to fall outside the expected range. Before assuming a complex wiring or PCM fault after a failed sensor swap, technicians should ensure an OEM sensor and a high-quality OEM-equivalent oil filter are being used.

OEM Part Supersession History

• 94750-37000 → 94750-37100 — The original part was prone to internal and external oil leaks. The updated part is a more robust design to address the high failure rate.
  Heads up: The new part may have a white paint marking on it. Always use the latest part number for replacement.

Model Year Variations Within This Range

• 2016-2018 vs 2019-2020: The main engine and transmission ground straps use different part numbers (91860-C6020 for '15-'18 vs 91865-C6510 for '19-'20), indicating potential changes to the wiring harness routing and grounding points between the pre-refresh and post-refresh models.
• 2016-2018: These model years are explicitly covered by Kia's Warranty Extension (WTY026) for the leaking oil pressure switch, extending coverage to 15 years / 150,000 miles. 2019 and 2020 models are not included in this specific extension.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Connecting Rod Bearing Failure 🔴 High — Increasingly reported as vehicles pass 100,000 miles. Can lead to catastrophic engine failure, sometimes without prior warning. (Ref: NHTSA has investigated, and some warranty extensions for engine issues exist, but not a universal recall for all years.)
• Intake Valve Carbon Buildup 🟠 Medium — Common to all GDI engines. Symptoms like rough idle and reduced MPG can appear from 60,000 miles onward. Requires periodic manual cleaning (e.g., walnut blasting) as fuel additives are ineffective.
• Head Gasket Leaks 🟠 Medium — NHTSA investigated reports of head gasket failure on 2016-2017 models due to insufficient clamping force, leading to coolant loss and overheating. (Ref: Warranty Extension (MC-10248083-0001) to 15 years/180,000 miles for this specific issue on 2016-2017 models.)
• Excessive Oil Consumption 🟠 Medium — Often a precursor to more serious engine issues or a result of carbon buildup on piston rings. Many owners report needing to add oil between changes. (Ref: Dealers may perform an oil consumption test, but warranty coverage varies unless tied to a specific failure like rod bearings.)
• Crankshaft Failure (Limited Production) 🔴 High — Very rare; limited to a small batch of 2017 Sorento 3.3L vehicles produced from March 27-30, 2017, due to improper heat treatment of the crankshaft. (Ref: Safety Recall Campaign SC153)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using used parts is strongly discouraged. The primary failing part (the sensor) is a low-cost wear item, and the secondary parts (gaskets) are single-use. The labor cost is too high to risk failure from a used component.

What to inspect on the donor part:

• Not applicable. Do not use used parts for this repair.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Switch: Due to the extreme labor involved in replacement, using a genuine Kia/Hyundai sensor is critical. Aftermarket sensors have been reported to not resolve the code, likely due to slight differences in electrical characteristics that the PCM flags as a performance error.
• High-Pressure Fuel Lines: If the GDI fuel lines are removed during the procedure, manufacturer guidelines require replacement. These are safety-critical components that should only be replaced with new OEM parts to prevent high-pressure fuel leaks.

Aftermarket brands forum-validated for this vehicle:

• Fel-Pro: For intake manifold gaskets, Fel-Pro is a widely trusted and reliable aftermarket brand.

Brands owners have reported issues with on this vehicle:

• Unbranded 'White Box' Sensors: Avoid generic, low-cost oil pressure sensors from online marketplaces or budget parts stores. The risk of premature failure or incompatibility with the PCM is too high given the labor-intensive nature of the job.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0520 — Often accompanies P0521 as it relates to a general circuit malfunction of the same engine oil pressure sensor/switch.
• P0522 — Related to low voltage in the oil pressure sensor circuit, which can occur when the sensor fails electrically or the connector is contaminated with oil.
• P0523 — Related to high voltage in the oil pressure sensor circuit, another common failure mode for the high-failure-rate sensor on the 3.3L Lambda II engine.
• P0300 — Random misfire code that may appear if the engine is running rough due to actual low oil pressure or if oil fouling from a leak affects engine performance.
