P0521 on 2014-2018 Ram 2500 6.4L Hemi: Engine Oil Pressure Sensor Causes and Fixes

What's Unique About the 2014-2018 Ram 2500

For the 6.4L Hemi engine in this generation of Ram HD trucks, the P0521 code is a very common and well-documented issue. The problem is overwhelmingly likely to be the oil pressure sensor itself, rather than a more serious mechanical engine problem. Owner forums and mechanic videos consistently report that using cheaper, aftermarket sensors often fails to resolve the issue or leads to a quick recurrence; using the genuine Mopar sensor is strongly advised for a lasting repair. This issue is so common on Hemi engines that a Technical Service Bulletin (TSB 18-034-14 Rev. A) was issued for the similar Grand Cherokee SRT with the same engine for a related code (P0520) caused by the same sensor failure.

Symptoms You May Notice

• Check Engine Light is on
• Oil pressure gauge reads erratically (e.g., drops to zero, maxes out at 99 psi, or fluctuates wildly)
• Red oil pressure warning light may be illuminated on the dashboard
• Engine may seem to run normally, with no unusual noises
• Companion code P1524 is often set, disabling the MDS (Multi-Displacement System)

Most Likely Causes

1. Faulty Engine Oil Pressure Sensor 🔴 High Probability The oil pressure sensor on Hemi engines is a known high-failure item. Heat and vibration cause the sensor's internal electronics to fail over time, leading to incorrect readings. The failure is so common that it's a frequent topic in owner forums for all vehicles with the 6.4L Hemi engine.
   How to confirm: After verifying the oil level is correct, the definitive test is to compare the gauge reading to a mechanical oil pressure gauge. If the mechanical gauge shows normal pressure (e.g., ~35 psi at hot idle, ~55 psi cruising) while the dash gauge is erratic, the sensor is bad.

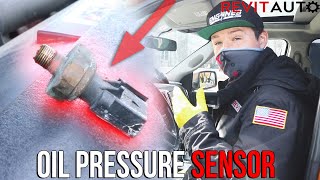

   Typical fix: Replace the engine oil pressure sensor. 🎬 Watch: A breakdown of P0521 causes and common fixes. It is highly recommended to use a genuine Mopar part (68334877AA or superseded number) to avoid repeat failures. Another part number, 68295556AA, is also listed for 2018+ models.
   Est. part cost: $50-$90
2. Incorrect or Low Engine Oil 🟡 Medium Probability The 6.4L Hemi requires a specific full synthetic oil, typically 0W-40 or 5W-40 meeting Chrysler MS-12633 specification, to function correctly, especially for the hydraulic systems like VVT and MDS. Using the wrong viscosity or letting the level get low can cause pressure deviations that trigger P0521.
   How to confirm: Check the oil level on the dipstick. If it is low, top it off. Note the condition of the oil; if it is very dirty, sludgy, or appears foamy, it needs to be changed.
   Typical fix: Perform an oil and filter change using the manufacturer-specified oil (e.g., Pennzoil Ultra Platinum 0W-40 or Valvoline Advanced 5W-40) and a quality oil filter. The oil capacity is approximately 7 quarts.
   Est. part cost: $70-$120
3. Poor Quality or Failed Oil Filter ⚪ Low Probability → Shop Engine Oil Filter Adapter
   How to confirm: This is often discovered after other causes are ruled out. A forum user on RamForum.com reported a 'Prompto' brand oil filter was the culprit, confirmed after a shop verified good mechanical pressure but the code persisted. Cheap filters can have faulty bypass valves or restrictive media that alter oil pressure readings, and on Hemi engines, the oil pressure is measured after the filter, making it sensitive to filter quality.
   Typical fix: Replace the oil filter with a high-quality or OEM filter (e.g., Mopar, Wix) along with a fresh oil change.
   Est. part cost: $10-$20

Rare But Worth Checking

• Wiring or Connector Issue: The wiring harness leading to the sensor can become damaged from heat or vibration, or the connector pins can corrode. Oil can also leak through a failed sensor into the connector itself, causing a poor connection. Inspect the connector for oil contamination when replacing the sensor.
• Sticking Oil Pump Relief Valve: → Shop Engine Oil Pump While documented more in GM TSBs, a sticking relief valve in the oil pump is a possible, though rare, mechanical cause for this code. This would typically be confirmed by a professional technician after verifying low mechanical oil pressure.
• Outdated PCM Software: In some cases, the PCM's software calibration may be too sensitive. While no specific TSB for P0521 on the 6.4L Hemi was found, TSBs like 18-034-16 were released for other FCA engines to improve powertrain diagnostics and could potentially apply. It's worth asking a dealer to check for PCM updates.

Diagnosis Steps

1. Check the engine oil level and condition. Ensure it is full and the oil is the correct 0W-40 or 5W-40 full synthetic.
2. If the oil level is low, top it off, clear the codes, and see if the code returns.
3. If the oil is old or the wrong type, perform a full oil and filter change with high-quality parts.
4. If the oil level and quality are correct, the next step is to verify the actual engine oil pressure. This requires connecting a mechanical oil pressure gauge to the port where the sensor is located.
5. Start the engine and compare the reading on the mechanical gauge to the vehicle's specifications. A healthy 6.4L Hemi should have around 30-35 psi at hot idle and 50-55+ psi while cruising. A minimum spec is often cited as 25 psi at 3000 RPM when hot.
6. If mechanical pressure is normal, the issue is electrical. Inspect the sensor's wiring harness and connector for any signs of damage, corrosion, or loose connections. Check for oil inside the connector.
7. If the wiring is intact and mechanical pressure is good, the oil pressure sensor has failed. Replace it with a genuine Mopar part.
8. If mechanical pressure is confirmed to be low, the problem is more serious and requires further diagnosis of the oil pump, pickup tube, or internal engine components. This should be handled by a professional.

Parts You'll Likely Need

• Engine Oil Pressure Sensor (OEM #68334877AA) — This is the most common failure point for code P0521 on the 6.4L Hemi engine.
  Trusted brands: Mopar
  OEM price range: $50-$90
  Aftermarket price range: $20-$50
• Engine Oil and Filter — An oil change with the correct spec oil and a quality filter is a primary diagnostic step and can sometimes resolve the issue if the old oil or filter was the cause.
  Trusted brands: Pennzoil Ultra Platinum 0W-40, Mopar Oil Filter, Wix Oil Filter
  OEM price range: $70-$120
  Aftermarket price range: $60-$100

Related Codes That Often Appear With This One

• P1524 — This code for 'Oil Pressure Out of Range - Camshaft Advance/Retard Disabled' is a direct result of P0521. The PCM disables systems like MDS and VVT as a protective measure when it can't trust the oil pressure reading.
• P0520 — This code indicates a general fault in the 'Engine Oil Pressure Sensor/Switch Circuit'. It is often caused by the same failing sensor that triggers P0521.
• P0522 — This code for 'Engine Oil Pressure Sensor/Switch Circuit Low' points to the same circuit. A user on RamForum.com reported this code appearing after a P0521, indicating a progression of the sensor's failure.

Technical Service Bulletins (TSBs) & Recalls

• TSB 18-034-14 Rev. A: While for the Jeep Grand Cherokee SRT, it addresses P0520 caused by the same high-failure-rate oil pressure sensor used in the 6.4L Hemi, showing a pattern of known issues with this component.

Platform-Specific Known Issues

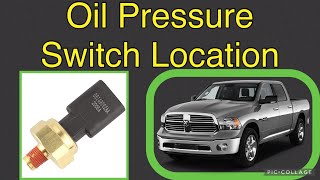

• The oil pressure sensor is located in a tight spot behind and below the alternator on the 6.4L Hemi, making access difficult. A 1 1/16" (or 27mm) deep, and sometimes specialized extra-deep, socket with a swivel and extension is required for removal and installation.
• To gain access, the serpentine belt must be removed from the alternator pulley, and the alternator itself may need to be unbolted and moved aside. Some DIYers manage to do it without fully removing the alternator, but it is very tight.
• The electrical connector has a red sliding lock tab that can be tricky to disengage in the tight space.

Mechanic-Grade Diagnostic Values

• Engine Oil Pressure (Mechanical Gauge) — expected: Approx. 30-35 PSI at hot idle; Approx. 50-55 PSI at cruising speed (2000-2500 RPM).. Failure: If the mechanical gauge shows these normal pressures while the dash gauge is erratic or reads zero, the sensor or wiring is faulty. If the mechanical gauge shows low pressure, a serious internal engine problem exists.
• Oil Pressure Sensor Circuit Voltage/Resistance — expected: A technician would use a multimeter to check for a 5V reference signal, a good ground, and a variable signal voltage at the sensor connector. Specific resistance (ohms) values are not published for this sensor; diagnosis relies on voltage checks and comparison with a known-good sensor or mechanical gauge.. Failure: Absence of 5V reference, high resistance to ground (over 5 ohms), or a signal wire that is shorted to ground or power would indicate a wiring or PCM fault.

Scan Tool Commands That Help

• wiTECH (OEM Dealer Tool): Live Data / Data Display — To view the oil pressure reading as seen by the PCM in real-time. This allows a technician to compare the electronic reading to a mechanical gauge simultaneously to confirm a faulty sensor. The tool can also graph the pressure to identify erratic behavior that might not be obvious on the dash gauge.
• wiTECH (OEM Dealer Tool): View Service Information / Bulletins — The wiTECH software integrates service bulletins directly. A technician would use this to check for any new TSBs or software updates related to P0521 for the specific vehicle's VIN before beginning repairs.

Wiring & Ground Locations

• Oil Pressure Sensor Connector — On the engine block, below and behind the alternator. It is a 3-pin connector with a red sliding lock tab.. This is the primary point of failure for wiring. It is susceptible to heat damage, vibration, and oil contamination from a leaking sensor. A poor connection here will directly cause P0521.
• PCM Connectors (Tan and Grey) — On the Engine Control Module (ECM/PCM), typically located in the engine bay.. To definitively rule out a wiring issue, a technician would test for continuity and shorts on the oil pressure sensor circuit wires between the sensor connector and the corresponding pins at the PCM connector. A detailed guide for accessing these connectors exists for throttle control diagnostics and follows the same procedure.
• G305 — A primary frame/chassis ground point, often located near the left (driver's side) fender area or on the engine block itself.. While not exclusive to the oil pressure sensor, this is a critical ground for multiple engine management components. A loose or corroded G305 can create unstable reference voltages for various sensors, including the oil pressure sensor, leading to erratic readings and codes like P0521.

Real Owner Repair Stories

• RamForum.com user 'TJS43' (2017 Ram 2500 6.4L Hemi with 96k miles) — While towing, the oil pressure light would come on when slowing to a stop. After an oil change, the pressure would drop to 5-10 psi for a few seconds at a stop once the engine was warm, then return to normal.
  ❌ Tried (didn't work) Performing an oil change., Replacing the oil pressure sensor with a new part (brand not specified, but issue persisted).
  ✅ What actually fixed it The user was advised by other forum members to verify the actual pressure with a mechanical gauge and to check the wiring, as the new sensor did not solve the problem. The final resolution was not posted, but the story serves as a critical example that P0521 is not *always* fixed by a new sensor, pointing to potential wiring or mechanical oil pump issues.

When the Usual Fixes Don't Work

• While the vast majority of P0521 cases on the 6.4L Hemi are a failed sensor, it is not a 100% guarantee. As seen in one forum post, a user replaced the sensor, but the issue of pressure dropping at idle persisted. This forces a more advanced diagnosis, starting with verifying true mechanical pressure. If mechanical pressure is good, the fault lies in the wiring harness between the sensor and the PCM. If mechanical pressure is genuinely low at idle, the cause is more severe, potentially involving the oil pump or internal engine wear.

OEM Part Supersession History

• 68295556AA → 68334877AA — Part consolidation and revision. The 68334877AA part is listed for a very wide range of Mopar vehicles from 2019-2023+, indicating it is the most current revision.
  Heads up: While 68295556AA was specified for 2018 models, the 68334877AA is the current, correct replacement and is backward compatible. Using the latest revision is recommended.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Broken Exhaust Manifold Bolts 🟠 Medium — Very common. The bolts, especially those nearest the firewall, are prone to breaking due to thermal cycles, causing an exhaust leak often mistaken for a 'Hemi tick'. (Ref: No recall, but aftermarket kits with upgraded bolts and spacers are widely available.)
• Lifter/Camshaft Failure ('Hemi Tick') 🔴 High → Shop Engine Camshaft — A significant and well-documented issue, though not affecting every engine. Often attributed to the MDS (Multi-Displacement System) lifters, but non-MDS lifters can also fail. Failure of the lifter's roller bearing can destroy the camshaft, leading to a $6,000+ repair. Extended idling and long oil change intervals are considered contributing factors.
• Water Pump Failure 🟠 Medium — Water pumps can fail, leading to coolant leaks or overheating. Replacement on the 6.4L is more involved than on other engines as the intake manifold must be removed to access a coolant tube connected to the pump.
• Transmission Issues (66RFE) 🟠 Medium — The 6-speed 66RFE automatic transmission used in this generation can have issues, particularly with valve bodies or solenoids, and sometimes struggles with shift logic when towing.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used part is NEVER recommended. The oil pressure sensor is a high-failure, low-cost electronic component. The labor involved in accessing it makes installing a used part with unknown remaining life a poor economic choice.

What to inspect on the donor part:

• Not applicable. Do not use a used sensor.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Sensor

Aftermarket brands forum-validated for this vehicle:

• None consistently reported. While major brands like Standard Motor Products (SMP) exist, the overwhelming consensus from mechanics and owner forums is that non-OEM sensors have a high rate of premature failure or are inaccurate out of the box for this specific application.

Brands owners have reported issues with on this vehicle:

• All non-Mopar brands carry a significant risk of repeat failure. The cost savings of an aftermarket sensor are quickly negated if the code returns and the job must be done a second time.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P1524 — A common companion code to P0521 that indicates oil pressure is out of range for MDS (Multi-Displacement System) operation, resulting in the system being disabled.
• P0520 — A related oil pressure sensor circuit code mentioned in TSB 18-034-14 Rev. A, caused by the same high-failure-rate sensor used in 6.4L Hemi engines.
• P0300 — Random or multiple cylinder misfire codes can appear alongside oil pressure issues if internal engine damage (like lifter failure) has occurred.
• P0305 — Cylinder 5 misfire code, which has been reported by owners in conjunction with low oil pressure readings and engine ticking.
