P0524 on 2008-2016 Audi A5 2.0T: Engine Oil Pressure Too Low Causes and Fixes

What's Unique About the 2008-2016 Audi A5

The EA888 2.0T engine in the 2008-2016 A5 has a well-documented history of high oil consumption, often due to piston ring design, which was the subject of a class-action lawsuit. This makes a genuinely low oil level a very frequent cause for P0524. Additionally, this engine uses a two-stage oil pressure system with a variable displacement oil pump controlled by a solenoid valve. This system is monitored by two separate pressure sensors (one for low pressure, one for high pressure), adding complexity to the diagnosis. A failure of the pump's control solenoid, the sensors, or the wiring can trigger the code, sometimes without a true low-pressure condition.

Symptoms You May Notice

• Red oil pressure warning light on the dashboard, often with a message to "Switch off engine".
• Check Engine Light (Malfunction Indicator Lamp) is illuminated.
• Unusual engine noises, such as ticking, tapping, rattling, or knocking, especially at hot idle or low RPM.
• Reduced engine power or the engine entering 'limp mode'.
• Engine stalls or automatically shuts down to protect itself.
• Warning light appears only at hot idle and disappears when RPMs increase.

Most Likely Causes

1. Low Engine Oil Level 🔴 High Probability The EA888 Gen 2 engine is notorious for excessive oil consumption (over 1 quart per 1,000 miles) due to piston ring design, making it easy for the oil level to drop below the minimum safe threshold. This was the subject of TSB 2027731 and multiple class-action lawsuits.
   How to confirm: Check the engine oil level immediately using the dipstick or the vehicle's MMI system. The engine must be off for several minutes and on a level surface.
   Typical fix: Top up the engine with the manufacturer-specified oil (typically VW 502 00 approved 5W-40 synthetic oil). Monitor consumption closely. If consumption is excessive, the long-term fix involves replacing pistons and rings with updated parts.
   Est. part cost: $15-$25 for a quart of oil.
2. Faulty Oil Pressure Sensor(s)/Switch(es) 🟡 Medium Probability These sensors operate in a harsh environment and can fail, sending false low-pressure signals to the ECM. The EA888 has two sensors (a low-pressure and a high-pressure one), increasing the potential points of failure. They can also leak oil through the connector, causing faulty readings.
   How to confirm: If the oil level is correct, a technician must connect a mechanical oil pressure gauge to the engine to verify the actual pressure. If the mechanical pressure is within spec (e.g., >1.2 bar at hot idle), the sensor(s) are faulty. Visually inspect the sensor connectors for oil contamination.

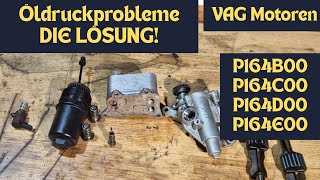

   Typical fix: Replace the faulty oil pressure sensor(s). 🎬 Watch: How to fix intermittent oil pressure warnings It is often recommended to replace both at the same time. They are located near the oil filter housing.
   Est. part cost: $20-$60 per sensor.
3. Failing Oil Pump or Clogged Oil Pickup Tube ⚪ Low Probability → Shop Engine Oil Pump Sludge buildup from extended oil change intervals or debris from other failing components (like timing chain guides) can clog the oil pickup tube screen, starving the pump. The pump itself, which is part of a balance shaft module, can also fail mechanically, though this is less common than sensor issues.
   How to confirm: This is confirmed when a mechanical gauge shows consistently low oil pressure across all RPMs, even with a correct oil level. Requires removal of the oil pan for visual inspection of the pickup tube and pump.
   Typical fix: Remove the oil pan, clean or replace the oil pickup tube, and replace the oil pump/balance shaft assembly.
   Est. part cost: $200-$800 for an oil pump assembly.
4. Failed Oil Pressure Control Valve (N428) ⚪ Low Probability The EA888 uses a solenoid valve (N428) to switch between high and low oil pressure stages. This valve can become stuck or fail electronically, often getting stuck in the low-pressure setting.
   How to confirm: Diagnosis involves using a diagnostic scan tool (like VCDS) to check for specific fault codes related to the valve (e.g., P164D - 'Oil Pressure Switch for reduced Oil Pressure Malfunction'). A technician can also command the valve to switch stages and monitor the pressure response.
   Typical fix: Replace the oil pressure control valve. 🎬 See this 2.0T low oil pressure fix walkthrough On the 2.0T, this solenoid is located on the lower part of the engine block, often near the accessory bracket.
   Est. part cost: $50-$100.

Rare But Worth Checking

• Failed PCV / Oil Separator: A failed PCV valve (part of the oil separator assembly) is a very common issue on the EA888 engine. It can create excessive vacuum or pressure in the crankcase, which can affect oil circulation and has been anecdotally linked to oil pressure warnings. A quick test is to try removing the oil filler cap at idle; if it's held on by strong suction or pushed off by pressure, the PCV has likely failed.
• Worn Internal Engine Components: Excessive wear on crankshaft bearings or camshaft journals creates larger clearances, which can cause a drop in overall oil pressure. This is usually a sign of a high-mileage, poorly maintained, or previously oil-starved engine. If a mechanical gauge shows low pressure that doesn't improve with a new pump, this is the likely cause, and an engine rebuild or replacement is necessary.
• Debris from Failed Timing Chain Guides: The early EA888 engines are known for timing chain tensioner failures. When the plastic guides break apart, pieces can fall into the oil pan and get sucked into the oil pickup tube, causing a blockage and starving the oil pump. This would typically be accompanied by timing-related fault codes or a startup rattle.

Diagnosis Steps

1. STOP THE ENGINE IMMEDIATELY. Do not restart until the oil level is checked.
2. Check the engine oil level. If low, top up with VW 502 00 specification 5W-40 oil and see if the warning disappears. Note the amount of oil added.
3. If the oil level is correct, DO NOT assume it is safe to drive. The vehicle should be towed to a qualified mechanic to prevent engine damage.
4. A technician will connect a mechanical oil pressure gauge to the engine to measure the actual oil pressure. This is a critical step.
5. The mechanical pressure will be compared to Audi's specifications. At hot idle (around 80°C), the pressure should be at least 1.2 bar (approx. 17.4 PSI). At 2000 RPM, it should be 1.6-2.1 bar.
6. If mechanical pressure is GOOD: The problem is electrical. The primary suspects are the oil pressure sensors (switches) and their wiring/connectors. Inspect connectors for oil saturation and replace sensors as needed.
7. If mechanical pressure is LOW: The problem is mechanical. The technician will scan for codes like P164D to check the pressure control valve. If no valve codes are present, the next step is to drop the oil pan to inspect for sludge, debris from timing components, and a clogged oil pickup tube screen. If the screen is clear, the oil pump itself is the likely culprit.

Parts You'll Likely Need

• High Pressure Oil Pressure S

Related Codes That Often Appear With This One

• P164D — This is a manufacturer-specific code for 'Oil Pressure Switch for reduced Oil Pressure Malfunction'. It points directly to an issue with the two-stage oil pressure regulation system, either the control solenoid (N428) or the reduced pressure sensor itself.
• P0341 — Camshaft Position Sensor Circuit Range/Performance. The camshaft adjusters (phasers) are hydraulically operated by engine oil pressure. If oil pressure is low, the camshafts may not adjust correctly, leading to timing-related faults.
• P0521 — Engine Oil Pressure Sensor/Switch Range/Performance. This code often appears with P0524 and points to a discrepancy between the expected and actual oil pressure sensor readings, further indicating a sensor or wiring issue.

Technical Service Bulletins (TSBs) & Recalls

• TSB #2027731 / 17-13-03: Addresses excessive oil consumption on the 2.0T TFSI engine. The fix involves multiple stages, starting with a new PCV valve and ECM software update, and potentially culminating in piston and connecting rod replacement if consumption persists.

Platform-Specific Known Issues

• Widespread oil consumption issues on EA888 Gen 2 engines can lead to P0524 if the oil level is not checked frequently.
• The two-stage oil pressure system, with its two sensors and control valve, adds complexity and potential failure points not found on simpler engines.

Mechanic-Grade Diagnostic Values

• Reduced Oil Pressure Switch (F378) Trigger Pressure — expected: Switch closes above 0.5 - 0.8 bar (7.25 - 11.6 psi).. Failure: If the switch is open (no continuity to ground) when engine is running at idle, it can trigger a P0524. The ECM expects to see a closed circuit.
• Oil Pressure Switch (F22) Trigger Pressure — expected: Switch closes between 2.3 - 3.0 bar (33.3 - 43.5 psi).. Failure: This switch is for the high-pressure stage. A failure here is less likely to cause P0524 (low pressure fault) but may trigger other codes like P164B.
• N428 Oil Pressure Control Valve Solenoid Resistance — expected: ~5 - 10 Ohms. Failure: An open circuit (infinite resistance) or a short circuit (near-zero resistance) indicates a failed solenoid winding.

Hidden / Shadow Codes Worth Checking

• P164D: Oil Pressure Switch for reduced Oil Pressure Malfunction. This code is more specific than P0524 and points directly at the F378 (low pressure) switch or its circuit. It frequently appears alongside P0524, especially for faults that occur at hot idle. (see via VCDS, OBDeleven, or other professional-grade VW/Audi diagnostic tools.)
• P164B: Oil Pressure Switch Malfunction. This code points to the F22 (high pressure) switch or its circuit. While less common with P0524, it can indicate a broader issue within the two-stage pressure regulation system. (see via VCDS, OBDeleven, or other professional-grade VW/Audi diagnostic tools.)

Scan Tool Commands That Help

• VCDS (VAG-COM): Output Test for N428 - Oil Pressure Regulating Valve — When P0524 is present and mechanical pressure is suspect, or if code P164D is also stored. This test allows the technician to command the valve to switch between high and low pressure stages. By monitoring a mechanical gauge simultaneously, one can confirm if the valve is physically responding to the ECM's command, isolating a bad valve from a wiring or ECM issue.

Wiring & Ground Locations

• Main Engine Ground Strap — Typically located on the driver's side of the engine bay, connecting the engine block or transmission housing to the chassis frame rail near the engine mount.. While not a primary cause, a corroded or loose main ground can create floating voltages and unstable sensor readings across the engine. If P0524 is intermittent and accompanied by other seemingly unrelated electrical faults, inspecting this ground is a crucial step.
• F378 / F22 Sensor Connector — On the oil filter housing assembly. The F378 (reduced pressure) is often a brown connector and the F22 (high pressure) is often blue or black.. These connectors are prone to oil contamination from leaking sensors or spills during oil changes. Oil inside the connector can disrupt the signal, causing false readings. The wiring harness in this area can also become brittle from heat and chafe against the engine block, causing intermittent shorts or opens.

Real Owner Repair Stories

• AudiWorld & Audizine forum user reports (2010 Audi A4 2.0T (EA888 Gen 2)) — P0524 and red oil pressure light, but only at hot idle. RPMs above 1000 would make the light go away.
  ❌ Tried (didn't work) Replacing the reduced pressure sensor (F378, brown sensor)
  ✅ What actually fixed it The Oil Pressure Control Valve (N428) was faulty and sticking in the low-pressure position. Replacing the N428 valve resolved the hot idle pressure drop.
• Audizine forum user report (2011 Audi A5 2.0T) — Intermittent P0524 code. Mechanical pressure gauge test showed pressure was perfectly within spec at all RPMs.
  ❌ Tried (didn't work) Replacing both the high and low pressure oil sensors (F22 and F378).
  ✅ What actually fixed it A detailed inspection found that the wiring harness leading to the lower pressure sensor (F378) had chafed against a metal bracket on the engine block, causing an intermittent short to ground that mimicked a low-pressure signal. Repairing the wire and protecting the harness fixed the issue permanently.
• Reddit r/MechanicAdvice user report (2010 Audi A4 B8 2.0T) — Low oil pressure light comes on at operating temperature when idling. Mechanical gauge showed 1 bar (14.5 PSI) at idle, which is borderline low.
  ❌ Tried (didn't work) Topping up oil., Considering sensor replacement.
  ✅ What actually fixed it Forum consensus pointed to a clogged oil pickup tube screen in the oil pan as the most likely mechanical cause for these specific symptoms. Dropping the pan for cleaning is the recommended fix before suspecting the oil pump itself.

OEM Part Supersession History

• 06H115243F, 06H115243C → 06H115243L (and potentially later revisions) — Internal design improvements to prevent sticking and electronic failure.
  Heads up: The newer parts are generally backward compatible. Always use the latest revision available from the dealer.
• 038919081H (Brown, Reduced Pressure Switch) → 038919081K — Improved durability and resistance to internal leaking.
• 06K919081 (Blue/Black, High Pressure Switch) → Multiple revisions exist (e.g., 06E919081F). — Improved accuracy and reliability.
  Heads up: Ensure the pressure rating matches the vehicle's requirement.

Model Year Variations Within This Range

• 2008-2012 (Pre-facelift B8): These models primarily use the EA888 Gen 2 engine (e.g., CAEB) and are most susceptible to the oil consumption issue due to piston ring design. P0524 on these models has a very high probability of being caused by a simple low oil level.
• 2013-2016 (Facelift B8.5): These models received a facelift and often have a revised version of the EA888 Gen 2 engine with updated timing chain tensioners and, in later years, revised piston rings that reduced oil consumption. While still possible, oil consumption is a less frequent cause of P0524 compared to the pre-facelift models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption 🔴 High — Very common on pre-2013 EA888 Gen 2 engines, often appearing after 30,000-60,000 miles. (Ref: TSB 2027731; Subject of a class-action lawsuit which led to an extended warranty for this specific issue.)
• Timing Chain Tensioner Failure 🔴 High — Common on earlier EA888 engines (approx. before 2013). The original tensioner can fail without warning, allowing the chain to jump, causing catastrophic engine damage. (Ref: Subject of a class-action lawsuit and multiple TSBs. An updated tensioner design resolves the issue.)
• Water Pump / Thermostat Housing Failure 🟠 Medium — The plastic water pump and thermostat housing are prone to cracking and leaking, typically between 60,000 and 90,000 miles. (Ref: Multiple revisions of the part exist. Many owners upgrade to an aftermarket aluminum housing.)
• Intake Valve Carbon Buildup 🟠 Medium — As a direct-injection engine, carbon deposits build up on the back of the intake valves over time, typically requiring cleaning every 50,000-70,000 miles to prevent misfires and power loss.
• PCV Valve / Oil Separator Failure 🟠 Medium — The diaphragm in the PCV valve can tear, causing a high-pitched squeal, rough idle, and various pressure-related fault codes. It's a common failure item, often needing replacement every 50,000-70,000 miles. (Ref: Part has been through many revisions; always use the latest version.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used part is generally not recommended for critical lubrication system components. The only exception might be a wiring harness connector pigtail if a new one is unavailable, or a complete low-mileage engine assembly from a reputable dismantler as a last resort.

Donor-vehicle mileage cap: roughly under 70000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a complete engine, ask for service history to verify regular oil changes.
• Check for milky residue under the oil filler cap (indicates coolant mixing).
• Inspect for heavy sludge buildup visible through the oil filler hole.
• Avoid engines from vehicles with significant front-end damage where the oil pan or front-mounted components could have been impacted.

OEM-only on this vehicle (don't cheap out):

• Oil Pressure Sensors/Switches (F22, F378)
• Oil Pressure Control Valve (N428)
• Oil Pump / Balance Shaft Module
• Oil Filter (Use OEM or OEM-supplier brands like Mann, Mahle, Hengst)

Aftermarket brands forum-validated for this vehicle:

• Oil Filters: Mann, Mahle, Hengst
• Engine Oil (VW 502 00 Spec): Liqui Moly, Motul, Castrol EDGE, Mobil 1

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' oil pressure sensors from online marketplaces.
• No-name, cheap oil filters, as they are known to collapse and cause oil starvation.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P164D — Commonly seen with P0524; specifically refers to a malfunction in the Oil Pressure Switch for reduced Oil Pressure, often involving the N428 control valve.
• P0521 — Related to oil pressure sensor range/performance; often triggered by the same faulty sensors or oil dilution issues found in the EA888.
• P0522 — Low voltage at the oil pressure sensor; occurs when sensors fail or connectors become saturated with oil, a known issue on this engine.
• P0011 — Camshaft timing over-advanced; can be triggered when low oil pressure (P0524) prevents the cam adjusters from functioning correctly.
